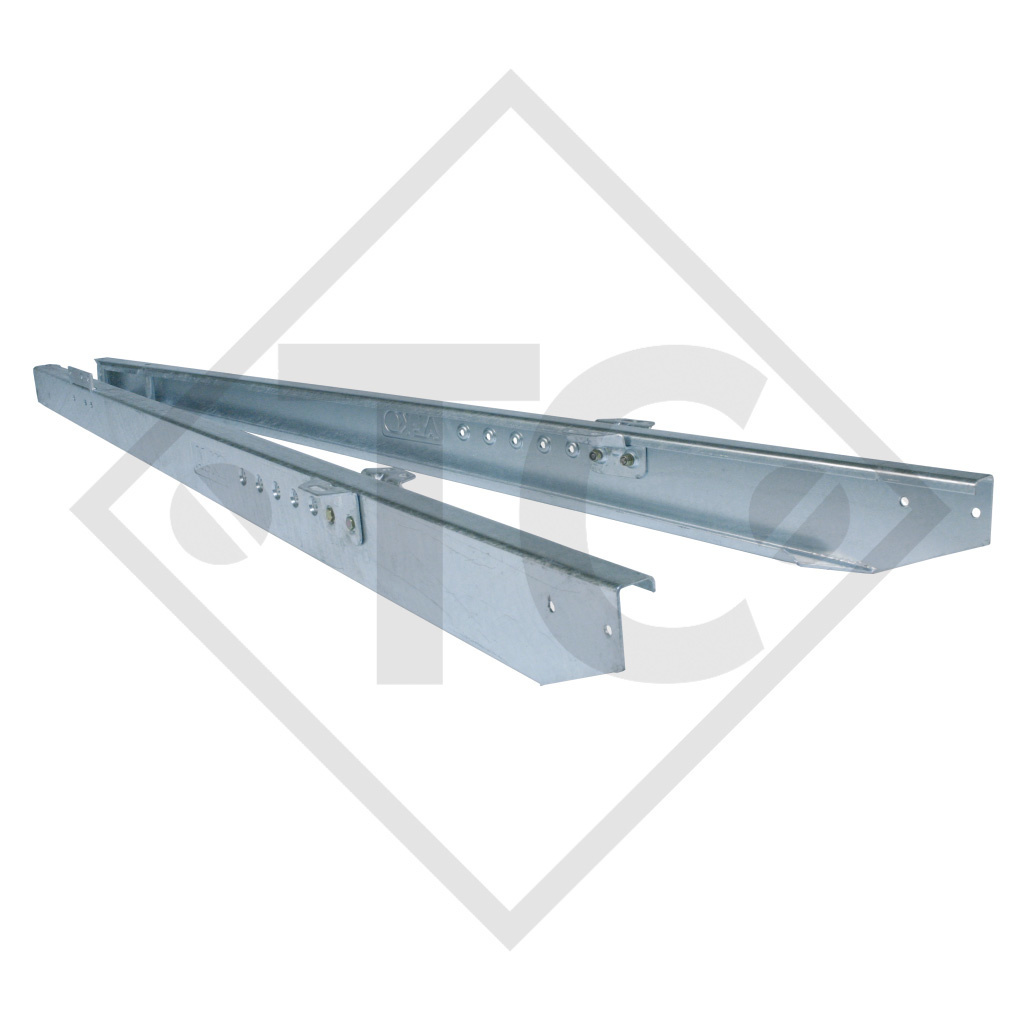

Towbar connection (pair) type 351T to 3000kg

total length A 3000mm, dimension F 166mm, nose load 150kg, suitable for overrun device top installation type AE 3000 and 251G. Read more...

Wishlist: Add to comparison:

Price 483,00 EUR Incl. tax Excl. Shipping costs

- +

Add to cart

Part no. per pair 1224752

Towbar connection

Type

351T

Test code

ECE: E1 55R-01 0539

Gross weight trailer

3000kg

Nose load

150kg

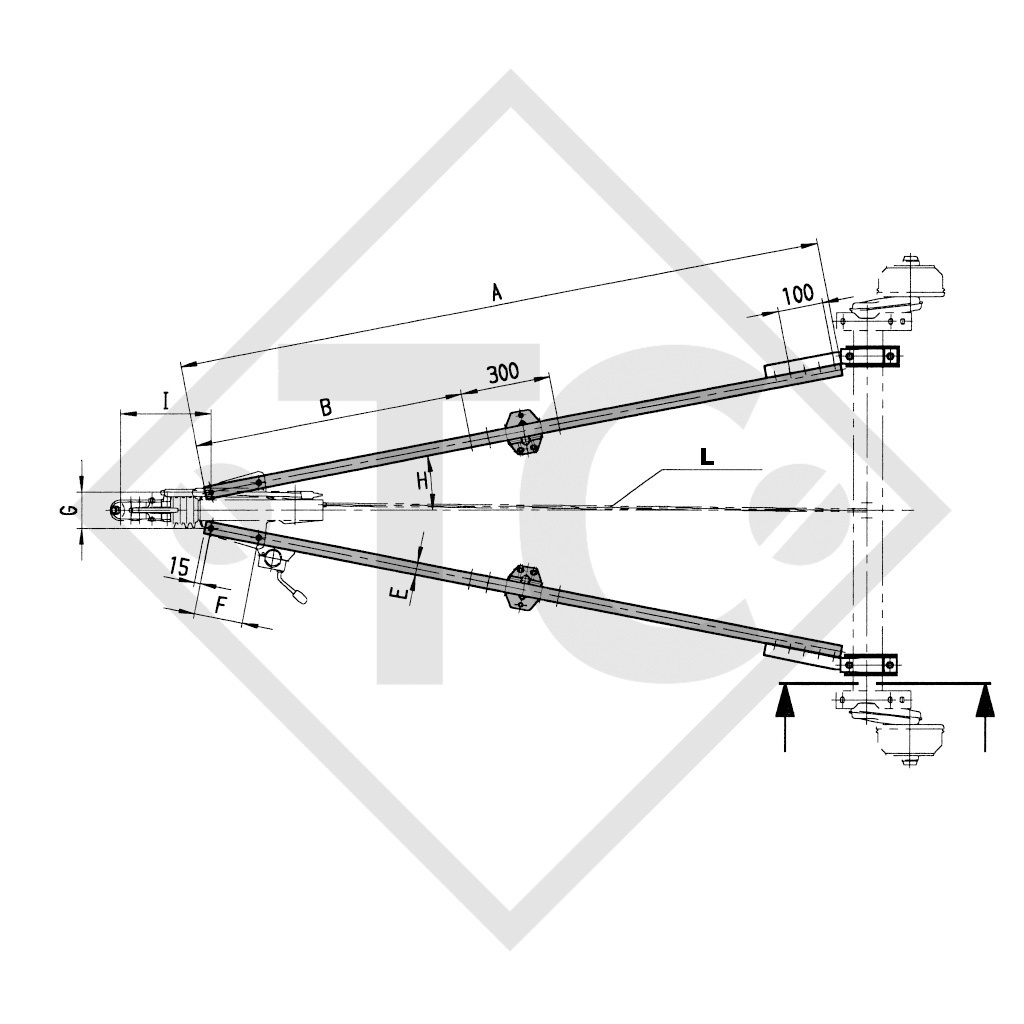

Dimensions Length

3000mm

B	1370 to 1670mm

80mm

53mm

50mm

166mm

120mm

Overrun device

H with top installation

12° to 15°

H with bottom installation

13,5° to 15°

308mm

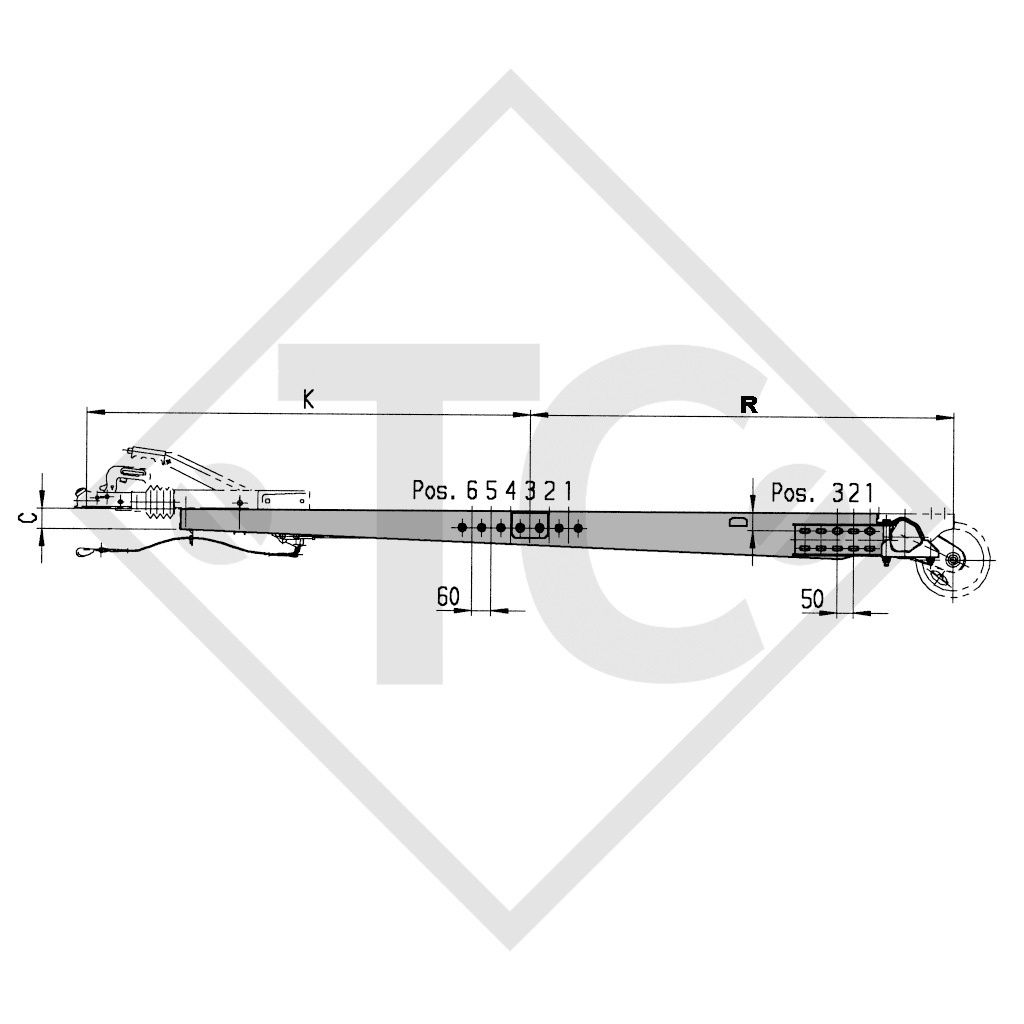

K with

H 12° 1180 to 1475mm

R (loaded)

1125 - 1515mm

K max. permitted acc. to report

1945mm

Matching overrun device top installation type

AE3000 / 251G

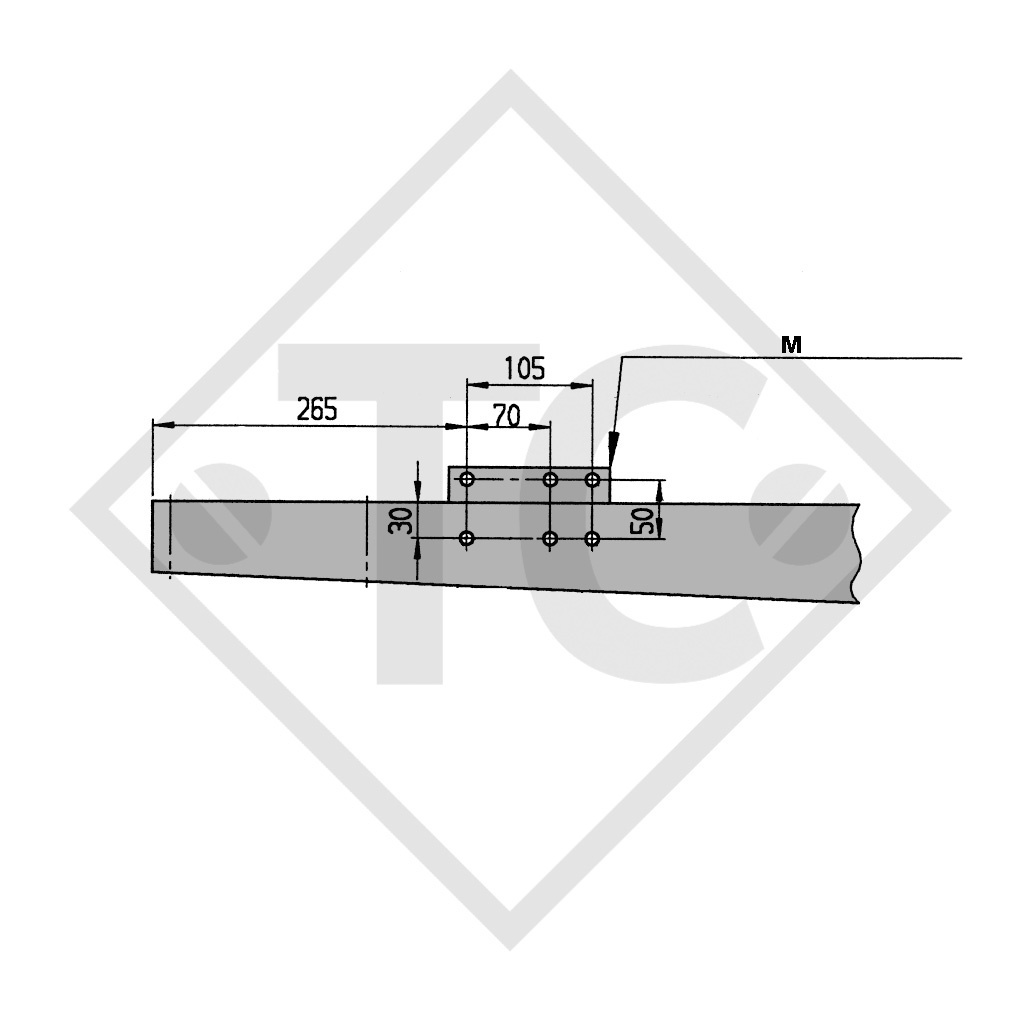

M	Plate for 251T and 351T

TOWBAR CONNECTIONS
Calculation diagram and setting values

SURFACE TREATMENT
Hot-dip galvanised

SCOPE OF DELIVERY
Towbar connection (pair) including:
Fixing bolts
Jockey wheel attachment

AL-KO Towbar connection (pair) type 351T to 3000kg
