Part no. per pair 1731106
| Test code |
ECE: E1 55R-01 0535 |
| Gross weight trailer |
2800kg |
| H with top installation |
8° to 15° |
| H with bottom installation |
13,5° to 15° |
K with
|
H 11° 1170 to 1465mm |
| K max. permitted acc. to report |
1800mm |
| Matching overrun device top installation type |
251S / 251G |

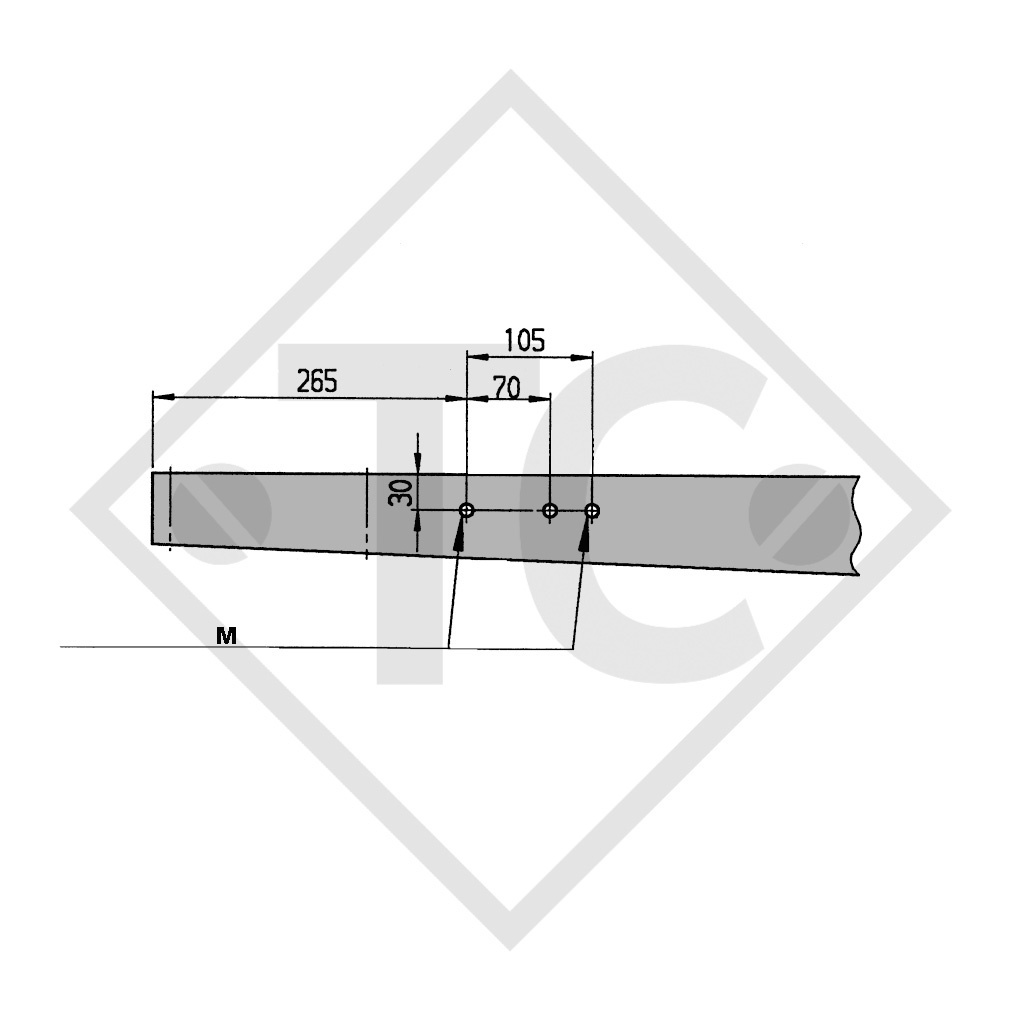

M
|
Plate for 251T and 351T |
TOWBAR CONNECTIONS

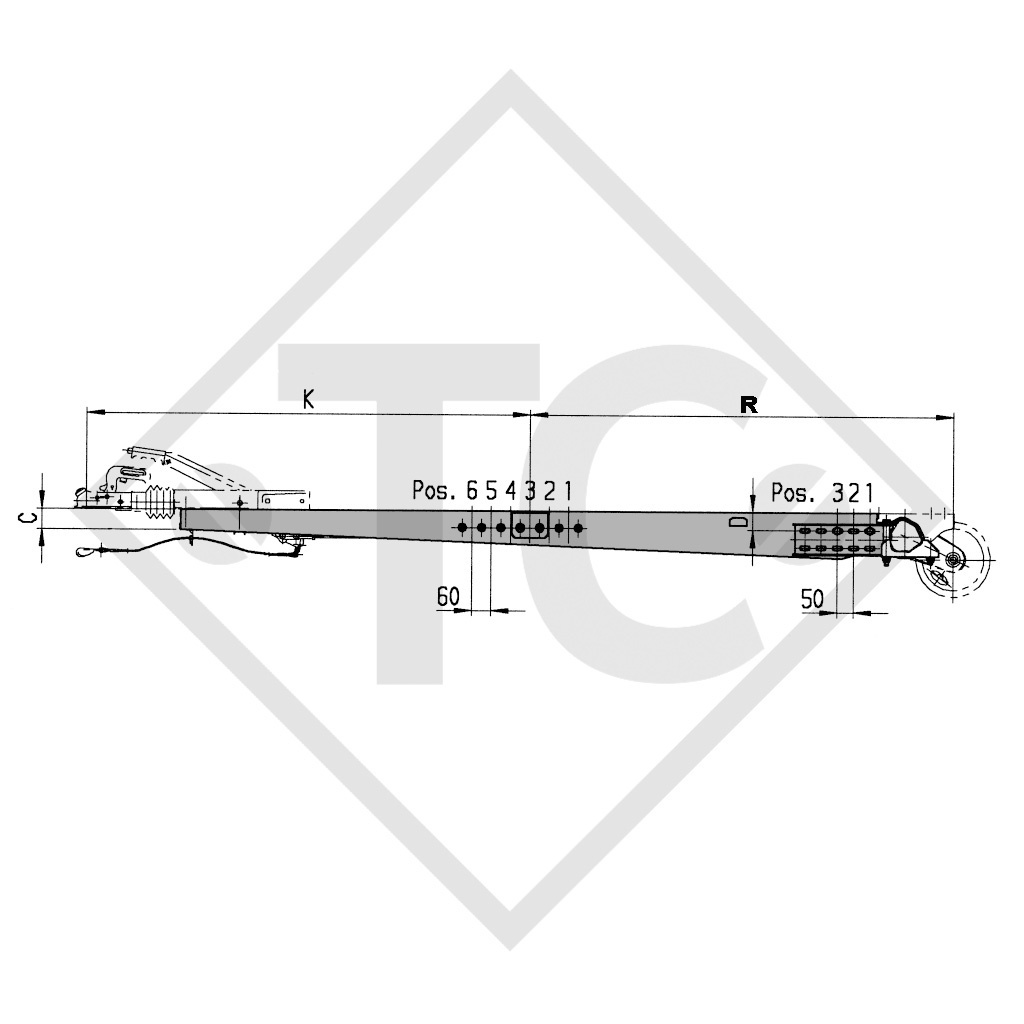

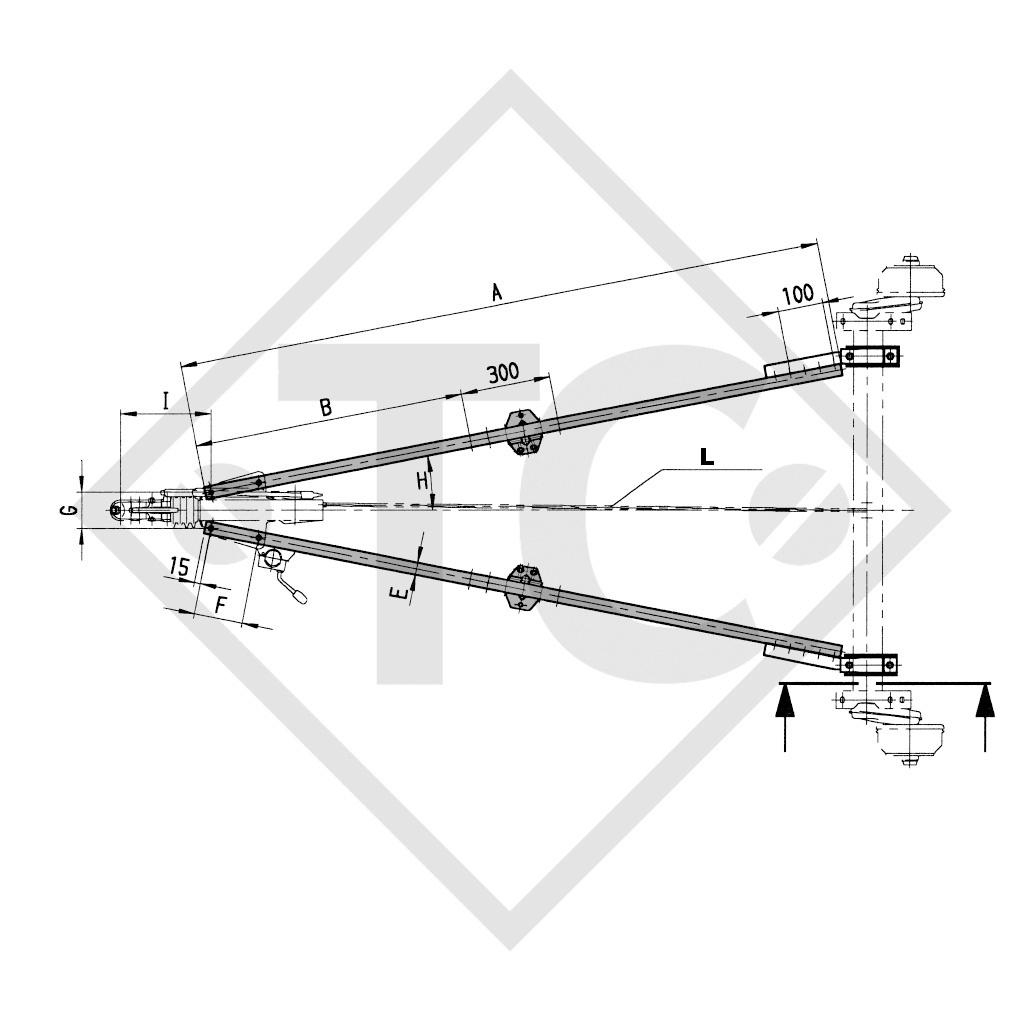

Calculation diagram and setting values
SURFACE TREATMENT
Hot-dip galvanised
SCOPE OF DELIVERY

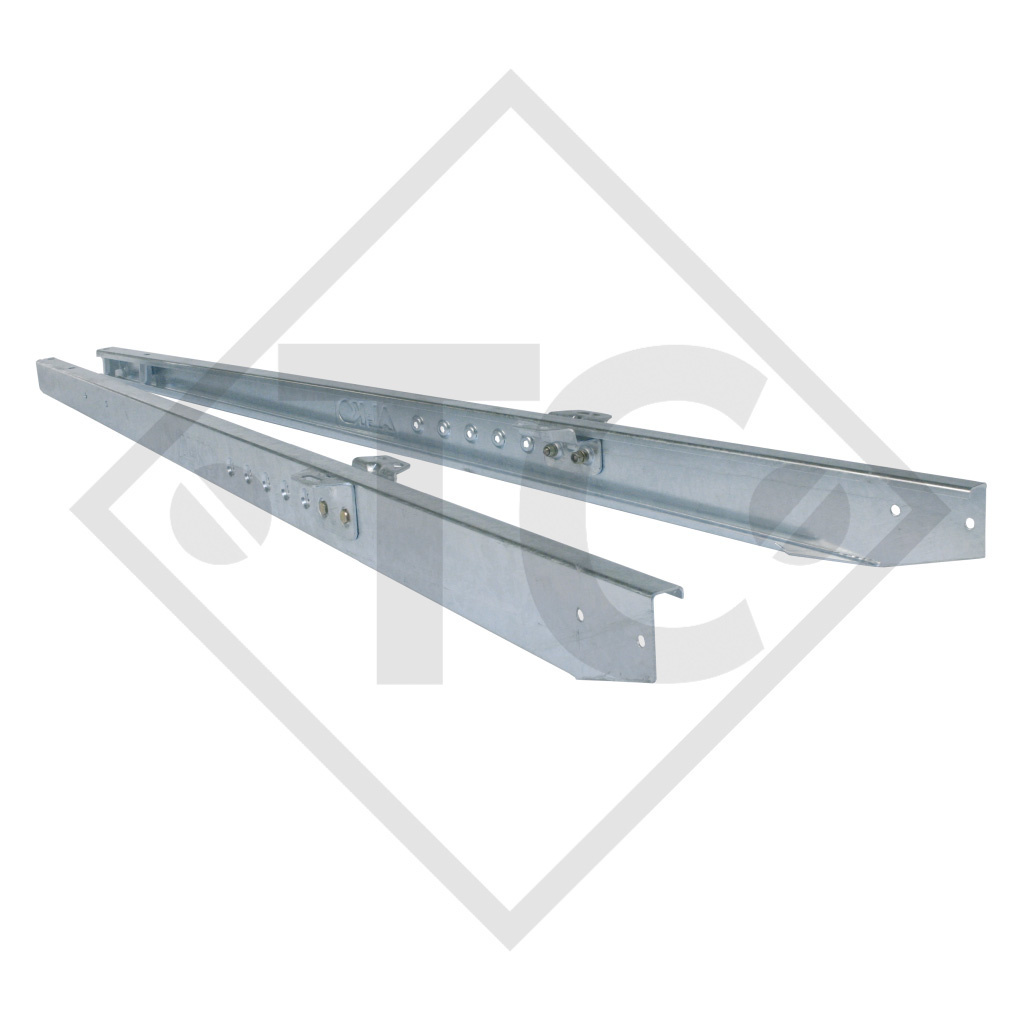

Towbar connection (pair) including:
Fixing bolts
Jockey wheel attachment
ACCESSORIES (please order separately)
Towbar connection (pair) with fixing bolts for attachment to the axle
