total length A 2500mm, dimension F 166mm, nose load 100kg, suitable for overrun device top installation type 251S and 251G. Read more...
Part no. per pair 249386
| Towbar connection |
| Type | 251T |
| Test code | ECE: E1 55R-01 0535 |
| Gross weight trailer | 2800kg |
| Nose load | 100kg |

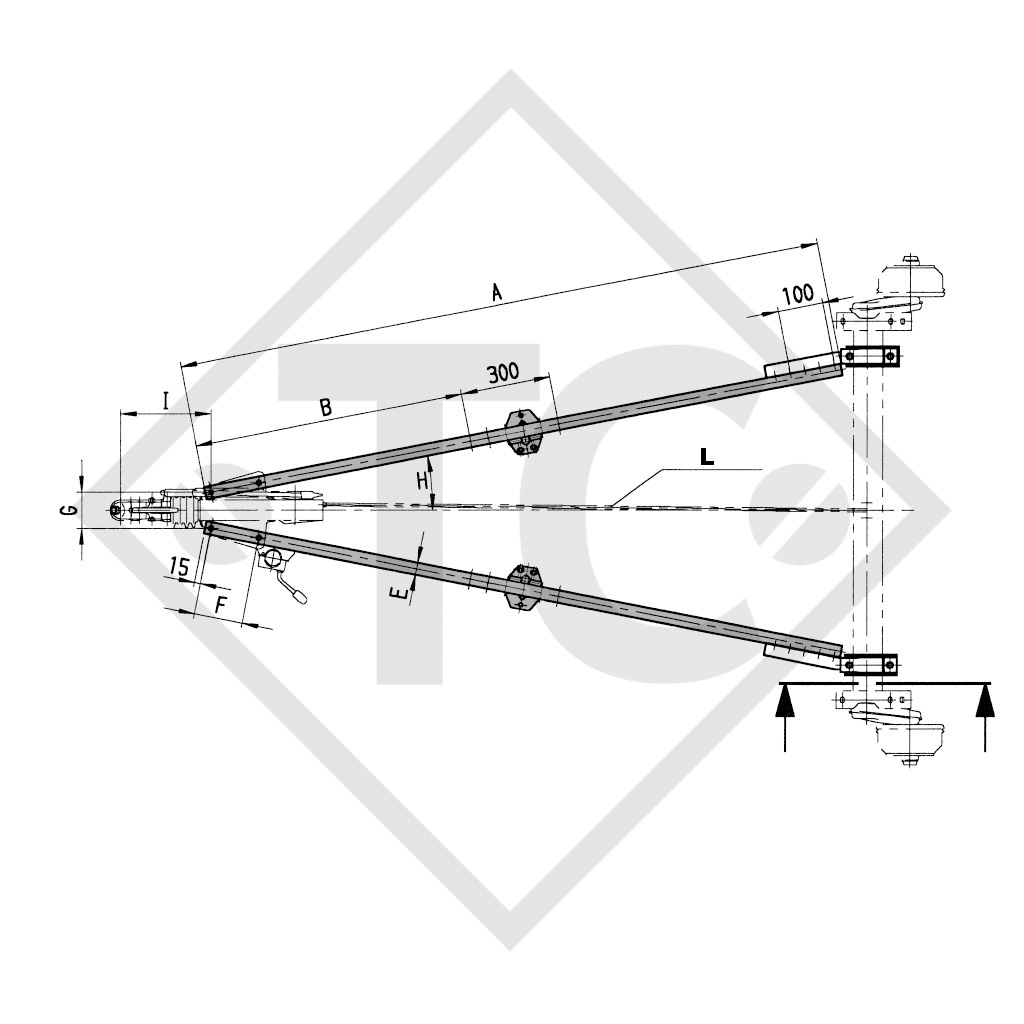

| Dimensions Length |
| A | 2500mm |
| B | 900 to 1200mm |
| C | 60mm |
| D | 53mm |
| E | 50mm |
| F | 166mm |
| G | 120mm |
| Overrun device |
| H with top installation | 8° to 15° |
| H with bottom installation | 13,5° to 15° |
| I | 303mm |

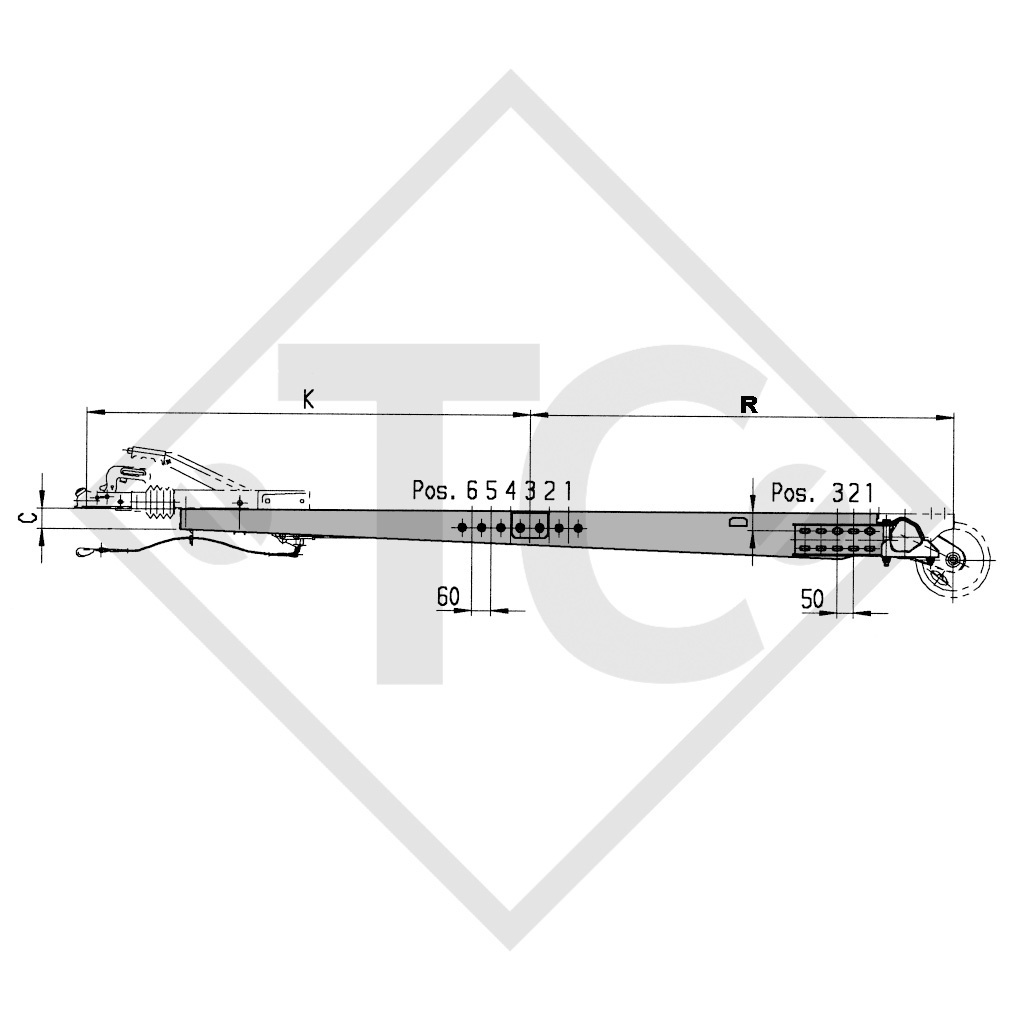

| K with |
H 11° 1170 to 1465mm |
| R (loaded) |
1520 - 1915mm |
| K max. permitted acc. to report | 1800mm |
| Matching overrun device top installation type | 251S / 251G |

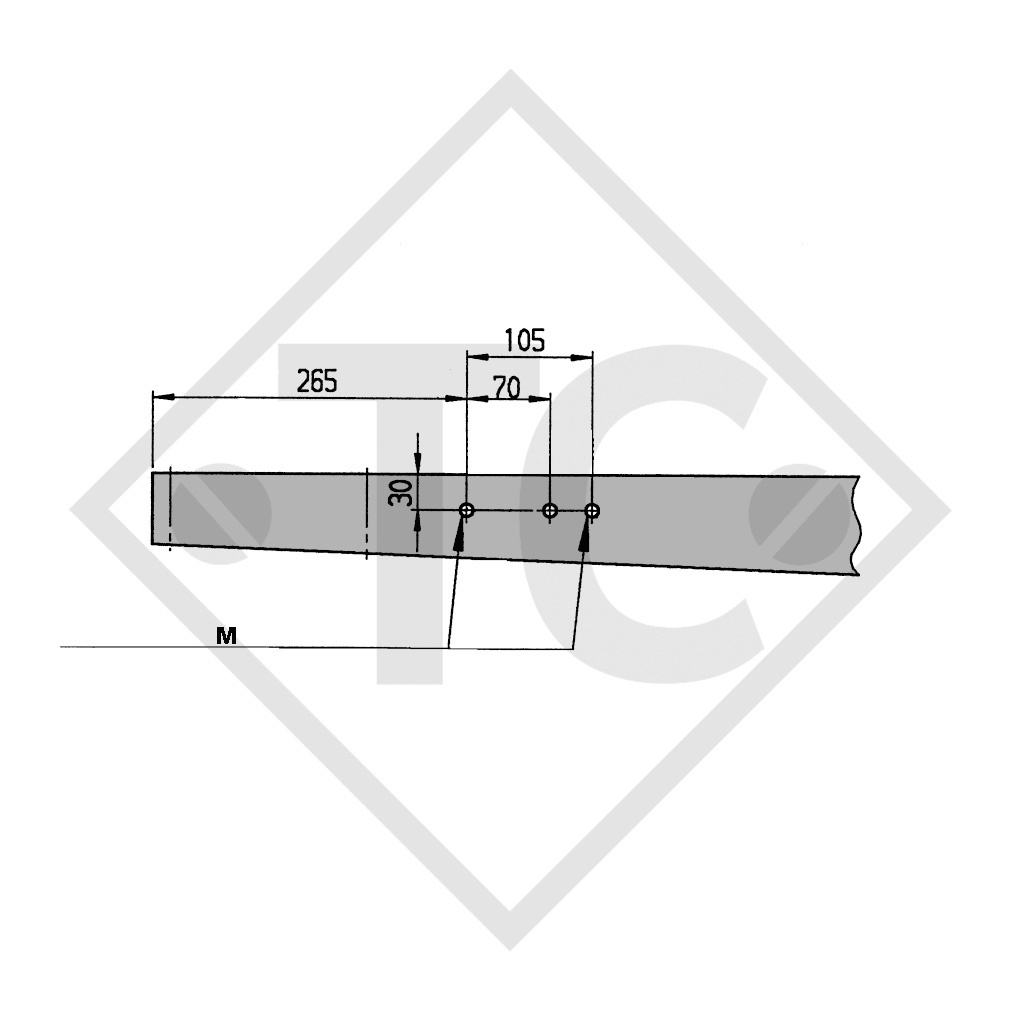

| M |
Plate for 251T and 351T |
TOWBAR CONNECTIONS
Calculation diagram and setting values
SURFACE TREATMENT
Hot-dip galvanised
SCOPE OF DELIVERY

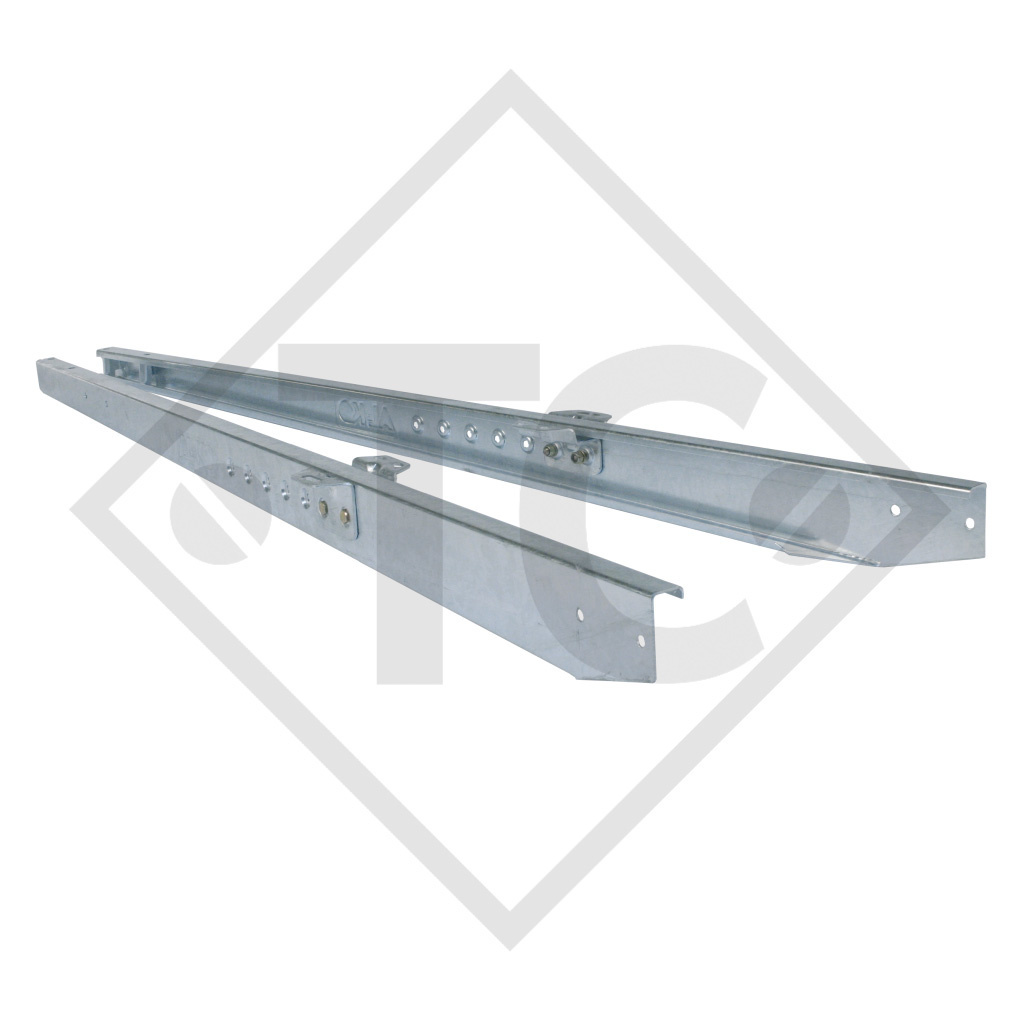

Towbar connection (pair) including:
Fixing bolts
Jockey wheel attachment
ACCESSORIES (please order separately)
Towbar connection (pair) with fixing bolts for attachment to the axle
Pull bar (L) with fixing bolts part no. 249440, M10 length 2225mm
