total length A 1850mm, dimension F 130mm, nose load 100kg, suitable for overrun device top installation type 60S/2 and 90S/3. Read more...
Part no. per pair 249377
| Towbar connection |
| Type | 101T |
| Test code | ECE: E1 55R-01 0538 |
| Gross weight trailer | 1000kg |
| Nose load | 100kg |

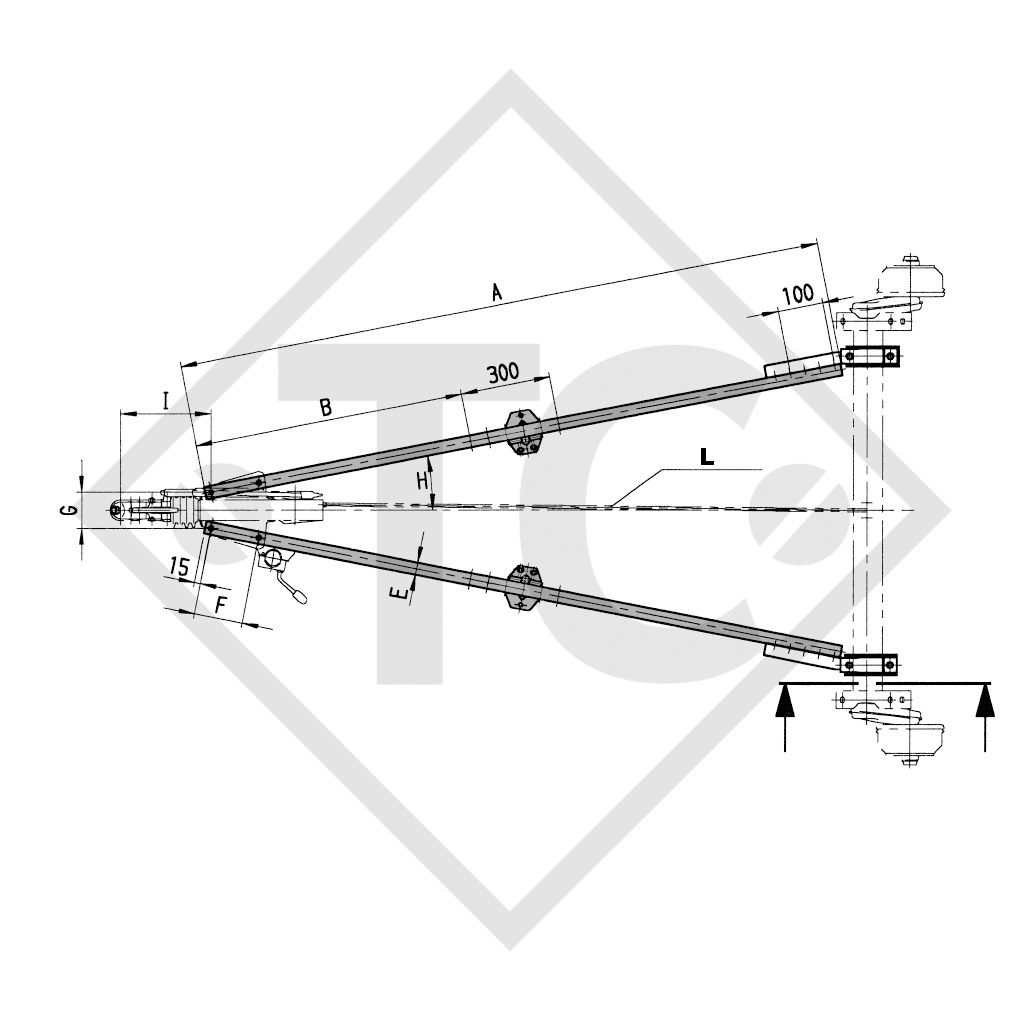

| Dimensions Length |
| A | 1850mm |
| B | 900 to 1200mm |
| C | 60mm |
| D | 53mm |
| E | 40mm |
| F | 130mm |
| G | 100mm |
| Overrun device |
| H with top installation | 11° to 13,5° |
| H with bottom installation | 11° to 13,5° |
| I | 302mm |

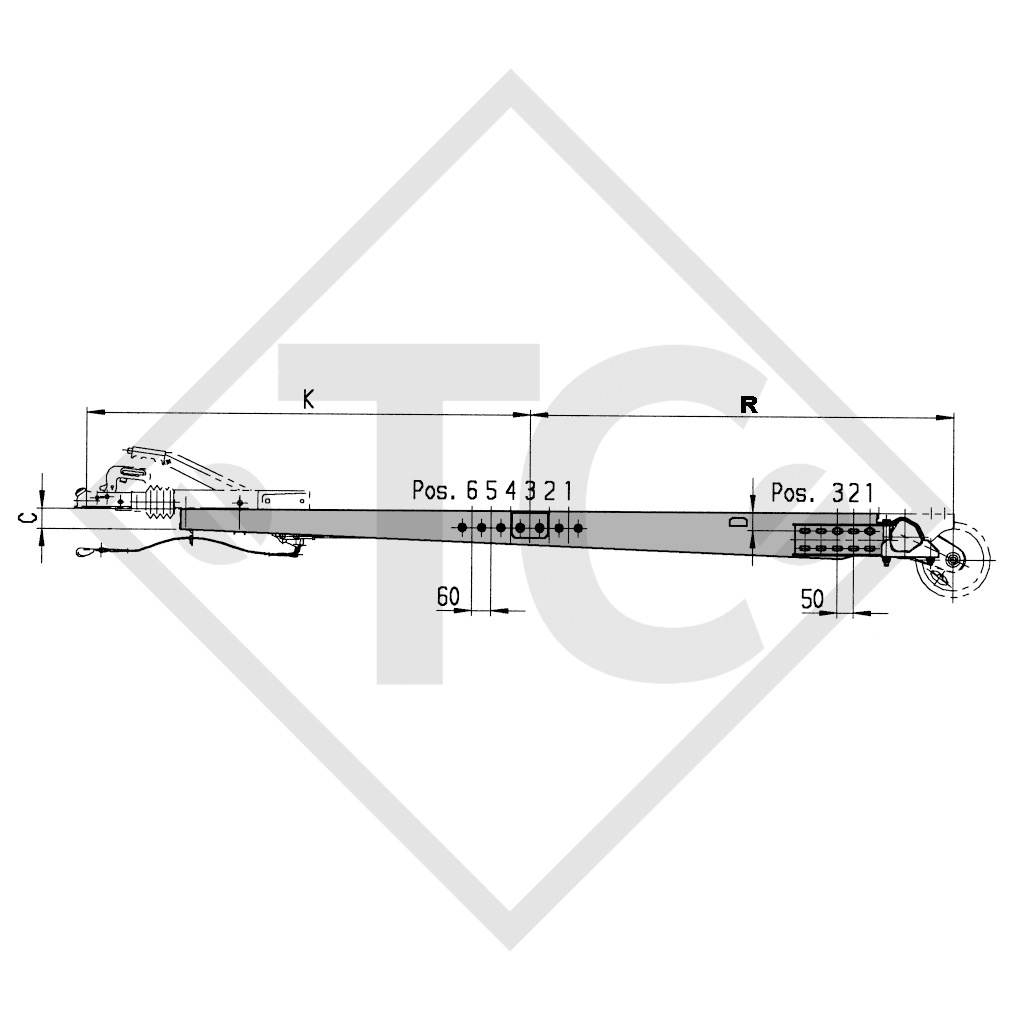

| K with |
H 11° 1170 to 1465mm |
| R (loaded) |
885 - 1175mm |
| K max. permitted acc. to report | 1820mm |
| Matching overrun device top installation type | 60S/2 and 90S/3 |
| M |
Holes for 101T and 161T |
TOWBAR CONNECTIONS
Calculation diagram and setting values
SURFACE TREATMENT
Hot-dip galvanised
SCOPE OF DELIVERY

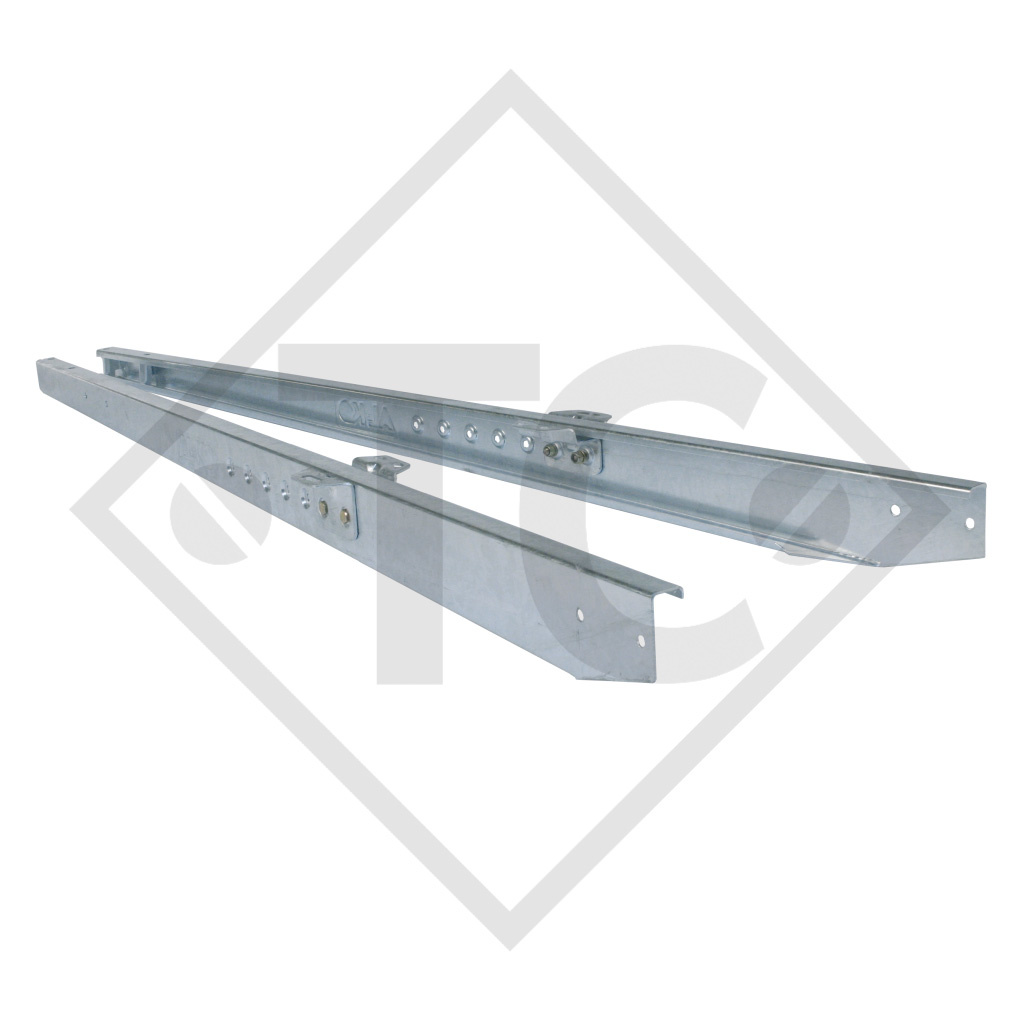

Towbar connection (pair) including:
Fixing bolts
Jockey wheel attachment
ACCESSORIES (please order separately)
Towbar connection (pair) with fixing bolts for attachment to the axle
Pull bar (L) with fixing bolts part no. 249434, M10 length 1650mm
