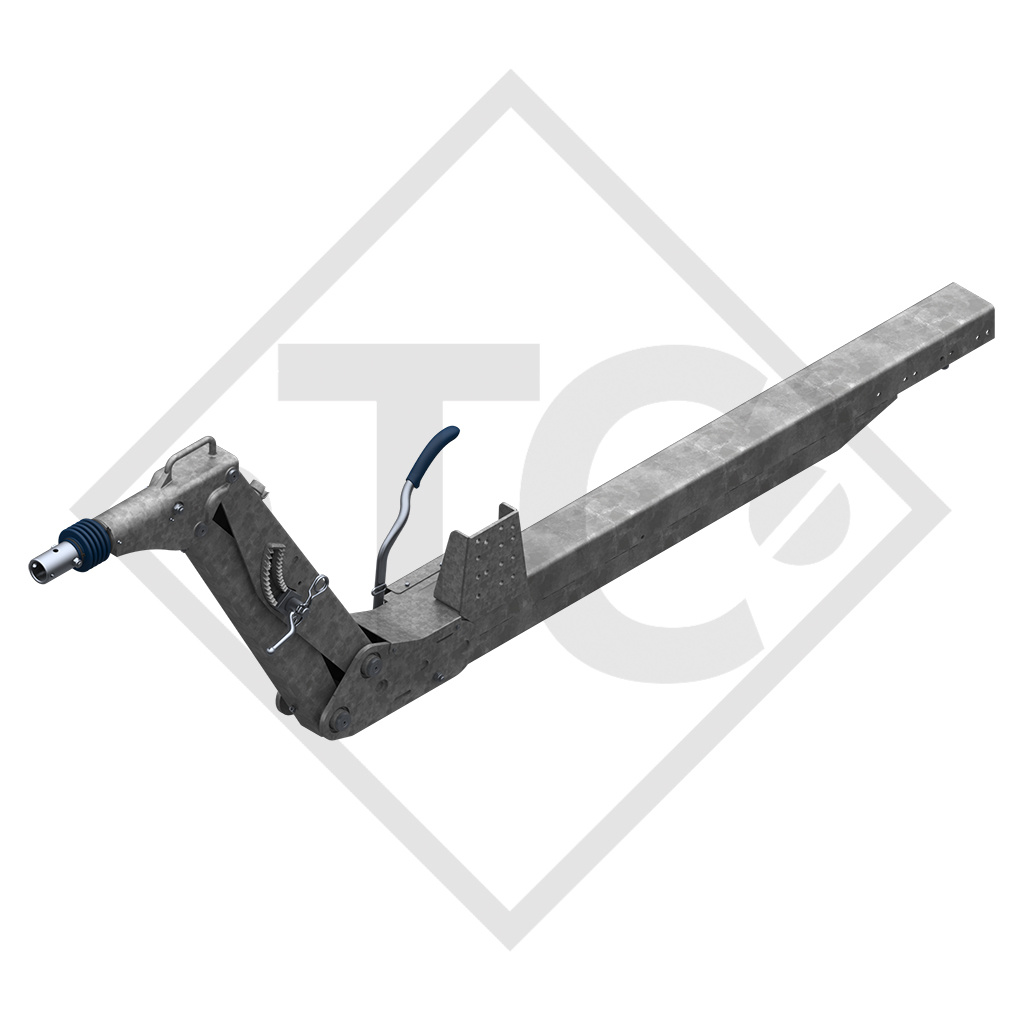

Home / Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.085

drawbar length L 1900mm, measure B 0-693mm, FD at max. 2700kg: 3500mm, drawbar section K square 150x132mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 2005-7, S 2504-7 and S 3006-5. Read more...

Wishlist: Add to comparison:

Product description

Part no. OLD 47.43.470.085
Part no. NEW 4014120

Gross vehicle weight rating
 1860-2700kg
Marketed under ZAV 2,7-4
Overrun hitch AE 2,7-1 A

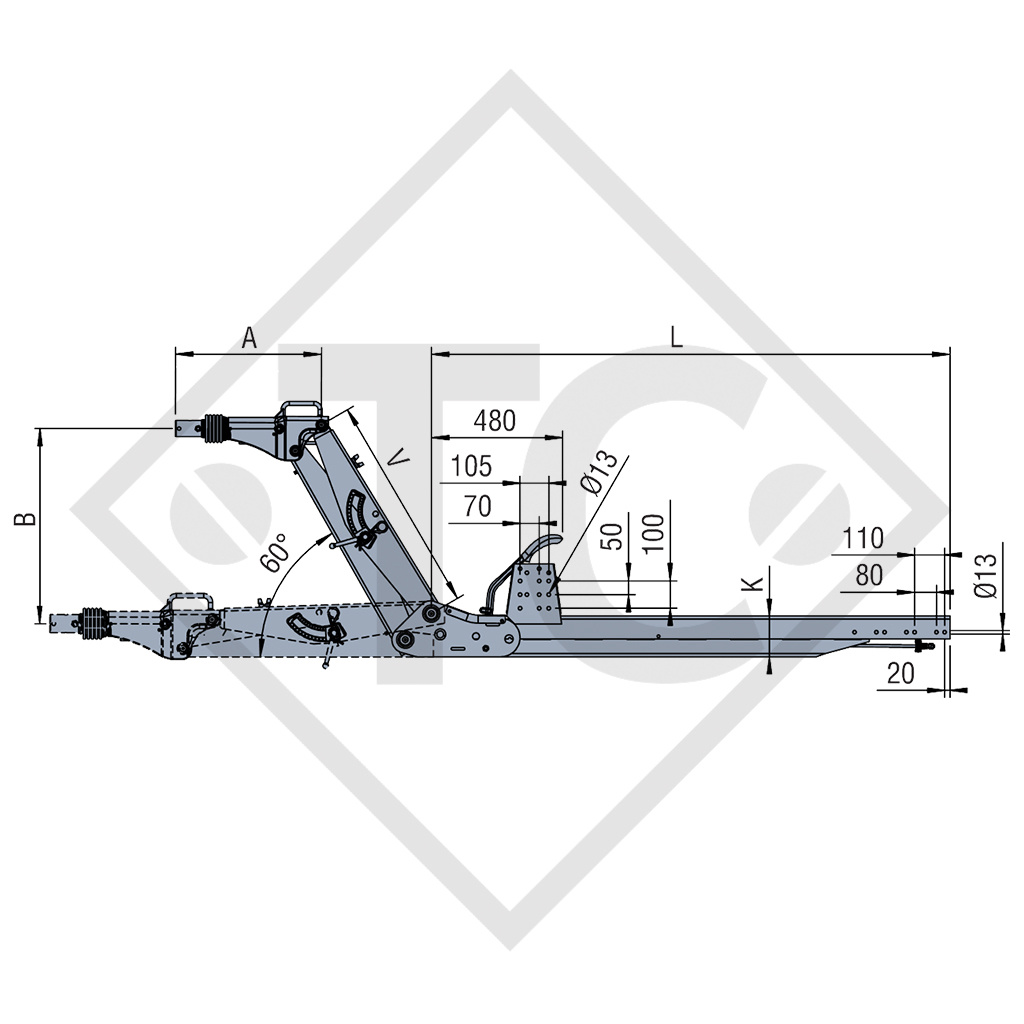

Dimension K
 150x132
Dimension A
 535mm
Dimension L
 1900mm
Dimension B
 0-693mm
Dimension V
 800mm
Permitted drawbar load 150kg
ECE test code E1 55R-01 1171



Original operating instructions
Replacement part identification number (ETI) OLD 47.43.47X.XXX
Replacement part identification number (ETI) NEW 827106

DETAILS

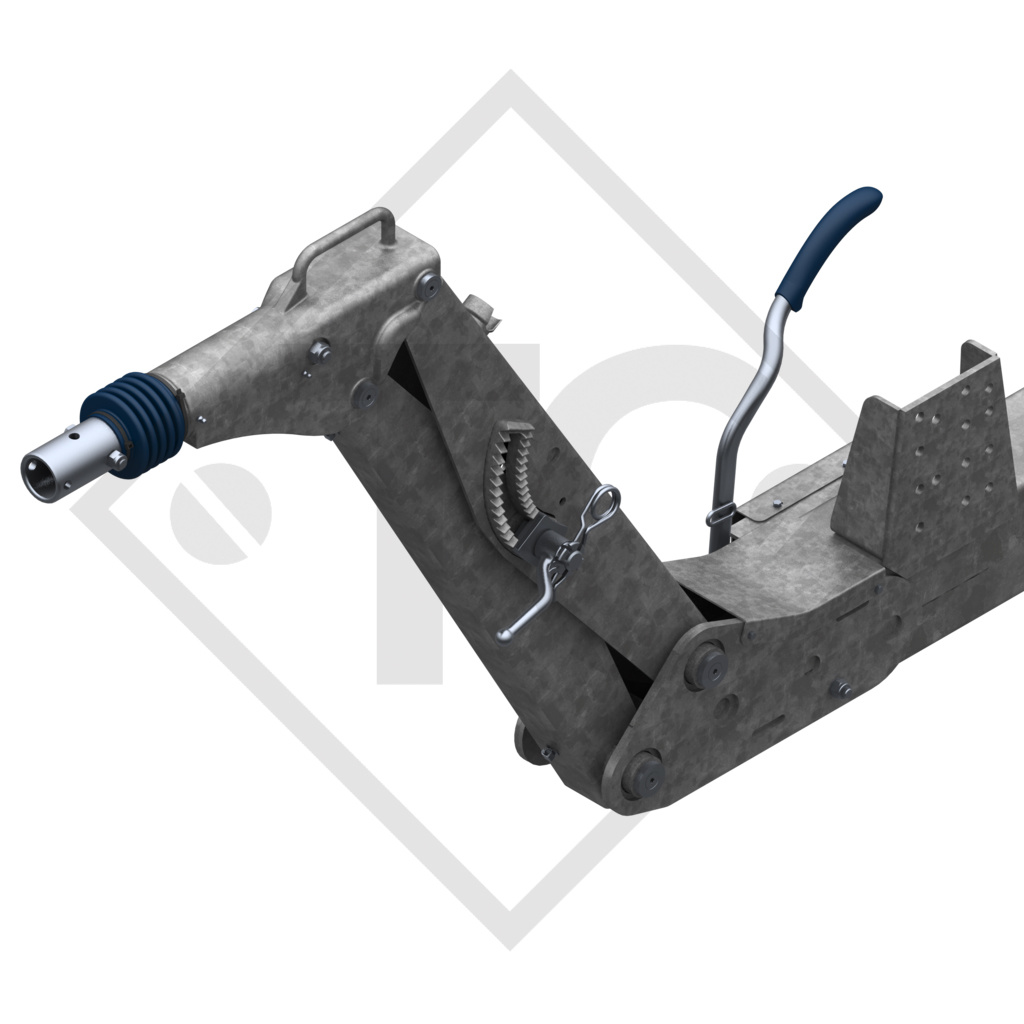

  • The towing attachment for the professionals: Features include a protected, intemal transmission device with a straightforward and fast height adjustment function up to 1,100 mm hitching height (even with the handbrake appliecl) and integrated jockey wheel holder, as well as the hot-dip galvanised surface. The whole unit is supplied ready-to-install - a product that satisfies all requirements.

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

... ...
