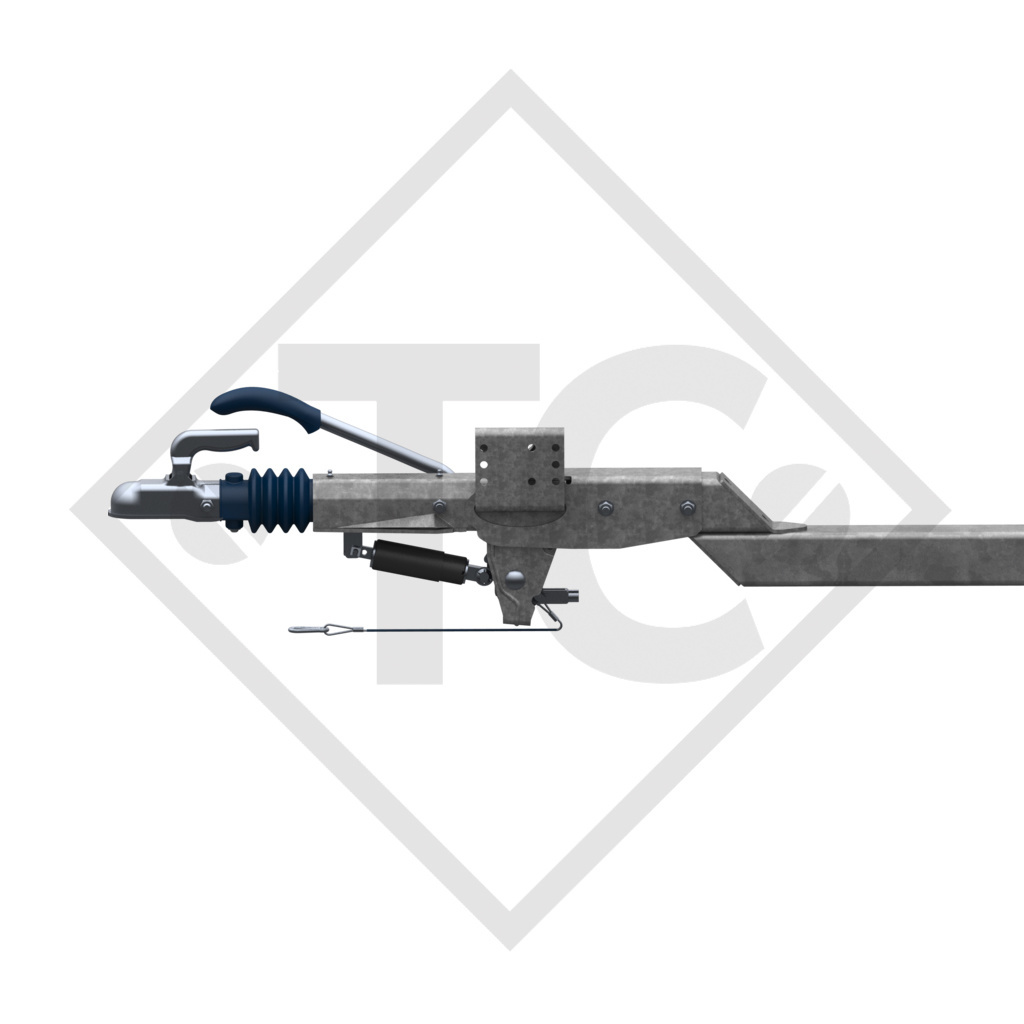

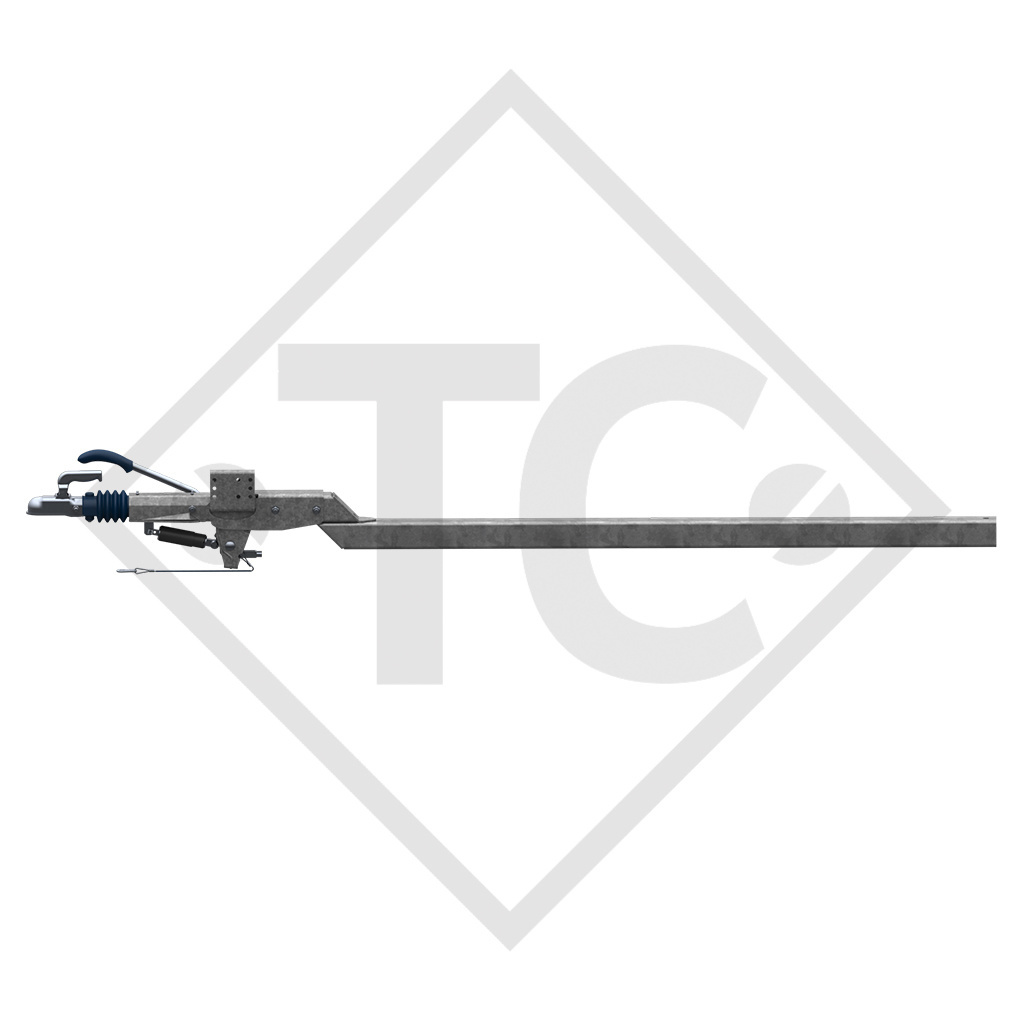

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / AXLES / BRAKED AXLES & ACCESSORIES / BRAKED AXLES / BRAKED AXLE 1000KG, AXLE TYPE B 1000 / Drawbar installation ZAAR 2.0-3 with overrun device ZAAQ2.0-3 / ZDG8-3 drawbar section cranked 1250 to 2000kg, 48.36.381.090

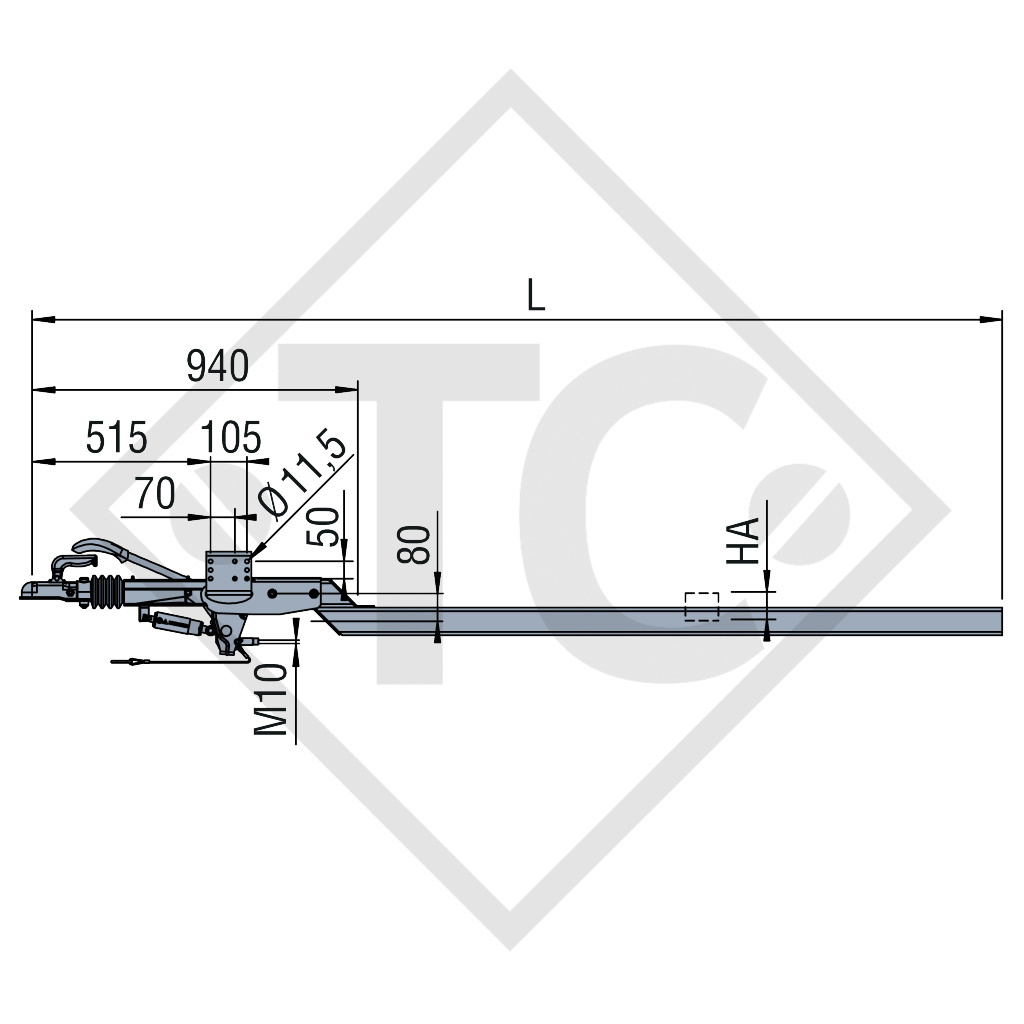

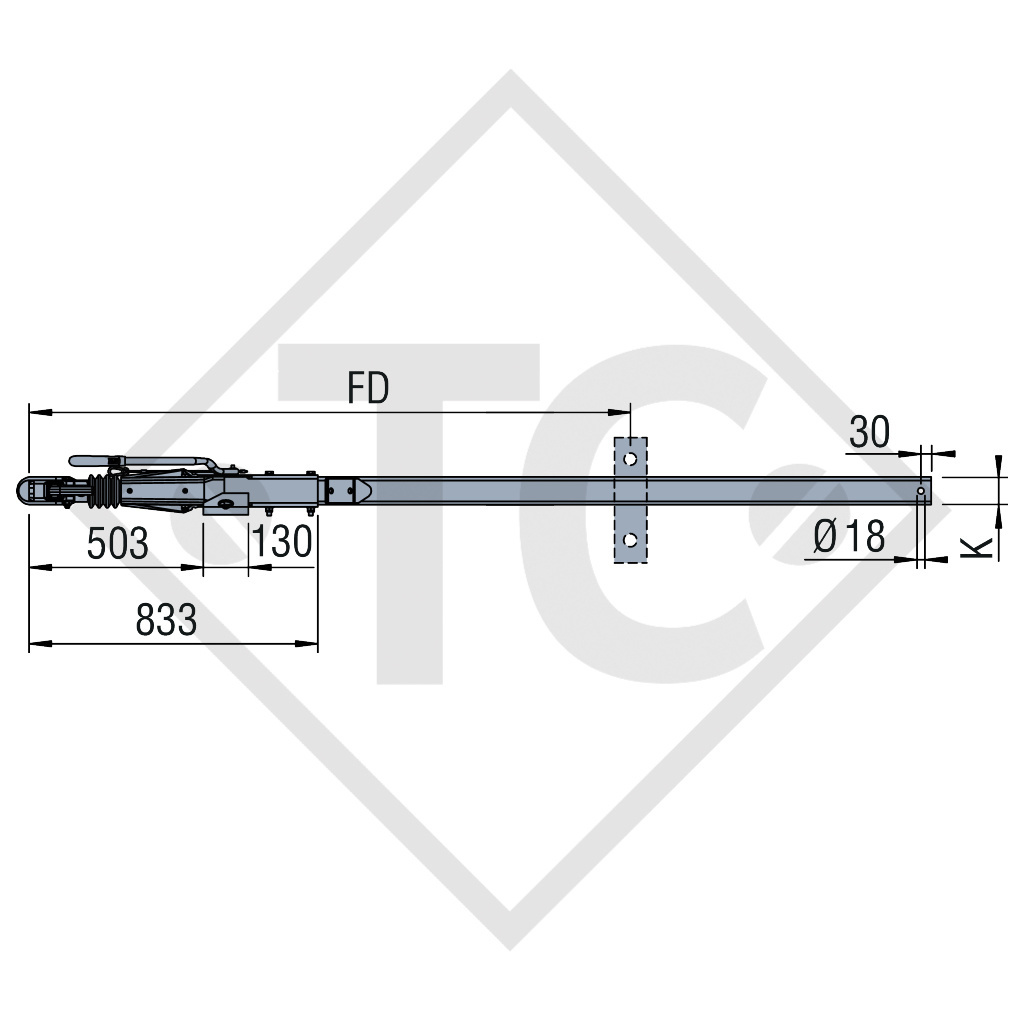

drawbar length L 3500mm, FD at max. 2000kg: 1360mm, drawbar section K square 80x5.0mm, measure HA 55mm, thread G M10, perm. nose load 150kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
