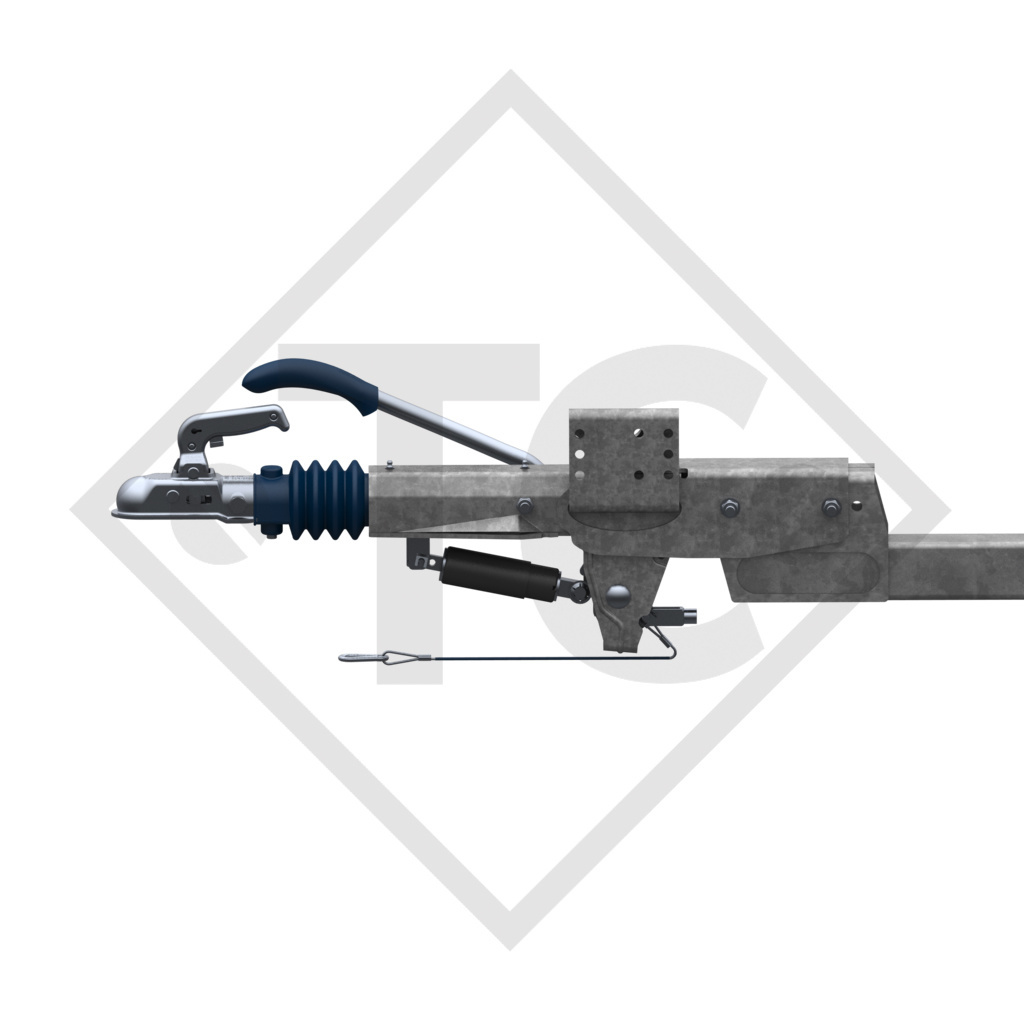

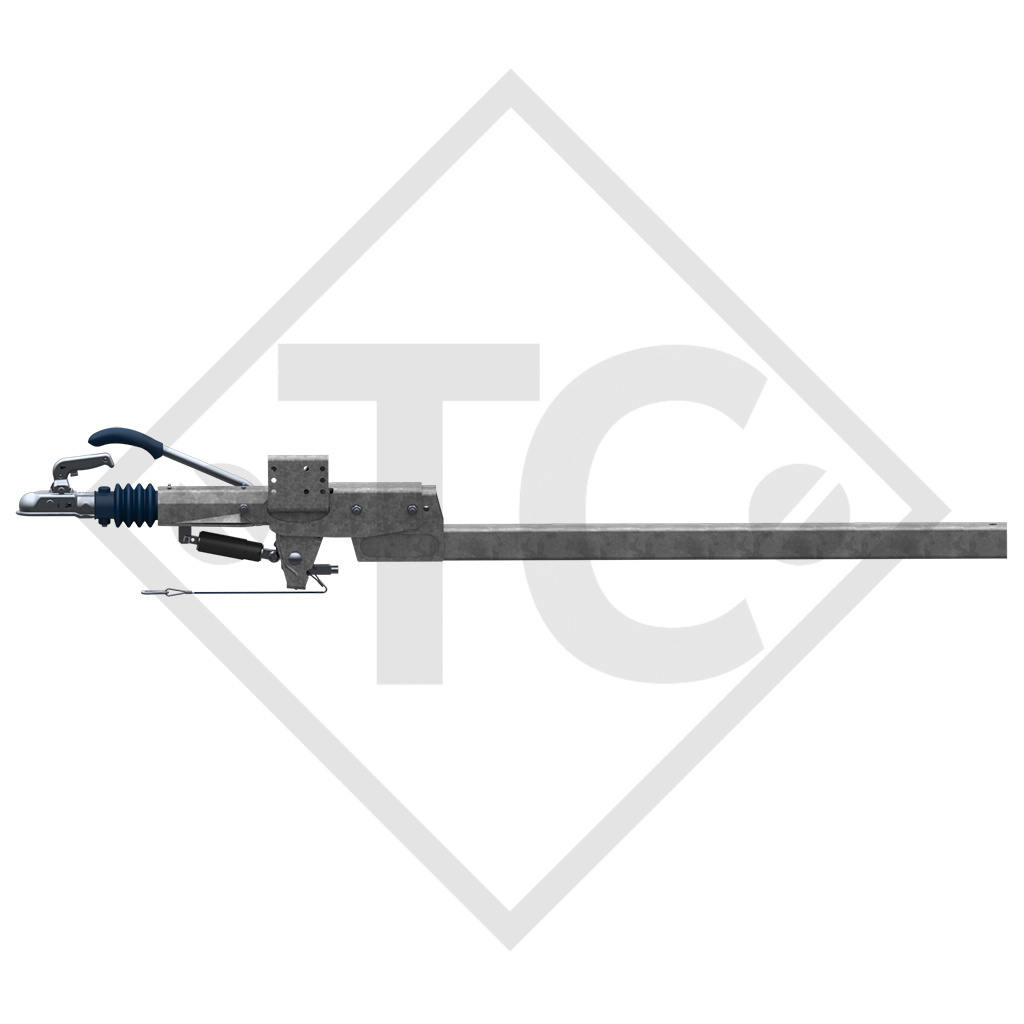

Home / CHASSIS PARTS / CHASSIS PARTS WAP / OVERRUN DEVICES / OVERRUN DEVICES V / OVERRUN DEVICES V FOR A DRUM BRAKE / OVERRUN DEVICES V TYPE WAP 35/35.2 - 1750 TO 3100KG / Drawbar installation ZAAR 1.6-3 with overrun device ZAAQ1.6-3 / ZDG7-3 drawbar section cranked 800 to 1600kg, 4021604

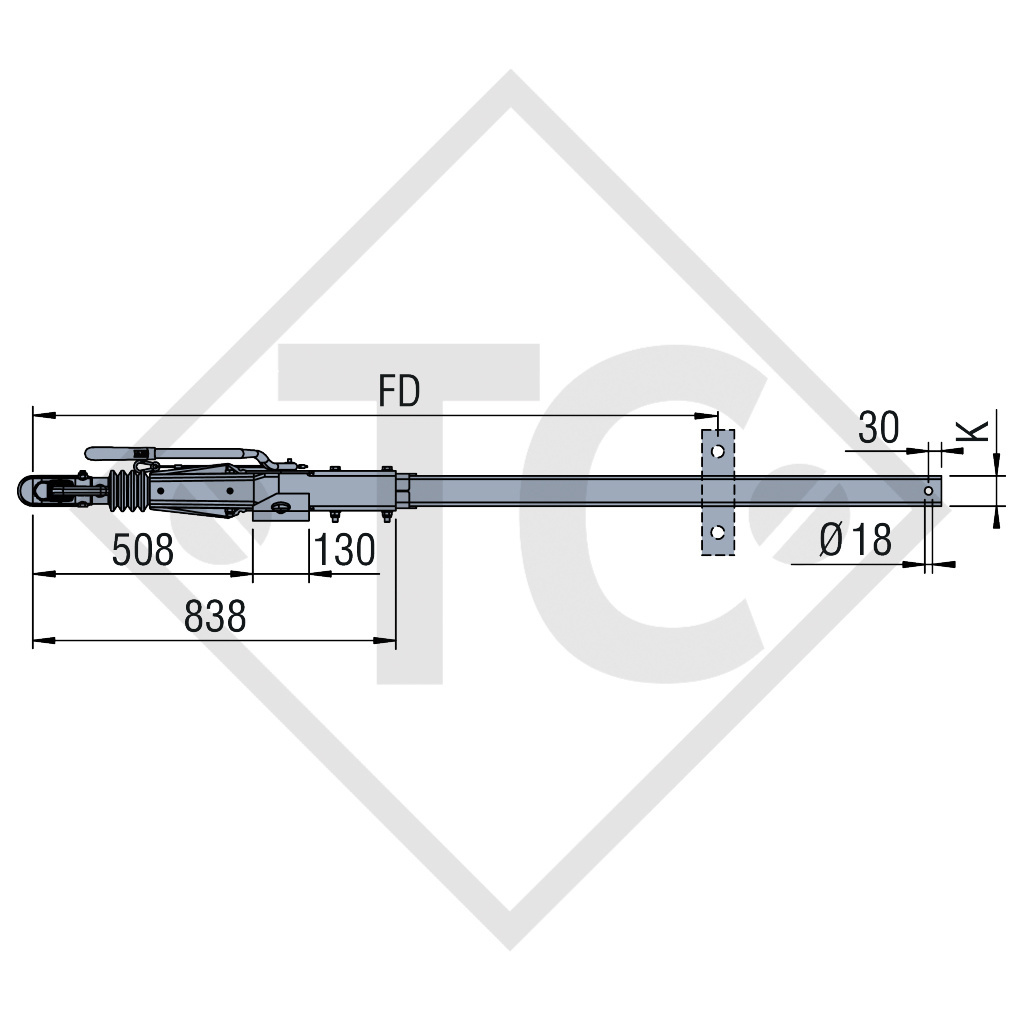

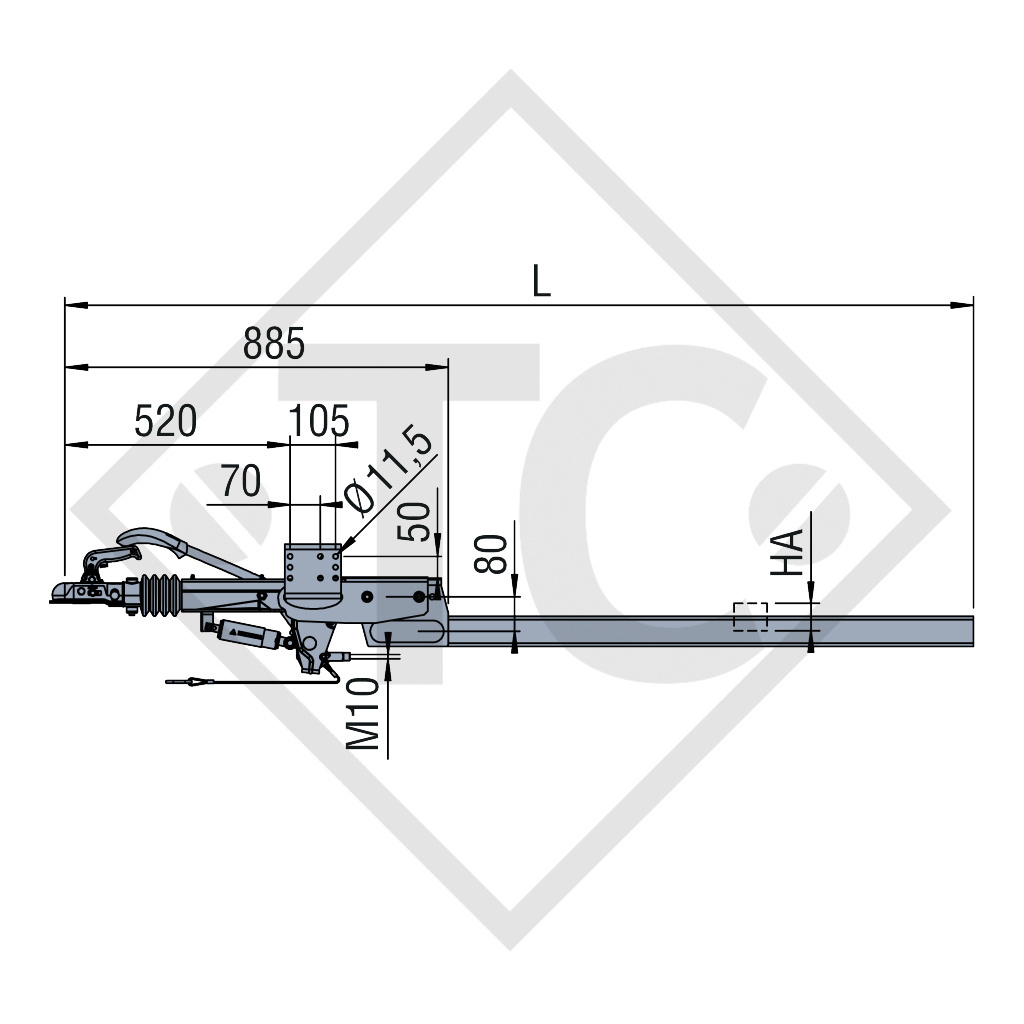

drawbar length L 2300mm, FD at max. 1600kg: 1200mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
