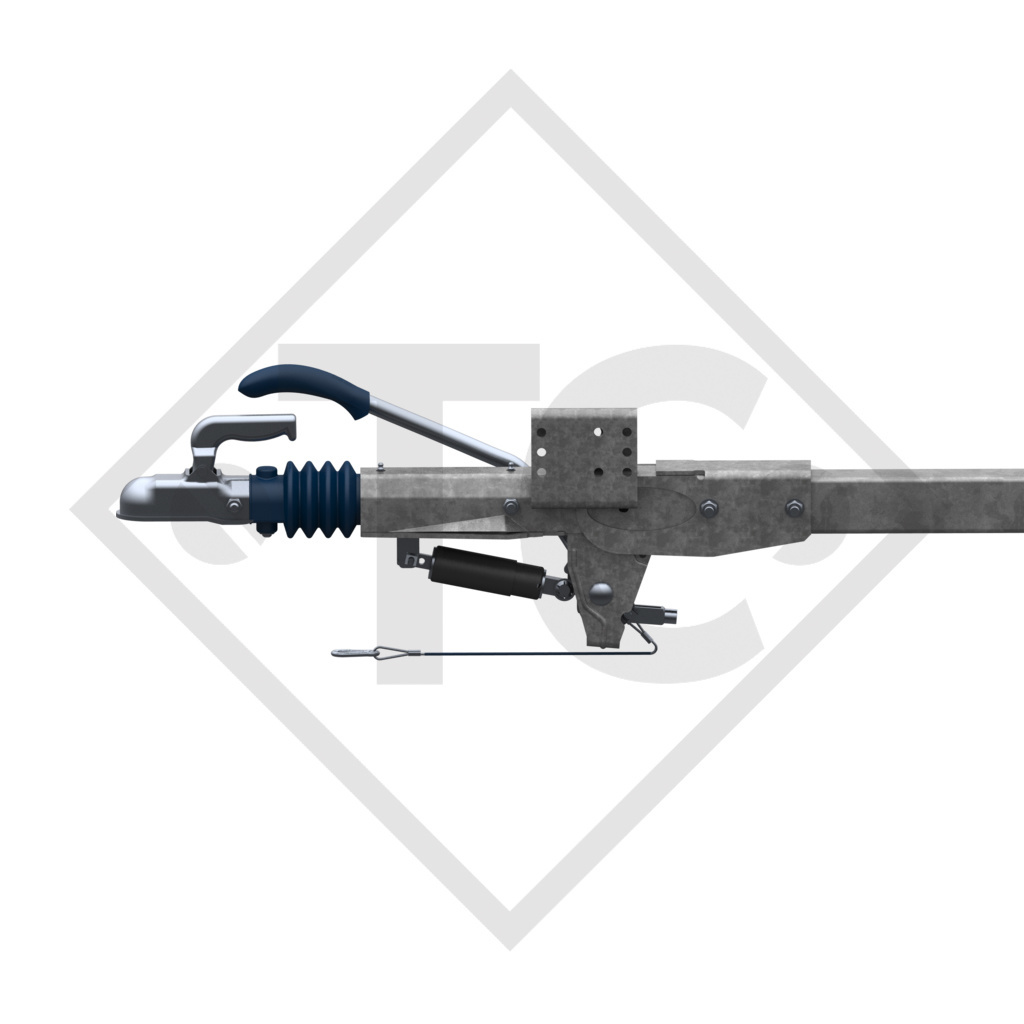

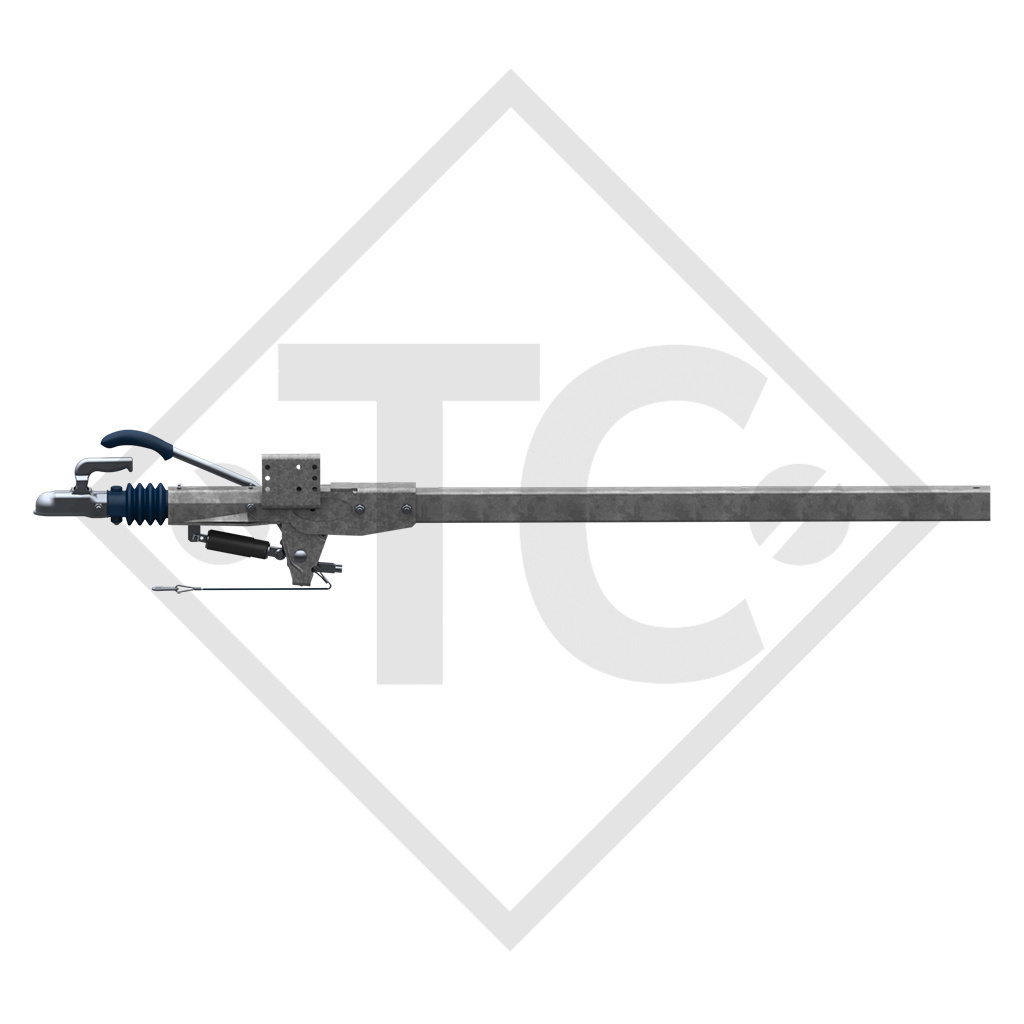

Home / Drawbar installation ZAAR 1.6-1 with overrun device ZAAQ1.6 / ZDG7-3 drawbar section straight 800 to 1600kg, 48.29.181.056

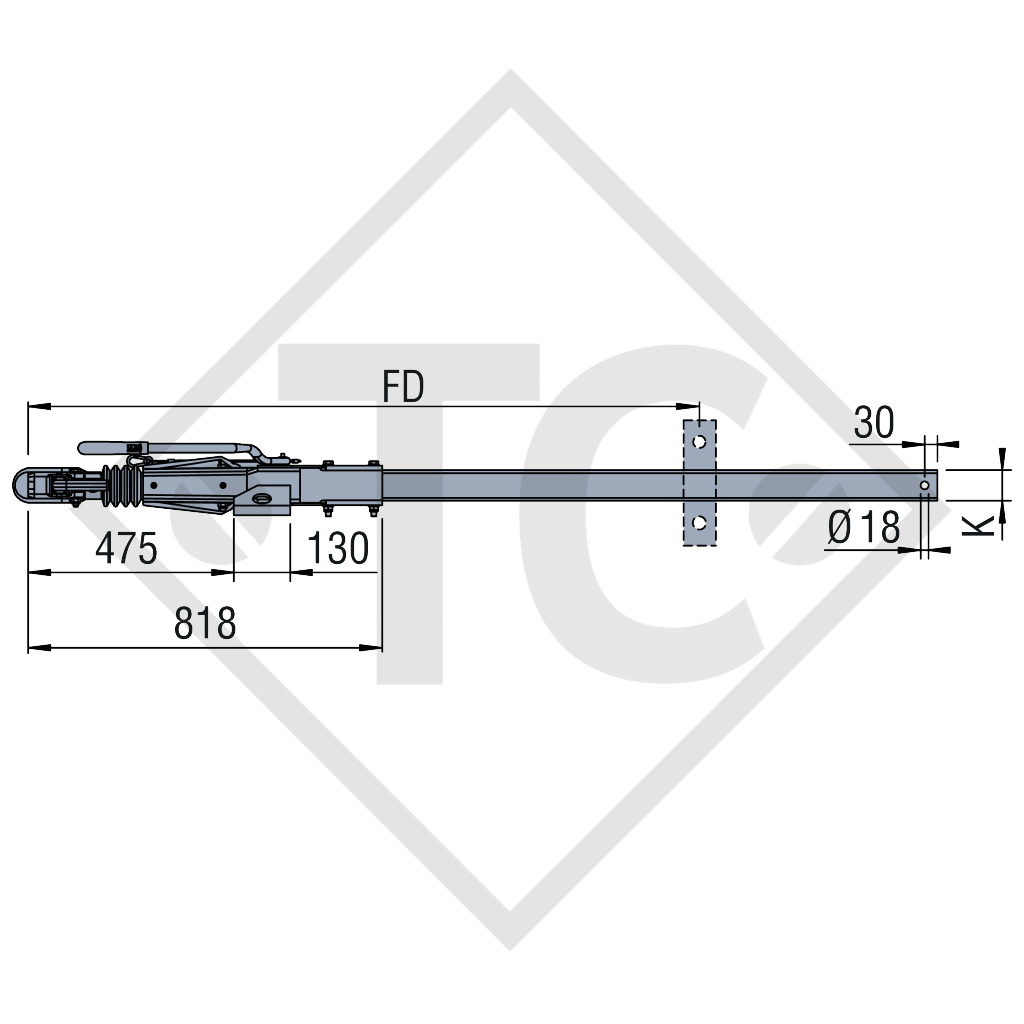

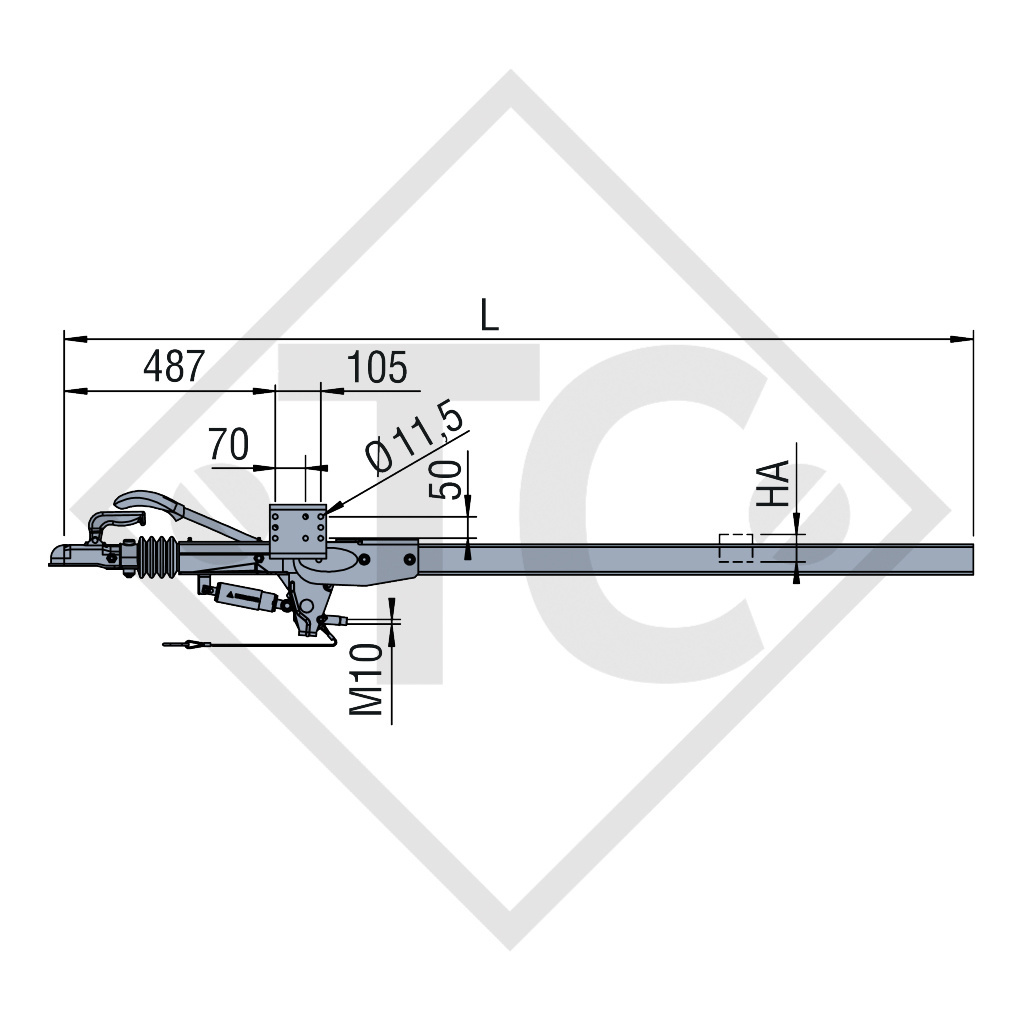

drawbar length L 2300mm, FD at max. 1600kg: 1200mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7. Read more...
| Permitted gross weight (kg) | 800-1600 |
| Sales designation |
ZAAR 1.6‑1 |
| Type | ZAAQ1,6 / ZDG7‑3 |
| Order No. | 4014309 |
| Reference No. | 48.25.181.056 |
| Dimension K |
sq. 70x5.0mm |
| Dimension HA |
50mm |
| Dimension L |
2300mm |
| Perm. nose load (kg) | 100 |
| Combined wheel brakes (RASK) | S1704-7, S2005-7 and S2504-7 |
| Replacement part identification number (ETI) NEW | 827102 |
| Replacement part identification number (ETI) OLD | 48.25.181.xxx and 48.29.181.xxx |
DETAILS
The square profile offers high stability and ensures a secure connection in every application.
The hot-dip galvanised surface provides permanent corrosion protection.
Original operating instructions
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
