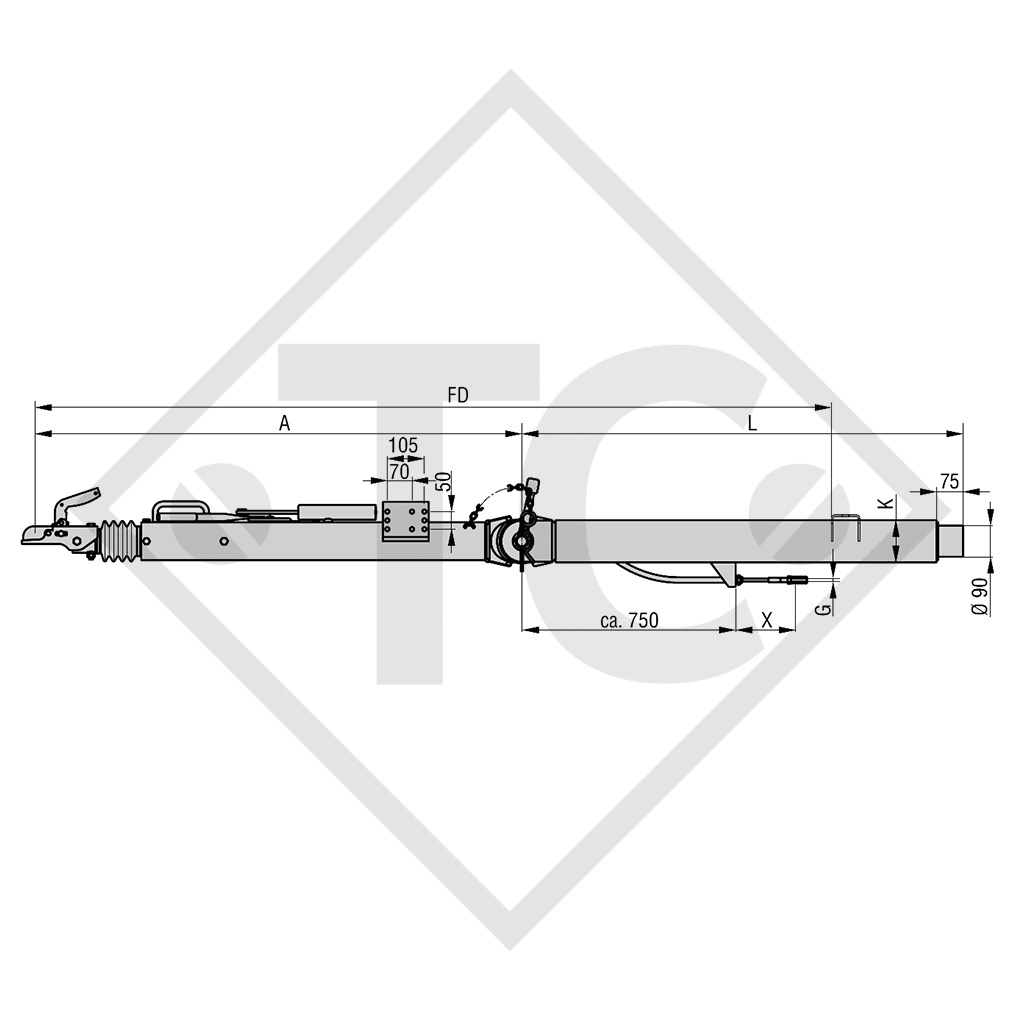

Home / CHASSIS PARTS / CHASSIS PARTS BPW / OVERRUN DEVICES / HEIGHT-ADJUSTABLE OVERRUN DEVICES / OVERRUN DEVICES HEIGHT-ADJUSTABLE PRODUCT LINE ZKV WITH COUPLING HEAD / HEIGHT-ADJUSTABLE OVERRUN DEVICES TYPE ZKV 25.1 B AK 3510 B WITH DRAWBAR SECTION 1910 TO 2700KG / Drawbar installation ZAA 3.5-1.1 with overrun device AK 3510 A and removable drawbar section from 2500 to 3500kg, 47.51.181.004
drawbar length L 2800mm, length A 1380mm, drawbar section K square 120x6.3mm, thread G M12, perm. nose load 150kg, with coupling head EM 350 RD-K1212, for wheel brake S 2005-7, S 2504-7 and S 3006-7.
