single axle 1200-5, B 1200 and B 1600, axle profile 97mm, drawbar tube square 80x140mm, 80x160mm, 100x160mm, 100x177mm, 120x120mm, 120x160mm and 120x177mm Read more...
Part no. 249117
| for Compact, Plus hexagonal rubber suspension axle (from year of manufacture 1999) |
| Single axle | type 1200-5, 1600-3 and B 1200, B 1600 |
| Tandem | 3200kg |
| Axle profile | 97mm |
| drawbar tube round Ø |
- - - |
| Square | 80x140, 80x160, 100x160, 100x177, 120x120, 120x160 and 120x177mm |

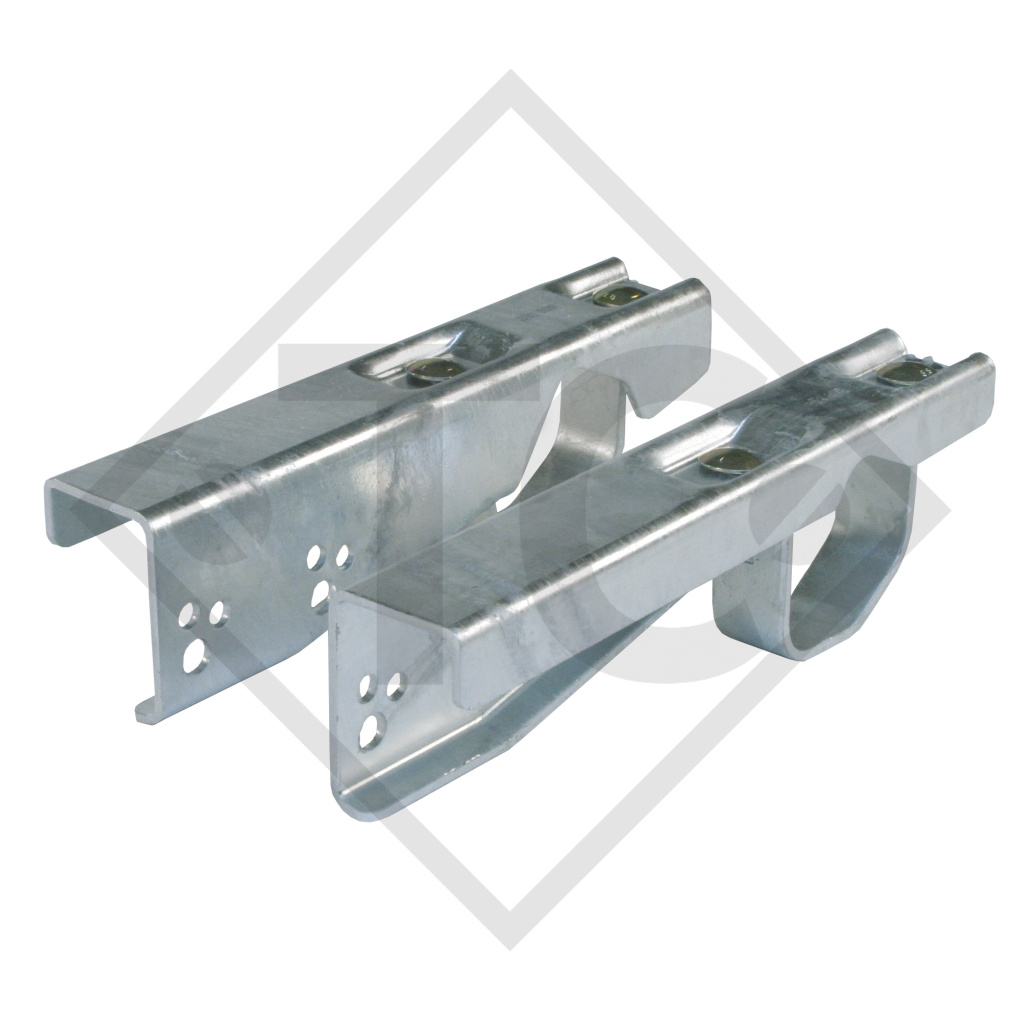

BOLT-ON DRAWBAR CONNECTION PROFILES
for COMPACT and PLUS axles
YOUR ADVANTAGE
Combine your special chassis from stocked parts.
Time-consuming welding on a top hat profile is no longer necessary.
SURFACE TREATMENT
Hot-dip galvanised

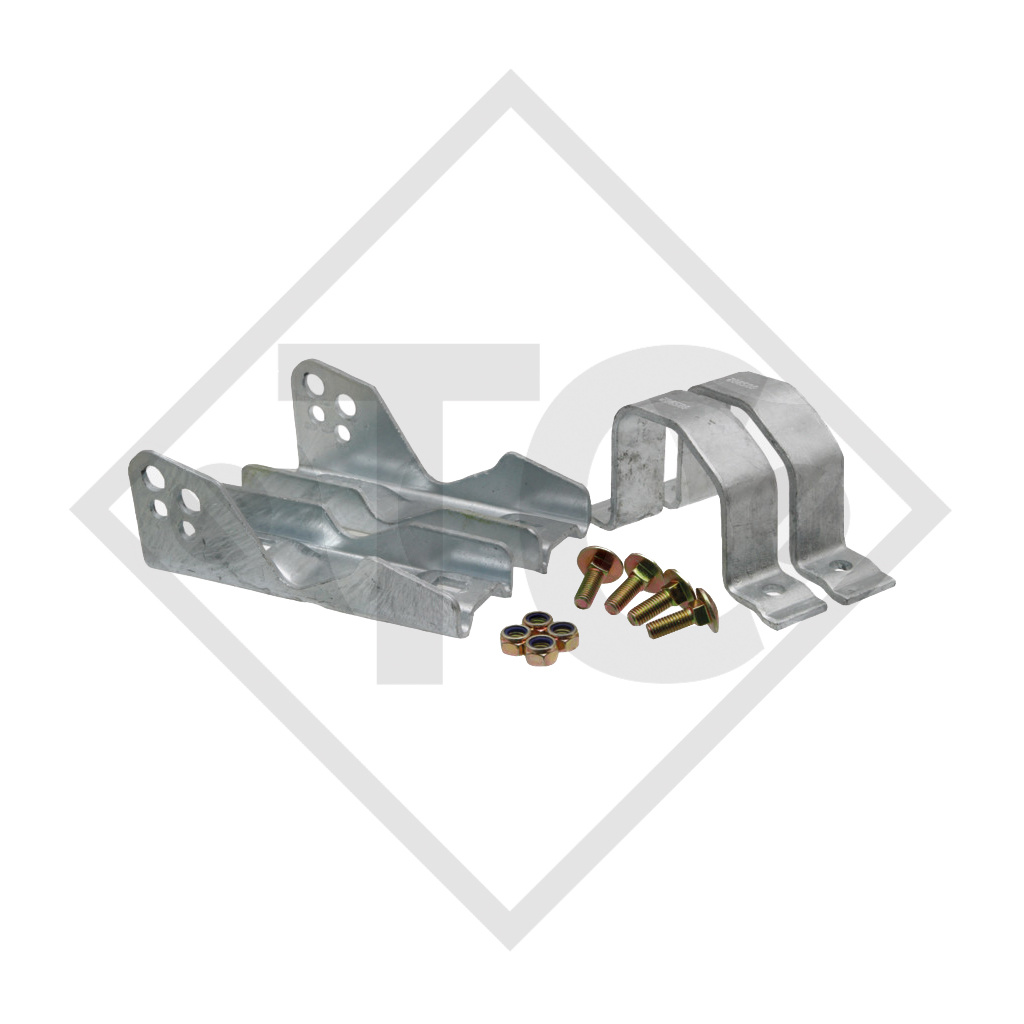

SCOPE OF DELIVERY
(See technical drawing) incl.
Mounting instructions, packed in cardboard box,
without fixing bolts for connection to the axle.
MOUNTING

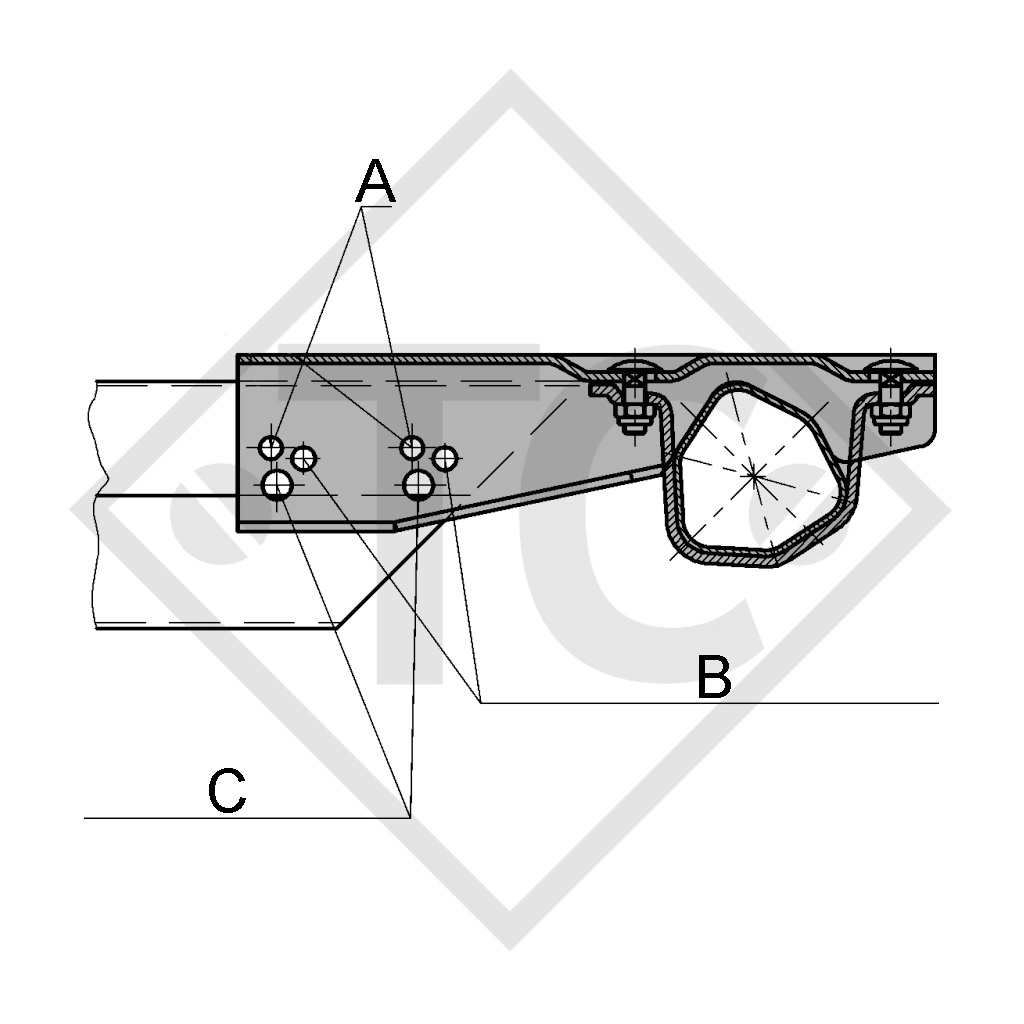

1. Drawbar bolted to drawbar connection profiles
Select a correct connection hole for the existing drawbar diameter on profiles.
Position drawbar connection profiles at the side of the drawbar and secure with hexagon bolt (M12/M16).
Important: The spacer tube must be pressed or placed into the drawbar.

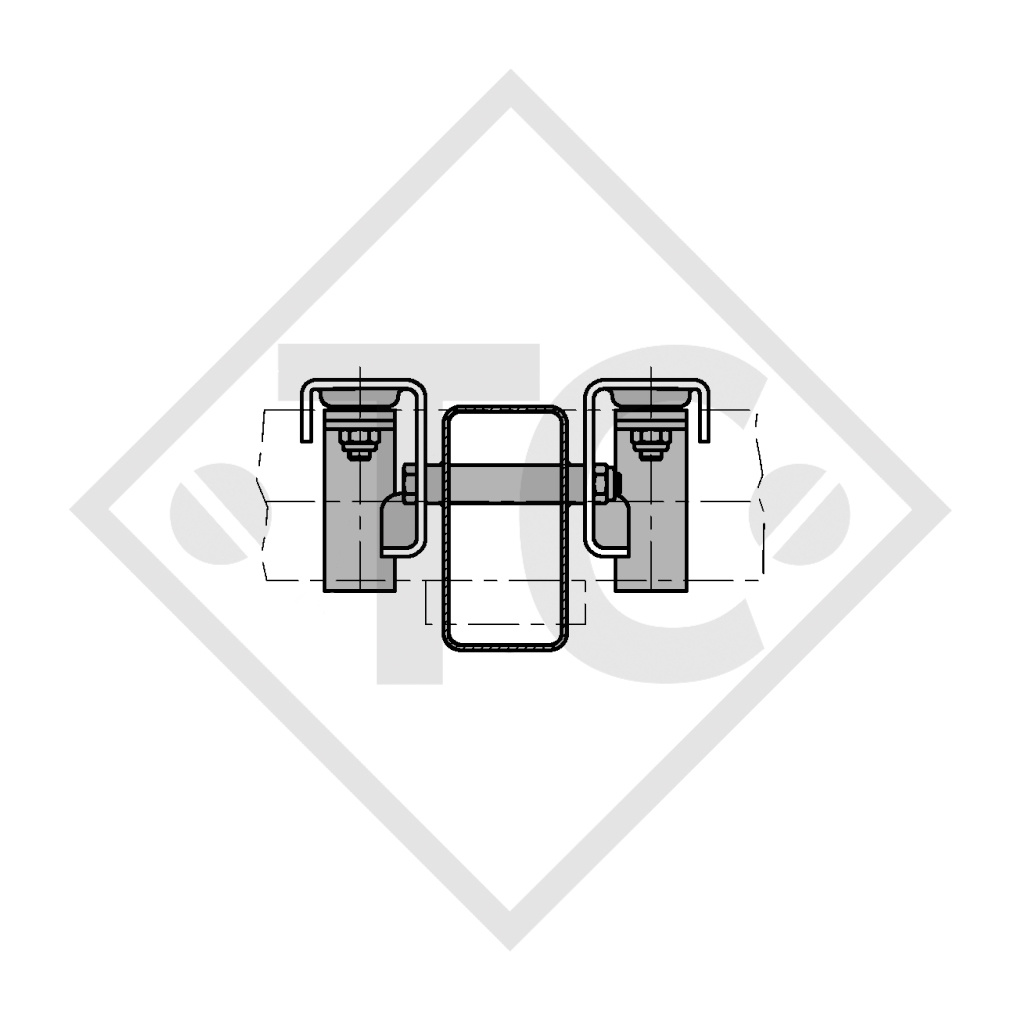

2. Fasten drawbar connection profiles to axle
Place drawbar connection profiles on axle, bolt on with clamping bracket and supplied round-head screws (M12x35) as well as nuts.
Align drawbar with axle and bolt on firmly.
