Home / CHASSIS PARTS / CHASSIS PARTS SCHLEGL / OVERRUN DEVICES / OVERRUN DEVICE SQUARE, WITHOUT DRAWBAR SECTION / OVERRUN DEVICES SQUARE WITHOUT DRAWBAR SECTION TYPE SFV14 TO 1500KG / Depth control wheel □80mm square, type ZB 415, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 360mm, rim steel, wheel 400x100mm steel plate, maxi. static load 900kg, dimension A 225mm, dimension B 500mm, dimension D 860mm, dimension E 175mm. Read more...
| Outer tube |
80mm |
| Screw stroke (extended length) | 360mm |
| Steel wheel | 400x100mm |
| Maxi. static load | 900kg |

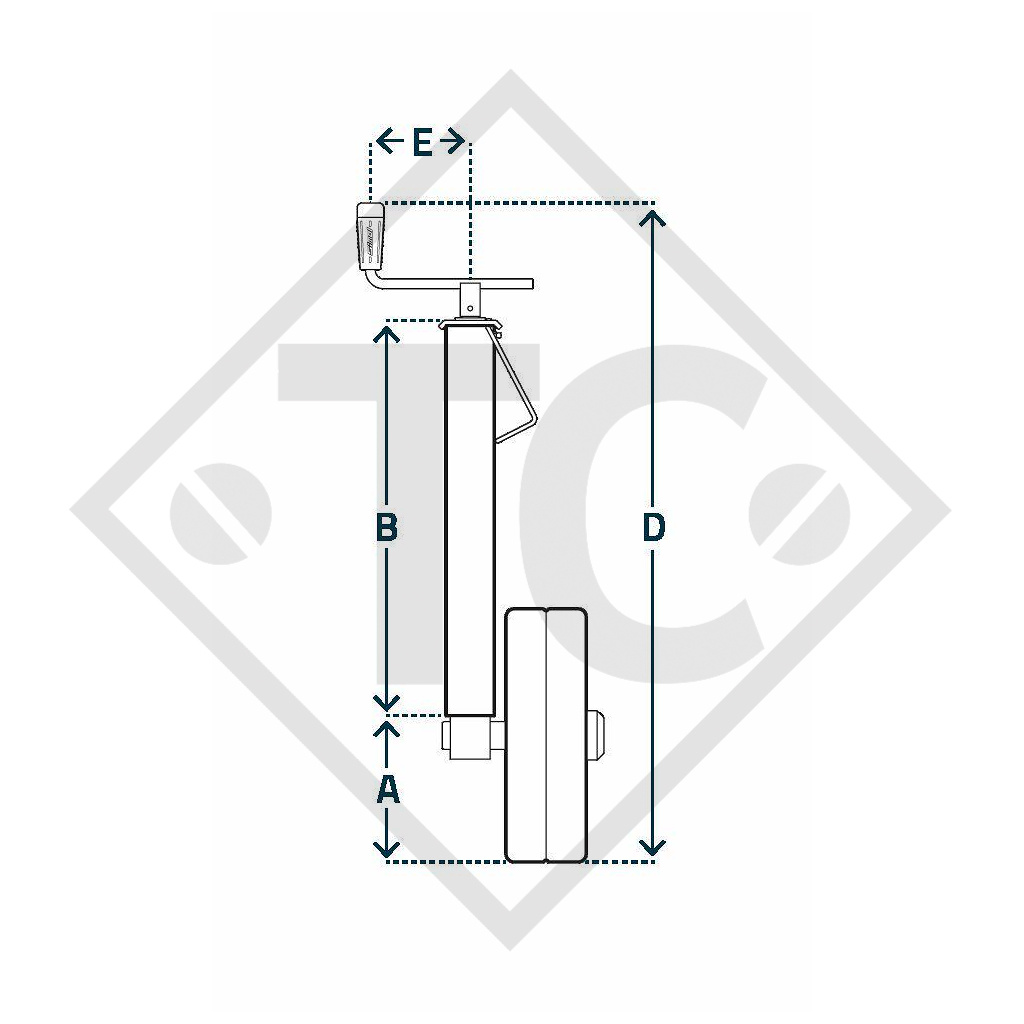

| Dimension A |
225mm |
| Dimension B |
500mm |
| Dimension D |
860mm |
| Dimension E |
175mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
