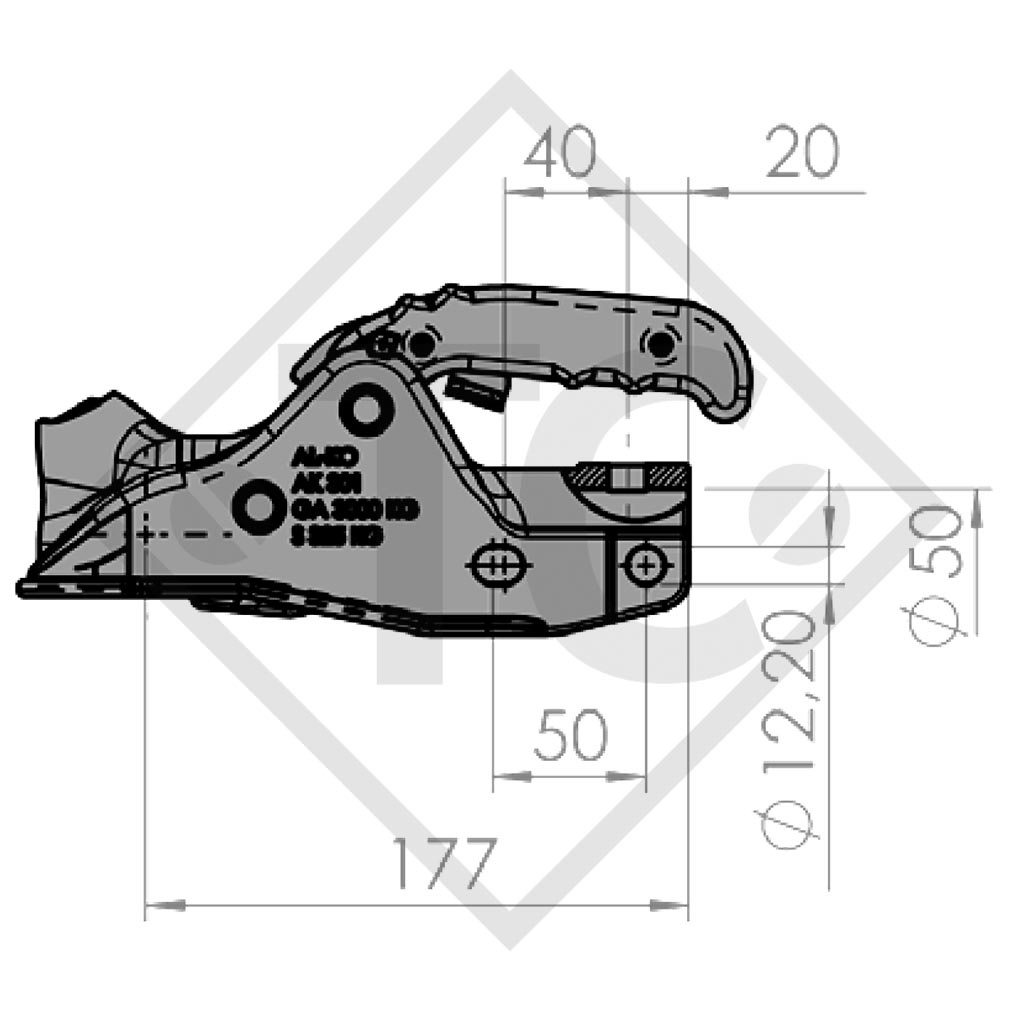

drawbar ⌀45/50mm round, holes (screw connection) horizontal + cross 12.2mm, hole distance horizontal 50mm, cross 40mm, perm. gross weight 3000kg, nose load 325kg, material: cast iron. Read more...

Wishlist: Add to comparison:
Price 129,00 EUR Incl. tax Excl. Shipping costs
Drawbar tube ⌀
50mm
Holes (screw connection) horizontal + cross 12,2mm
Hole distance horizontal 50mm, cross 40mm
Perm. gross weight 3000 kg
Nose load
325 kg
D / Dc value
26,9 kN
Material Cast iron
Tightening torque
75 Nm
ECE type approval no. E1 55R-01 1594

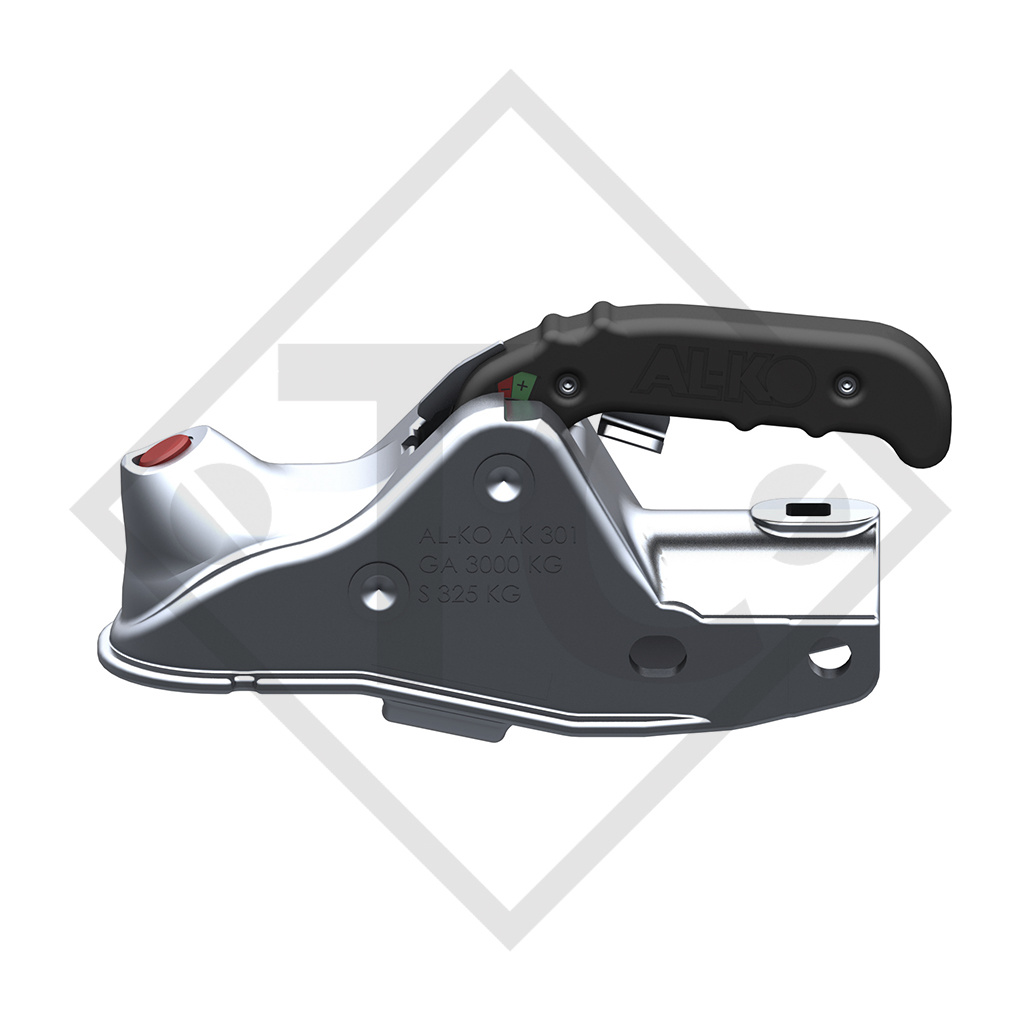

COUPLING HEAD AK 301
for braked trailers up to 3000kg

SAFE HITCHING UP

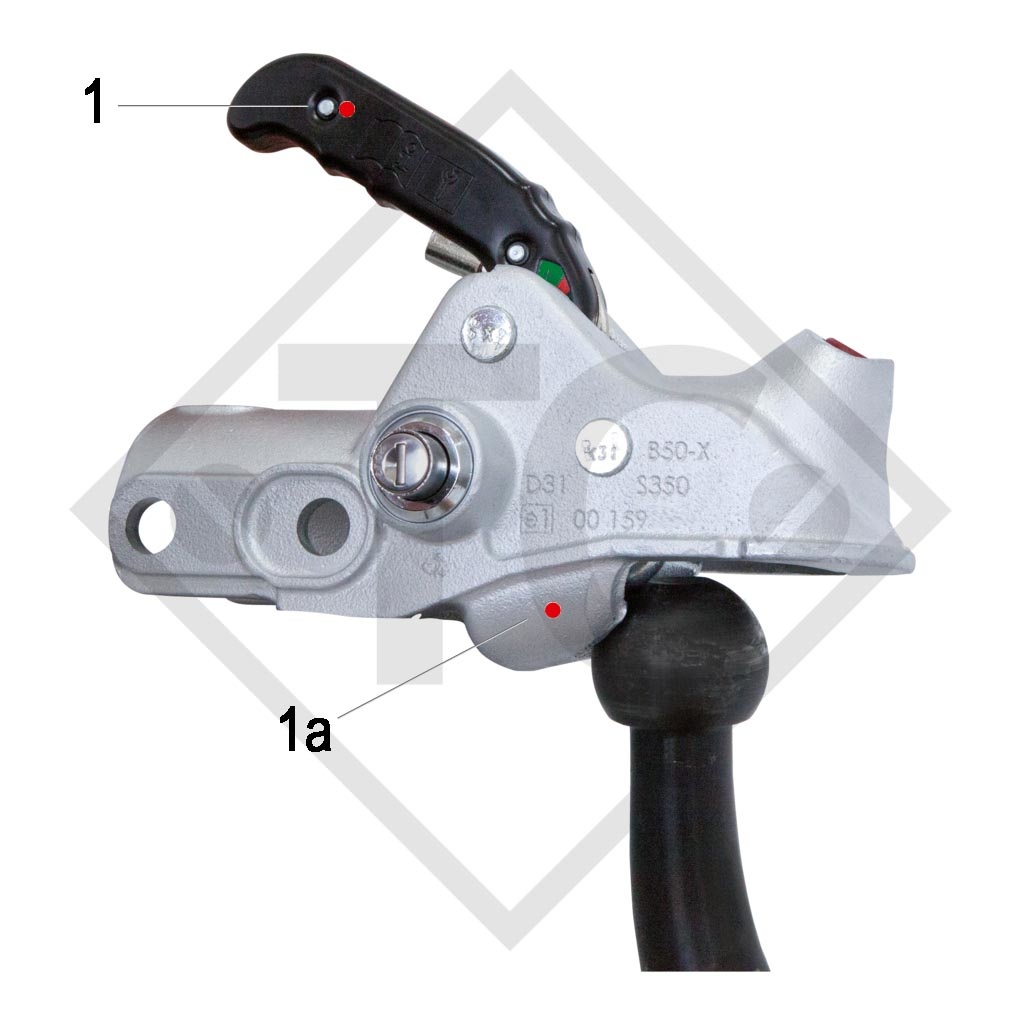

1. Clear open position
The hand grip points diagonally upwards and indicates to the operator: Hitch is not yet locked!

1a. Protective cover for safe hitching

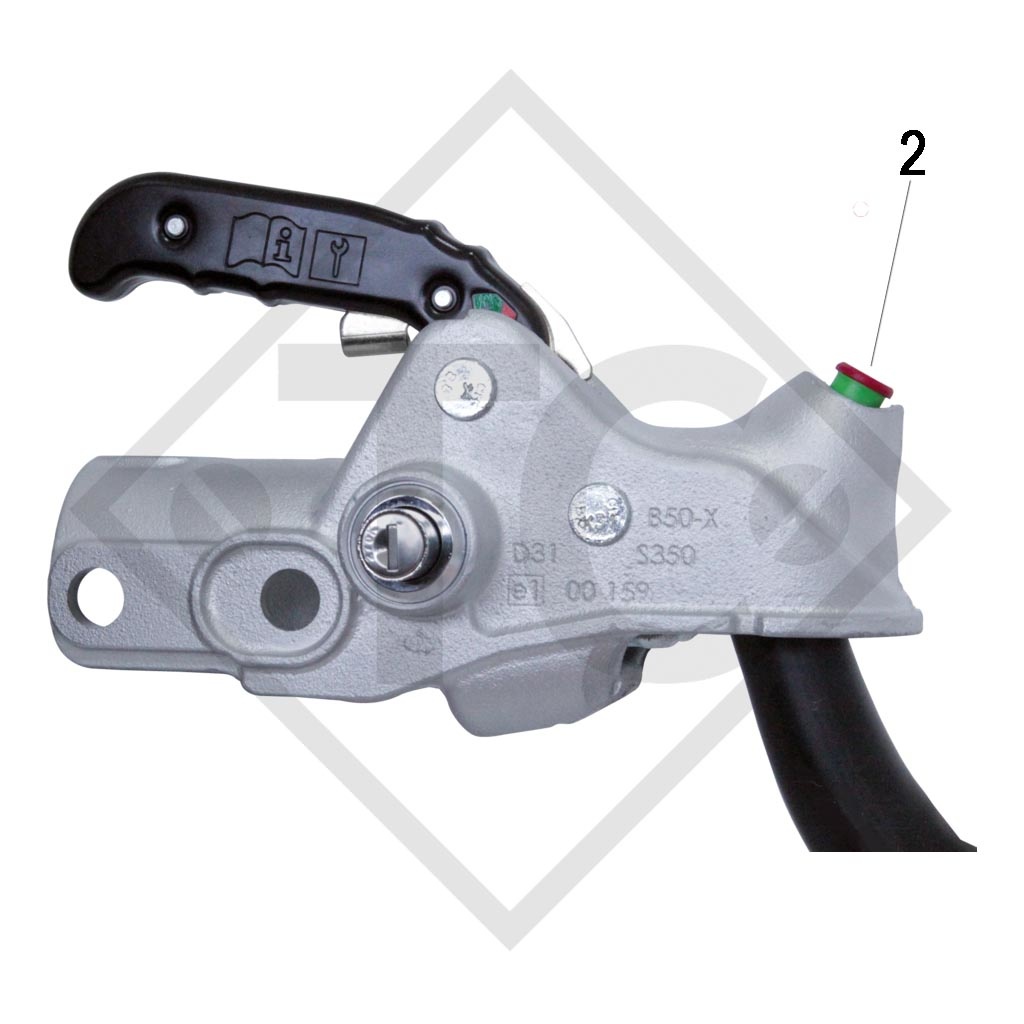

2. Clear closed position
The car's towing hitch engages. Only at this point does the hand grip move to the hori-zontal position, and indicate to the user: Hitch is locked!

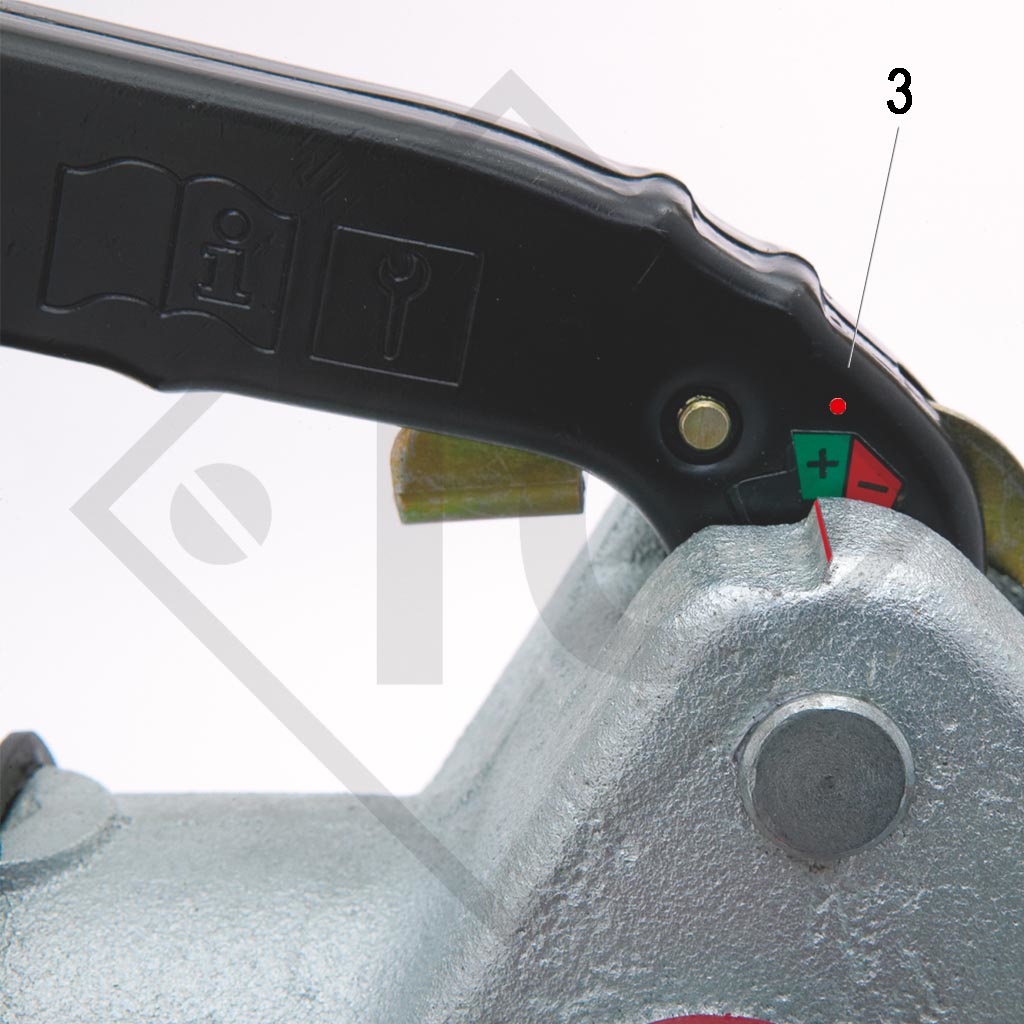

3. Wear indicator
Provides information about the status of your trailer's hitch as well as the towing hitch of your car.

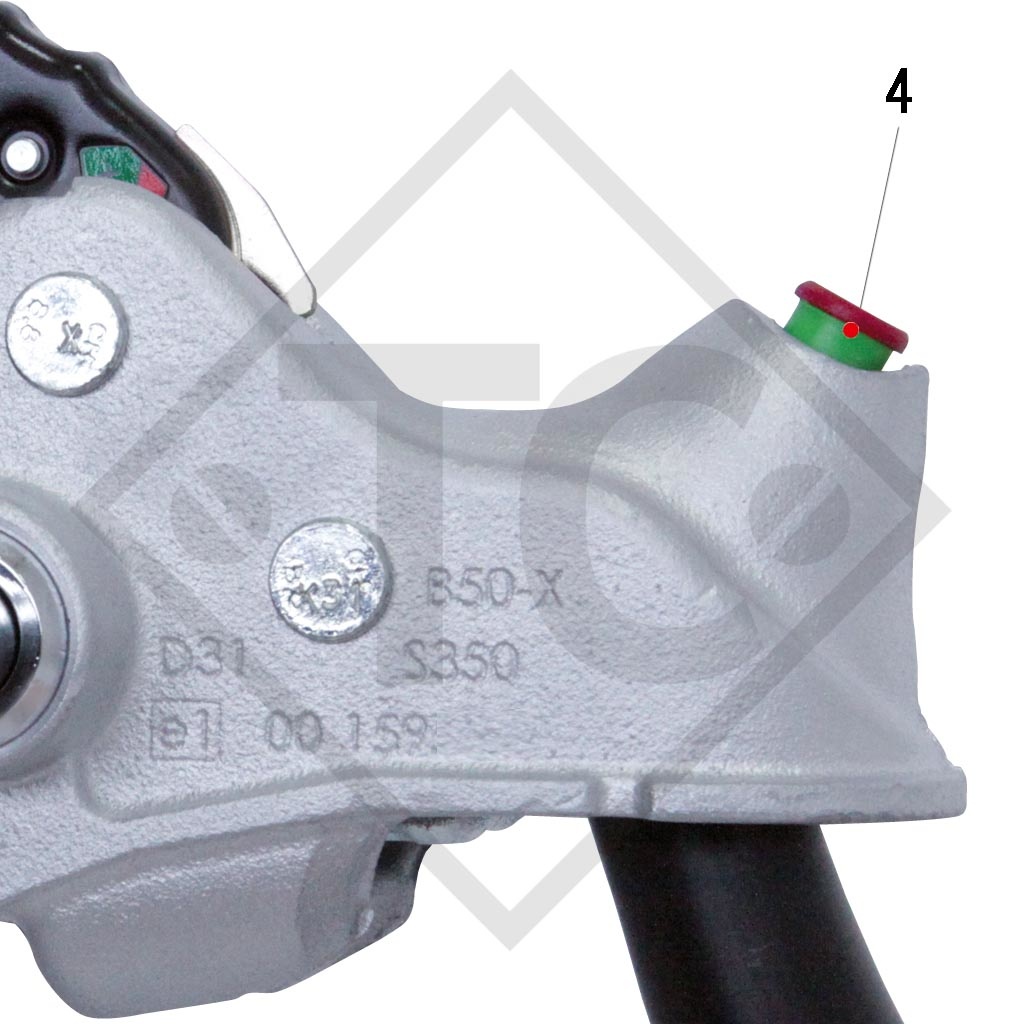

4. Safety indicator
If the green cylinder is visible in hitched condition, you know that the hitch has been positioned correctly on your towing vehicle's ball.

Original operating instructions

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

... ...
