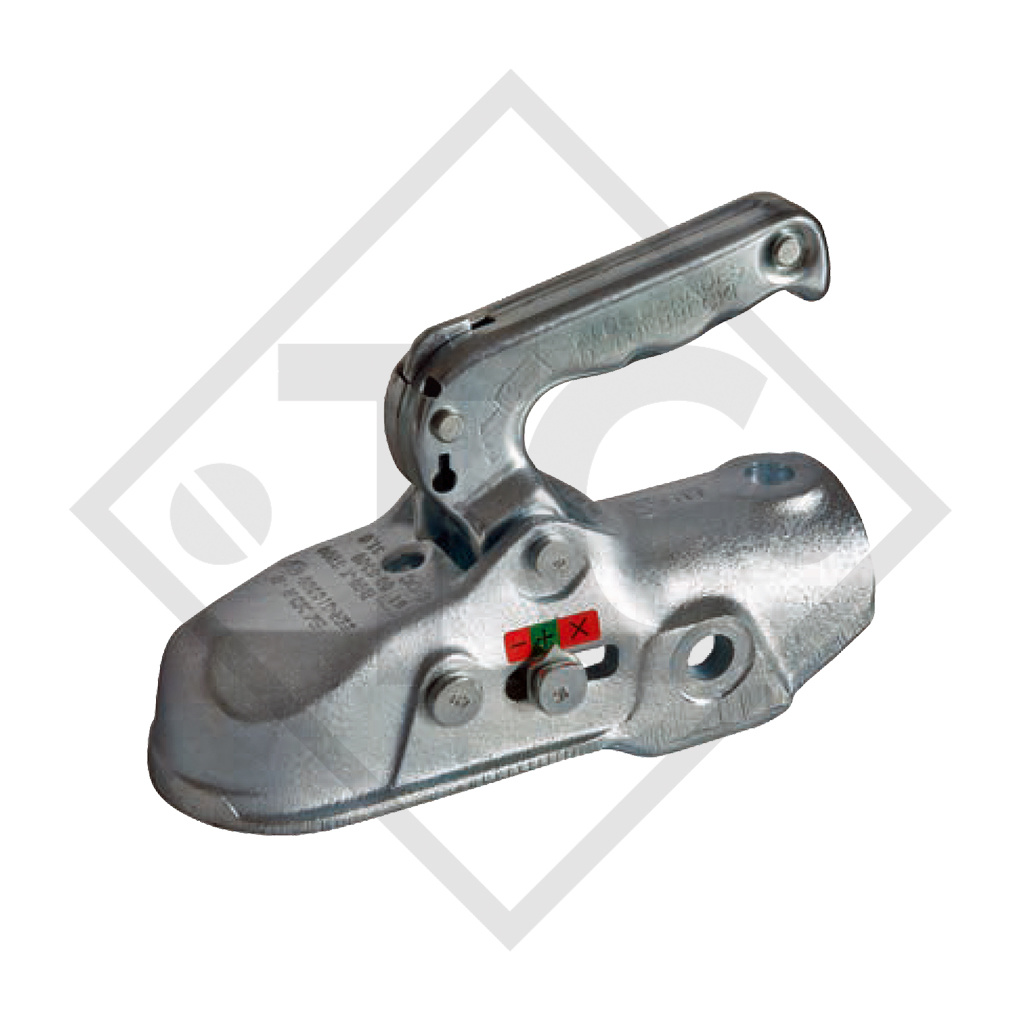

Home / ELECTRONICS ATC / 2LINK / ATC - AL-KO TRAILER CONTROL COMMERCIAL TRAILERS / Coupling head EM 350 R-D for braked trailers

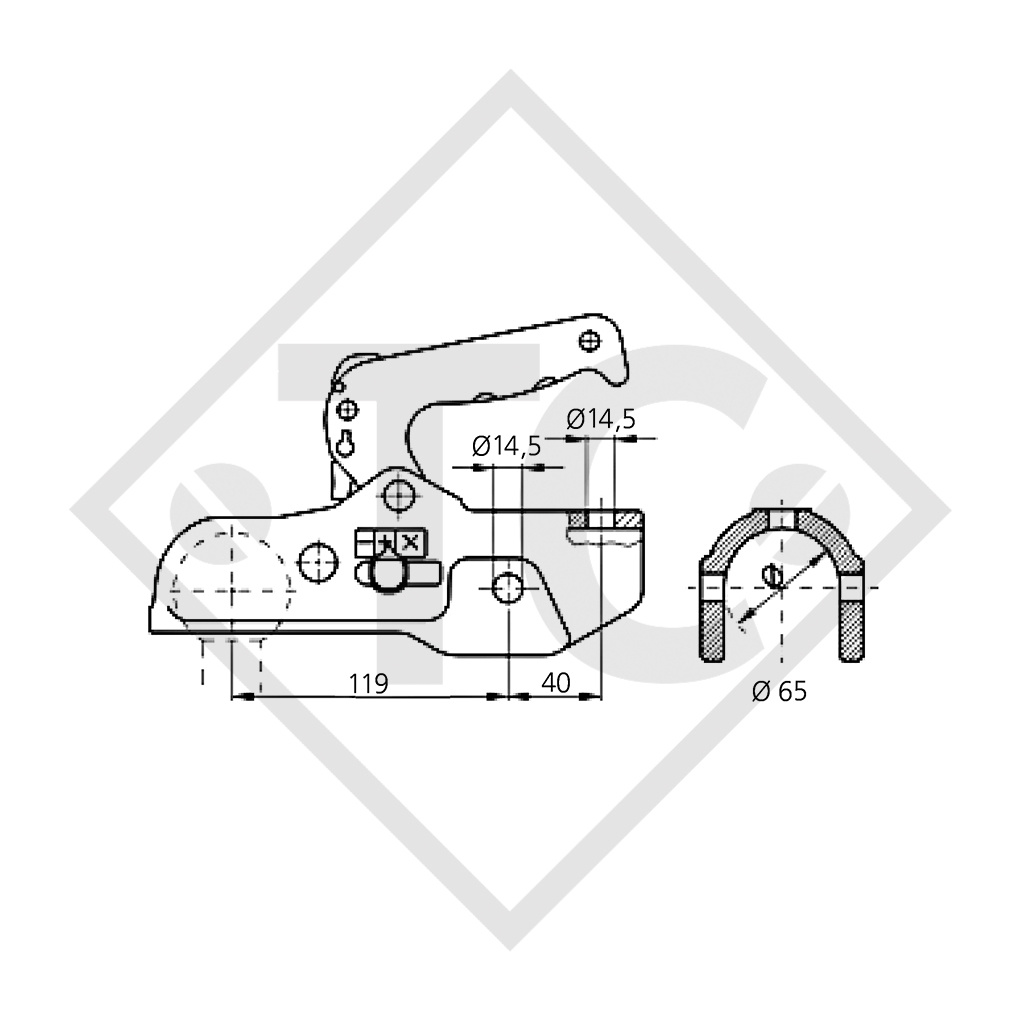

drawbar ⌀65mm round, holes (screw connection) cross 14.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron. Read more...
IMPORTANT INFORMATION: The manufacturer ALBE BERNDES has been sold. Item 1860808 (W1186) will be automatically supplied as an alternative. This item exhibits identical characteristics. It is merely produced by a different manufacturer.
| Drawbar ⌀ |
65mm |
| Holes (screw connection) | cross 14,5mm |
| Hole distance | 40mm |
| Perm. gross weight | 3500 kg |
| Nose load |
200 kg |
| D / Dc value |
31 kN |
| Material | malleable cast iron |
| Tightening torque |
175 Nm |
| ECE type approval no. | R55-010380 E1 |
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
