drawbar ⌀50-51mm round, holes (screw connection) cross 14.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron. Read more...

Wishlist: Add to comparison:
Price 79,90 EUR Incl. tax Excl. Shipping costs

IMPORTANT INFORMATION: The manufacturer ALBE BERNDES has been sold. Item 1860805 (W1182) will be automatically supplied as an alternative. This item exhibits identical characteristics. It is merely produced by a different manufacturer.

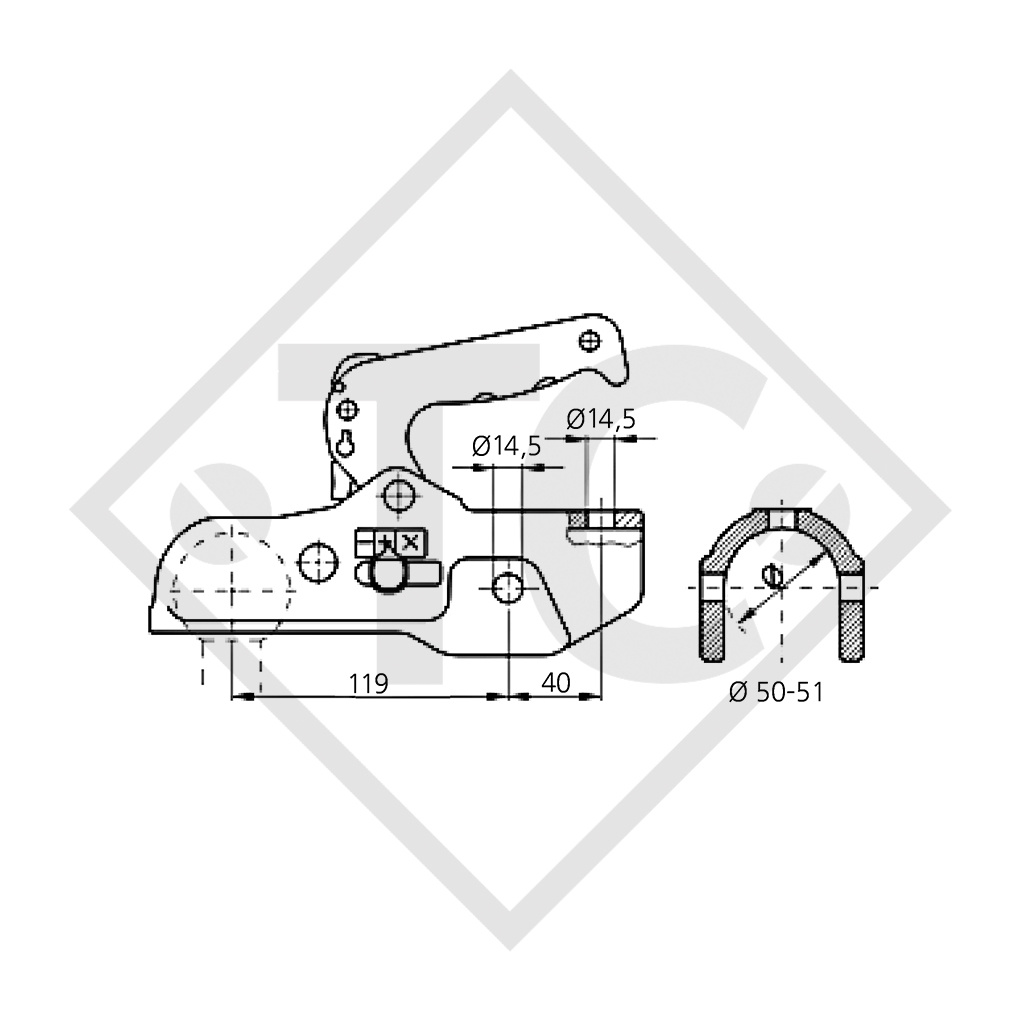

Drawbar ⌀
50-51mm
Holes (screw connection) cross 14,5mm
Hole distance 40mm
Perm. gross weight 3500 kg
Nose load
200 kg
D / Dc value
31 kN
Material malleable cast iron
Tightening torque
175 Nm
ECE type approval no. R55-010380 E1



Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

... ...
