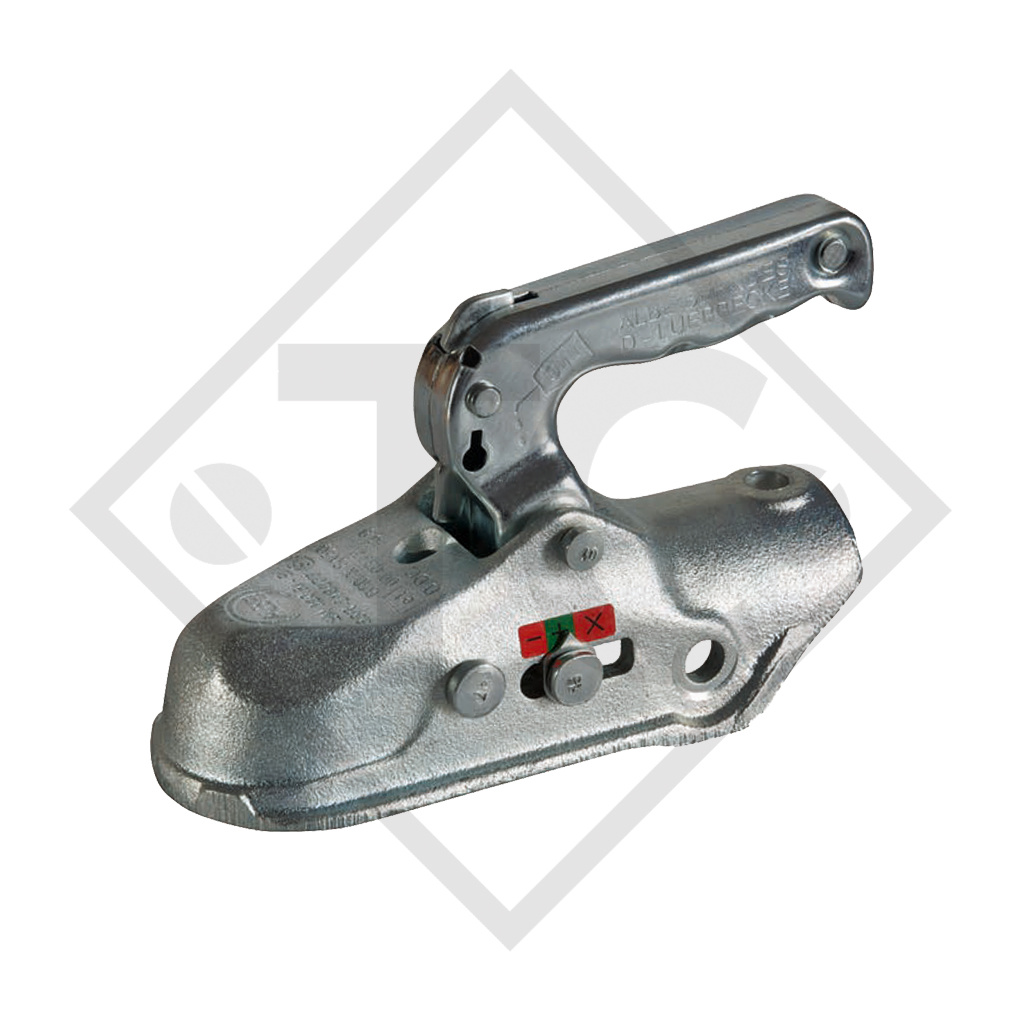

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / LOWERING AXLES 750 TO 3500KG, AXLE TYPE CB 755, CB 1055, CB 1355, CB 1505, CB1805, DB 2/1355, DB 2/1505 AND DB 2/1805 / Coupling head EM 300 R-B for braked trailers

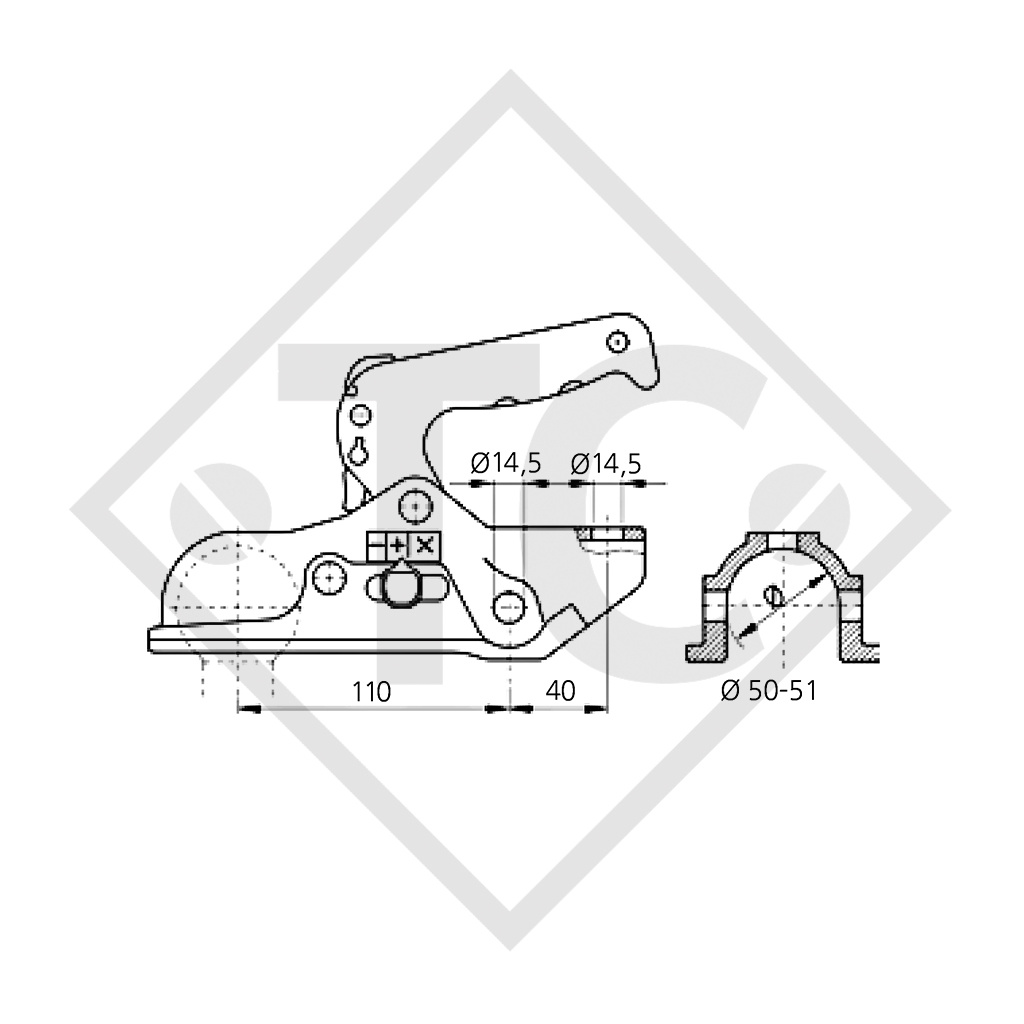

drawbar ⌀50-51mm round, holes (screw connection) cross 14.5mm, hole distance 40mm, perm. gross weight 3000kg, nose load 150kg, material: malleable cast iron. Read more...
IMPORTANT INFORMATION: The manufacturer ALBE BERNDES has been sold. Item 1860800 (W1144) will be automatically supplied as an alternative. This item exhibits identical characteristics. It is merely produced by a different manufacturer.
| Drawbar ⌀ |
50-51mm |
| Holes (screw connection) | cross 14,5mm |
| Hole distance | 40mm |
| Perm. gross weight | 3000 kg |
| Nose load |
150 kg |
| D / Dc value |
27 kN |
| Material | malleable cast iron |
| Tightening torque |
75 Nm |
| ECE type approval no. | R55-010377 E1 |
