total length K (at -5°) 2253mm, drawbar length E 1250mm, drawbar section 100x160x5mm, intermediate piece 400mm, perm. nose load 120kg, without hitch components, for wheel brake 3062 / 3081.
total length K (at -5°) 3752mm, drawbar length E 2450mm, drawbar section 100x160x5mm, intermediate piece 700mm, perm. nose load 120kg, without hitch components, for wheel brake 2361.
total length K (at -5°) 2792mm, drawbar length E 1490mm, drawbar section 100x160x5mm, intermediate piece 700mm, perm. nose load 120kg, without hitch components, for wheel brake 1637 / 2051.
total length K (at -5°) 3592mm, drawbar length E 2290mm, drawbar section 100x160x5mm, intermediate piece 600mm, perm. nose load 120kg, without hitch components, for wheel brake 1637 / 2051.
total length K (at -5°) 2956mm, drawbar length E 1650mm, drawbar section 100x160x5mm, intermediate piece 700mm, perm. nose load 120kg, without hitch components, for wheel brake 3062 / 3081.
total length K (at -5°) 3356mm, drawbar length E 2050mm, drawbar section 100x160x5mm, intermediate piece 600mm, perm. nose load 120kg, without hitch components, for wheel brake 3062 / 3081.
total length K (at -5°) 2876mm, drawbar length E 1570mm, drawbar section 100x160x5mm, intermediate piece 400mm, perm. nose load 120kg, without hitch components, for wheel brake 2361.
total length K (at 0°) 3832mm, drawbar length E 2530mm, drawbar section 80x140x4mm, intermediate piece 600mm, perm. nose load 100kg, without hitch components, for wheel brake 1637 / 2051.
total length K (at 0°) 2796mm, drawbar length E 1490mm, drawbar section 80x140x4mm, intermediate piece 400mm, perm. nose load 100kg, without hitch components, for wheel brake 2361.
connection 130mm, nose load 75kg, drawbar installation version top, can be combined with AL-KO wheel brake 1636G / 1637with coupling head AK 161, Soft-Dock.
connection 166mm, nose load 120kg, drawbar installation version top, can be combined with AL-KO wheel brake 1637 / 2051, with coupling head AK 270, Soft-Dock.
rim size 6.00x16, hole number 6, rim centre hole Ø 161mm, bolt circle 205mm, offset 0, colour silver RAL9006, R16 ball-head, load capacity 1800/1500kg at 25/140km/h.
rim size 5.00x14, hole number 5, rim centre hole Ø 94mm, bolt circle 140mm, offset 0, colour silver RAL9006, R14 ball-head, load capacity 900kg at 140km/h.
rim size 5.00x13, hole number 4, rim centre hole Ø 57mm, bolt circle 100mm, offset +30, colour silver RAL9006, C60 taper-head, load capacity 670kg at 140km/h.
build design radial, tyre size 135/80 R 13, TL (tubeless), load index 74, speed index N, tread AW-414, specification M+S, load capacity 375kg at 140km/h, inflation pressure 2.7 bar.
tyre size 20.5x8.00–10, TL (tubeless), load index 98, speed index M, tread C-834 HS, specification High Speed, load capacity 750kg at 130km/h, inflation pressure 6.25 bar.
tyre size 5.00-10, TL (tubeless), load index 79, speed index M, tread K364, specification E-mark, load capacity 437kg at 130km/h, inflation pressure 3.4 bar.

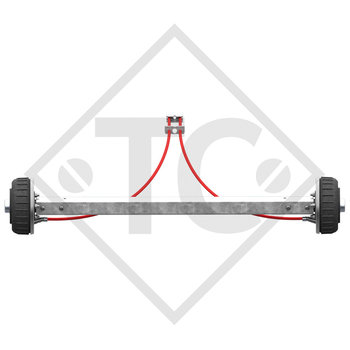

BC: dimension A 900mm, OHF: dimension C 1430mm, wheel connection 205x6, wheel brake type 3081 A, offset (ET) 0mm, swing arm position 20°, axle profile 120mm, wheel nuts M18x1.5 ball.
