height-adjustable: 3 positions in 50mm steps, 2 bolt variant, 2x bolts with Ø 19mm for secure fastening with split pins, pre-drilled sliding plate with 4 holes for fastening with 2 or 4 bolts as per Directive ECE-R55-01.
for AL-KO axles trailing arm and semi-trailing arm, single axle up to 1350kg, tandem axle up to 2700kg, colour blue, with articulation connection eyes and fixing bolts.
total length K (at -5°) 2845mm, drawbar length E 1410mm, drawbar section 120x160x6mm, intermediate piece 700mm, perm. nose load 350kg, without hitch components, for wheel brake 2051.
rim size 6.00x13, hole number 5, rim centre hole Ø 67mm, bolt circle 112mm, offset +30, colour silver RAL9006, R12 ball-head, load capacity 950kg at 140km/h.
build design radial, tyre size 145/80 R 13, TL (tubeless), load index 79, speed index N, tread AW-414, specification M+S, load capacity 425kg at 140km/h, inflation pressure 2.7 bar.
build design radial, tyre size 195/60 R 12 C, TL (tubeless), load index 104/102, speed index N, tread KargoMax ST-6000, specification M+S, load capacity 900kg at 140km/h, inflation pressure 6.55 bar.
build design radial, tyre size 145/80 R 13, TL (tubeless), load index 78, speed index N, tread 201, specification M+S, load capacity 425kg at 140km/h, inflation pressure 2.8 bar.

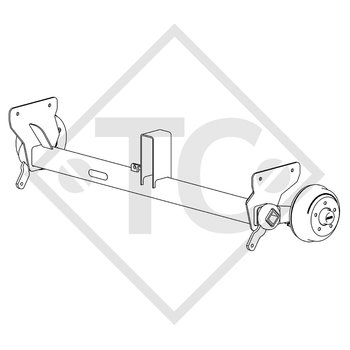

BC: dimension A 1700mm, OHF: dimension C 2150mm, wheel connection 112x5, wheel brake type 2051 with AAA, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm.
