vers. B, hexagonal rubber suspension axle: single axle 750kg, axle profile 71mm, drawbar tube square 60mm, slot for adapter bracket: yes, tightening torque: 52 Nm. Read more...
Part no. 267395
| Clamping shells for axles |
| Hexagonal rubber suspension axle |
single axle up to 750kg |
| Axle profile | 71mm |
| Drawbar tube Square | 60mm |
| Slot for Adapter bracket |
Yes |
TECHNOLOGY
Clamping connection assembly:
Mount drawbar tube and axle with clamping
connection
Tighten with 4 hexagonal bolts M12.
Tightening torque:
52 Nm
SURFACE TREATMENT
Clamping connections hot-dip galvanised
SCOPE OF DELIVERY

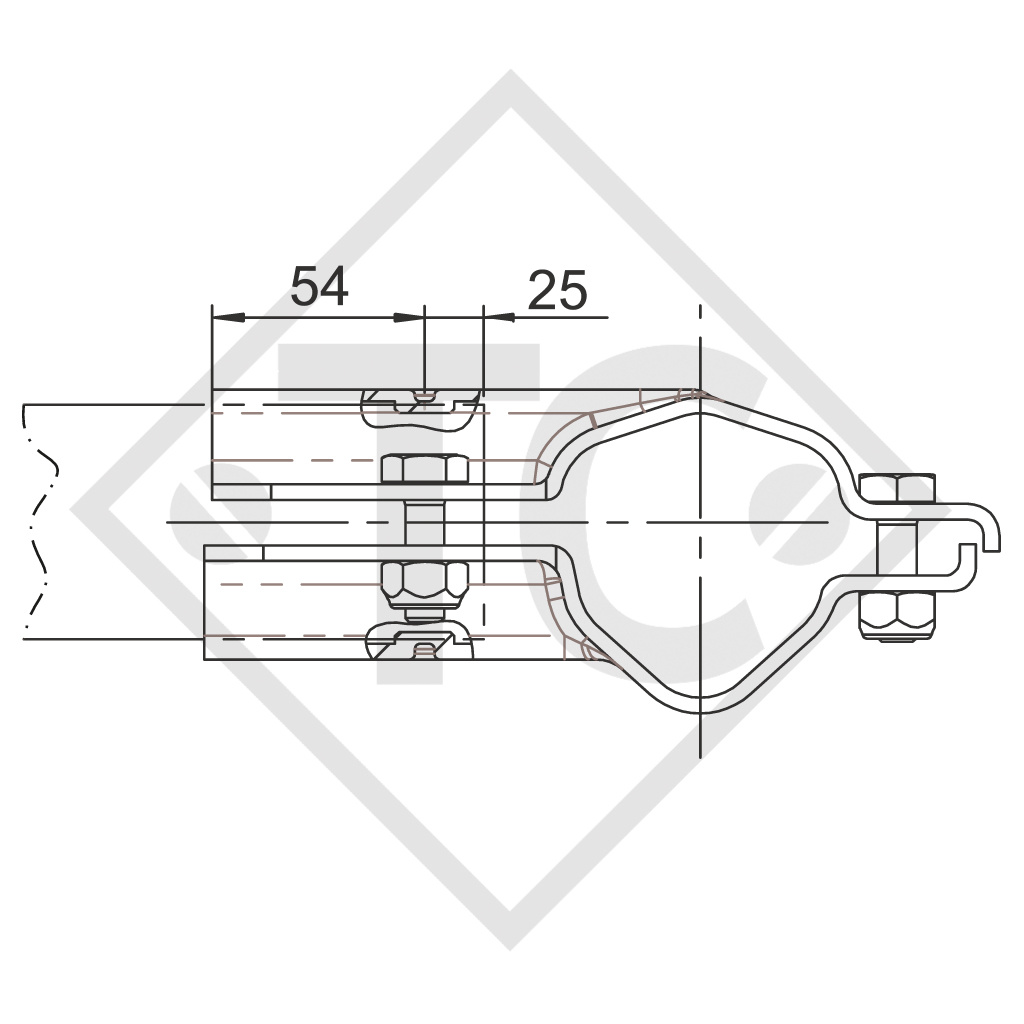

(See technical drawing)
incl. bolted fasteners
