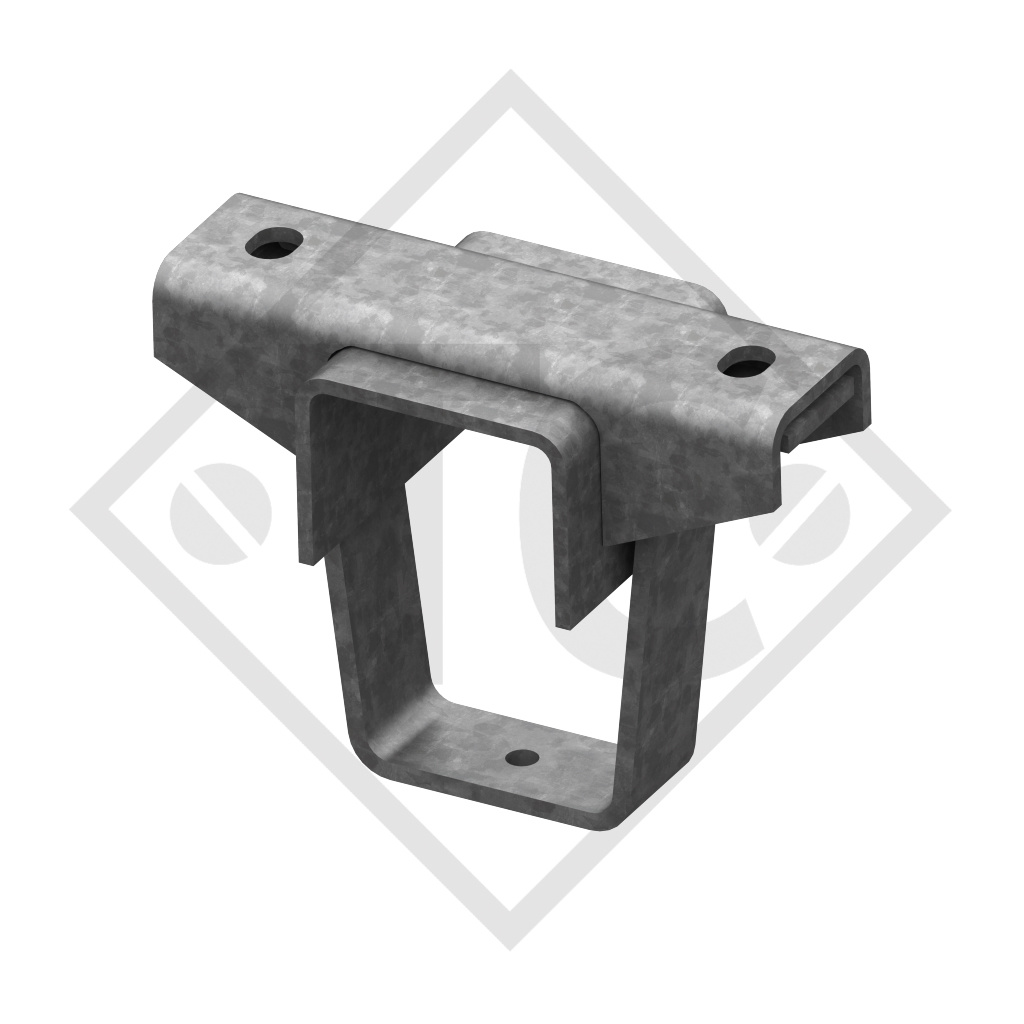

Home / CHASSIS PARTS / CHASSIS PARTS SCHLEGL / AXLES / BRAKED AXLES & ACCESSORIES / BRAKED AXLE 900KG, AXLE TYPE SB9 / Clamping mount 80x140mm

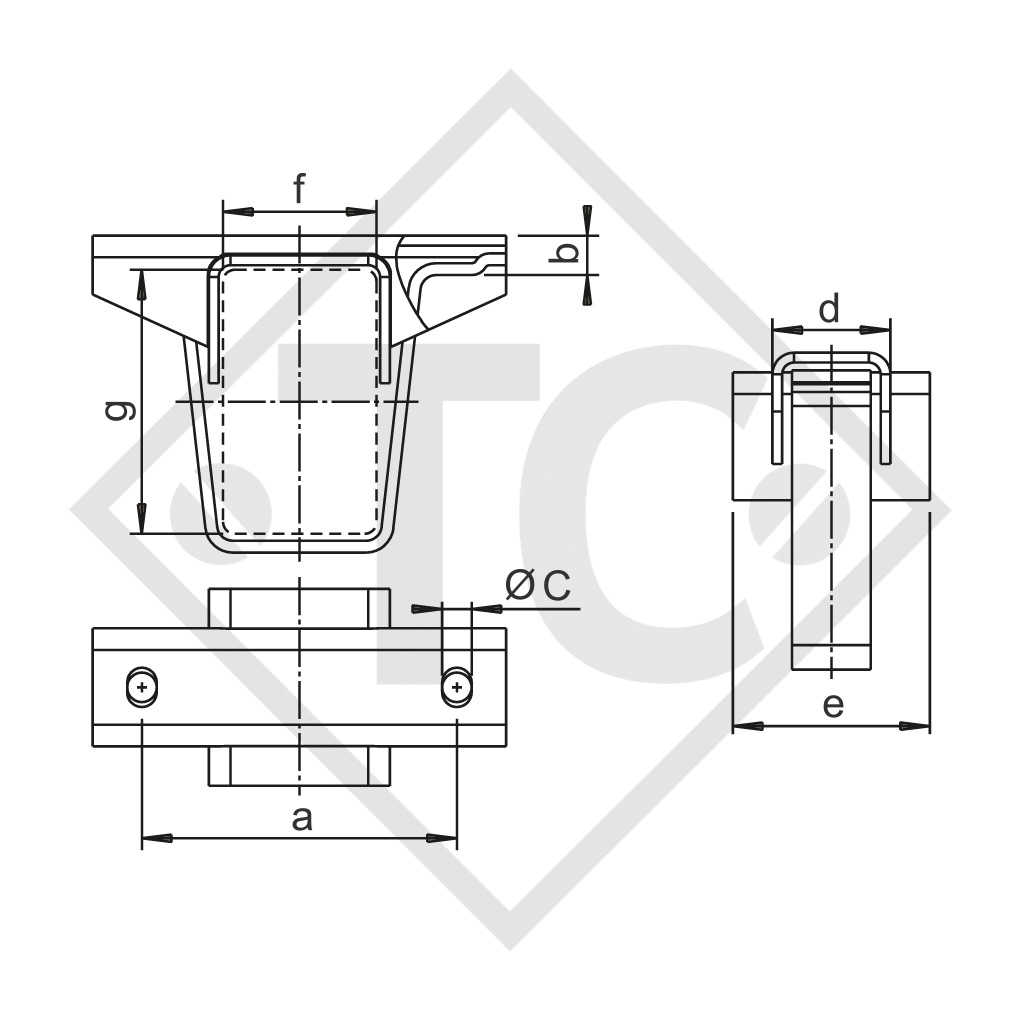

for drawbar tube see diagram dimension f and g 80x140mm, dimension a 160mm, dimension b 15mm, dimension c 15mm, dimension d 60mm, dimension e 100mm, surface treatment: hot-dip galvanised.
