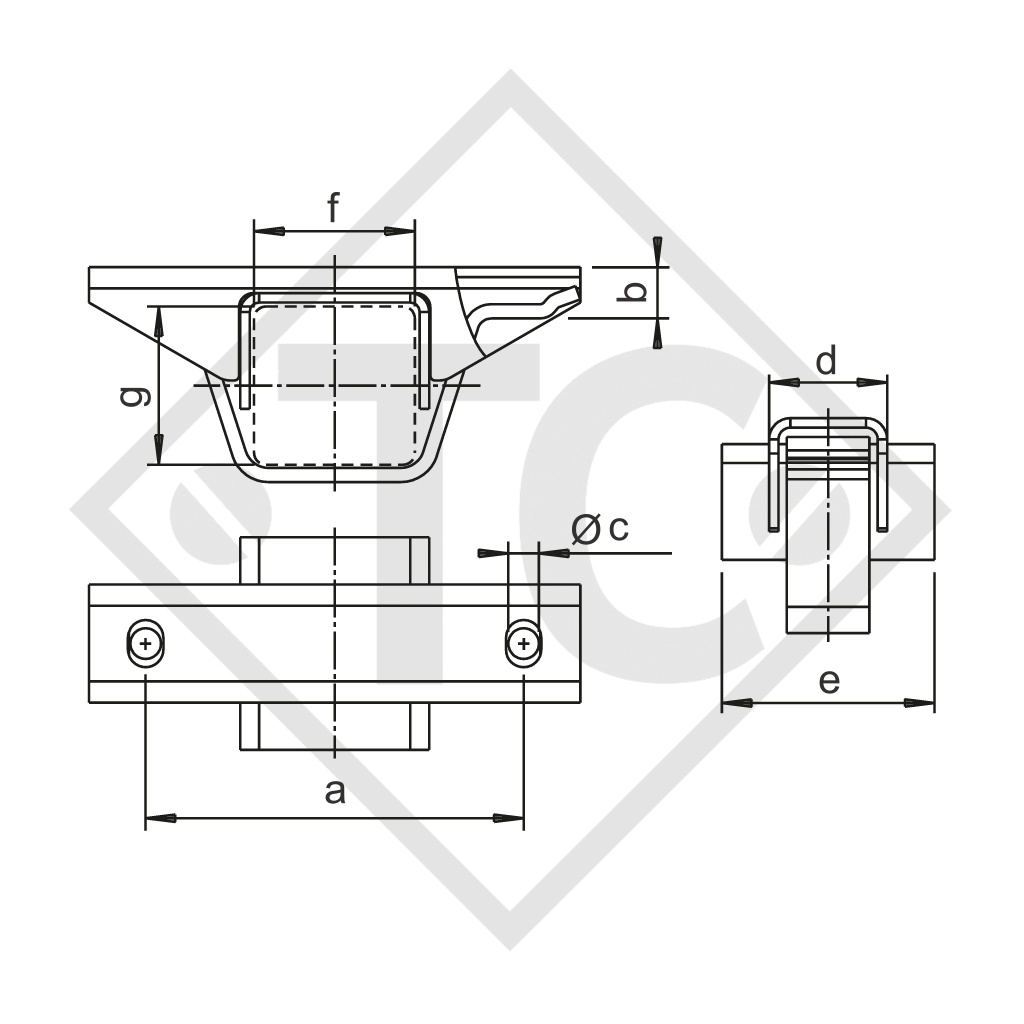

for drawbar tube see diagram dimension f and g 70x70mm, dimension a 160mm, dimension b 15mm, dimension c 13mm, dimension d 50mm, dimension e 90mm, surface treatment: hot-dip galvanised. Read more...
Part no. XXX
| For drawbar tube see diagram dimension f and g in mm |
| Dimension a mm |
| Dimension b mm |
| Dimension c mm |
| Dimension d mm |
| Dimension e mm |
SCOPE OF DELIVERY
Clamping mount with clamping bracket without fixing bolts
SURFACE TREATMENT
Hot-dip galvanised
Here, you can find the catalogue page as a convenient PDF download.
