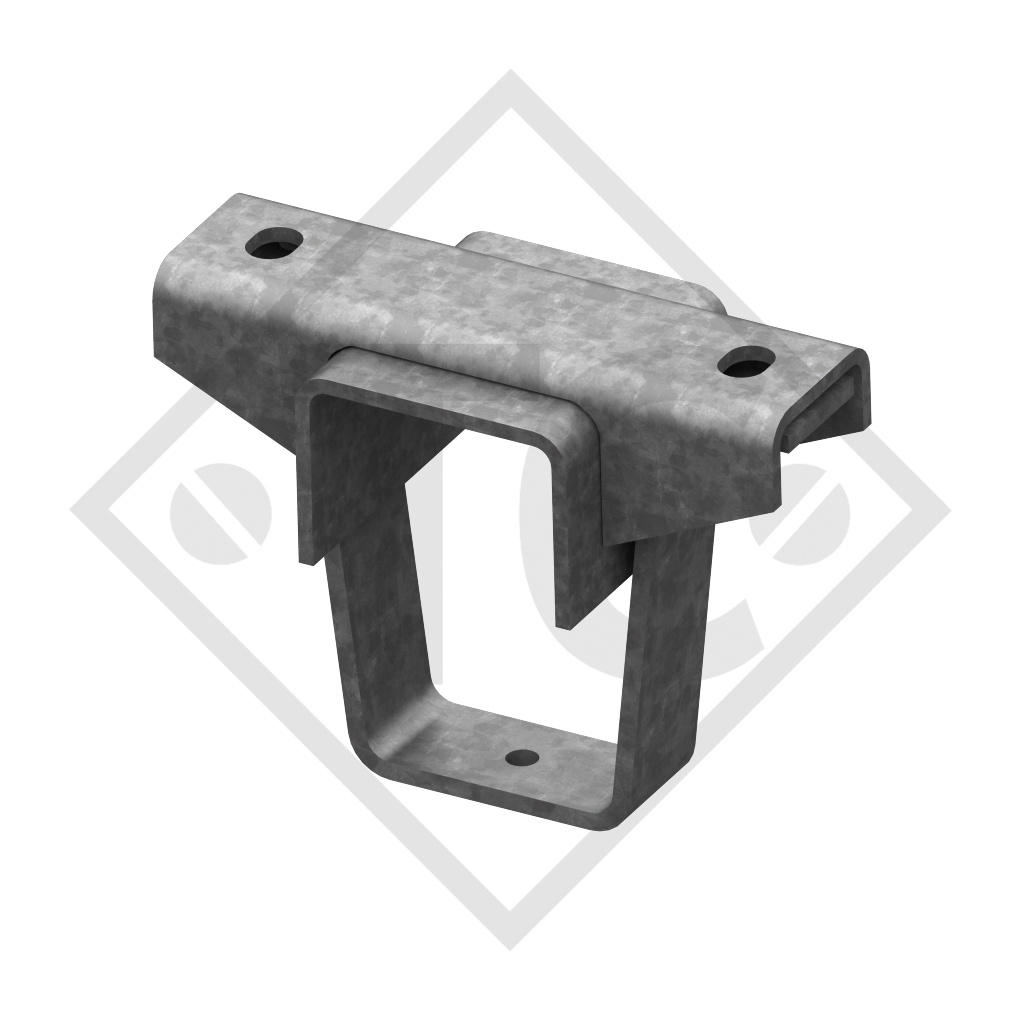

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / BRAKED AXLE 2100KG SWING, AXLE TYPE CS 2106 / Clamping mount 70x140mm

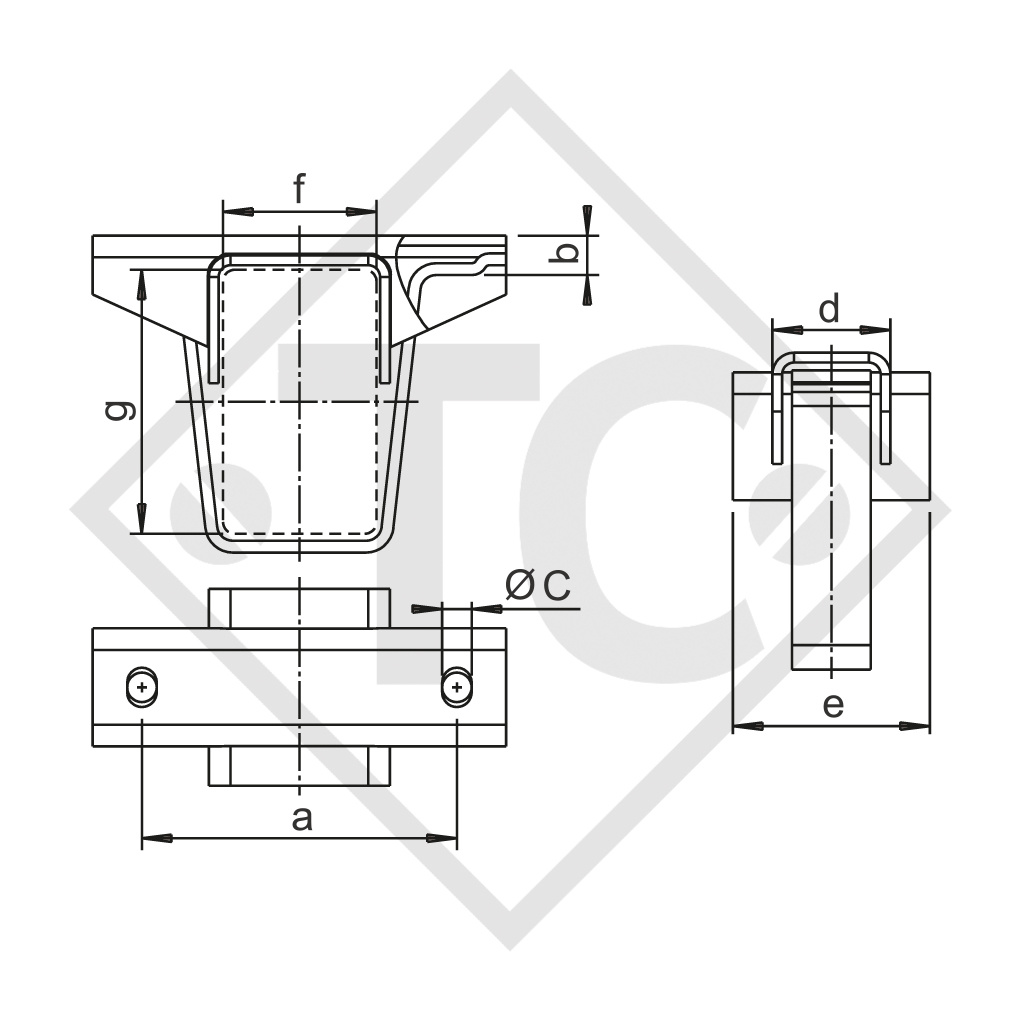

for drawbar tube see diagram dimension f and g 70x140mm, dimension a 160mm, dimension b 15mm, dimension c 15mm, dimension d 50mm, dimension e 90mm, surface treatment: hot-dip galvanised.
