Part no. 249317

For drawbar tube see diagram dimension f and g in mm 60x60
Dimension a mm 160
Dimension b mm
15
Dimension c mm
13
Dimension d mm 50



SCOPE OF DELIVERY

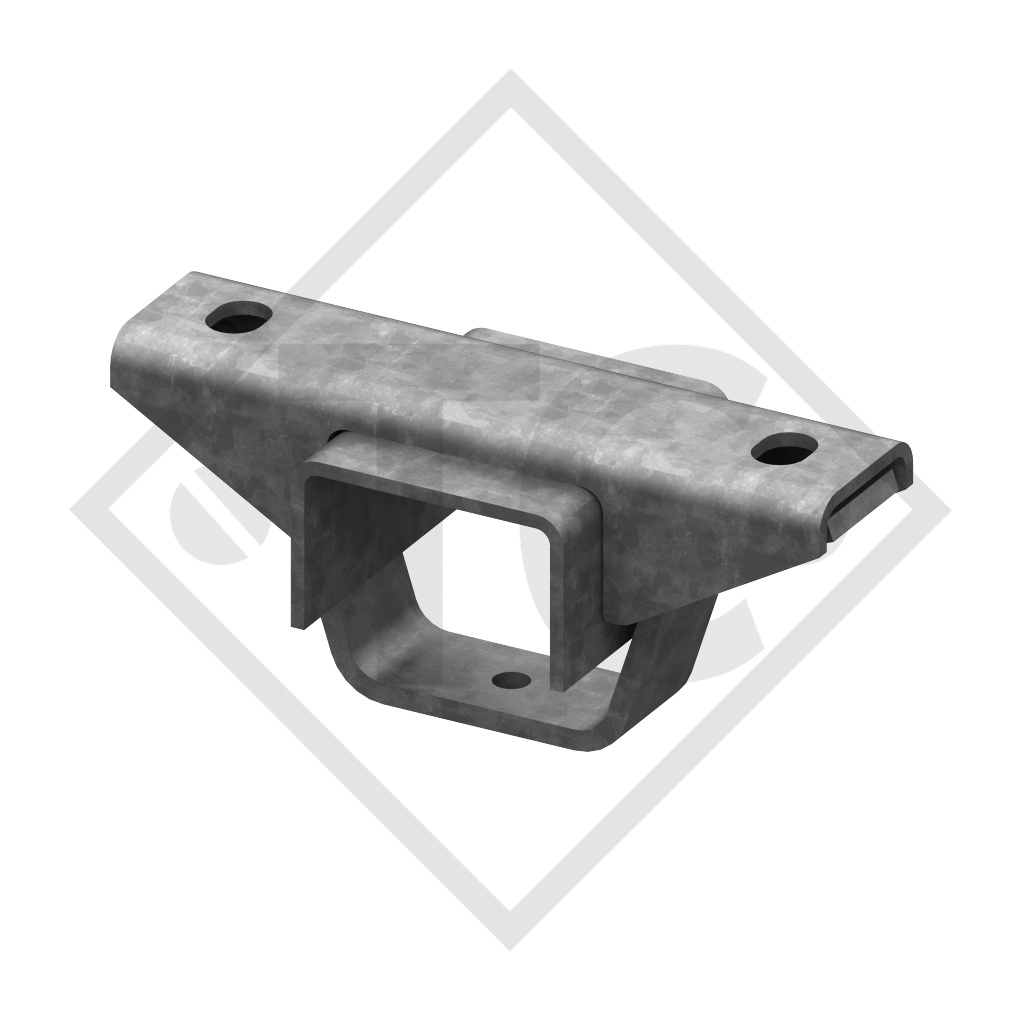

Clamping mount with clamping bracket without fixing bolts

SURFACE TREATMENT
Hot-dip galvanised

Here, you can find the catalogue page as a convenient PDF download.
