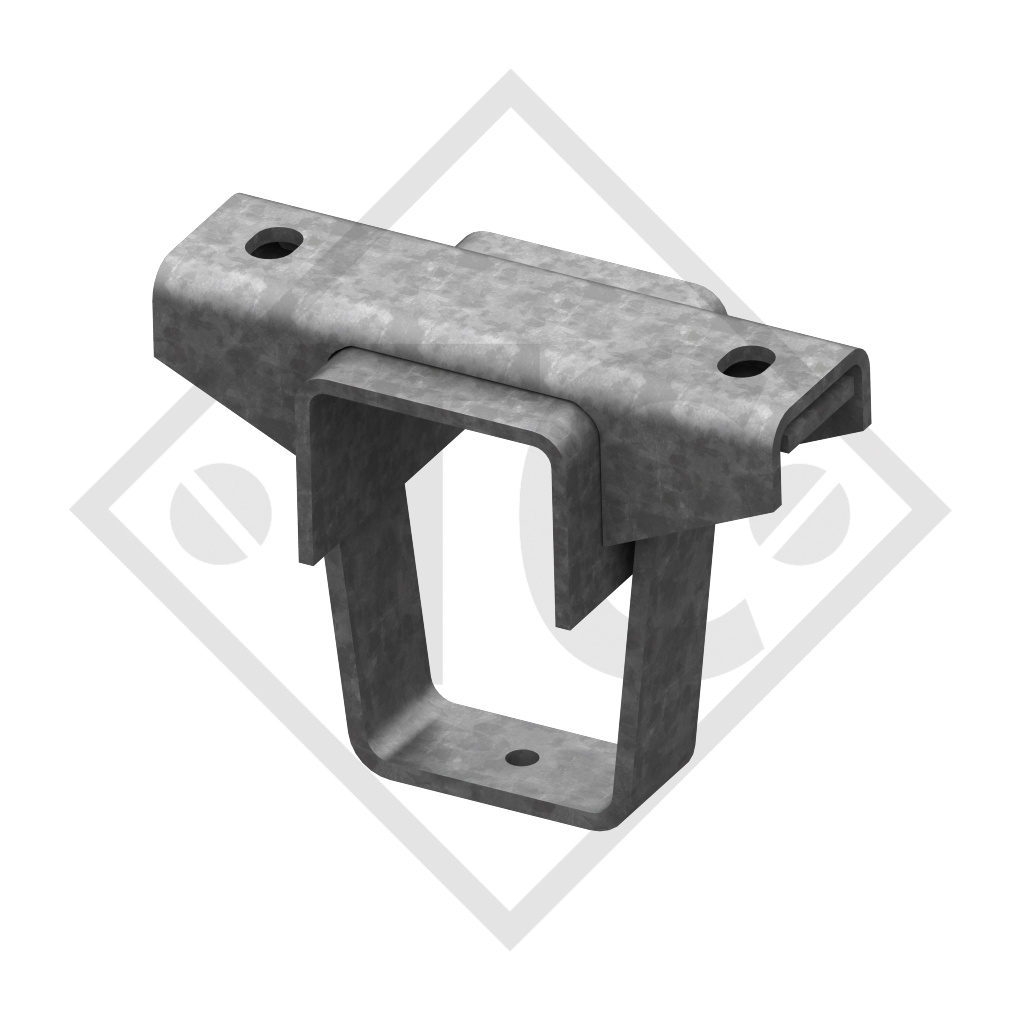

Home / MUDGUARDS / MUDGUARDS, SINGLE AXLE TRAILER, SHEET METAL, VERS. "ROUND" / Clamping mount 100x160mm

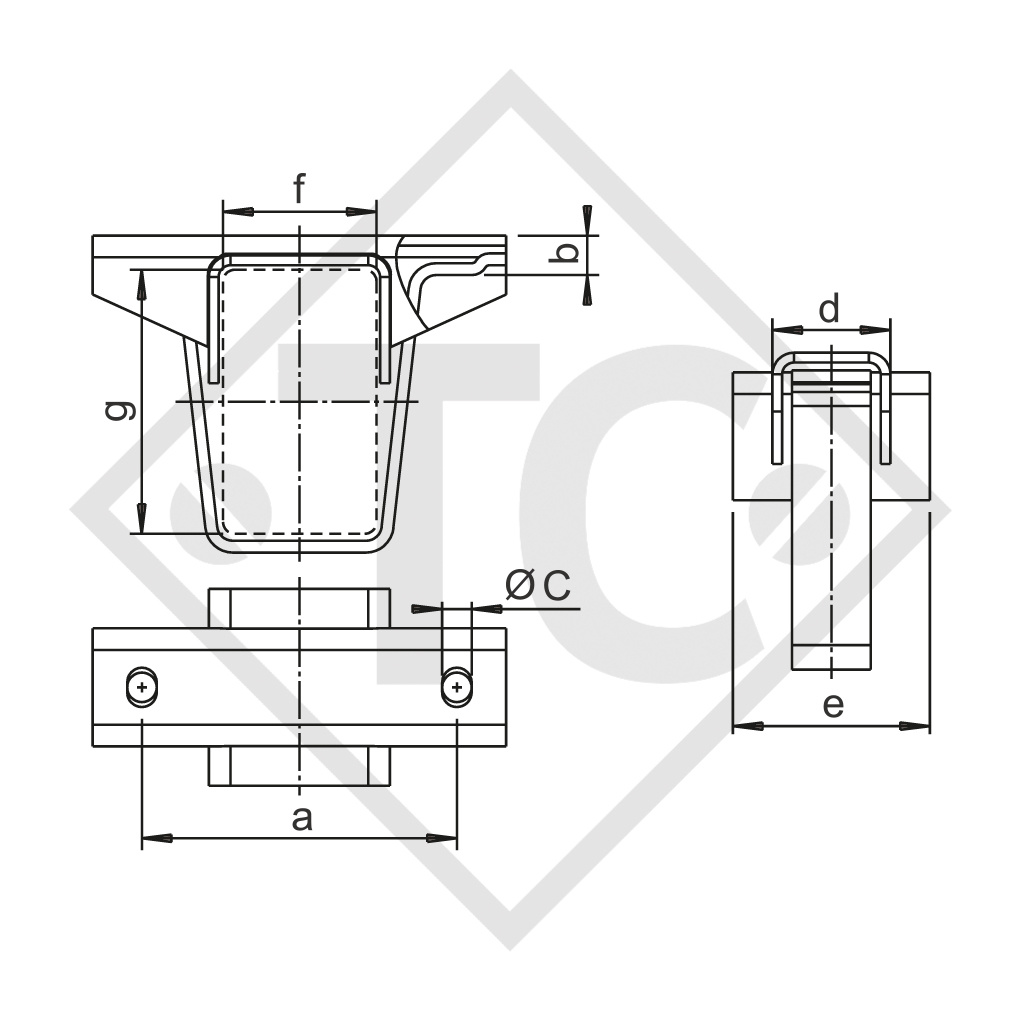

for drawbar tube see diagram dimension f and g 100x160mm, dimension a 200mm, dimension b 25mm, dimension c 17mm, dimension d 60mm, dimension e 120mm, surface treatment: hot-dip galvanised.
