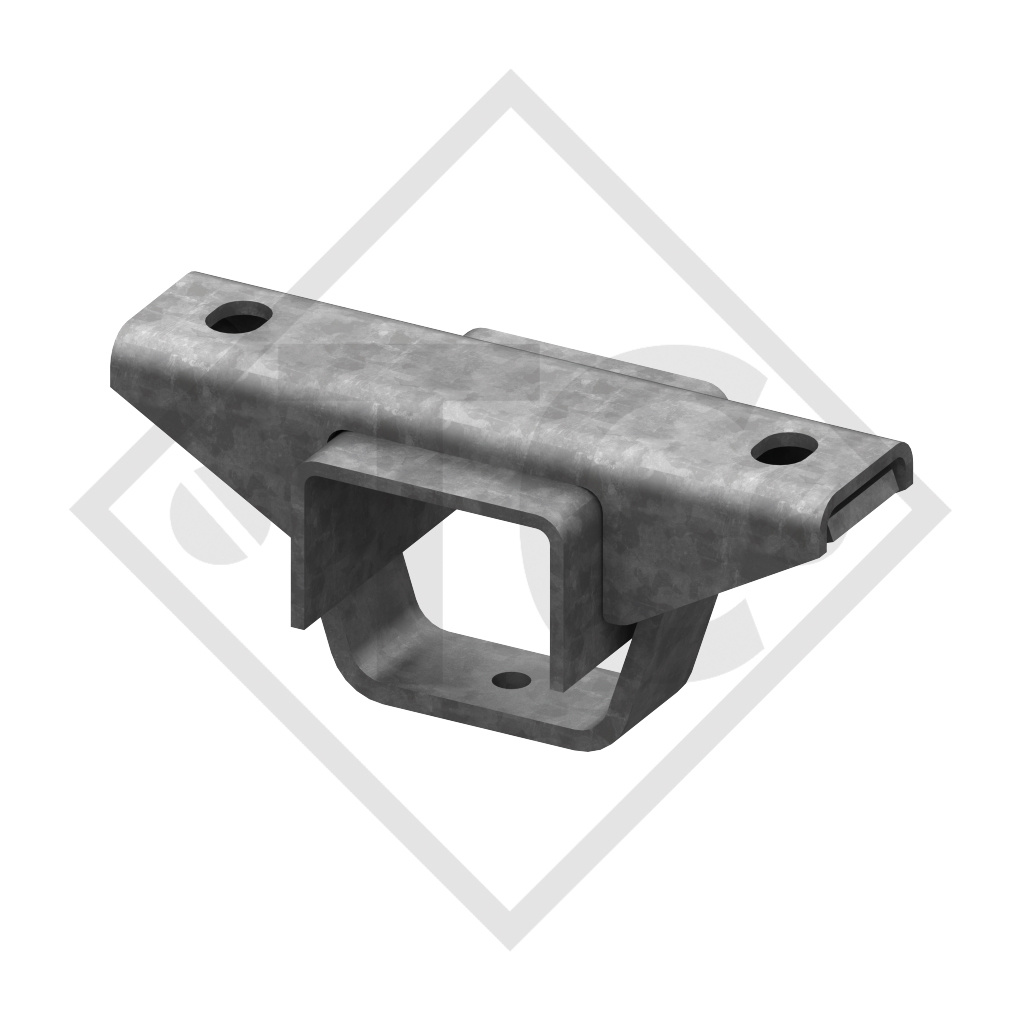

Home / CHASSIS PARTS / CHASSIS PARTS SCHLEGL / AXLES / BRAKED AXLES & ACCESSORIES / BRAKED AXLE 2000KG, AXLE TYPE SB20 / Clamping mount 100x100mm

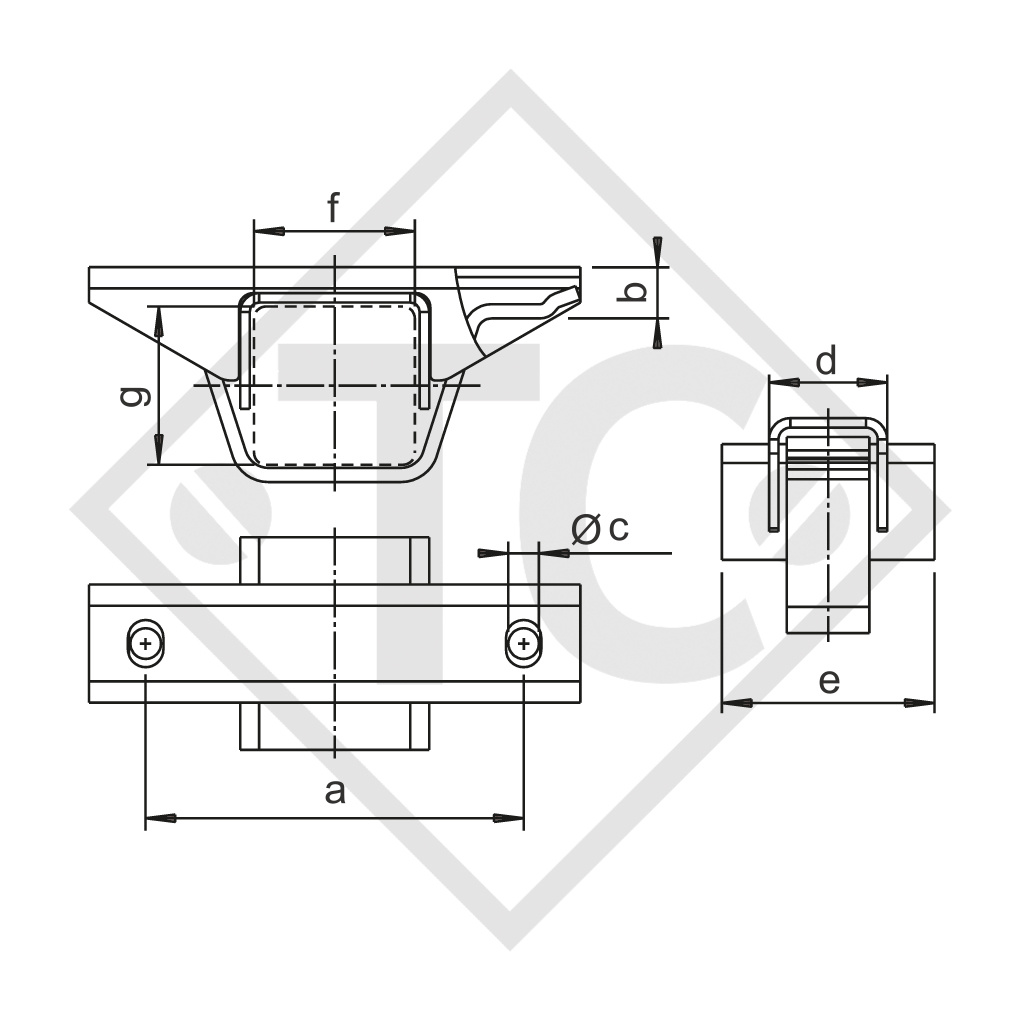

for drawbar tube see diagram dimension f and g 100x100mm, dimension a 160mm, dimension b 21 mm, dimension c 13mm, dimension d 60mm, dimension e 100mm, surface treatment: hot-dip galvanised.
