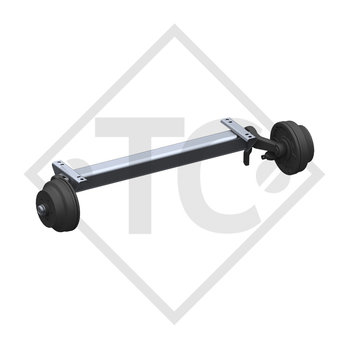

BPW Braked axle 1800kg SWING, axle type CB 1805, axle tube square 95mm for braked trailers

BPW Braked axle 1800kg SWING, axle type CB 1805 axle tube square 95mm

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket

How do I find the right axle?

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

Braked axle SWING 1800kg axle type CB 1805, 46.32.368.005
BC: dimension AM 1500mm, OHF: dimension FL 2035mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, ball-head wheel bolts M12x1.5.
Price 1.149,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.020
BC: dimension AM 1000mm, OHF: dimension FL 1535mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 R12.
Price 1.065,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.021
BC: dimension AM 1100mm, OHF: dimension FL 1635mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 R12.
Price 1.065,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.022
BC: dimension AM 1200mm, OHF: dimension FL 1735mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 R12.
Price 1.015,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.023
BC: dimension AM 1300mm, OHF: dimension FL 1835mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 R12.
Price 1.065,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.024
BC: dimension AM 1400mm, OHF: dimension FL 1935mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 R12.
Price 1.065,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.025
BC: dimension AM 1500mm, OHF: dimension FL 2035mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 R12.
Price 1.065,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.026
BC: dimension AM 1600mm, OHF: dimension FL 2135mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 R12.
Price 1.065,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.027
BC: dimension AM 1700mm, OHF: dimension FL 2235mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 R12.
Price 1.150,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.028
BC: dimension AM 1800mm, OHF: dimension FL 2335mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 R12.
Price 1.175,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.029
BC: dimension AM 1900mm, OHF: dimension FL 2435mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 R12.
Price 1.185,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.030
BC: dimension AM 1000mm, OHF: dimension FL 1535mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 60°.
Price 1.055,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.031
BC: dimension AM 1100mm, OHF: dimension FL 1635mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 60°.
Price 1.055,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.032
BC: dimension AM 1200mm, OHF: dimension FL 1735mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 60°.
Price 1.115,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.033
BC: dimension AM 1300mm, OHF: dimension FL 1835mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 60°.
Price 1.055,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.034
BC: dimension AM 1400mm, OHF: dimension FL 1935mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 60°.
Price 1.200,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.035
BC: dimension AM 1500mm, OHF: dimension FL 2035mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 60°.
Price 1.200,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.036
BC: dimension AM 1600mm, OHF: dimension FL 2135mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 60°.
Price 1.200,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.037
BC: dimension AM 1700mm, OHF: dimension FL 2235mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 60°.
Price 995,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.038
BC: dimension AM 1800mm, OHF: dimension FL 2335mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 60°.
Price 925,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.039
BC: dimension AM 1900mm, OHF: dimension FL 2435mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, taper-head wheel bolts M12x1.5 60°.
Price 1.065,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.055, HIRTH
BC: dimension AM 1000mm, OHF: dimension FL 1450mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 27-40mm, swing arm position 0°, axle profile 95mm, taper-head wheel bolts M12x1.5 R12.
Price 1.229,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.056, HIRTH
BC: dimension AM 1150mm, OHF: dimension FL 1600mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 27-40mm, swing arm position 0°, axle profile 95mm, taper-head wheel bolts M12x1.5 R12.
Price 1.239,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.057, HIRTH
BC: dimension AM 1400mm, OHF: dimension FL 1850mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 27-40mm, swing arm position 0°, axle profile 95mm, taper-head wheel bolts M12x1.5 R12.
Price 1.259,00 EUR Incl. tax Excl. Shipping costs
