BPW Braked axle 1050kg SWING, axle type CB 1055 for braked trailers

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / BRAKED AXLE 1050KG SWING, AXLE TYPE CB 1055

JUST ORIGINAL PARTS

LIFE-TIME SUPPORT

SALE

POSITIVE REVIEWS

BPW Braked axle 1050kg SWING, axle type CB 1055

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 98x4, 130x4, 120x5, 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket

How do I find the right axle?

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

Braked axle 1050kg SWING axle type CB 1055, 46.21.379.630
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.630
BC: dimension AM 1500mm, OHF: dimension FL 1950mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 519,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.631
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.631
BC: dimension AM 1550mm, OHF: dimension FL 2000mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 590,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.632
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.632
BC: dimension AM 1600mm, OHF: dimension FL 2050mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 590,80 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.633
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.633
BC: dimension AM 1650mm, OHF: dimension FL 2100mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 590,80 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.634
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.634
BC: dimension AM 1700mm, OHF: dimension FL 2150mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 533,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.635
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.635
BC: dimension AM 1750mm, OHF: dimension FL 2200mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 596,30 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.636
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.636
BC: dimension AM 1800mm, OHF: dimension FL 2250mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 601,80 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.637
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.637
BC: dimension AM 1850mm, OHF: dimension FL 2300mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 601,80 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.638
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.638
BC: dimension AM 1900mm, OHF: dimension FL 2350mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 546,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.640
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.640
BC: dimension AM 1000mm, OHF: dimension FL 1450mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 563,10 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.641
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.641
BC: dimension AM 1050mm, OHF: dimension FL 1500mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 557,80 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.642
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.642
BC: dimension AM 1100mm, OHF: dimension FL 1550mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 563,30 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.643
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.643
BC: dimension AM 1150mm, OHF: dimension FL 1600mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 563,30 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.644
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.644
BC: dimension AM 1200mm, OHF: dimension FL 1650mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 568,80 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.645
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.645
BC: dimension AM 1250mm, OHF: dimension FL 1700mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 568,80 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.646
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.646
BC: dimension AM 1300mm, OHF: dimension FL 1750mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 574,30 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.647
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.647
BC: dimension AM 1350mm, OHF: dimension FL 1800mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 574,30 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.648
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.648
BC: dimension AM 1400mm, OHF: dimension FL 1850mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 574,30 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.649
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.649
BC: dimension AM 1450mm, OHF: dimension FL 1900mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 579,80 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.650
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.650
BC: dimension AM 1500mm, OHF: dimension FL 1950mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 595,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.651
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.651
BC: dimension AM 1550mm, OHF: dimension FL 2000mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 585,30 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.652
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.652
BC: dimension AM 1600mm, OHF: dimension FL 2050mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 590,80 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.379.653
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.653
BC: dimension AM 1650mm, OHF: dimension FL 2100mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 590,80 EUR Incl. tax Excl. Shipping costs

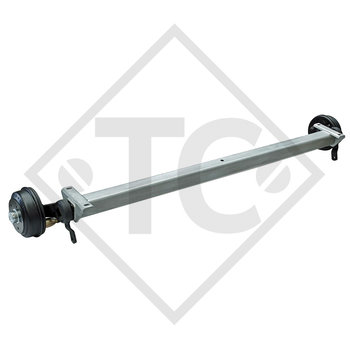

Braked axle 1050kg SWING axle type CB 1055, 46.21.379.654
BPW Braked axle 1050kg SWING axle type CB 1055, 46.21.379.654
BC: dimension AM 1700mm, OHF: dimension FL 2150mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 590,80 EUR Incl. tax Excl. Shipping costs
