manual force 190N, minimum load 25kg, reduction 8.75 : 1, lift per crank rotation from 25-55mm, drum capacity for cable ⌀7mm: 20 meter, drum capacity for towing band: 10 meter. Read more...

Wishlist: Add to comparison:
Price 348,00 EUR Incl. tax Excl. Shipping costs

Part no. 1730014 without cable/band

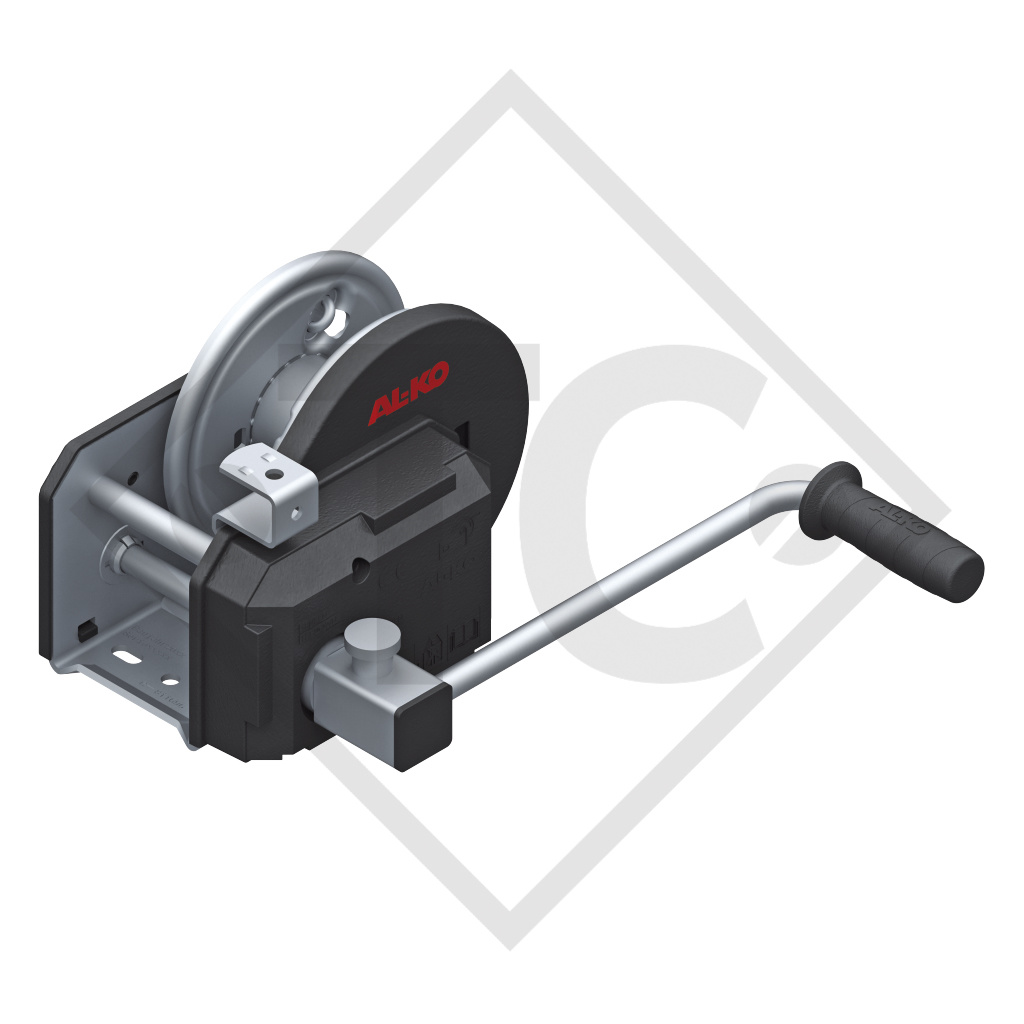

Cable winch braked - type 901 PLUS with automatic unwinder
Tensile load max. lowest cable position 900 kg
Manual force 190 N
Minimum load 25 kg
Reduction 8,75 : 1
Lift per crank rotation From 25 - 55 mm
Drum capacity for 7 mm ø cable
20 m
Drum capacity for towing band 10 m



Cable winch PLUS 900 kg with automatic unwinder Slope Lowest cable position Middle cable position Highest cable position
Vertical lifting of loads – (guidance values) - 900 kg 600 kg 330 kg

Horizontal and angled pulling

of a (non-rolling) load (guidance values)

friction factor approx. 0.5

10% (6°)

20% (11°)

30% (17°)

1.500 kg

1.300 kg

1.150 kg

1.000 kg

900 kg

800 kg

550 kg

500 kg

400 kg

Angled pulling of a rolling load (guidance values)

10% (6°)

20% (11°)

30% (17°)

5.800 kg

3.600 kg

2.700 kg

3.900 kg

2.400 kg

1.800 kg

2.100 kg

1.300 kg

1.000 kg



INSTRUCTION BOOK
SPARE PART LIST 811697
SPARE PART LIST 811697A
SPARE PART LIST 811697C
SPARE PART LIST 811697D or
SPARE PART LIST 811697E

CABLE WINCHES
with automatic load pressure brake

LOAD PRESSURE BRAKE
Automatic

YOUR ADVANTAGE
Modern design
High-quality corrosion protection
Automatic load pressure brake
Cable drum with plain bearing
Automatic unwinder for rope or band (optional)
Removable crank (optional)
Plastic gear cover
Range: 350 / 500 / 900 / 1150 kg

SURFACE TREATMENT
High-quality zinc-nickel coating approx. 400 hours salt spray test

CABLE WINCH OPERATION
Lifting: Turn the hand crank in a clockwise direction
Stopping: Let go of the hand crank in any position (automatic load pressure brake)
Lowering: Turn the hand crank in a counter-clockwise direction

AUTOMATIC UNWINDER OPERATION

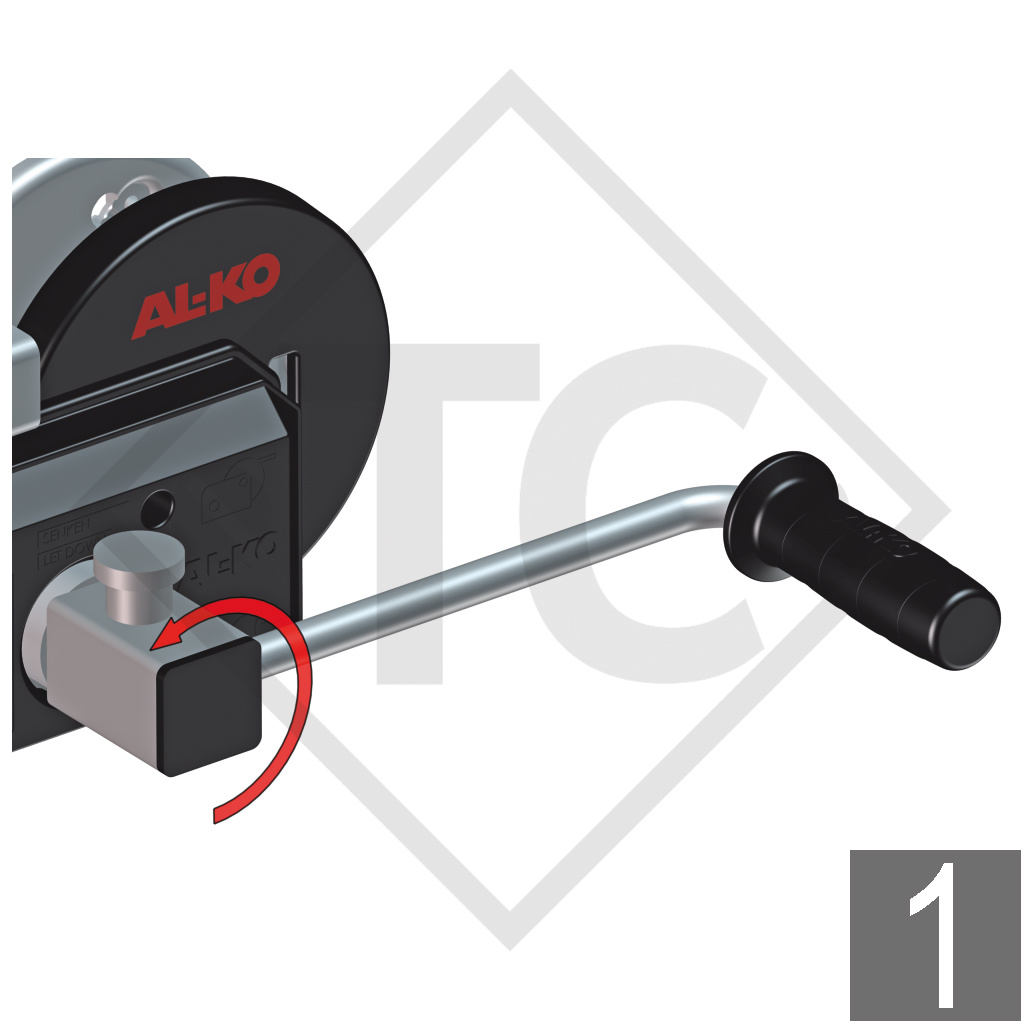

1. Turn the hand crank in a counter-clockwise for one rotation, this will cause the load pressure brake to be deactivated
2. Pull up locking sleeve
3. Remove crank

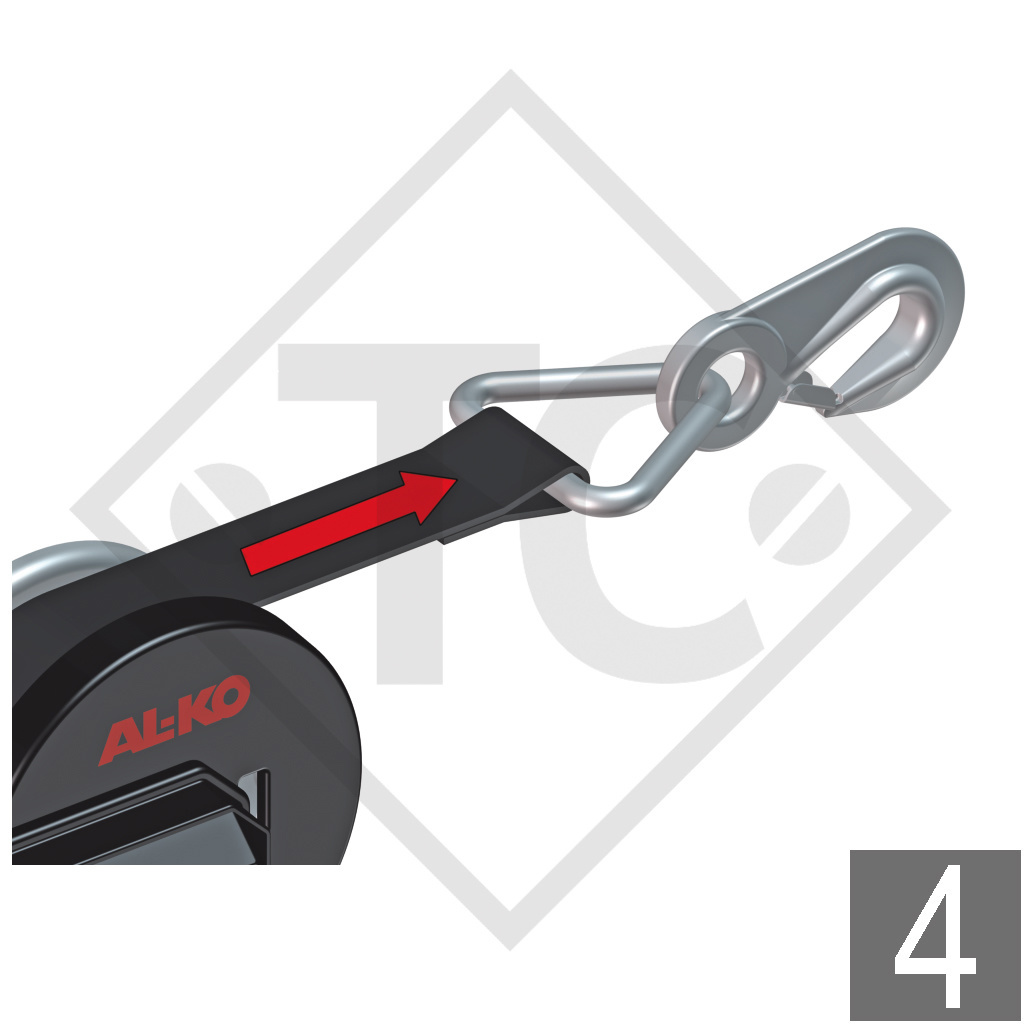

4. The band or cable can now be removed
