manual force 200N, minimum load 25kg, reduction 3.75 : 1, lift per crank rotation from 45-100mm, drum capacity for cable ⌀5mm: 20 meter, drum capacity for towing band: 7 meter. Read more...

Wishlist: Add to comparison:
Price 289,00 EUR Incl. tax Excl. Shipping costs

Part no. 1730004 fitted with 10 m cable for lifting

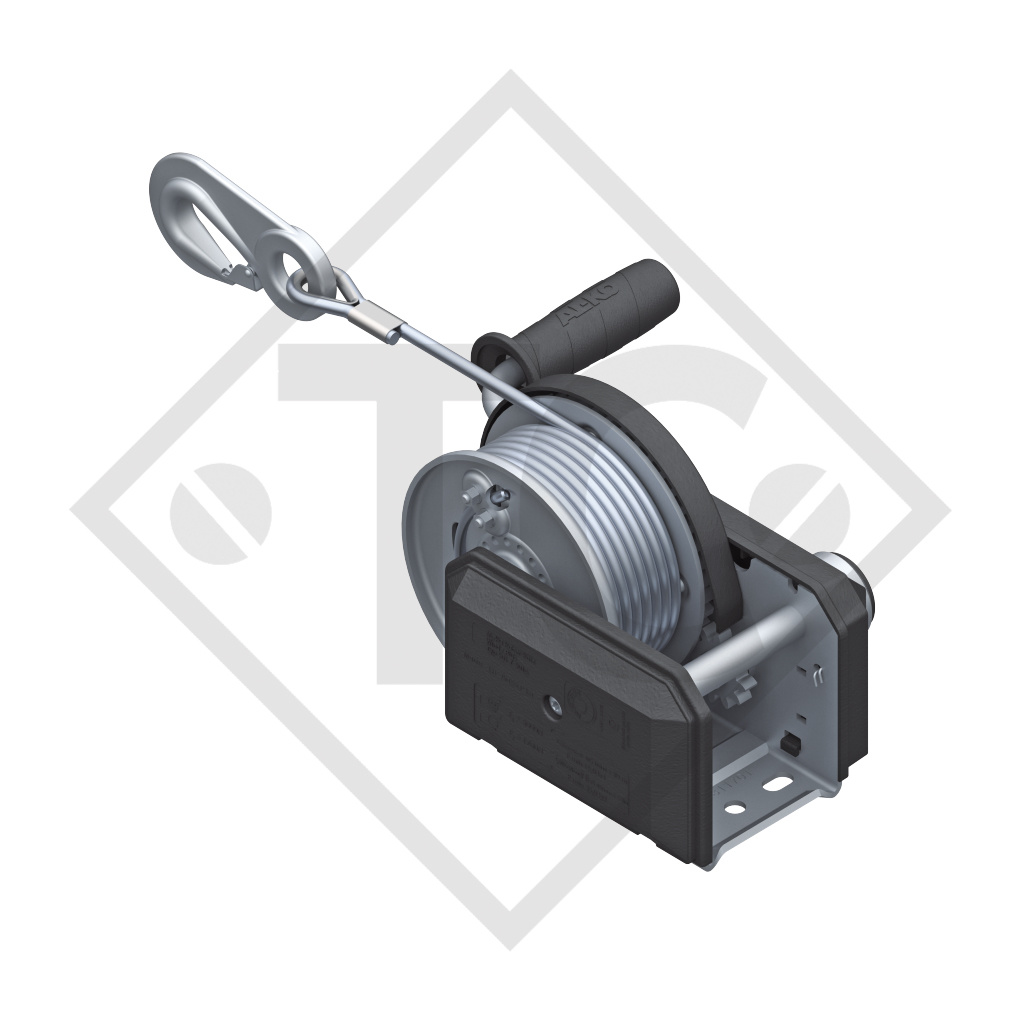

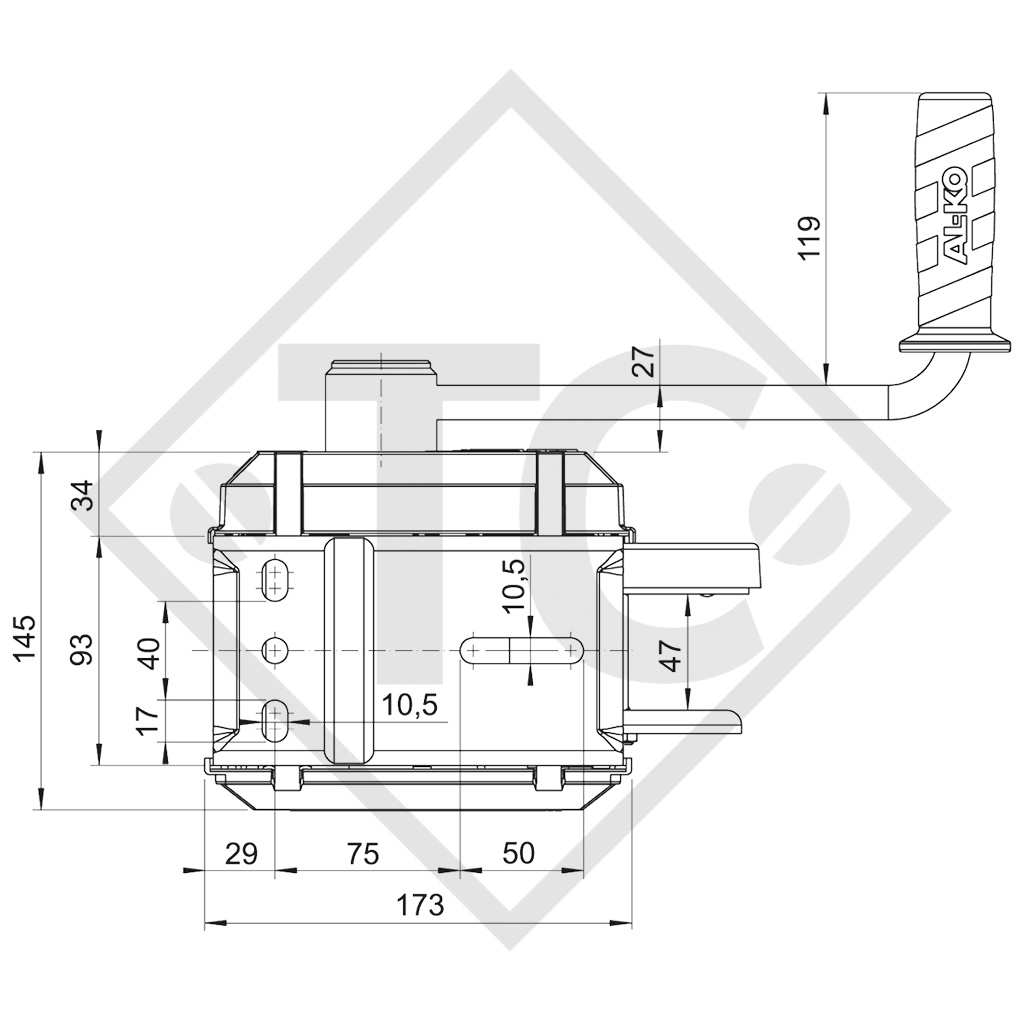

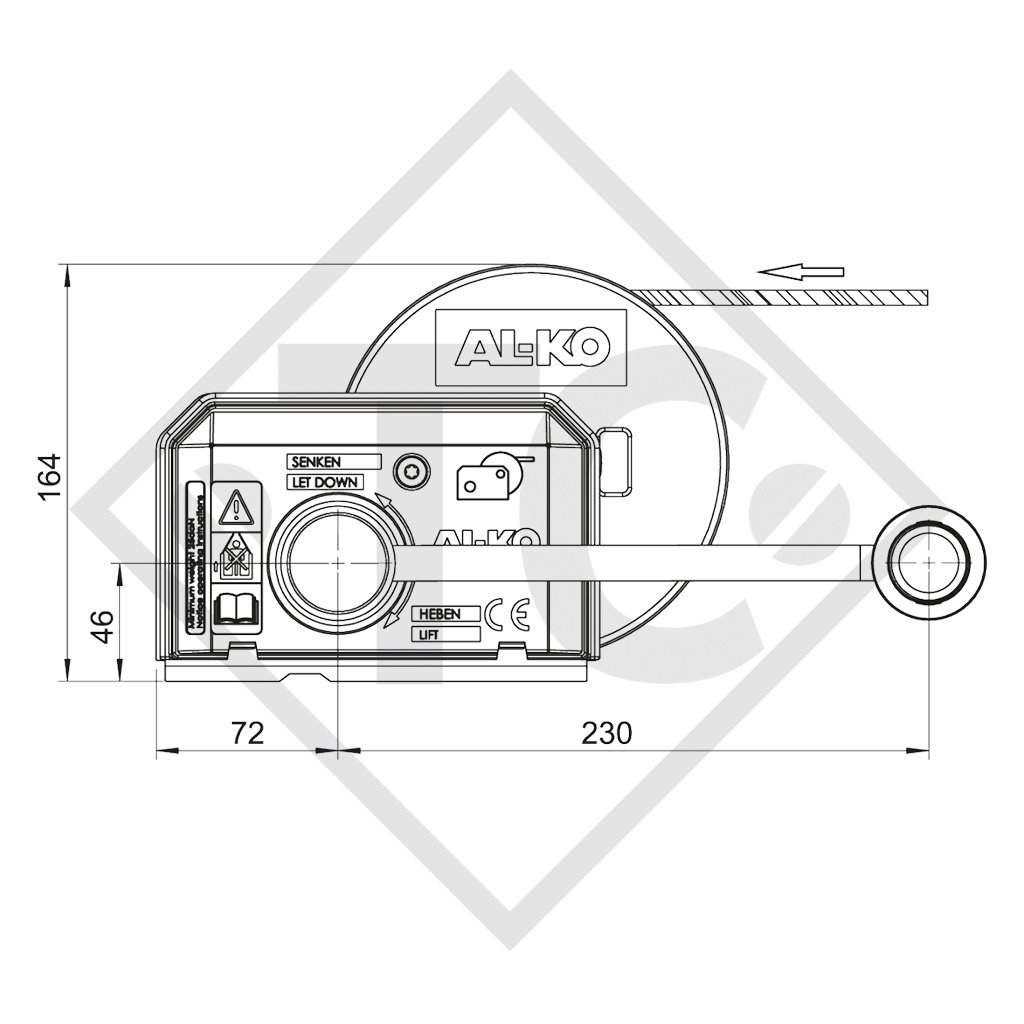

Cable winch braked - type 501 PLUS
Tensile load max. lowest cable position 500 kg
Manual force 200 N
Minimum load 25 kg
Reduction 3,75 : 1
Lift per crank rotation From 45 - 100 mm
Drum capacity for 5 mm ø cable
20 m
Drum capacity for towing band 7 m



PLUS cable winch 500 kg Slope Lowest cable position Middle cable position Highest cable position
Vertical lifting of loads – (guidance values) - 500 kg 330 kg 170 kg

Horizontal and angled pulling

of a (non-rolling) load (guidance values)

friction factor approx. 0.5

10% (6°)

20% (11°)

30% (17°)

800 kg

700 kg

650 kg

550 kg

500 kg

450 kg

300 kg

250 kg

220 kg

Angled pulling of a rolling load (guidance values)

10% (6°)

20% (11°)

30% (17°)

3.300 kg

2.000 kg

1.500 kg

2.200 kg

1.300 kg

1.000 kg

1.100 kg

700 kg

500 kg



INSTRUCTION BOOK
SPARE PART LIST 811701
SPARE PART LIST 811701A or
SPARE PART LIST 811701B

CABLE WINCHES
with automatic load pressure brake

LOAD PRESSURE BRAKE
Automatic

YOUR ADVANTAGE
Modern design
High-quality corrosion protection
Automatic load pressure brake
Cable drum with plain bearing

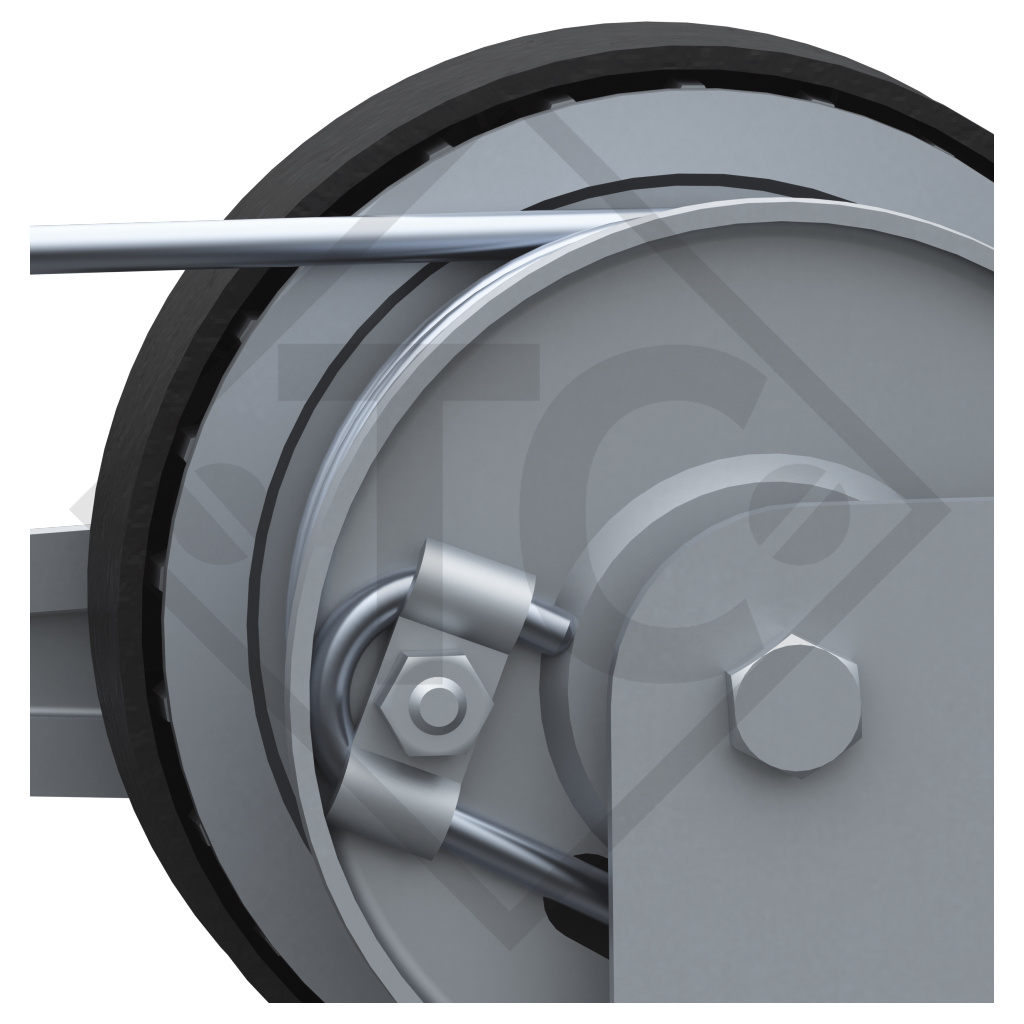

Automatic unwinder for rope or band (optional)
Removable crank (optional)
Plastic gear cover
Range: 350 / 500 / 900 / 1150 kg

SURFACE TREATMENT
High-quality zinc-nickel coating approx. 400 hours salt spray test

CABLE WINCH OPERATION
Lifting: Turn the hand crank in a clockwise direction
Stopping: Let go of the hand crank in any position (automatic load pressure brake)
Lowering: Turn the hand crank in a counter-clockwise direction
