manual force 200N, minimum load 25kg, reduction 10.5 : 1, lift per crank rotation from 23-57mm, drum capacity for cable ⌀7mm: 25 meter, drum capacity for towing band: 12.5 meter. Read more...

Wishlist: Add to comparison:
Price 780,00 EUR Incl. tax Excl. Shipping costs

Part no. 1730018 without cable/band

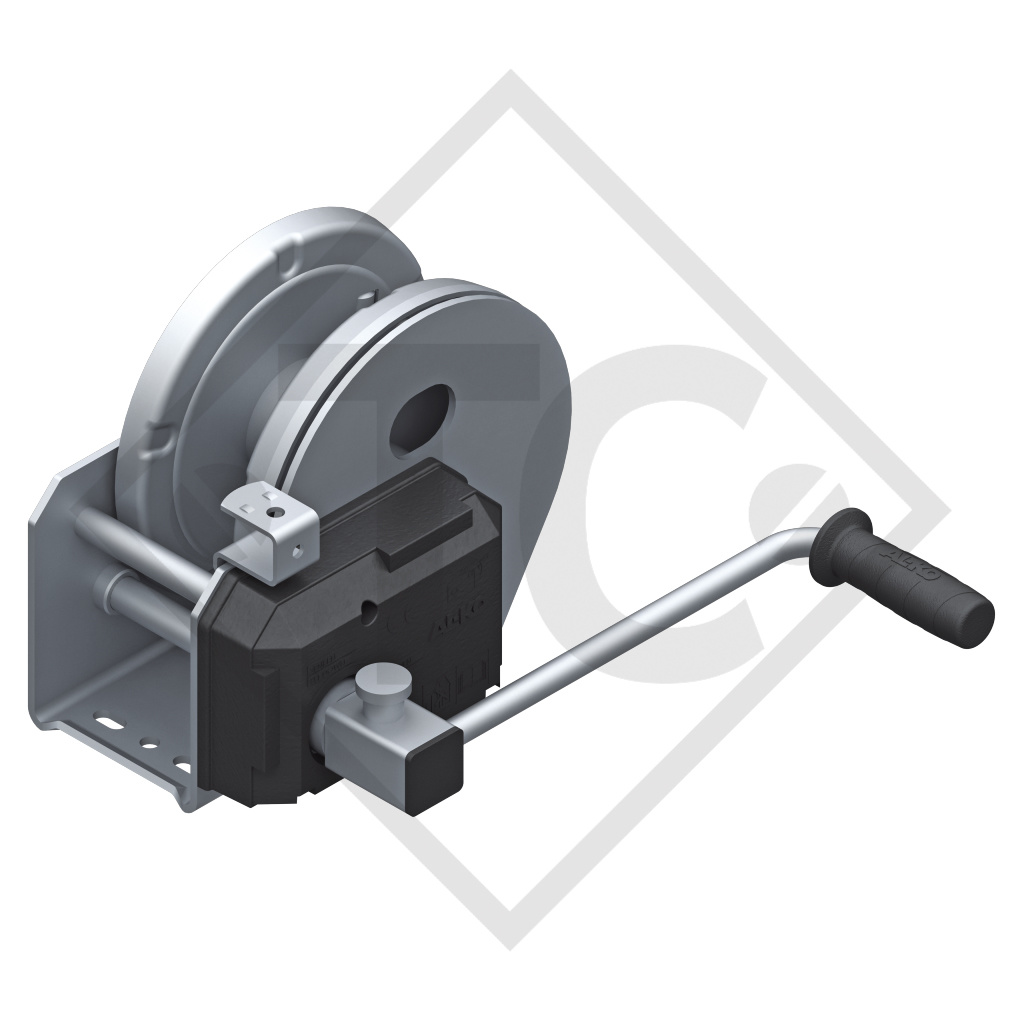

Cable winch braked - type 1201 PLUS with automatic unwinder
Tensile load max. lowest cable position 1150 kg
Manual force 200 N
Minimum load 25 kg
Reduction 10,5 : 1
Lift per crank rotation From 23 - 57 mm
Drum capacity for 7 mm ø cable
25 m
Drum capacity for towing band 12,5 m



Cable winch PLUS 1,150 kg with automatic unwinder Slope Lowest cable position Middle cable position Highest cable position
Vertical lifting of loads – (guidance values) - 1.150 kg 830 kg 500 kg

Horizontal and angled pulling

of a (non-rolling) load (guidance values)

friction factor approx. 0.5

10% (6°)

20% (11°)

30% (17°)

2.000 kg

1.700 kg

1.500 kg

1.400 kg

1.250 kg

1.100 kg

850 kg

750 kg

650 kg

Angled pulling of a rolling load (guidance values)

10% (6°)

20% (11°)

30% (17°)

7.400 kg

4.800 kg

3.500 kg

5.300 kg

3.300 kg

2.500 kg

3.200 kg

2.000 kg

1.500 kg



INSTRUCTION BOOK
SPARE PART LIST 811717
SPARE PART LIST 811717A
SPARE PART LIST 811717B
SPARE PART LIST 811717C or
SPARE PART LIST 811717D

CABLE WINCHES
with automatic load pressure brake

LOAD PRESSURE BRAKE
Automatic

YOUR ADVANTAGE
Modern design
High-quality corrosion protection
Automatic load pressure brake
Cable drum with plain bearing
Automatic unwinder for rope or band (optional)
Removable crank (optional)
Plastic gear cover
Range: 350 / 500 / 900 / 1150 kg

SURFACE TREATMENT
High-quality zinc-nickel coating approx. 400 hours salt spray test

CABLE WINCH OPERATION
Lifting: Turn the hand crank in a clockwise direction
Stopping: Let go of the hand crank in any position (automatic load pressure brake)
Lowering: Turn the hand crank in a counter-clockwise direction

AUTOMATIC UNWINDER OPERATION

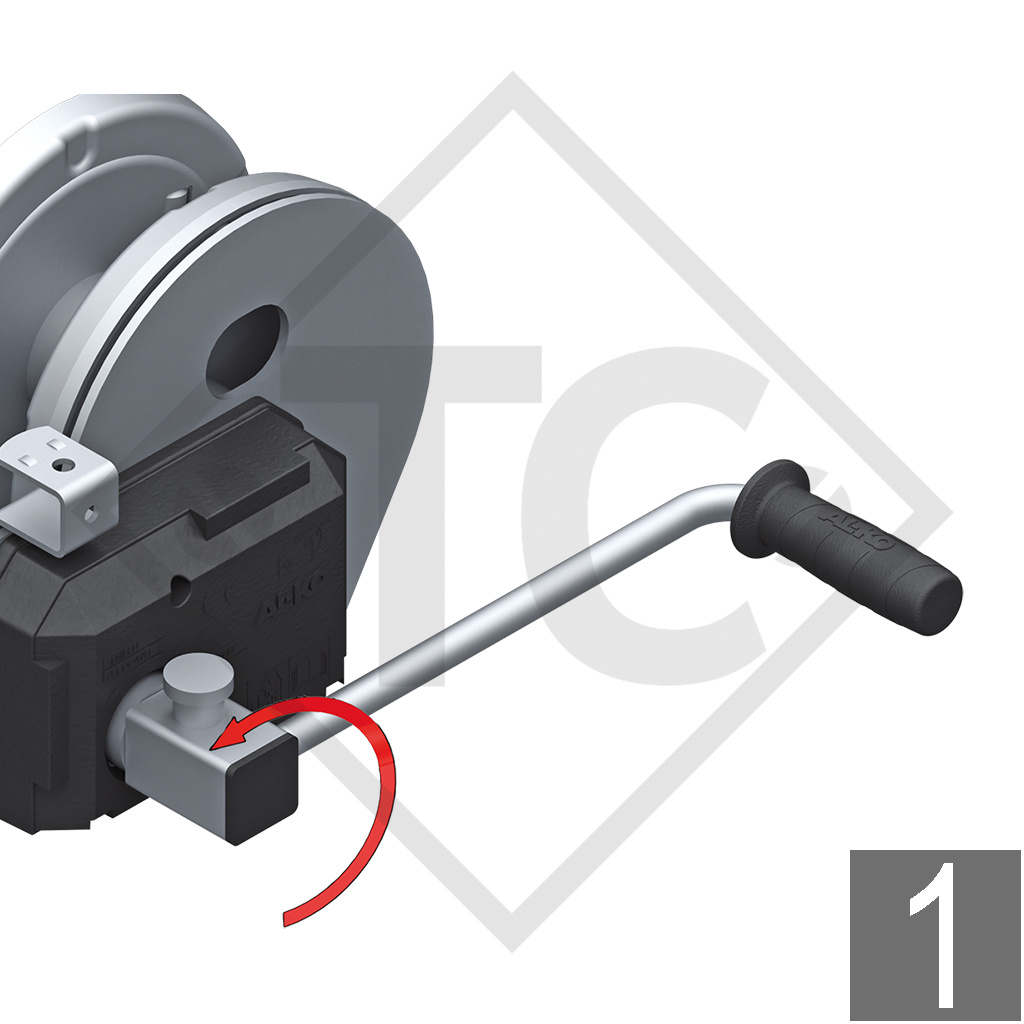

1. Turn the hand crank in a counter-clockwise for one rotation, this will cause the load pressure brake to be deactivated
2. Pull up locking sleeve
3. Remove crank

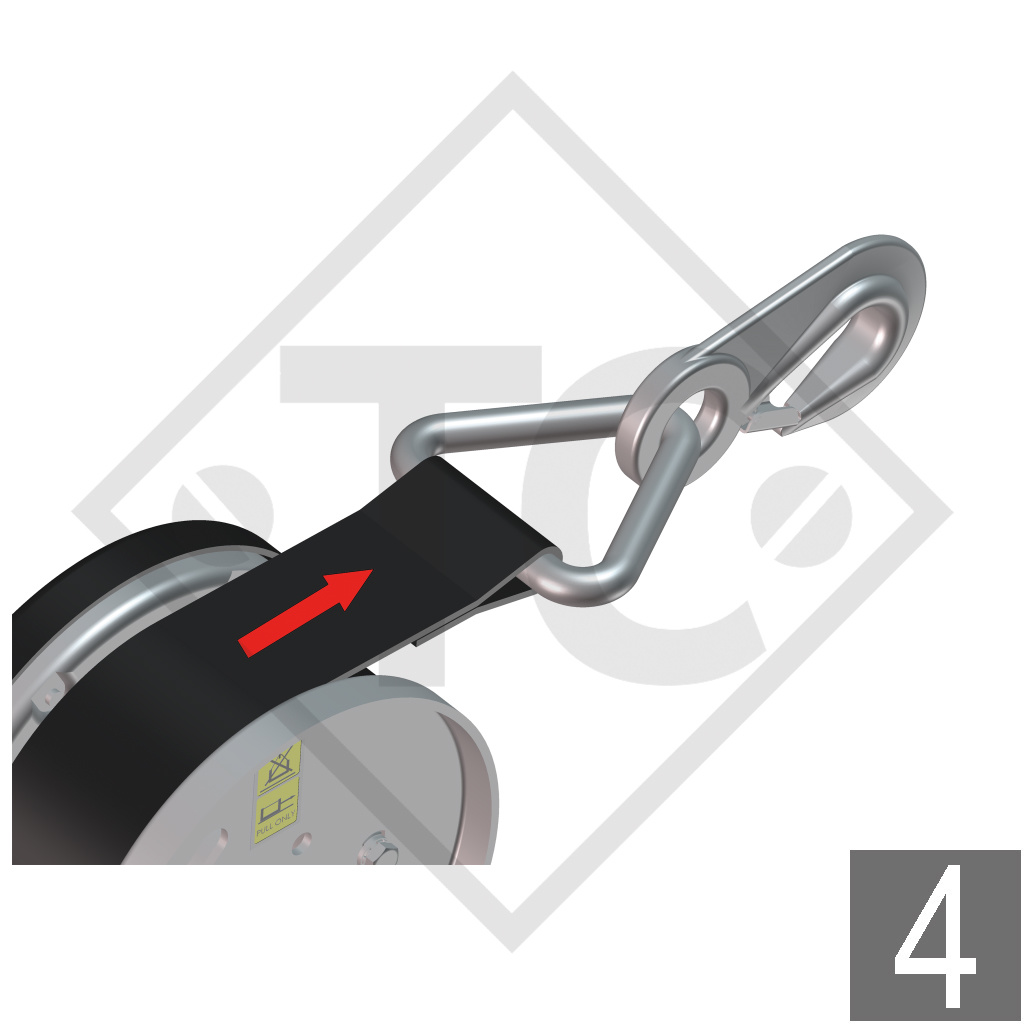

4. The band or cable can now be removed
