manual force 220N, minimum load 25kg, reduction 3.50 : 1, lift per crank rotation from 45-100mm, drum capacity for cable ⌀5mm: 15 meter, drum capacity for towing band: 6 meter. Read more...

Wishlist: Add to comparison:
Price 138,00 EUR Incl. tax Excl. Shipping costs

Part no. 1210653 without automatic unwinder

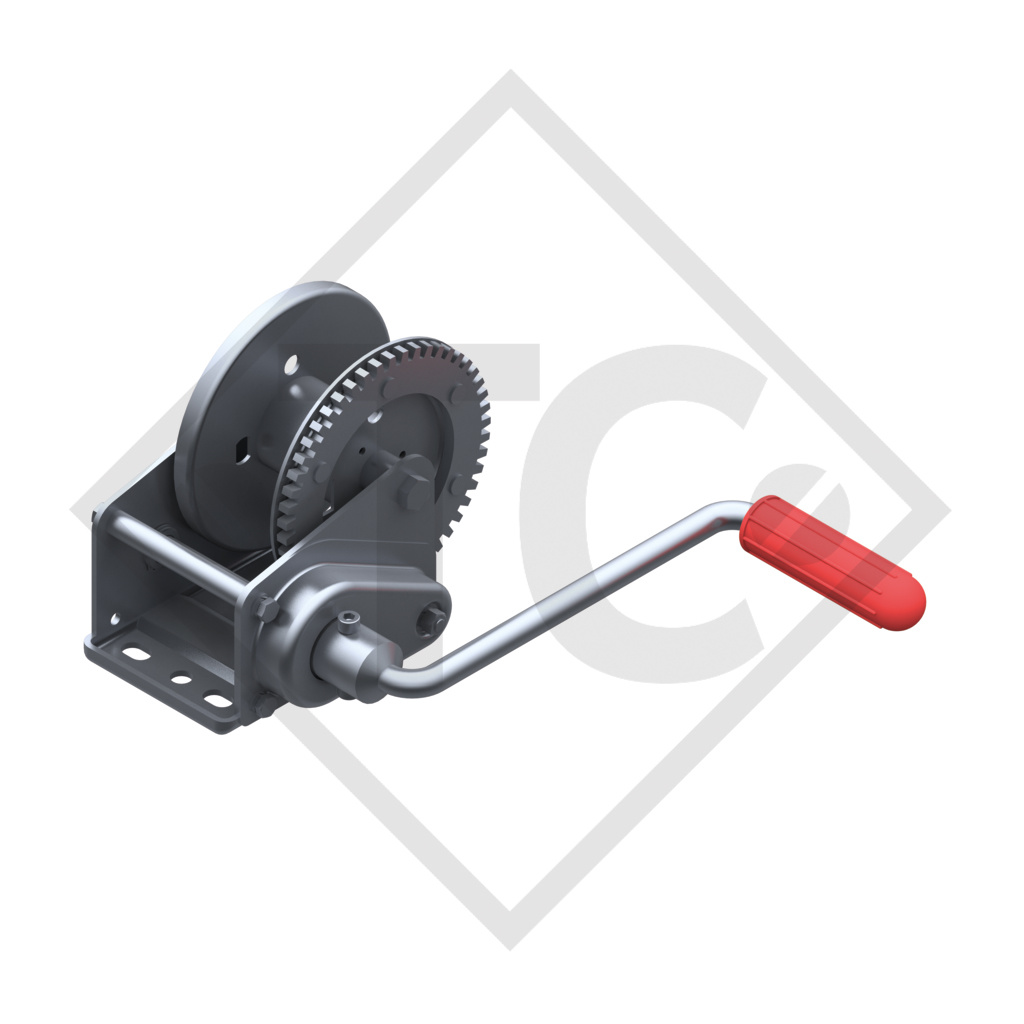

Cable winch type 450 Compact braked without automatic unwinder
Tensile load max. lowest cable position 450 kg
Manual force 220 N
Minimum load 25 kg
Reduction 3,5 : 1
Lift per crank rotation From 45 - 100 mm
Drum capacity for 5 mm ø cable
15 m
Drum capacity for towing band 6 m



BASIC cable winch 450 kg Slope Lowest cable position Middle cable position Highest cable position
Vertical lifting of loads – (guidance values) - 450 kg 300 kg 170 kg

Horizontal and angled pulling

of a (non-rolling) load (guidance values)

friction factor approx. 0.5

10% (6°)

20% (11°)

30% (17°)

750 kg

650 kg

550 kg

500 kg

450 kg

400 kg

300 kg

250 kg

200 kg

Angled pulling of a rolling load (guidance values)

10% (6°)

20% (11°)

30% (17°)

2.900 kg

1.800 kg

1.350 kg

2.000 kg

1.200 kg

900 kg

1.100 kg

700 kg

500 kg



INSTRUCTION BOOK
SPARE PART LIST 811388

CABLE WINCHES
with automatic load pressure brake

LOAD PRESSURE BRAKE
Automatic

YOUR ADVANTAGE
Automatic load pressure brake
Automatic unwinder for rope or band (optional)
Removable crank (optional)
Plastic gear cover
Range: 450 and 900 kg

Surface treatment:
Galvanised with thick layer passivation, salt spray test approx. 200 hours

CABLE WINCH OPERATION
Lifting: Turn the hand crank in a clockwise direction
Stopping: Let go of the hand crank in any position (automatic load pressure brake)
Lowering: Turn the hand crank in a counter-clockwise direction
