RUNNING WELL FOR YOU. BPW BERGISCHE AXLES

AL-KO Technology Paderborn GmbH specialises in the development and manufacture of complete running gear technology for car trailers and self-propelled vehicles. The location has developed from a labour-intensive wagon maker into an innovative, modern industrial company. Since 2017 the former BPW Fahrzeugtechnik has been part of the global technology company DexKo Global Inc., a worldwide market leader for trailer axles and chassis components in the lightweight segment. Read more...

Underpinning Your Progress.
The range of running gear for towable machinery, car and light truck trailers, caravans and cab & engine vehicles.



Braked axle SWING 1800kg axle type CB 1805, 46.32.368.669
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.669
BC: dimension AM 1850mm, OHF: dimension FL 2340mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 951,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.668
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.668
BC: dimension AM 1800mm, OHF: dimension FL 2290mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 942,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.665
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.665
BC: dimension AM 1500mm, OHF: dimension FL 1990mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 950,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.662
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.662
BC: dimension AM 1200mm, OHF: dimension FL 1690mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 880,90 EUR Incl. tax Excl. Shipping costs
Drawbar eye DIN ø40mm 40.0-02, internal mounting, without fixing bolts
BPW Drawbar eye DIN ø40mm 40.0-02, internal mounting, without fixing bolts
drawbar / shaft ⌀51.8mm, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 150kg, material: cast iron, matt black painted.
Price 397,20 EUR Incl. tax Excl. Shipping costs
(ALBE BERNDES) Coupling head EM 300 R-B, with integrated lock, without fixing bolts
BPW (ALBE BERNDES) Coupling head EM 300 R-B, with integrated lock, without fixing bolts
drawbar ⌀50-51mm round, holes (screw connection) cross, horizontal 14.5mm, vertical 12.5mm, hole distance 40mm, perm. gross weight 3000kg, nose load 150kg, material: malleable cast iron.
Price 51,90 EUR Incl. tax Excl. Shipping costs

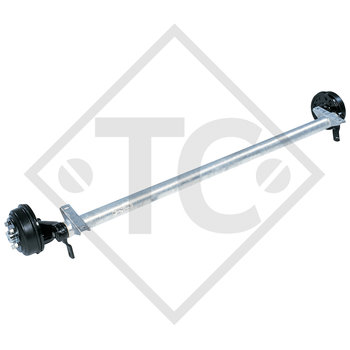

Braked axle 1500kg RONDO axle type DB 1505, 45.27.379.675
BPW Braked axle 1500kg RONDO axle type DB 1505, 45.27.379.675
BC: dimension AM 950mm, OHF: dimension FL 1550mm, wheel drawbar ⌀112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 82mm, ball-head wheel bolts M12x1.5.
Price 2.024,40 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.24.379.190
BPW Braked axle SWING 1350kg axle type CB 1355, 46.24.379.190
BC: dimension AM 1790mm, OHF: dimension FL 2235mm, wheel drawbar ⌀112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 730,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.24.379.187
BPW Braked axle SWING 1350kg axle type CB 1355, 46.24.379.187
BC: dimension AM 1490mm, OHF: dimension FL 1935mm, wheel drawbar ⌀112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 650,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.24.379.186
BPW Braked axle SWING 1350kg axle type CB 1355, 46.24.379.186
BC: dimension AM 1390mm, OHF: dimension FL 1835mm, wheel drawbar ⌀112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 685,00 EUR Incl. tax Excl. Shipping costs
Clamping shell, single axle, vers. 1
BPW Clamping shell, single axle, vers. 1
drawbar tube ⌀70mm or 82.5mm, axle profile square 80mm, for braked trailers.
Price 171,40 EUR Incl. tax Excl. Shipping costs
Clamping mount bolt on, for tube ⌀88.9mm
BPW Clamping mount bolt on, for tube ⌀88.9mm
for drawbar tube see diagram ⌀88.9mm, dimension H 60mm, dimension D 14/18mm, dimension A 160/220mm, dimension B 60mm, surface treatment hot-dip galvanised.
Price 58,40 EUR Incl. tax Excl. Shipping costs
Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M12
BPW Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M12
axle spacing AA 700-850mm, FL 1900-2000mm, to 3500kg, surface treatment hot-dip galvanised.
Price 81,70 EUR Incl. tax Excl. Shipping costs
Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M10
BPW Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M10
axle spacing AA 850-1000mm, FL 1400-1500mm, to 3500kg, surface treatment hot-dip galvanised.
Price 73,20 EUR Incl. tax Excl. Shipping costs
Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M10
BPW Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M10
axle spacing AA 700-850mm, FL 1500-1600mm, to 3500kg, surface treatment hot-dip galvanised.
Price 74,10 EUR Incl. tax Excl. Shipping costs
Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M10
BPW Mounting part kit for tandem axle compensation incl. brake cables for rear axle, brake rod M10
axle spacing AA 700-850mm, FL 1400-1500mm, to 3500kg, surface treatment hot-dip galvanised.
Price 72,50 EUR Incl. tax Excl. Shipping costs
Pull bar thread with fixing bolts M10
BPW Pull bar thread with fixing bolts M10
length (LG) 4000mm, thread length 130/300mm.
Price 46,80 EUR Incl. tax Excl. Shipping costs
Pull bar thread with fixing bolts M10
BPW Pull bar thread with fixing bolts M10
length (LG) 3000mm, thread length 130/300mm.
Price 34,20 EUR Incl. tax Excl. Shipping costs
Pull bar thread with fixing bolts M10
BPW Pull bar thread with fixing bolts M10
length (LG) 2600mm, thread length 130/300mm.
Price 57,00 EUR Incl. tax Excl. Shipping costs
Mounting part kit for single-axle
BPW Mounting part kit for single-axle
for brake rod M12.
Price 38,30 EUR Incl. tax Excl. Shipping costs
Lowering axles down to 200mm, axle type RONDO DB 2/1805, tandem 3500kg, 49.32.368.503
BPW Lowering axles down to 200mm, axle type RONDO DB 2/1805, tandem 3500kg, 49.32.368.503
BC: dimension AM 1500mm, OHF: dimension FL 2040mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, ball-head wheel bolts M12x1.5.
Price 4.274,40 EUR Incl. tax Excl. Shipping costs
Lowering axles down to 200mm, axle type RONDO DB 2/1505, tandem 3000kg, 49.27.379.507
BPW Lowering axles down to 200mm, axle type RONDO DB 2/1505, tandem 3000kg, 49.27.379.507
BC: dimension AM 1900mm, OHF: dimension FL 2385mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, ball-head wheel bolts M12x1.5.
Price 3.861,70 EUR Incl. tax Excl. Shipping costs
Lowering axles down to 200mm, axle type RONDO DB 2/1505, tandem 3000kg, 49.27.379.506
BPW Lowering axles down to 200mm, axle type RONDO DB 2/1505, tandem 3000kg, 49.27.379.506
BC: dimension AM 1800mm, OHF: dimension FL 2285mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, ball-head wheel bolts M12x1.5.
Price 3.861,70 EUR Incl. tax Excl. Shipping costs
Lowering axles down to 200mm, axle type RONDO DB 2/1505, tandem 3000kg, 49.27.379.503
BPW Lowering axles down to 200mm, axle type RONDO DB 2/1505, tandem 3000kg, 49.27.379.503
BC: dimension AM 1500mm, OHF: dimension FL 1985mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, ball-head wheel bolts M12x1.5.
Price 3.861,70 EUR Incl. tax Excl. Shipping costs
