RUNNING WELL FOR YOU. BPW BERGISCHE AXLES

AL-KO Technology Paderborn GmbH specialises in the development and manufacture of complete running gear technology for car trailers and self-propelled vehicles. The location has developed from a labour-intensive wagon maker into an innovative, modern industrial company. Since 2017 the former BPW Fahrzeugtechnik has been part of the global technology company DexKo Global Inc., a worldwide market leader for trailer axles and chassis components in the lightweight segment. Read more...

Underpinning Your Progress.
The range of running gear for towable machinery, car and light truck trailers, caravans and cab & engine vehicles.



Drawbar installation ZAAR 2.0-3 with overrun device ZAAQ2.0-3 / ZDG8-3 drawbar section cranked 1250 to 2000kg, 48.36.381.089
BPW (AL-KO) Drawbar installation ZAAR 2.0-3 with overrun device ZAAQ2.0-3 / ZDG8-3 drawbar section cranked 1250 to 2000kg, 48.36.381.089
drawbar length L 3000mm, FD at max. 2000kg: 1360mm, drawbar section K square 80x5.0mm, measure HA 55mm, thread G M10, perm. nose load 150kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 1.044,60 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 2.0-3 with overrun device ZAAQ2.0-3 / ZDG8-3 drawbar section cranked 1250 to 2000kg, 48.36.381.086
BPW (AL-KO) Drawbar installation ZAAR 2.0-3 with overrun device ZAAQ2.0-3 / ZDG8-3 drawbar section cranked 1250 to 2000kg, 48.36.381.086
drawbar length L 2100mm, FD at max. 2000kg: 1360mm, drawbar section K square 80x5.0mm, measure HA 55mm, thread G M10, perm. nose load 150kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 952,70 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 1.6-3 with overrun device ZAAQ1.6-3 / ZDG7-3 drawbar section cranked 800 to 1600kg, 4021606
BPW (AL-KO) Drawbar installation ZAAR 1.6-3 with overrun device ZAAQ1.6-3 / ZDG7-3 drawbar section cranked 800 to 1600kg, 4021606
drawbar length L 3000mm, FD at max. 1600kg: 1200mm, drawbar section K square 70x5.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 995,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 2.0-1 with overrun device ZAAQ2.0 / ZDG8-3 drawbar section straight 1250 to 2000kg, 48.36.181.078
BPW (AL-KO) Drawbar installation ZAAR 2.0-1 with overrun device ZAAQ2.0 / ZDG8-3 drawbar section straight 1250 to 2000kg, 48.36.181.078
drawbar length L 3500mm, FD at max. 2000kg: 1360mm, drawbar section K square 80x5.0mm, measure HA 55mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 831,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 2.0-1 with overrun device ZAAQ2.0 / ZDG8-3 drawbar section straight 1250 to 2000kg, 48.36.181.074
BPW (AL-KO) Drawbar installation ZAAR 2.0-1 with overrun device ZAAQ2.0 / ZDG8-3 drawbar section straight 1250 to 2000kg, 48.36.181.074
drawbar length L 2300mm, FD at max. 2000kg: 1360mm, drawbar section K square 80x5.0mm, measure HA 55mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 761,60 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 1.35-1 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section straight 750 to 1350kg, 48.25.181.110
BPW (AL-KO) Drawbar installation ZAAR 1.35-1 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section straight 750 to 1350kg, 48.25.181.110
drawbar length L 3500mm, FD at max. 1350kg: 1210mm, drawbar section K square 70x4.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.
Price 696,20 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 1.35-1 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section straight 750 to 1350kg, 48.25.181.099
BPW (AL-KO) Drawbar installation ZAAR 1.35-1 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section straight 750 to 1350kg, 48.25.181.099
drawbar length L 2500mm, FD at max. 1350kg: 1210mm, drawbar section K square 70x4.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.
Price 630,10 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 1.35-1 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section straight 750 to 1350kg, 48.25.181.108
BPW (AL-KO) Drawbar installation ZAAR 1.35-1 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section straight 750 to 1350kg, 48.25.181.108
drawbar length L 2300mm, FD at max. 1350kg: 1210mm, drawbar section K square 70x4.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.
Price 616,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAA 3.5-1.1 with overrun device AK 3510 A and removable drawbar section from 2500 to 3500kg, 47.51.181.002
BPW (AL-KO) Drawbar installation ZAA 3.5-1.1 with overrun device AK 3510 A and removable drawbar section from 2500 to 3500kg, 47.51.181.002
drawbar length L 1900mm, length A 1380mm, drawbar section K square 120x6.3mm, thread G M12, perm. nose load 150kg, with coupling head EM 350 RD-K1212, for wheel brake S 2005-7, S 2504-7 and S 3006-7.
Price 2.906,80 EUR Incl. tax Excl. Shipping costs
Towbar rear
BPW (AL-KO) Towbar rear
dimension A 185mm, dimension B 245mm.
Price 9,90 EUR Incl. tax Excl. Shipping costs

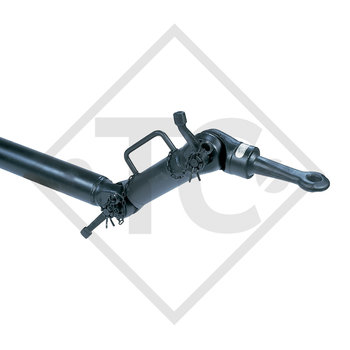

Towbar connection ZOV 2.5-1.1 height-adjustable with drawbar section up to 2500kg, 47.41.403.009
BPW (AL-KO) Towbar connection ZOV 2.5-1.1 height-adjustable with drawbar section up to 2500kg, 47.41.403.009
drawbar length L 1590mm, drawbar section K 108/90mm, with DIN drawbar eye dimension A 601mm, height B 0-338mm, intermediate piece V 450mm, perm. nose load 150kg.
Price 1.335,90 EUR Incl. tax Excl. Shipping costs
Towbar connection ZOV 0.75-1 B height-adjustable with drawbar section up to 750kg, 47.14.403.034
BPW (AL-KO) Towbar connection ZOV 0.75-1 B height-adjustable with drawbar section up to 750kg, 47.14.403.034
drawbar length L 2075mm, drawbar section K 70mm, with DIN drawbar eye dimension A 655mm, height B 0-375mm, intermediate piece V 500mm, perm. nose load 75kg.
Price 950,00 EUR Incl. tax Excl. Shipping costs
Drawbar ZOR 0,75-1 A round tube cranked up to 750kg, 48.14.301.013
BPW (AL-KO) Drawbar ZOR 0,75-1 A round tube cranked up to 750kg, 48.14.301.013
total length L 2600mm, drawbar section K dimension K 70x4mm, perm. nose load 75kg, coupling head EM 80 R-GK, including skid bracket, clamping bracket and plug holder.
Price 300,90 EUR Incl. tax Excl. Shipping costs
Drawbar ZOR 0,75-1 A round tube straight up to 750kg, 48.14.101.013
BPW (AL-KO) Drawbar ZOR 0,75-1 A round tube straight up to 750kg, 48.14.101.013
total length L 2600mm, drawbar section K dimension K 70x4mm, perm. nose load 75kg, coupling head EM 80 R-GK, including skid bracket, clamping bracket and plug holder.
Price 285,90 EUR Incl. tax Excl. Shipping costs
Drawbar ZOR 0,75-1 A round tube straight up to 750kg, 48.14.101.010
BPW (AL-KO) Drawbar ZOR 0,75-1 A round tube straight up to 750kg, 48.14.101.010
total length L 2000mm, drawbar section K dimension K 70x4mm, perm. nose load 75kg, coupling head EM 80 R-GK, including skid bracket, clamping bracket and plug holder.
Price 253,90 EUR Incl. tax Excl. Shipping costs
Original taper-head wheel bolt M12x1.5, set of 8 pieces
BPW (AL-KO) Original taper-head wheel bolt M12x1.5, set of 8 pieces
thread 24mm, wrench size AF 19, bolt quality 8.8, maximum permitted tightening torque 90 Nm.
Price 12,90 EUR Incl. tax Excl. Shipping costs
Extending crank
BPW (AL-KO) Extending crank
length 665mm, width 140mm, wrench size 19, surface treatment: hot-dip galvanised.
Price 16,90 EUR Incl. tax Excl. Shipping costs

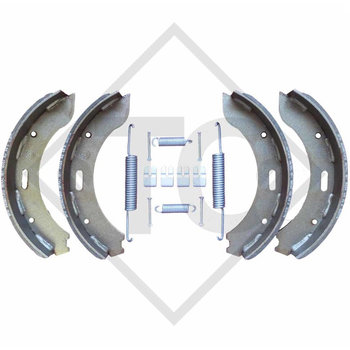

2x Brake shoes, wheel brake S 3006-5 SK, brake size 300x60mm
BPW (AL-KO) 2x Brake shoes, wheel brake S 3006-5 SK, brake size 300x60mm
consisting of brake shoes, pressure springs, tension springs, spring support, for one axle (2 wheel brakes left + right).
Price 1.199,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg / 1400kg axle type SCB 1054, 46.21.379.913
BPW (AL-KO) Braked axle 1050kg / 1400kg axle type SCB 1054, 46.21.379.913
BC: dimension AM 1500mm, OHF: dimension FL 2020mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 1.450,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg axle type DB 1004, 45.20.382.001 - Knaus Travelino
BPW (AL-KO) Braked axle 1000kg axle type DB 1004, 45.20.382.001 - Knaus Travelino
BC: dimension AM 1400mm, OHF: dimension FL 1920mm, wheel connection 100x4, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 1.330,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg axle type DB 1004, 45.21.362.009
BPW (AL-KO) Braked axle 1000kg axle type DB 1004, 45.21.362.009
BC: dimension AM 1550mm, OHF: dimension FL 2010mm, wheel connection 100x4, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 850,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.24.379.047
BPW (AL-KO) Braked axle SWING 1350kg axle type CB 1355, 46.24.379.047
BC: dimension AM 1900mm, OHF: dimension FL 2350mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 745,00 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.52.78.0 hook in with thread M10
BPW (AL-KO) Bowden cable 05.089.52.78.0 hook in with thread M10
sheath length (L) 1300mm, cable length (L1) 1585mm, can be used with wheel brake S3006-5, bell internal diam. 22.5mm, outside 27mm.
Price 195,00 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.33.42.0 hook in with thread M8
BPW (AL-KO) Bowden cable 05.089.33.42.0 hook in with thread M8
sheath length (L) 1090mm, cable length (L1) 1300mm, can be used with wheel brake S1635-5, S1635-6, S2003-5, S2005-5 and S2504-5, bell internal diam. 18.5mm, outside 21.2mm.
Price 33,90 EUR Incl. tax Excl. Shipping costs
