BPW (AL-KO)

Home / Brands / BPW (AL-KO)

JUST ORIGINAL PARTS

LIFE-TIME SUPPORT

SALE

POSITIVE REVIEWS

RUNNING WELL FOR YOU. BPW BERGISCHE AXLES

AL-KO Technology Paderborn GmbH specialises in the development and manufacture of complete running gear technology for car trailers and self-propelled vehicles. The location has developed from a labour-intensive wagon maker into an innovative, modern industrial company. Since 2017 the former BPW Fahrzeugtechnik has been part of the global technology company DexKo Global Inc., a worldwide market leader for trailer axles and chassis components in the lightweight segment. Read more...

Underpinning Your Progress.
The range of running gear for towable machinery, car and light truck trailers, caravans and cab & engine vehicles.



Towbar connection (pair) ZEA 2.8-3 C to 2800kg, 05.447.27.04.1
BPW (AL-KO) Towbar connection (pair) ZEA 2.8-3 C to 2800kg, 05.447.27.04.1
total length GL 1844mm, nose load 150kg.
Price 365,00 EUR Incl. tax Excl. Shipping costs

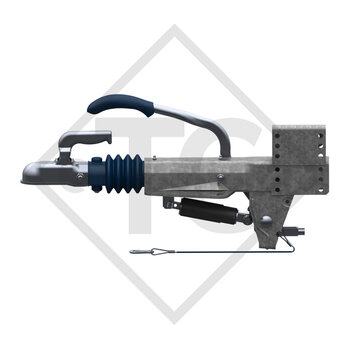

Overrun device V type ZAF 1.5-2 / 1.6-3, 750 to 1500kg, 48.27.581.018
BPW (AL-KO) Overrun device V type ZAF 1.5-2 / 1.6-3, 750 to 1500kg, 48.27.581.018
connection 166mm, nose load 100kg, drawbar installation version top + bottom, combined with BPW wheel brake S1704-7, S2005-7 and RB 2051, with coupling head WW 30-D3.
Price 580,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg axle type SB15, 46.27.379.923
BPW (AL-KO) Braked axle 1500kg axle type SB15, 46.27.379.923
BC: dimension AM 1605mm, OHF: dimension FL 2240mm, wheel connection 112x5, wheel brake type RB520, offset (ET) 30-35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 1.050,00 EUR Incl. tax Excl. Shipping costs
Braked axle 2100kg SWING axle type CS 2106, 46.37.373.114
BPW (AL-KO) Braked axle 2100kg SWING axle type CS 2106, 46.37.373.114
BC: dimension AM 1440mm, OHF: dimension SP 1920mm, wheel connection 205x6, wheel brake type S 3006-7 RASK, offset (ET) 0mm, swing arm position 20°, axle profile 110mm, M18x1.5.
Price 2.090,00 EUR Incl. tax Excl. Shipping costs
Towbar connection (pair) ZEA 2.8-3 C to 2800kg, 05.447.27.07.1
BPW (AL-KO) Towbar connection (pair) ZEA 2.8-3 C to 2800kg, 05.447.27.07.1
total length GL 2230mm, nose load 150kg.
Price 375,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg axle type CB 1805, 46.32.368.270
BPW (AL-KO) Braked axle 1800kg axle type CB 1805, 46.32.368.270
BC: dimension AM 1200mm, OHF: dimension FL 1850mm, wheel connection 112x5, wheel brake type RB425, offset (ET) 27-40mm, swing arm position 20°, axle profile 95mm.
Price 890,00 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.32.31.0 with eyelet, thread M8 and yoke
BPW (AL-KO) Bowden cable 05.089.32.31.0 with eyelet, thread M8 and yoke
sheath length (L) 1130mm, cable length (L1) 1400mm, can be used with wheel brake S1635-6, S2003-5, S2005-5 and S2504-5.
Price 69,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.03.05.0 with eyelet and thread M8
BPW (AL-KO) Bowden cable 05.089.03.05.0 with eyelet and thread M8
sheath length (L) 900mm, cable length (L1) 1195mm, can be used with wheel brake R234-76.
Price 20,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.33.41.0 hook in with thread M8
BPW (AL-KO) Bowden cable 05.089.33.41.0 hook in with thread M8
sheath length (L) 1030mm, cable length (L1) 1240mm, can be used with wheel brake S1635-5, S1635-6, S2003-5, S2005-5 and S2504-5, bell internal diam. 18.5mm, outside 21.2mm.
Price 75,00 EUR Incl. tax Excl. Shipping costs
Bowden cable 05.089.80.60.0 hook in with thread M8, with grease nipple
BPW (AL-KO) Bowden cable 05.089.80.60.0 hook in with thread M8, with grease nipple
sheath length (L) 1630mm, cable length (L1) 1875mm, can be used with wheel brake S1704-7, S2005-7, S2035-7, S2304-7 and S2504-7, bell internal diam. 23.3mm, outside 26mm.
Price 29,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING V-TEC 1350kg axle type SCB 1355, 46.25.379.908
BPW (AL-KO) Braked axle SWING V-TEC 1350kg axle type SCB 1355, 46.25.379.908
BC: dimension AM 1420mm, OHF: dimension FL 1970mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30-35mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 1.785,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.100
BPW (AL-KO) Braked axle SWING 1500kg axle type CB 1505, 46.27.379.100
BC: dimension AM 1900mm, OHF: dimension FL 2350mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 695,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.101
BPW (AL-KO) Braked axle SWING 1500kg axle type CB 1505, 46.27.379.101
BC: dimension AM 1900mm, OHF: dimension FL 2350mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 695,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1054, 46.21.379.517
BPW (AL-KO) Braked axle 1050kg SWING axle type CB 1054, 46.21.379.517
BC: dimension AM 1500mm, OHF: dimension FL 2020mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 949,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 41.24.316.58.0
BPW (AL-KO) Braked axle SWING 1350kg axle type CB 1355, 41.24.316.58.0
BC: dimension AM 1800mm, OHF: dimension FL 2250mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 669,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 53.25.1.16.387, FLAMINGO, SARIS
BPW (AL-KO) Braked axle SWING 1350kg axle type CB 1355, 53.25.1.16.387, FLAMINGO, SARIS
BC: dimension AM 1200mm, OHF: dimension FL 1620mm, wheel connection 112x5, wheel brake type S 2005 RASK, offset (ET) 30-35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 849,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1055, 46.21.316.614
BPW (AL-KO) Braked axle 1050kg SWING axle type CB 1055, 46.21.316.614
BC: dimension AM 1400mm, OHF: dimension FL 1850mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 574,30 EUR Incl. tax Excl. Shipping costs

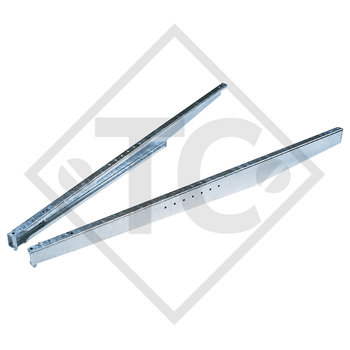

Towbar connection (pair) ZEA 3.5-1.1 to 3500kg, 05.447.26.32.1
BPW (AL-KO) Towbar connection (pair) ZEA 3.5-1.1 to 3500kg, 05.447.26.32.1
total length GL 2980mm, nose load 150kg.
Price 650,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.066, 46.27.379.076
BPW (AL-KO) Braked axle SWING 1500kg axle type CB 1505, 46.27.379.066, 46.27.379.076
BC: dimension AM 1600mm, OHF: dimension FL 2080mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 95mm, head wheel bolts M12x1.5.
Price 765,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.102
BPW (AL-KO) Braked axle SWING 1500kg axle type CB 1505, 46.27.379.102
BC: dimension AM 1930mm, OHF: dimension FL 2380mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 95mm, ball-head wheel bolts M12x1.5.
Price 1.170,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.106
BPW (AL-KO) Braked axle SWING 1500kg axle type CB 1505, 46.27.379.106
BC: dimension AM 1250mm, OHF: dimension FL 1730mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 95mm, ball-head wheel bolts M12x1.5.
Price 965,00 EUR Incl. tax Excl. Shipping costs
Overrun device square type ZAAQ 1.6-3, 800 to 1600kg, 4024948
BPW (AL-KO) Overrun device square type ZAAQ 1.6-3, 800 to 1600kg, 4024948
connection dimension B 70mm, nose load 100kg, combined with BPW wheel brake S1704-7, S2005-7 and S2504-7 RASK, with coupling head AK 301.
Price 430,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1050kg axle type CB 1054, 46.21.379.038
BPW (AL-KO) Braked axle SWING 1050kg axle type CB 1054, 46.21.379.038
BC: dimension AM 1440mm, OHF: dimension FL 1900mm, wheel connection 98x4, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 639,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1354, 46.24.379.082
BPW (AL-KO) Braked axle SWING 1350kg axle type CB 1354, 46.24.379.082
BC: dimension AM 1440mm, OHF: dimension FL 1900mm, wheel connection 98x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 660,00 EUR Incl. tax Excl. Shipping costs
