RUNNING WELL FOR YOU. BPW BERGISCHE AXLES

AL-KO Technology Paderborn GmbH specialises in the development and manufacture of complete running gear technology for car trailers and self-propelled vehicles. The location has developed from a labour-intensive wagon maker into an innovative, modern industrial company. Since 2017 the former BPW Fahrzeugtechnik has been part of the global technology company DexKo Global Inc., a worldwide market leader for trailer axles and chassis components in the lightweight segment. Read more...

Underpinning Your Progress.
The range of running gear for towable machinery, car and light truck trailers, caravans and cab & engine vehicles.



Braked tandem front axle 850kg SWING axle type CB 854, 46.16.382.066
BPW (AL-KO) Braked tandem front axle 850kg SWING axle type CB 854, 46.16.382.066
BC: dimension AM 1800mm, OHF: dimension FL 2230mm, wheel connection 100x4, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, taper-head wheel bolts M12x1.5.
Price 521,60 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.25.379.195, HUMBAUR
BPW (AL-KO) Braked axle SWING 1350kg axle type CB 1355, 46.25.379.195, HUMBAUR
BC: dimension AM 1400mm, OHF: dimension FL 1850mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 699,00 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg SWING axle type CB 755, 46.14.000.239
BPW (AL-KO) Unbraked axle 750kg SWING axle type CB 755, 46.14.000.239
BC: dimension AM 1800mm, OHF: dimension FL 2190mm, wheel connection 100x4, offset (ET) 30mm, ball-head wheel bolts M12x1.5.
Price 507,90 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg SWING axle type CB 755, 46.14.000.231
BPW (AL-KO) Unbraked axle 750kg SWING axle type CB 755, 46.14.000.231
BC: dimension AM 1400mm, OHF: dimension FL 1790mm, wheel connection 100x4, offset (ET) 30mm, ball-head wheel bolts M12x1.5.
Price 480,90 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg SWING axle type CB 755, 46.14.000.230
BPW (AL-KO) Unbraked axle 750kg SWING axle type CB 755, 46.14.000.230
BC: dimension AM 1350mm, OHF: dimension FL 1740mm, wheel connection 100x4, offset (ET) 30mm, ball-head wheel bolts M12x1.5.
Price 476,90 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg SWING axle type CB 755, 46.14.000.223
BPW (AL-KO) Unbraked axle 750kg SWING axle type CB 755, 46.14.000.223
BC: dimension AM 1000mm, OHF: dimension FL 1390mm, wheel connection 100x4, offset (ET) 30mm, ball-head wheel bolts M12x1.5.
Price 452,90 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg SWING axle type CB 754, 46.14.000.219
BPW (AL-KO) Unbraked axle 750kg SWING axle type CB 754, 46.14.000.219
BC: dimension AM 1800mm, OHF: dimension FL 2190mm, wheel connection 100x4, offset (ET) 30mm, taper-head wheel bolts M12x1.5.
Price 507,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.049
BPW (AL-KO) Drawbar installation ZAV 2.7-4 with overrun device AE 2.7-1 A height-adjustable, with drawbar section 1860 to 2700kg, 47.43.470.049
drawbar length L 2800mm, measure B 0-520mm, FD at max. 2700kg: 3500mm, drawbar section K square 150x132mm, spacer V 600mm, perm. nose load 150kg, without hitch components, for wheel brake S 2005-7, S 2504-7 and S 3006-5.
Price 2.825,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.084
BPW (AL-KO) Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.084
drawbar length L 2800mm, measure B 0-520mm, FD at max. 2000kg: 3000mm, drawbar section K square 120mm, spacer V 600mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.150,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 3.5-1 with overrun device AE 3.5-1 A height-adjustable, with drawbar section 2500 to 3500kg, 47.51.470.039
BPW (AL-KO) Drawbar installation ZAV 3.5-1 with overrun device AE 3.5-1 A height-adjustable, with drawbar section 2500 to 3500kg, 47.51.470.039
drawbar length L 1900mm, measure B 0-767mm, FD at max. 3500kg: 3500mm, drawbar section K square 150mm, spacer V 875mm, perm. nose load 150kg, without hitch components, for wheel brake S 2005-7, S 2504-7 and S 3006-5.
Price 3.101,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.108
BPW (AL-KO) Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.108
drawbar length L 2500mm, measure B 0-520mm, FD at max. 2000kg: 3000mm, drawbar section K square 120mm, spacer V 600mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7, S 2005-7 and S 2504-7.
Price 2.358,40 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZKV 13.1 A with overrun device AK 1308 height-adjustable, with drawbar section cranked 650 to 1300kg, 47.24.471.081
BPW (AL-KO) Drawbar installation ZKV 13.1 A with overrun device AK 1308 height-adjustable, with drawbar section cranked 650 to 1300kg, 47.24.471.081
drawbar length L 1500mm, FD at max. 1300kg: 1664mm, drawbar section K round 88.9x8.8mm, spacer V 415mm, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.
Price 2.053,90 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZKV 13.1 B with overrun device AK 1308 height-adjustable, with drawbar section 650 to 1300kg, 47.24.471.086
BPW (AL-KO) Drawbar installation ZKV 13.1 B with overrun device AK 1308 height-adjustable, with drawbar section 650 to 1300kg, 47.24.471.086
drawbar length L 1500mm, FD at max. 1300kg: 2223mm, drawbar section K round 88.9x8.8mm, spacer V 415mm, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.
Price 2.278,70 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAR 1.35-1 A with overrun device PAV/SR 1.3 X drawbar section straight 700 to 1350kg, 48.25.181.043
BPW (AL-KO) Drawbar installation ZAR 1.35-1 A with overrun device PAV/SR 1.3 X drawbar section straight 700 to 1350kg, 48.25.181.043
drawbar length L 3000mm, FD at max. 1350kg: 1065mm, drawbar section K round 70x4mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.
Price 650,00 EUR Incl. tax Excl. Shipping costs
Drawbar installation ZAAR 3.0-1 with overrun device ZAAQ3.0 / ZDG10-3 drawbar section straight 1800 to 2800kg, 48.46.181.004
BPW (AL-KO) Drawbar installation ZAAR 3.0-1 with overrun device ZAAQ3.0 / ZDG10-3 drawbar section straight 1800 to 2800kg, 48.46.181.004
drawbar length L 3000mm, FD at max. 2800kg: 1780mm, drawbar section K square 100x6.3mm, measure HA 65mm, thread G M10, perm. nose load 100kg, with coupling head EM 300 R-B-K1212, for wheel brake S 2005-7, S 2504-7 and S 3006-7.
Price 908,20 EUR Incl. tax Excl. Shipping costs
Overrun device square type ZAAQ 2.0-3, 1250 to 2000kg, 48.36.981.000
BPW (AL-KO) Overrun device square type ZAAQ 2.0-3, 1250 to 2000kg, 48.36.981.000
connection dimension B 80mm, nose load 100kg, combined with BPW wheel brake S1704-7, S2005-7 and S2504-7 RASK, with coupling head EM 220 R-B.
Price 458,10 EUR Incl. tax Excl. Shipping costs
Overrun device V type ZAF 2.5-3, 1350 to 2500kg, 48.41.581.000
BPW (AL-KO) Overrun device V type ZAF 2.5-3, 1350 to 2500kg, 48.41.581.000
connection 166mm, nose load 150kg, drawbar installation version top, combined with BPW wheel brake S2005-7 and S2504-7 RASK, with coupling head EM 300 R-B.
Price 525,00 EUR Incl. tax Excl. Shipping costs

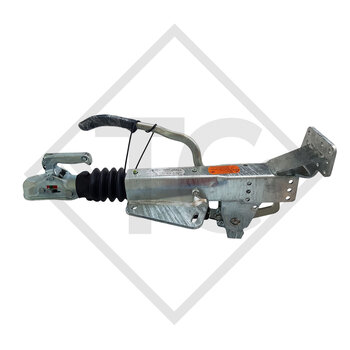

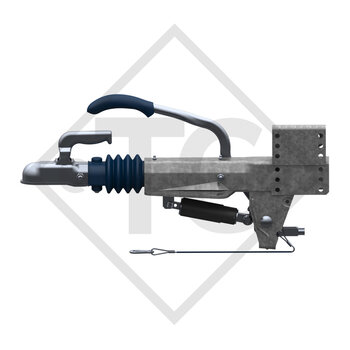

Overrun device V type ZAF 1.6-3, 750 to 1500kg, 48.27.581.202
BPW (AL-KO) Overrun device V type ZAF 1.6-3, 750 to 1500kg, 48.27.581.202
connection 166mm, nose load 100kg, drawbar installation version top + bottom, combined with BPW wheel brake S1704-7, S2005-7 and S2504-7 RASK, with coupling head EM 220 R-A.
Price 335,00 EUR Incl. tax Excl. Shipping costs

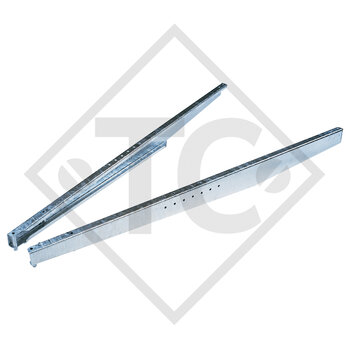

Towbar connection (pair) ZEA 2.0-1.1 to 2000kg, 05.447.26.23.1
BPW (AL-KO) Towbar connection (pair) ZEA 2.0-1.1 to 2000kg, 05.447.26.23.1
total length GL 1800mm, nose load 150kg.
Price 242,60 EUR Incl. tax Excl. Shipping costs
Towbar connection ZOV 1.2-1.1 B height-adjustable with drawbar section up to 1200kg, 47.23.403.022
BPW (AL-KO) Towbar connection ZOV 1.2-1.1 B height-adjustable with drawbar section up to 1200kg, 47.23.403.022
drawbar length L 2070mm, drawbar section K 82.5mm, with DIN drawbar eye dimension A 589mm, height B 0-300mm, intermediate piece V 400mm, perm. nose load 100kg.
Price 1.038,40 EUR Incl. tax Excl. Shipping costs
Drawbar ZOR 0,75-1 A round tube cranked up to 750kg, 48.14.301.011
BPW (AL-KO) Drawbar ZOR 0,75-1 A round tube cranked up to 750kg, 48.14.301.011
total length L 2200mm, drawbar section K dimension K 70x4mm, perm. nose load 75kg, coupling head EM 80 R-GK, including skid bracket, clamping bracket and plug holder.
Price 278,90 EUR Incl. tax Excl. Shipping costs
Drawbar ZOR 0,75-1 A round tube straight up to 750kg, 48.14.101.012
BPW (AL-KO) Drawbar ZOR 0,75-1 A round tube straight up to 750kg, 48.14.101.012
total length L 2400mm, drawbar section K dimension K 70x4mm, perm. nose load 75kg, coupling head EM 80 R-GK, including skid bracket, clamping bracket and plug holder.
Price 274,90 EUR Incl. tax Excl. Shipping costs
Drawbar ZOR 0,75-1 A round tube straight up to 750kg, 48.14.101.010
BPW (AL-KO) Drawbar ZOR 0,75-1 A round tube straight up to 750kg, 48.14.101.010
total length L 2000mm, drawbar section K dimension K 70x4mm, perm. nose load 75kg, coupling head EM 80 R-GK, including skid bracket, clamping bracket and plug holder.
Price 253,90 EUR Incl. tax Excl. Shipping costs
Spread hinge lock, bowden cable outlet 90°
BPW (AL-KO) Spread hinge lock, bowden cable outlet 90°
can be used with wheel brake S 3006-7 RASK and S 3006-7 SK.
Price 129,80 EUR Incl. tax Excl. Shipping costs
