total length K (at -5°) 3036mm, drawbar length E 1730mm, drawbar section 100x160x5mm, intermediate piece 700mm, perm. nose load 120kg, without hitch components, for wheel brake 1637 / 2051.
total length K (at -5°) 2956mm, drawbar length E 1650mm, drawbar section 100x160x5mm, intermediate piece 400mm, perm. nose load 120kg, without hitch components, for wheel brake 1637 / 2051.
total length K (at -5°) 3832mm, drawbar length E 2530mm, drawbar section 80x140x4mm, intermediate piece 700mm, perm. nose load 100kg, without hitch components, for wheel brake 2361.
total length K (at -5°) 3832mm, drawbar length E 2530mm, drawbar section 80x140x4mm, intermediate piece 700mm, perm. nose load 100kg, without hitch components, for wheel brake 1637 / 2051.
total length K (at 0°) 2876mm, drawbar length E 1570mm, drawbar section 80x140x4mm, intermediate piece 400mm, perm. nose load 100kg, without hitch components, for wheel brake 2361.
total length K (at 0°) 2796mm, drawbar length E 1490mm, drawbar section 80x140x4mm, intermediate piece 600mm, perm. nose load 100kg, without hitch components, for wheel brake 2361.
total length K (at 0°) 4156mm, drawbar length E 2850mm, drawbar section 80x140x4mm, intermediate piece 400mm, perm. nose load 100kg, without hitch components, for wheel brake 1637 / 2051.

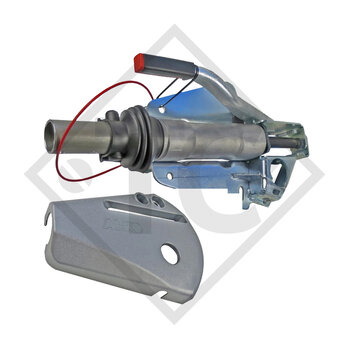

connection 166mm, nose load 100kg, drawbar installation version top, can be combined with AL-KO wheel brake 3062 / 3081, with coupling head AK 270, Soft-Dock.
connection 166mm, nose load 120kg, drawbar installation version bottom, can be combined with AL-KO wheel brake 2361, with coupling head AK 270, Soft-Dock.
connection 166mm, nose load 120kg, drawbar installation version bottom, can be combined with AL-KO wheel brake 1637 / 2051, with coupling head AK 270, Soft-Dock.
for drawbar tube see diagram dimension f and g 100x100mm, dimension a 160mm, dimension b 21 mm, dimension c 13mm, dimension d 60mm, dimension e 100mm, surface treatment: hot-dip galvanised.
