Square overrun device type 60 S/2 - R4 vers. B3 with drawbar section straight 450 to 750kg
AL-KO Square overrun device type 60 S/2 - R4 vers. B3 with drawbar section straight 450 to 750kg
total length A 2887mm, drawbar length C 2260mm, drawbar section 60x60x4mm, perm. nose load 75kg, with coupling head AK 161, for wheel brake 1636G / 1637 / 2051.
Price 508,00 EUR Incl. tax Excl. Shipping costs
Towbar connection toothed washer type 102 VB vers. N height-adjustable with drawbar section up to 1100kg
AL-KO Towbar connection toothed washer type 102 VB vers. N height-adjustable with drawbar section up to 1100kg
total length K (at 0°) 2979mm, drawbar length E 1970mm, drawbar section 70x140x3mm, intermediate piece 750mm, perm. nose load 100kg, without hitch components.
Price 919,00 EUR Incl. tax Excl. Shipping costs
Towbar connection toothed washer type 75 VU vers. A1 height-adjustable with drawbar section up to 750kg
AL-KO Towbar connection toothed washer type 75 VU vers. A1 height-adjustable with drawbar section up to 750kg
total length K (at 0°) 3049mm, drawbar length E 2040mm, drawbar section 70x70x4mm, intermediate piece 750mm, perm. nose load 100kg, without hitch components.
Price 765,00 EUR Incl. tax Excl. Shipping costs
Towbar connection toothed washer type 75 VU vers. A1 height-adjustable with drawbar section up to 750kg
AL-KO Towbar connection toothed washer type 75 VU vers. A1 height-adjustable with drawbar section up to 750kg
total length K (at 0°) 2409mm, drawbar length E 1400mm, drawbar section 70x70x4mm, intermediate piece 750mm, perm. nose load 100kg, without hitch components.
Price 727,00 EUR Incl. tax Excl. Shipping costs
Towbar connection toothed washer type 75 VU vers. A1 height-adjustable with drawbar section up to 750kg
AL-KO Towbar connection toothed washer type 75 VU vers. A1 height-adjustable with drawbar section up to 750kg
total length K (at 0°) 2089mm, drawbar length E 1080mm, drawbar section 70x70x4mm, intermediate piece 750mm, perm. nose load 100kg, without hitch components.
Price 702,00 EUR Incl. tax Excl. Shipping costs
Drawbar type K4 vers. A1 square tube cranked up to 750kg
AL-KO Drawbar type K4 vers. A1 square tube cranked up to 750kg
dimension A 1850mm, drawbar section 60x60x3mm, perm. nose load 75kg, coupling head type AK 7, inclusive skid bracket, clamping bracket and plug holder.
Price 147,90 EUR Incl. tax Excl. Shipping costs
Drawbar type R4 vers. A1 square tube straight up to 750kg
AL-KO Drawbar type R4 vers. A1 square tube straight up to 750kg
dimension A 2515mm, drawbar section 60x60x3mm, perm. nose load 75kg, coupling head type AK 7, inclusive skid bracket, clamping bracket and plug holder.
Price 148,00 EUR Incl. tax Excl. Shipping costs

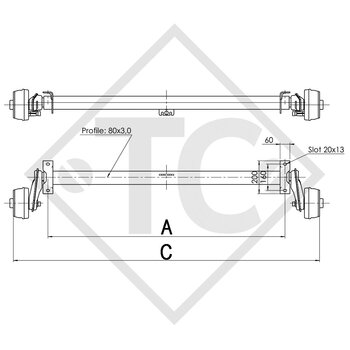

Braked axle 1000kg EURO Compact axle type B 850-10
AL-KO Braked axle 1000kg EURO Compact axle type B 850-10
BC: dimension A 1100mm, OHF: dimension C 1580mm, wheel connection 98x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm.
Price 735,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO Plus axle type B 1600-3
AL-KO Braked axle 1500kg EURO Plus axle type B 1600-3
BC: dimension A 1545mm, OHF: dimension C 2010mm, wheel connection 112x5, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.499,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg EURO Plus axle type B 1000-3 - BURSTNER 460 D157
AL-KO Braked axle 1000kg EURO Plus axle type B 1000-3 - BURSTNER 460 D157
BC: dimension A 1380mm, OHF: dimension C 1860mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5.
Price 1.450,00 EUR Incl. tax Excl. Shipping costs

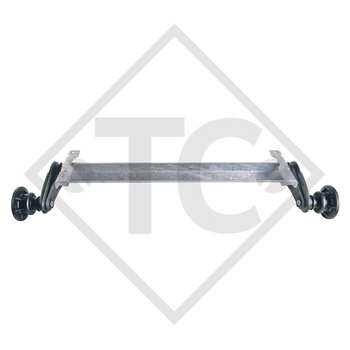

Unbreaked axle 900kg UBR PLUS axle type 850-5
AL-KO Unbreaked axle 900kg UBR PLUS axle type 850-5
BC: dimension A 845mm, OHF: dimension C 1250mm, wheel connection 130x4, offset (ET) 27-33mm, ball-head wheel bolts M12x1.5.
Price 1.350,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg EURO COMPACT axle type B 1200-5
AL-KO Braked axle 1300kg EURO COMPACT axle type B 1200-5
BC: dimension A 1810mm, OHF: dimension C 2260mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm.
Price 815,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg EURO1 axle type B 1000-3
AL-KO Braked axle 1000kg EURO1 axle type B 1000-3
BC: dimension A 1320mm, OHF: dimension C 1800mm, wheel connection 100x4, wheel brake type 2051, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.395,00 EUR Incl. tax Excl. Shipping costs
Braked axle 850kg EURO PLUS axle type B 850-4, Bürstner
AL-KO Braked axle 850kg EURO PLUS axle type B 850-4, Bürstner
BC: dimension A 1575mm, OHF: dimension C 2040mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 1.280,00 EUR Incl. tax Excl. Shipping costs
Braked axle 850kg EURO COMPACT axle type B 850-4
AL-KO Braked axle 850kg EURO COMPACT axle type B 850-4
BC: dimension A 1270mm, OHF: dimension C 1635mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 845,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO Plus axle type DELTA SIN 14-1, ADRIA
AL-KO Braked axle 1500kg EURO Plus axle type DELTA SIN 14-1, ADRIA
BC: dimension A 1710mm, OHF: dimension C 2198mm, wheel connection 112x5, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.415,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg Euro-Compact axle type B 850-10
AL-KO Braked axle 1000kg Euro-Compact axle type B 850-10
BC: dimension A 1410mm, OHF: dimension C 1830mm, wheel connection 98x4, wheel brake type 2051, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm, wheel bolts M12x1.5.
Price 895,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO1 axle type DELTA SIN 14-1 - FENDT 470
AL-KO Braked axle 1500kg EURO1 axle type DELTA SIN 14-1 - FENDT 470
BC: dimension A 1600mm, OHF: dimension C 2080mm, wheel connection 112x5, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.495,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg EURO Compact axle type B 1200-5, Jotha
AL-KO Braked axle 1300kg EURO Compact axle type B 1200-5, Jotha
BC: dimension A 1300mm, OHF: dimension C 1750mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 799,00 EUR Incl. tax Excl. Shipping costs
Braked axle 750kg axle type B 700-5
AL-KO Braked axle 750kg axle type B 700-5
BC: dimension A 1400mm, OHF: dimension C 1840mm, wheel connection 98x4, wheel brake type 1636, offset (ET) 27-45mm, swing arm position 30°, axle profile 71mm, taper-head wheel bolts M12x1.5.
Price 399,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1100kg EURO PLUS axle type B 1200-1
AL-KO Braked axle 1100kg EURO PLUS axle type B 1200-1
BC: dimension A 830mm, OHF: dimension C 1235mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm.
Price 1.195,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg EURO Plus axle type DELTA SI 18-1
AL-KO Braked axle 1800kg EURO Plus axle type DELTA SI 18-1
BC: dimension A 1760mm, OHF: dimension C 2280mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 15°, axle profile 110mm, ball-head wheel bolts M12x1.5.
Price 2.050,00 EUR Incl. tax Excl. Shipping costs
Braked tandem axle unit 1300kg EURO axle type 2xB 1200-5, MECANOREM
AL-KO Braked tandem axle unit 1300kg EURO axle type 2xB 1200-5, MECANOREM
BC: dimension A 1580mm, OHF: dimension C 2090mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 0mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.650,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO Plus axle type DELTA SI-N 14-1, WILK
AL-KO Braked axle 1500kg EURO Plus axle type DELTA SI-N 14-1, WILK
BC: dimension A 1760mm, OHF: dimension C 2270mm, wheel connection 112x5, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.525,00 EUR Incl. tax Excl. Shipping costs
