Lowering axle down to 210mm, axle type BRA 1800-5, single axle 1600kg
AL-KO Lowering axle down to 210mm, axle type BRA 1800-5, single axle 1600kg
BC: dimension A 1600mm, OHF: dimension C 2150mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 27-35mm, ball-head wheel bolts M12x1.5, hydraulic cylinder, cylinder spacing: dimension S 1340mm.
Price 3.076,00 EUR Incl. tax Excl. Shipping costs
Lowering axle down to 210mm, axle type BRA 1800-5, single axle 1600kg
AL-KO Lowering axle down to 210mm, axle type BRA 1800-5, single axle 1600kg
BC: dimension A 1300mm, OHF: dimension C 1850mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 27-35mm, ball-head wheel bolts M12x1.5, hydraulic cylinder, cylinder spacing: dimension S 1040mm.
Price 3.054,00 EUR Incl. tax Excl. Shipping costs
Lowering axle down to 210mm, axle type BRA 1800-01, single axle 1300kg
AL-KO Lowering axle down to 210mm, axle type BRA 1800-01, single axle 1300kg
BC: dimension A 1100mm, OHF: dimension C 1650mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 27-35mm, ball-head wheel bolts M12x1.5, hydraulic cylinder, cylinder spacing: dimension S 840mm.
Price 2.750,00 EUR Incl. tax Excl. Shipping costs
Lowering axle down to 140mm, axle type BRA 1600-05, single axle 1350kg
AL-KO Lowering axle down to 140mm, axle type BRA 1600-05, single axle 1350kg
BC: dimension A 1300mm, OHF: dimension C 1790mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 27-35mm, ball-head wheel bolts M12x1.5, hydraulic cylinder, cylinder spacing: dimension S 1040mm.
Price 2.510,00 EUR Incl. tax Excl. Shipping costs
Lowering axle down to 140mm, axle type BRA 1600-05, single axle 1350kg
AL-KO Lowering axle down to 140mm, axle type BRA 1600-05, single axle 1350kg
BC: dimension A 1200mm, OHF: dimension C 1690mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 27-35mm, ball-head wheel bolts M12x1.5, hydraulic cylinder, cylinder spacing: dimension S 940mm.
Price 2.504,00 EUR Incl. tax Excl. Shipping costs
Braked axle 750kg BASIC axle type B 700-5
AL-KO Braked axle 750kg BASIC axle type B 700-5
BC: dimension A 1430mm, OHF: dimension C 1870mm, wheel connection 100x4, wheel brake type 1636G, offset (ET) 27-45mm, swing arm position 30°, axle profile 71mm, taper-head wheel bolts M12x1.5.
Price 566,90 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg BASIC axle type 700-5 with shackle and high axle bracket
AL-KO Unbraked axle 750kg BASIC axle type 700-5 with shackle and high axle bracket
dimension A 800mm, dimension C 1250mm, wheel connection 112x5, offset (ET) 27-45mm, taper-head wheel bolts M12x1.5.
Price 307,90 EUR Incl. tax Excl. Shipping costs
Hub watertight with stub for screwing in
AL-KO Hub watertight with stub for screwing in
wheel load per hub up to max. 140 km/h 375kg, up to max. 40 km/h 450kg, wheel connection (G) 112x5, thread M12x1.5, offset 27-45, dimension A 203.5mm, dimension B 83.5mm, dimension C 39.5mm, bearing type Compact.
Price 88,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 246484 with fixing bolts, hook in with thread M10, vers. steel
AL-KO Bowden cable 246484 with fixing bolts, hook in with thread M10, vers. steel
sheath length (H) 1130mm, cable length (S) 1340mm, can be used with wheel brake 3062 and 3081 from year of manufacture 01/1989, bell internal diam. 25.5mm, outside 30mm.
Price 30,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 246481 with fixing bolts, hook in with thread M10, vers. steel
AL-KO Bowden cable 246481 with fixing bolts, hook in with thread M10, vers. steel
sheath length (H) 770mm, cable length (S) 980mm, can be used with wheel brake 3062 and 3081 from year of manufacture 01/1989, bell internal diam. 25.5mm, outside 30mm.
Price 29,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 246479 with fixing bolts, hook in with thread M10, vers. steel
AL-KO Bowden cable 246479 with fixing bolts, hook in with thread M10, vers. steel
sheath length (H) 350mm, cable length (S) 560mm, can be used with wheel brake 3062 and 3081 from year of manufacture 01/1989, bell internal diam. 25.5mm, outside 30mm.
Price 29,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 1211761 hook in with thread M10, vers. steel
AL-KO Bowden cable 1211761 hook in with thread M10, vers. steel
sheath length (H) 1950mm, cable length (S) 2160mm, can be used with wheel brake 3062 and 3081 from year of manufacture 01/1989, bell internal diam. 25.5mm, outside 30mm.
Price 132,00 EUR Incl. tax Excl. Shipping costs
Bowden cable 24866304 with eyelet and thread M8, vers. PROFI LONGLIFE
AL-KO Bowden cable 24866304 with eyelet and thread M8, vers. PROFI LONGLIFE
sheath length (H) 1609mm, cable length (S) 1865mm, can be used with wheel brake 1635, 1636G, 1637, 2051 and 2361 up to year of manufacture 12/1988.
Price 24,90 EUR Incl. tax Excl. Shipping costs
Bowden cable 2088800401 with eyelet and thread M8, vers. PROFI LONGLIFE
AL-KO Bowden cable 2088800401 with eyelet and thread M8, vers. PROFI LONGLIFE
sheath length (H) 1129mm, cable length (S) 1385mm, can be used with wheel brake 1635, 1636G, 1637, 2051 and 2361 up to year of manufacture 12/1988.
Price 21,90 EUR Incl. tax Excl. Shipping costs
Cable winch PLUS 900kg, type 901 with automatic weight brake, with automatic unwinder, fitted with 17 meter cable for lifting
AL-KO Cable winch PLUS 900kg, type 901 with automatic weight brake, with automatic unwinder, fitted with 17 meter cable for lifting
manual force 190N, minimum load 25kg, reduction 8.75 : 1, lift per crank rotation from 25-55mm, drum capacity for cable ⌀7mm: 17 meter, drum capacity for towing band: 10 meter.
Price 439,00 EUR Incl. tax Excl. Shipping costs
Wheel brake 2051 Ab PLUS pair 1500kg with stub for screwing in, watertight
AL-KO Wheel brake 2051 Ab PLUS pair 1500kg with stub for screwing in, watertight
wheel load per hub 750kg, wheel connection 112x5, Gewinde M12x1.5, offset (ET) 27-33, dimension A 238mm, dimension B 103mm, bearing type compact, axle stub ø46,9mm.
Price 458,00 EUR Incl. tax Excl. Shipping costs

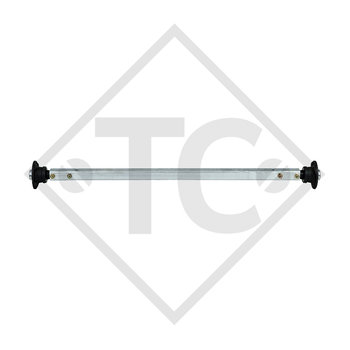

Rigid unbraked axle 750kg PLUS axle type LS 750
AL-KO Rigid unbraked axle 750kg PLUS axle type LS 750
BC: dimension A 700mm, OHF: dimension C 1130mm, wheel connection 98x4, offset (ET) (ET) 27-33mm, axle profile 50x4mm, taper-head wheel bolts M12x1.5.
Price 222,00 EUR Incl. tax Excl. Shipping costs
Overrun device height-adjustable 251 VB-2 OPTIMA with drawbar section cranked 1425 to 2700kg
AL-KO Overrun device height-adjustable 251 VB-2 OPTIMA with drawbar section cranked 1425 to 2700kg
total length K (at -5°) 3032mm, drawbar length E 1730mm, drawbar section 100x160x5mm, intermediate piece 700mm, perm. nose load 120kg, without hitch components, for wheel brake 1637 / 2051.
Price 2.262,00 EUR Incl. tax Excl. Shipping costs
Overrun device V type 251G, 1550 to 3000kg
AL-KO Overrun device V type 251G, 1550 to 3000kg
connection 166mm, nose load 120kg, drawbar installation version top, can be combined with AL-KO wheel brake 3062 / 3081, with coupling head AK 301.
Price 525,00 EUR Incl. tax Excl. Shipping costs
Overrun device V type 251G, 1550 to 3000kg
AL-KO Overrun device V type 251G, 1550 to 3000kg
connection 166mm, nose load 120kg, drawbar installation version top, can be combined with AL-KO wheel brake 1637 / 2051, with coupling head AK 301.
Price 525,00 EUR Incl. tax Excl. Shipping costs
Overrun device square type 2.8VB/1, 2500 to 3500kg, without jockey wheel carrier
AL-KO Overrun device square type 2.8VB/1, 2500 to 3500kg, without jockey wheel carrier
connection dimension B 120mm, nose load 150kg, can be combined with AL-KO wheel brake 2361, with coupling head AK 351.
Price 801,00 EUR Incl. tax Excl. Shipping costs
Overrun device square type 60S/2, 450 to 750kg
AL-KO Overrun device square type 60S/2, 450 to 750kg
connection dimension B 60mm, nose load 75kg, can be combined with AL-KO wheel brake 1636G / 1637, with coupling head AK 161, Soft-Dock.
Price 365,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg PLUS axle type B 1800-9
AL-KO Braked axle 1800kg PLUS axle type B 1800-9
BC: dimension A 1850mm, OHF: dimension C 2350mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 25°, axle profile 110mm, ball-head wheel bolts M12x1.5.
Price 999,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg PLUS axle type B 1800-9
AL-KO Braked axle 1800kg PLUS axle type B 1800-9
BC: dimension A 1600mm, OHF: dimension C 2100mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 25°, axle profile 110mm, ball-head wheel bolts M12x1.5.
Price 960,00 EUR Incl. tax Excl. Shipping costs
