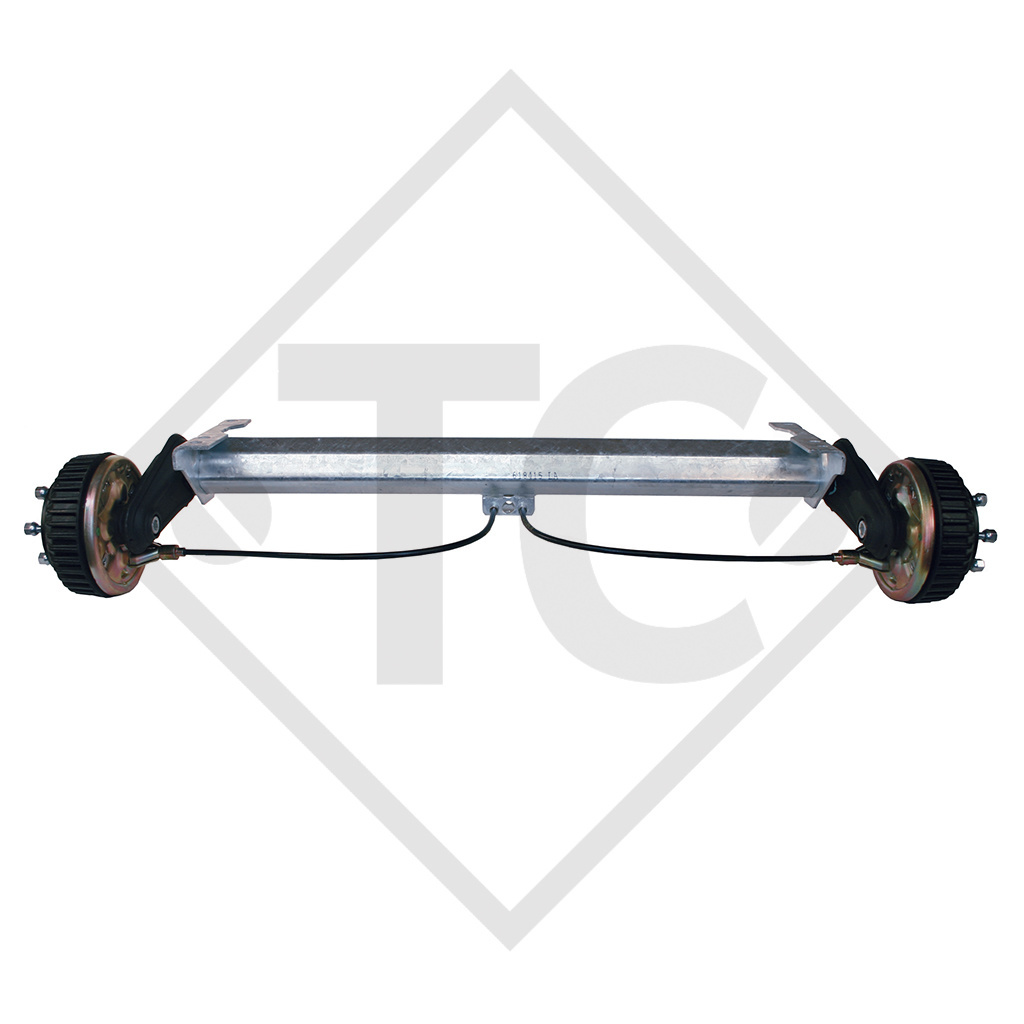

BC: dimension A 1300mm, OHF: dimension C 1750mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:
Price 743,00 EUR Incl. tax Excl. Shipping costs

Part no. 20020855

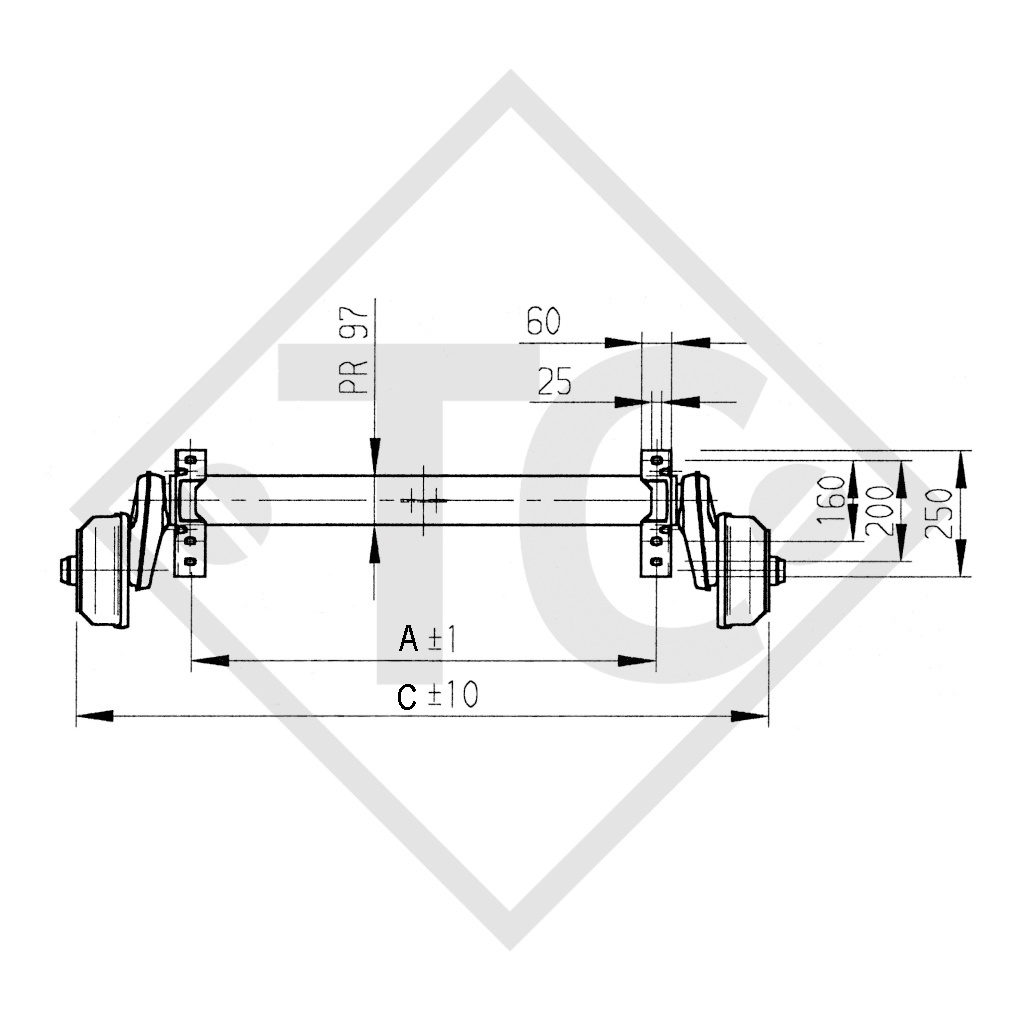

BC: dimension A 1300mm
OHF: dimension C 1750mm
Wheel connection 112x5

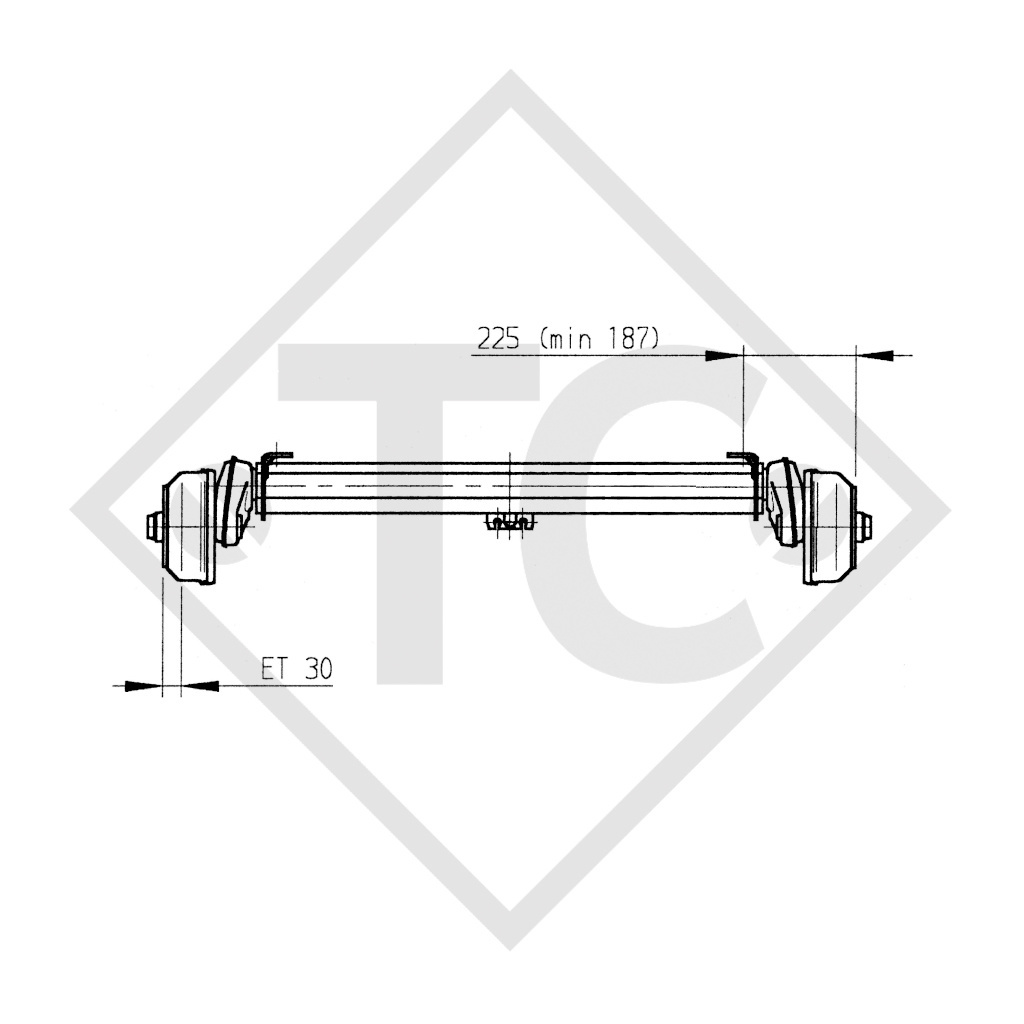

Offset (ET) 30mm
Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) OLD 811158
Replacement part identification number (ETI) NEW 811938

TECHNOLOGY
Model: BASIC
Axle type: B 1600-3
Axle load: Single axle 1500kg
Axle load: Tandem axle 3000kg
Wheel brake: 2051
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

... ...
