Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / OVERRUN DEVICES / HEIGHT-ADJUSTABLE OVERRUN DEVICES / OVERRUN DEVICES HEIGHT-ADJUSTABLE PRODUCT LINE VB-2 OPTIMA FOR PROFESSIONALLY USED TRANSPORT TRAILERS / HEIGHT-ADJUSTABLE OVERRUN DEVICES TYPE 251 VB-2 OPTIMA WITH DRAWBAR SECTION CRANKED 1425 TO 2700KG / Braked tandem front axle 1800kg BASIC axle type CB1800 with AAA (automatic adjustment of the brake pads)

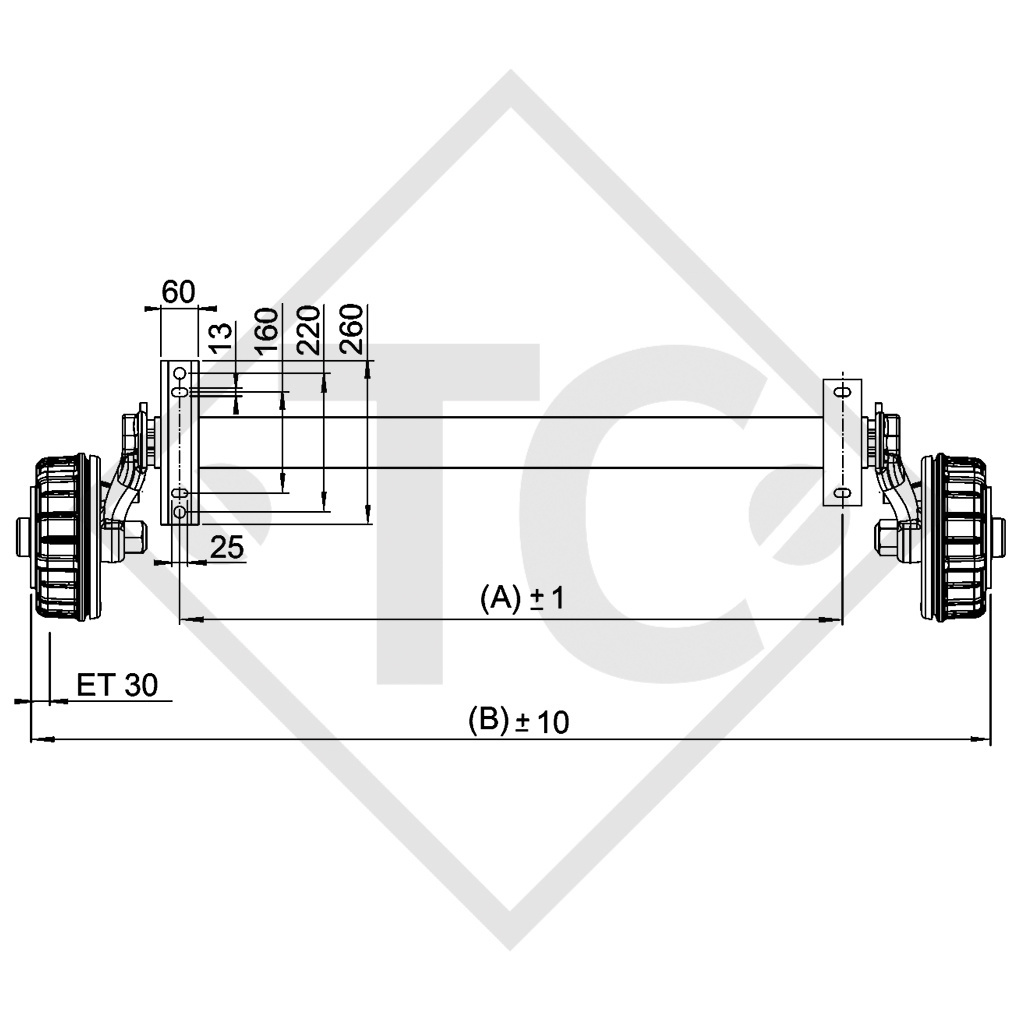

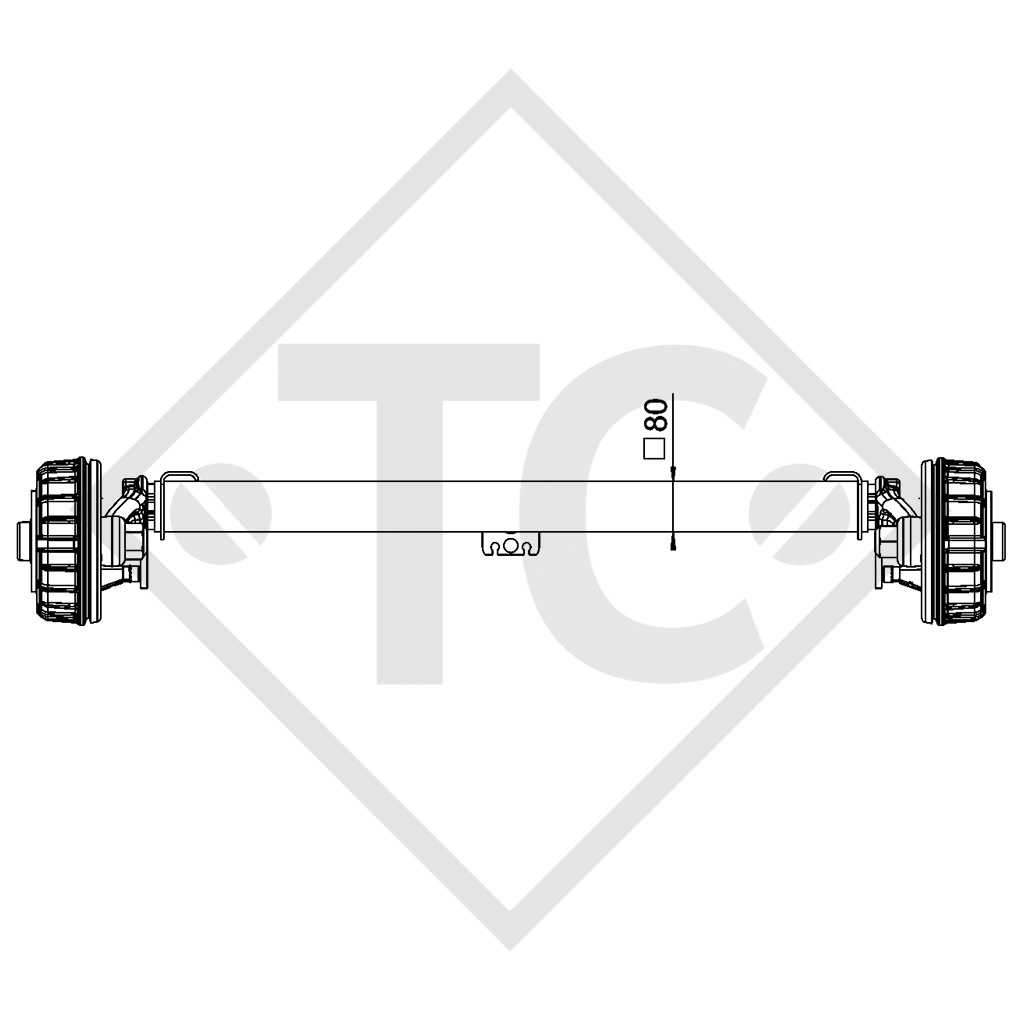

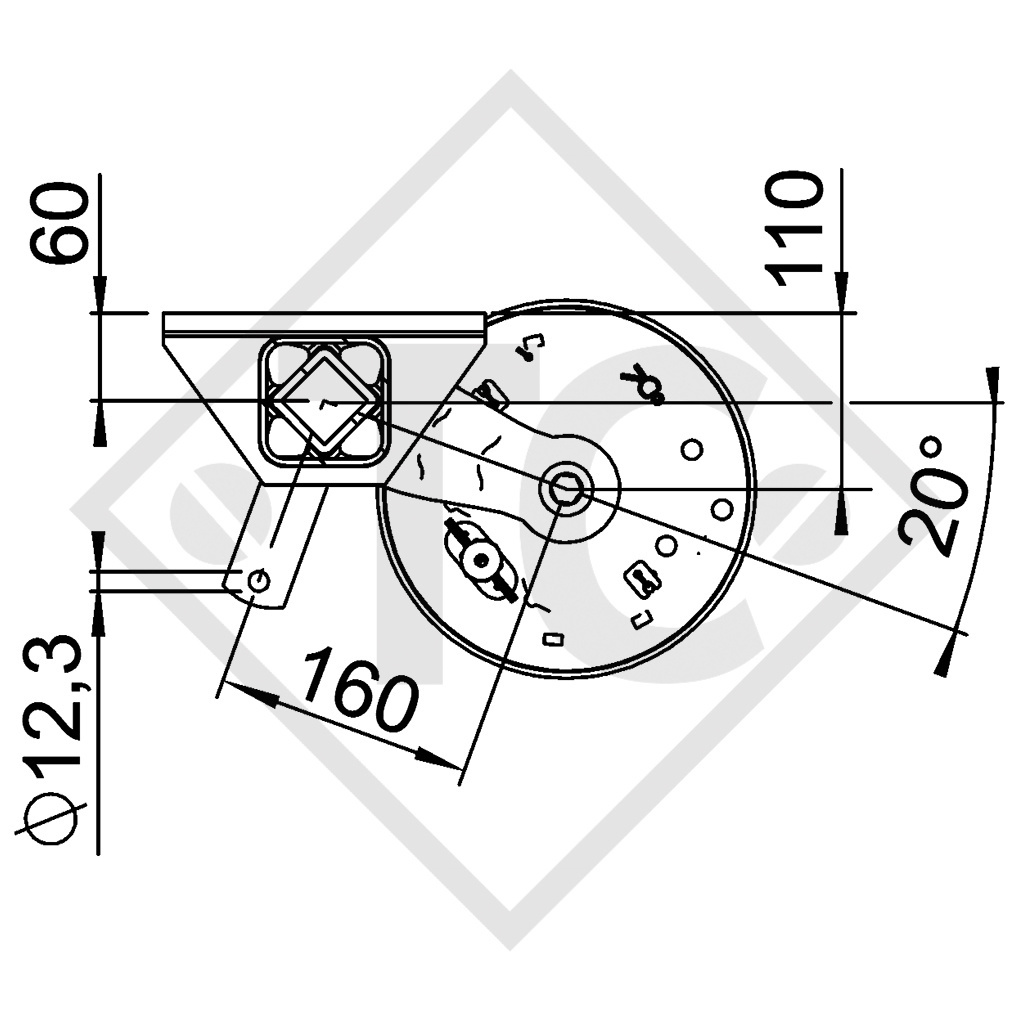

BC: dimension A 1900mm, OHF: dimension B 2390mm, wheel connection 112x5, wheel brake type 2361 with AAA, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 4023632
BC (A) |
1900mm |
OHF (B) |
2390mm |
Model | BASIC |
Axle type |
CB1800 |
Axle load single axle | 1800kg |
Axle load: Tandem axel | 3500kg |
Wheel brake | 2361 with AAA |
Suspension | Square rubber suspension |
Swing arm |
160mm |
Wheel connection |
112x5 |
Wheel bearing |
Compact bearings |
Centre hole rim |
min. 63mm |
Replacement part identification number (ETI) 811CB1800
SCOPE OF DELIVERY
Single axle adapter bracket welded on
Welded-on shock absorber brackets
Bowden cables loose
Wheel bolts loose
Separate order for tandem
Tandem adapter bracket, bolt on 249 236
Tandem compensation 238 576
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
Axle link cataphoretically coated
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
