BC: dimension A 1350mm, OHF: dimension C 1800mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 30mm, swing arm position 5°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Part no. 805549

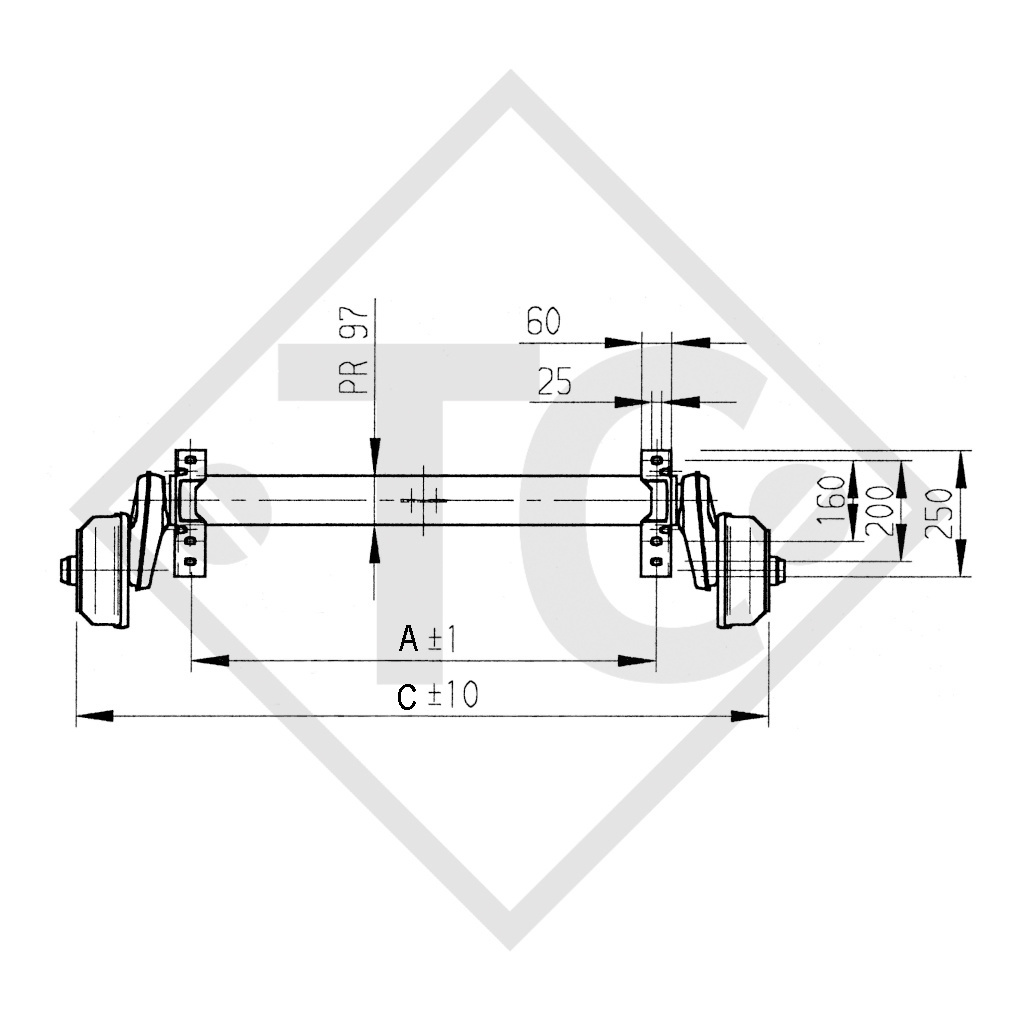

BC: dimension A 1350mm
OHF: dimension C 1800mm
Wheel connection 112x5

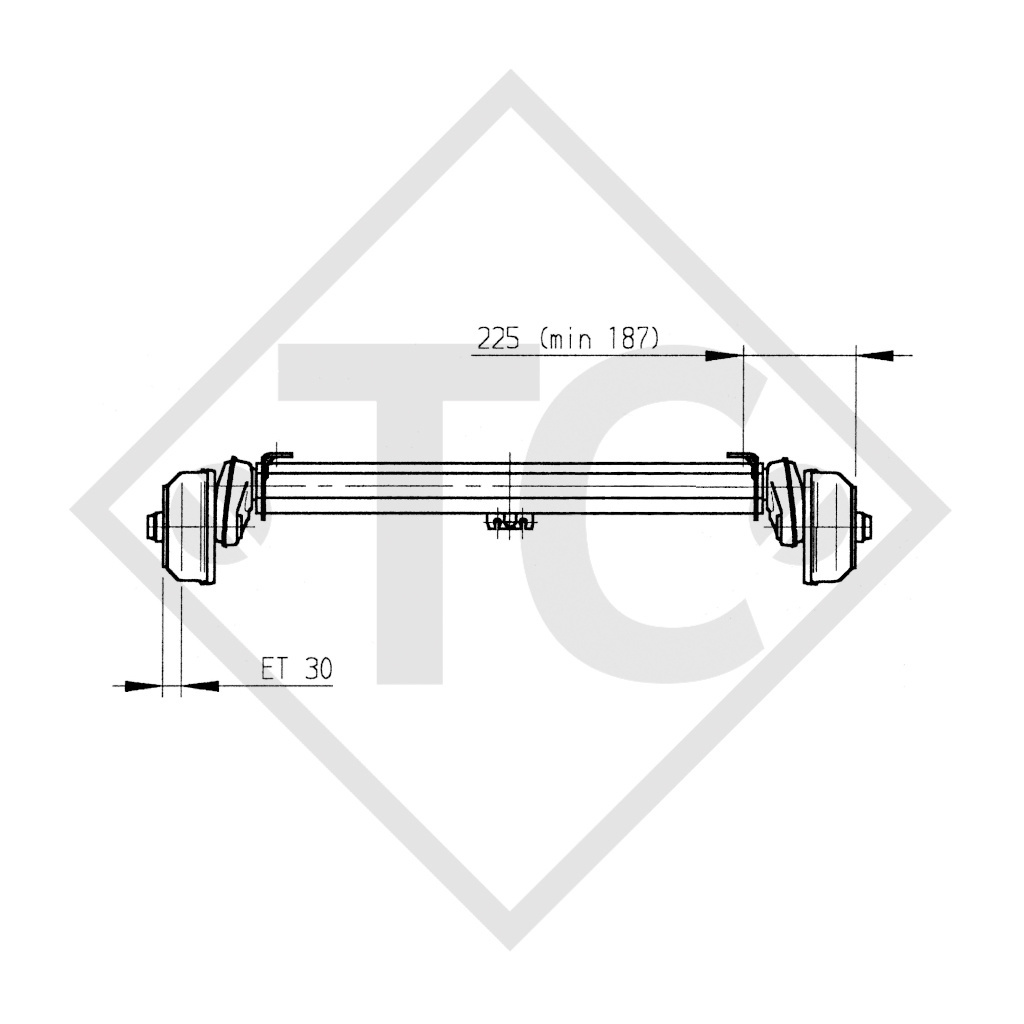

Offset (ET) 30mm
Swing arm position 5°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) 811268

TECHNOLOGY
Model: EURO COMPACT
Axle type: B 1600-3
Axle load: Single axle 1500kg
Axle load: Tandem axle 3000kg
Wheel brake: 2051
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

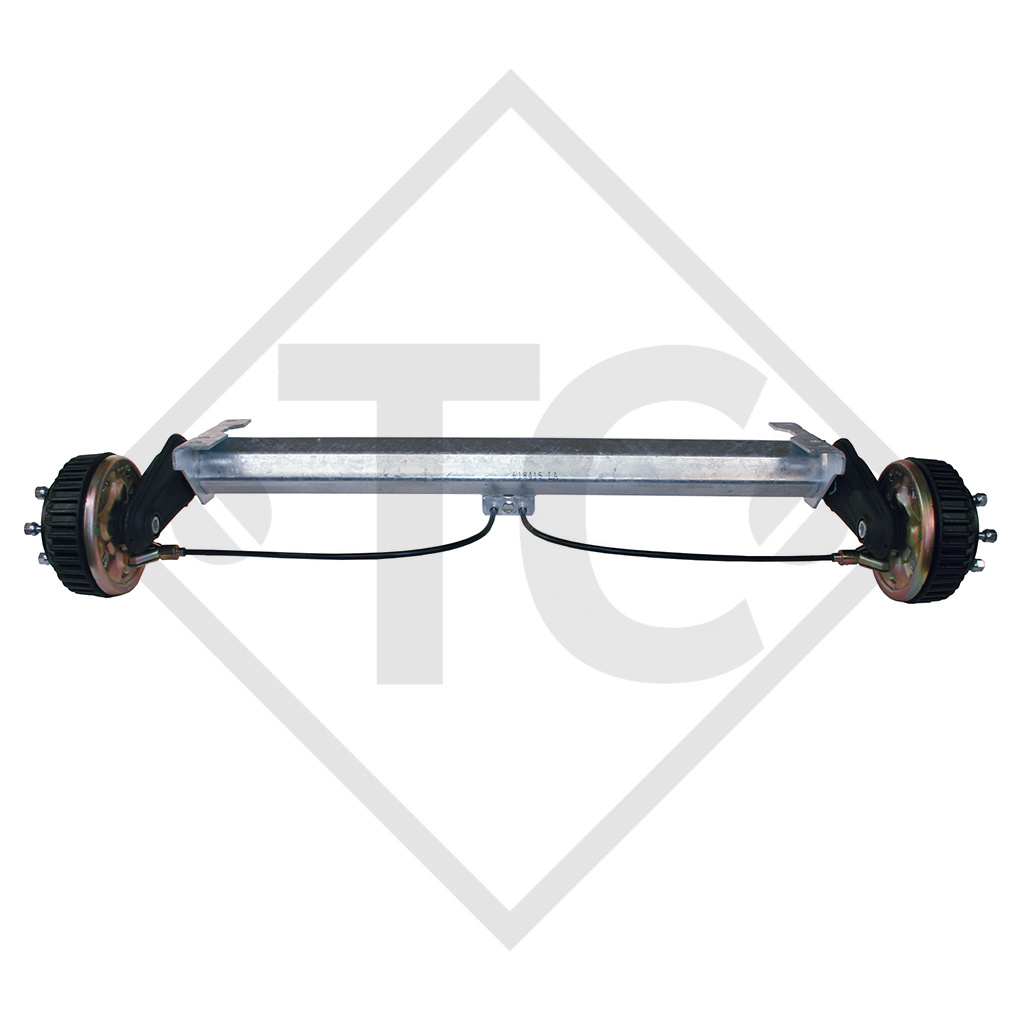

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
