BC: dimension A 1625mm, OHF: dimension C 2075mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Part no. 20001559

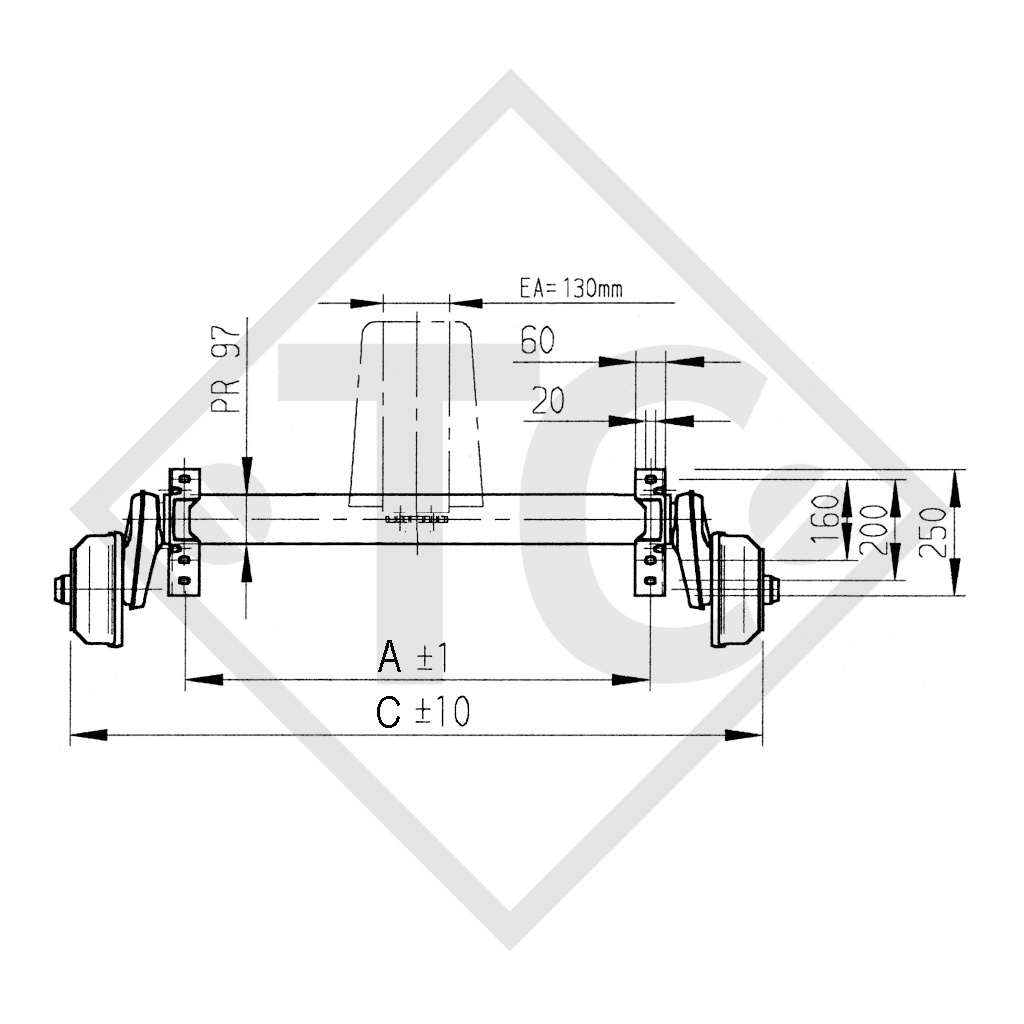

BC: dimension A 1625mm
OHF: dimension C 2075mm
Wheel connection 112x5

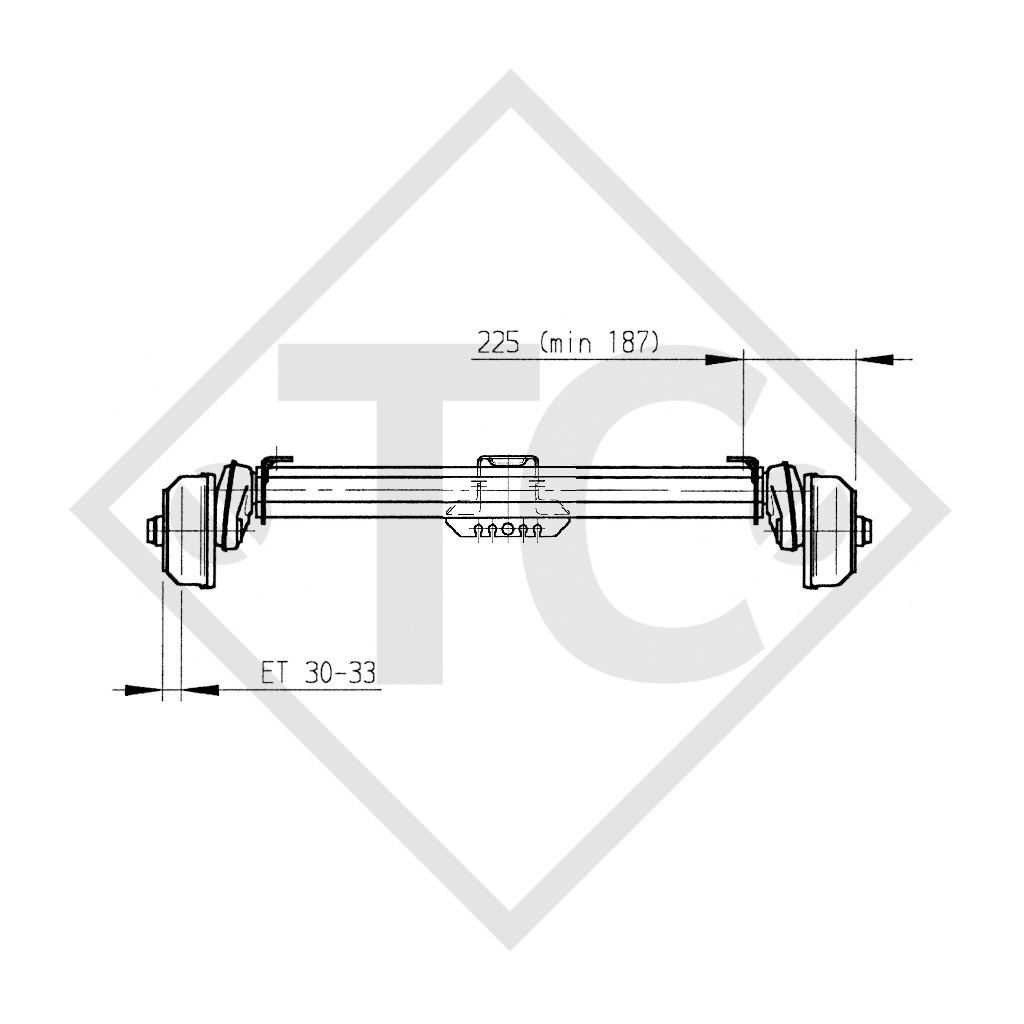

Offset (ET) 30-33mm
Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) OLD 811157
Replacement part identification number (ETI) NEW 811941

TECHNOLOGY
Model: BASIC
Axle type: B 1200-6
Axle load: Single axle 1350kg
Axle load: Tandem axle 2700kg
Wheel brake: 2051
Suspension: Hexagonal rubber suspension

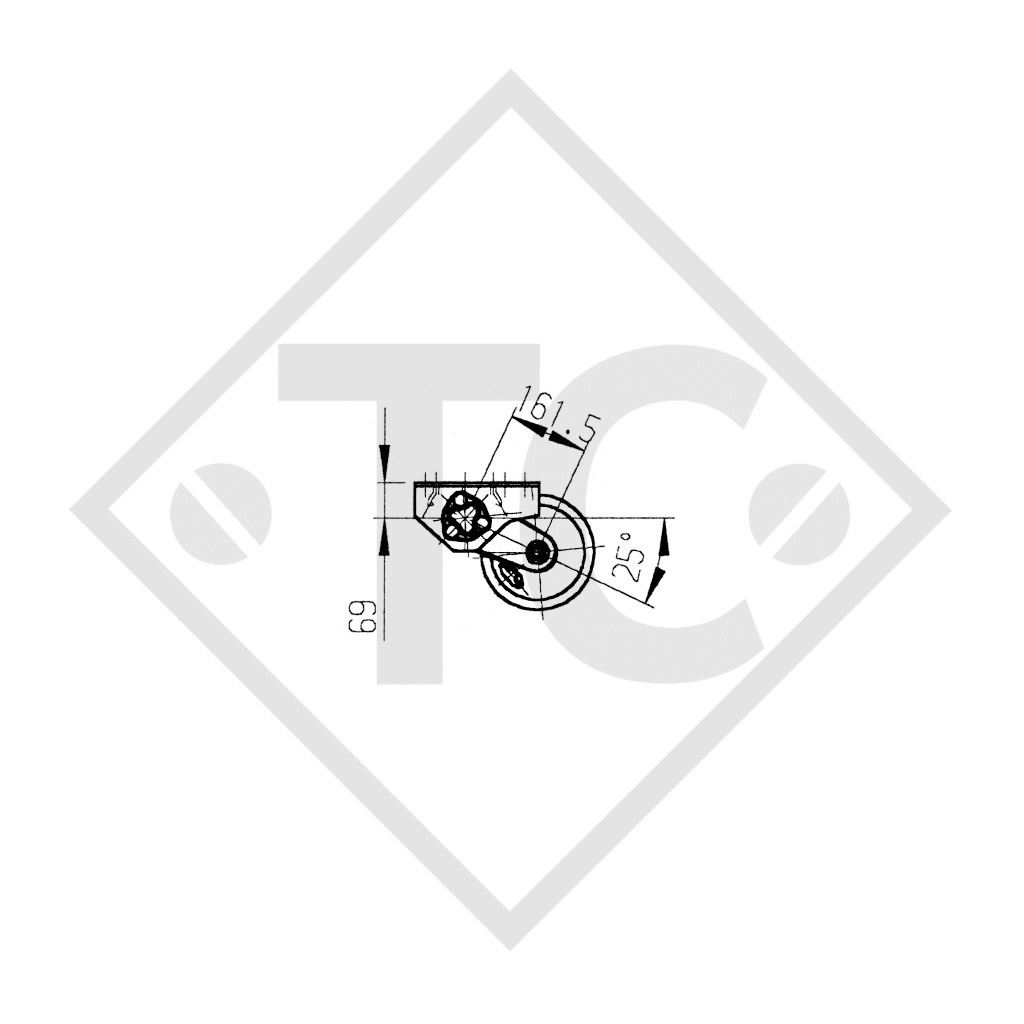

Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY

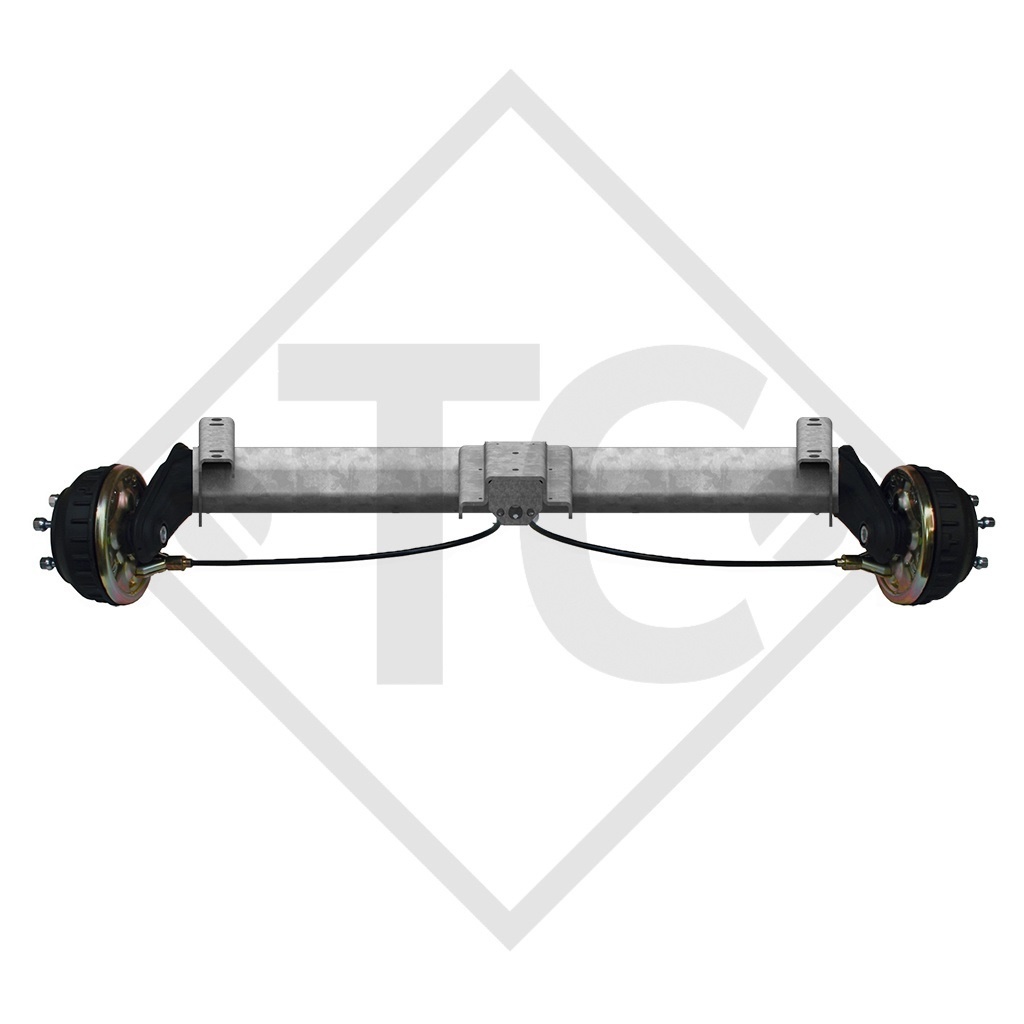

Axle
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded onto top hat profile
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber

... ...
