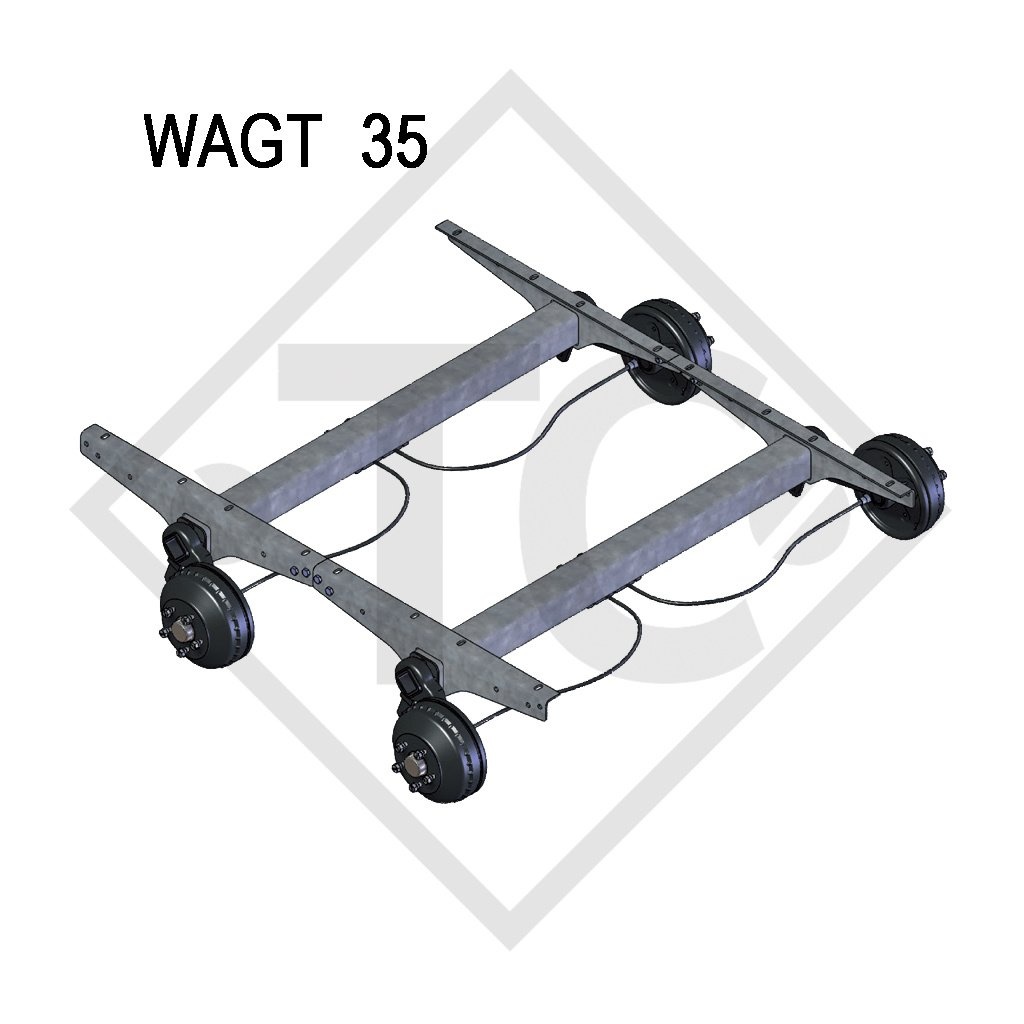

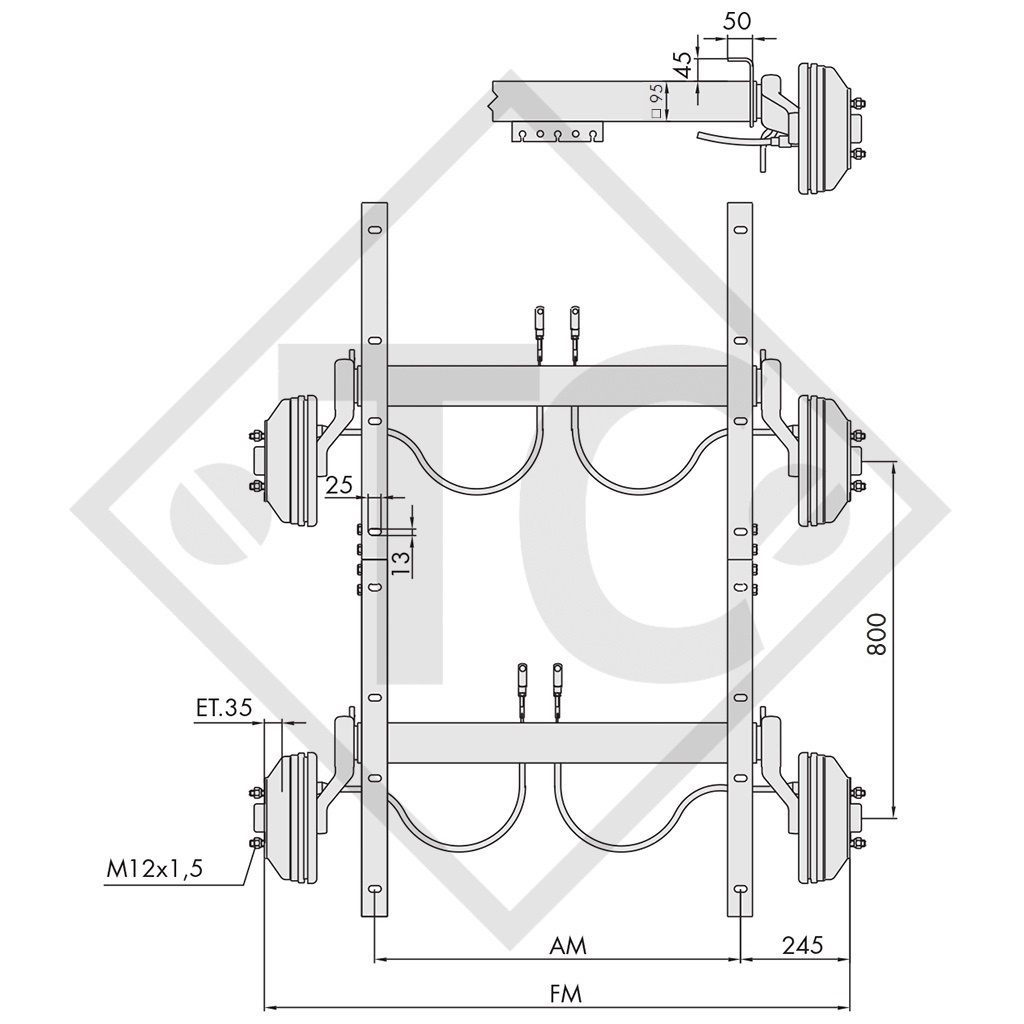

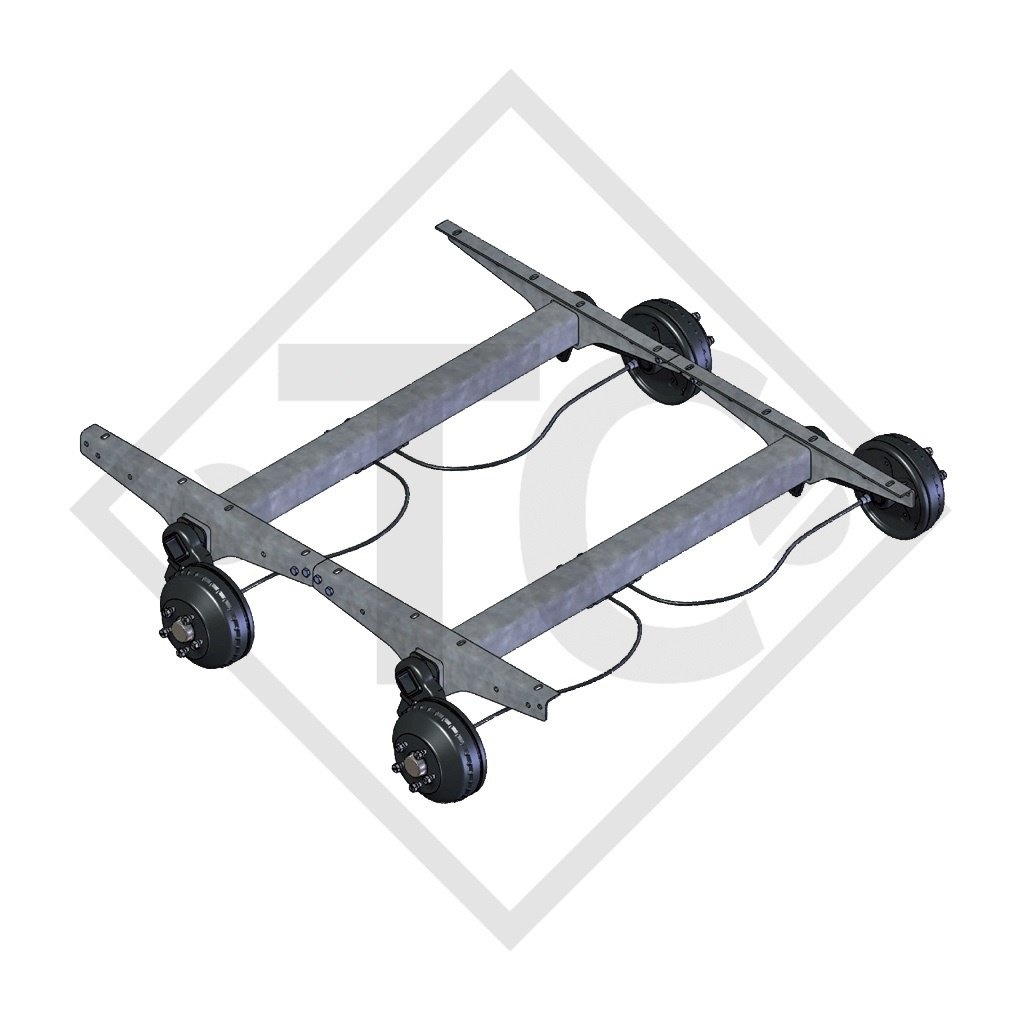

BC: dimension AM 1150mm, OHF: dimension FM 1640mm, wheel connection 112x5, wheel brake type W 235 RS, offset (ET) 35mm, ball-head wheel bolts M12x1.5. Read more...
| Part no. | WAPWAGT35004 |
| Dimension AM |
1150mm |
| Dimension FM |
1640mm |
| Wheel connection | 112x5 |
Spare part list for wheel brake W 235 RS
Bowden cables
TECHNOLOGY
Model: WAGT-B
Axle type: WAGT 35
Axle load: 3500kg
Suspension: Square rubber suspension

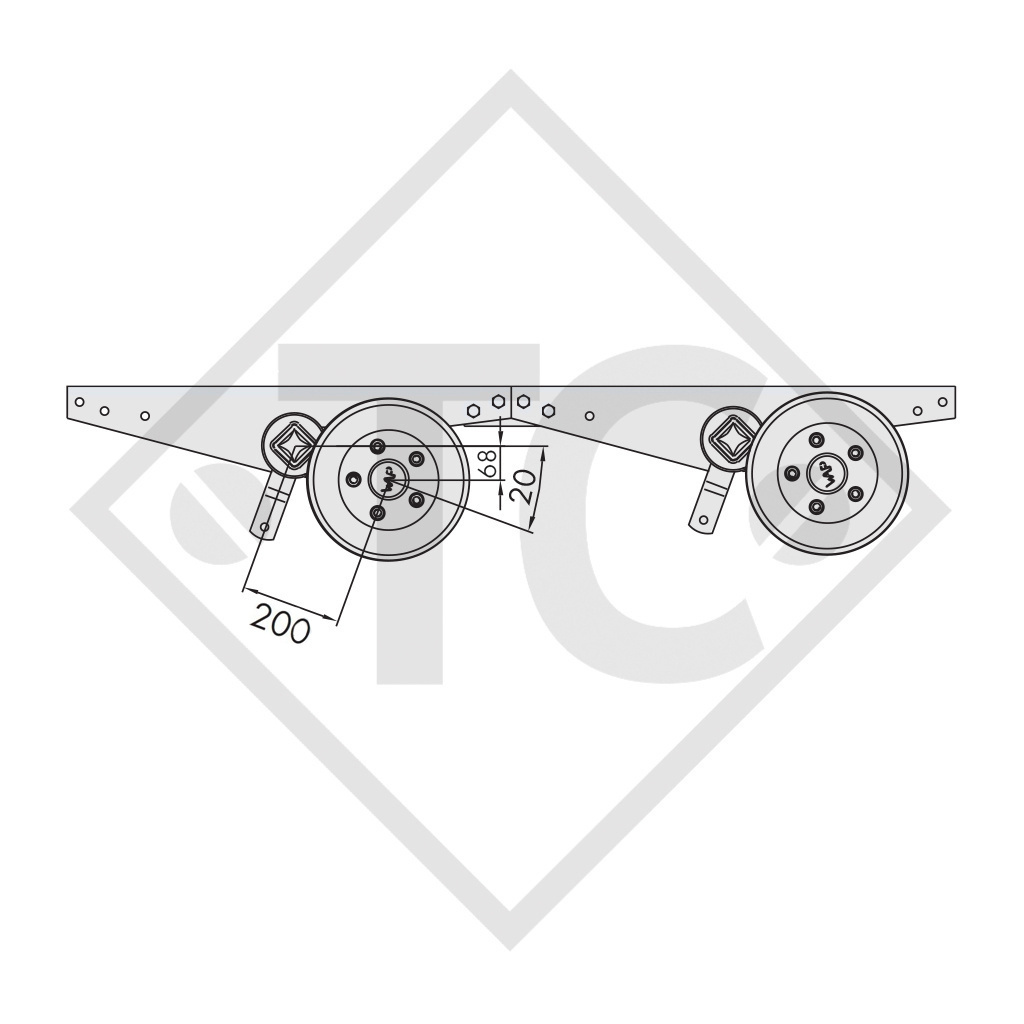

Swing arm length SH: 200mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
