Home / Braked tandem axle unit 2000kg EURO1 axle type 2x DELTA SIN 10 - TABBERT
BC: dimension A 1745mm, OHF: dimension C 2269mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 26-40mm, axle profile 97mm, bowden cables front + rear. Read more...
Part no. 1422749 (1525888+1525889)
Axle type: 2x DELTA SIN 10
Axle load tandem: 2000kg
Axle dimensions

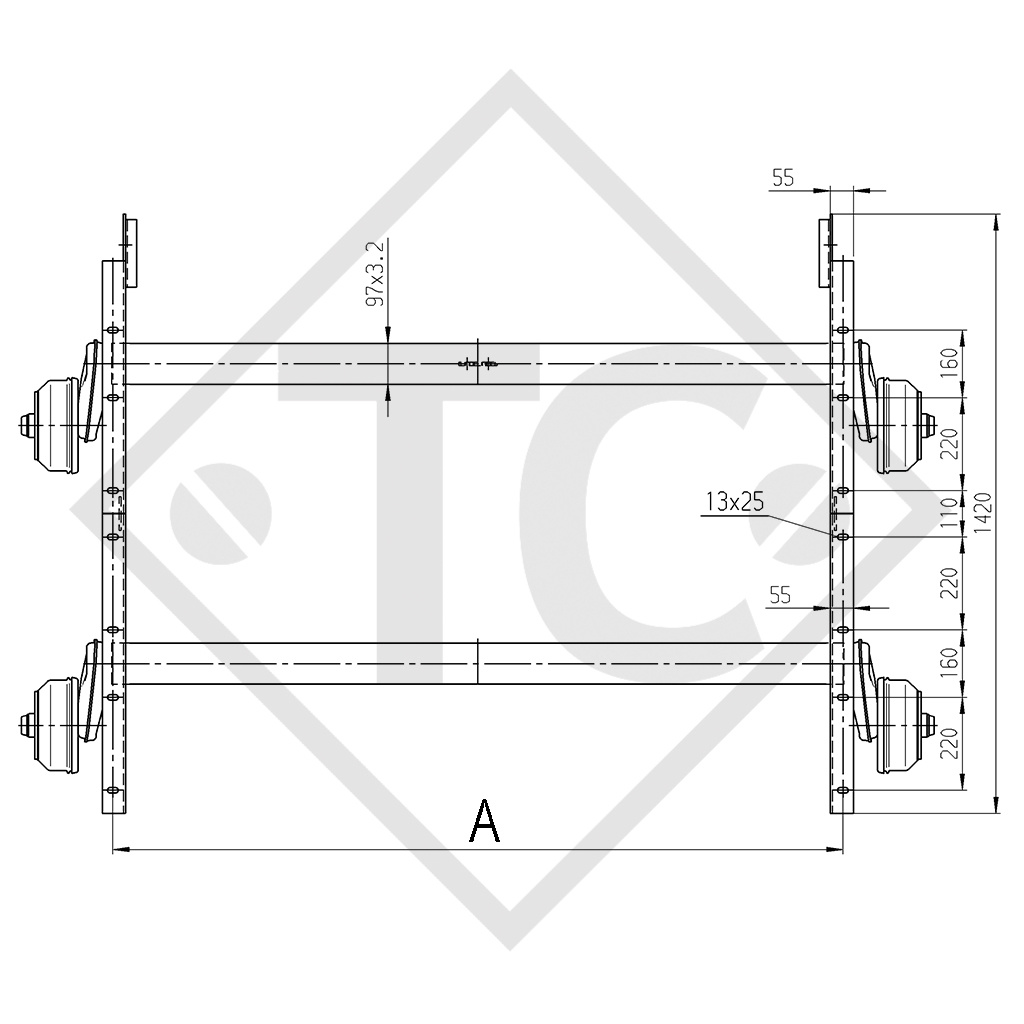

BC dimension A: 1745mm

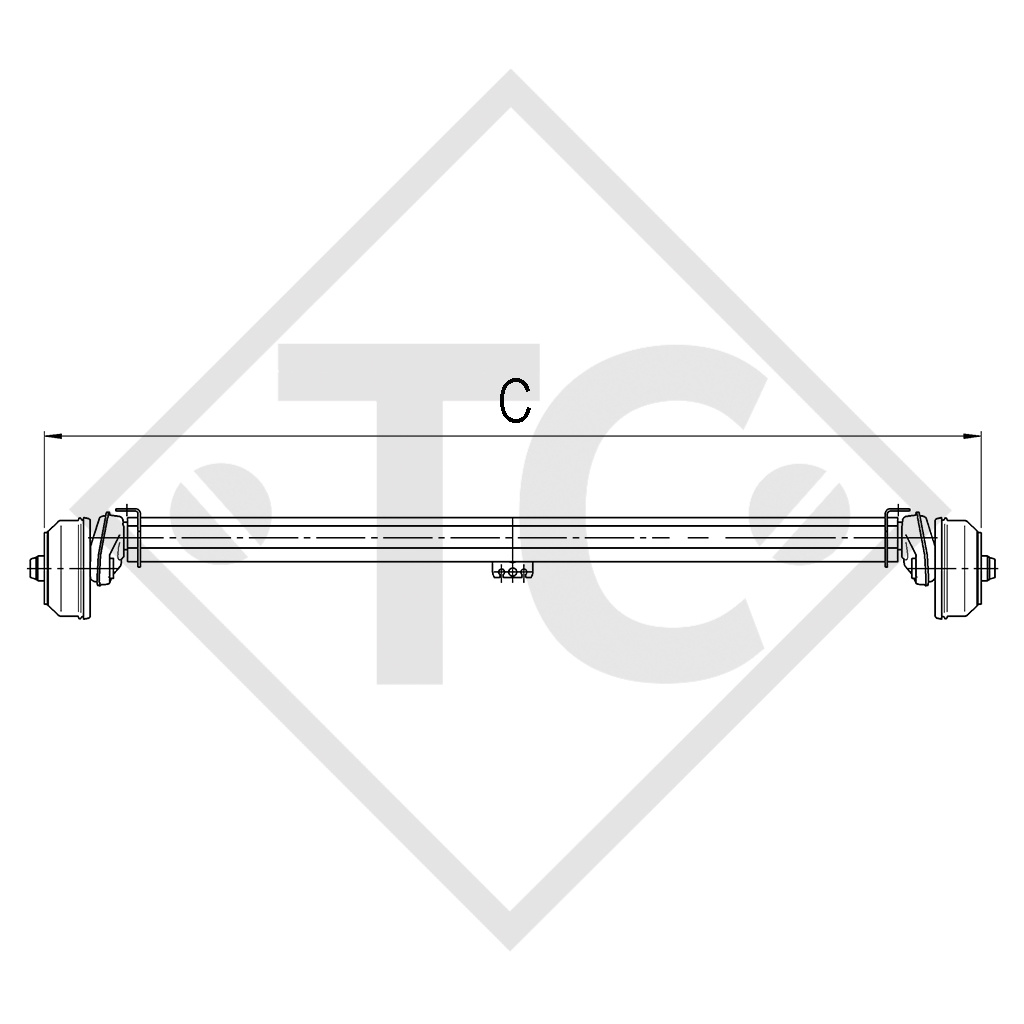

OHF dimension C: 2269mm
Axle beam Ø: 97mm
Original operating instructions
SCOPE OF DELIVERY

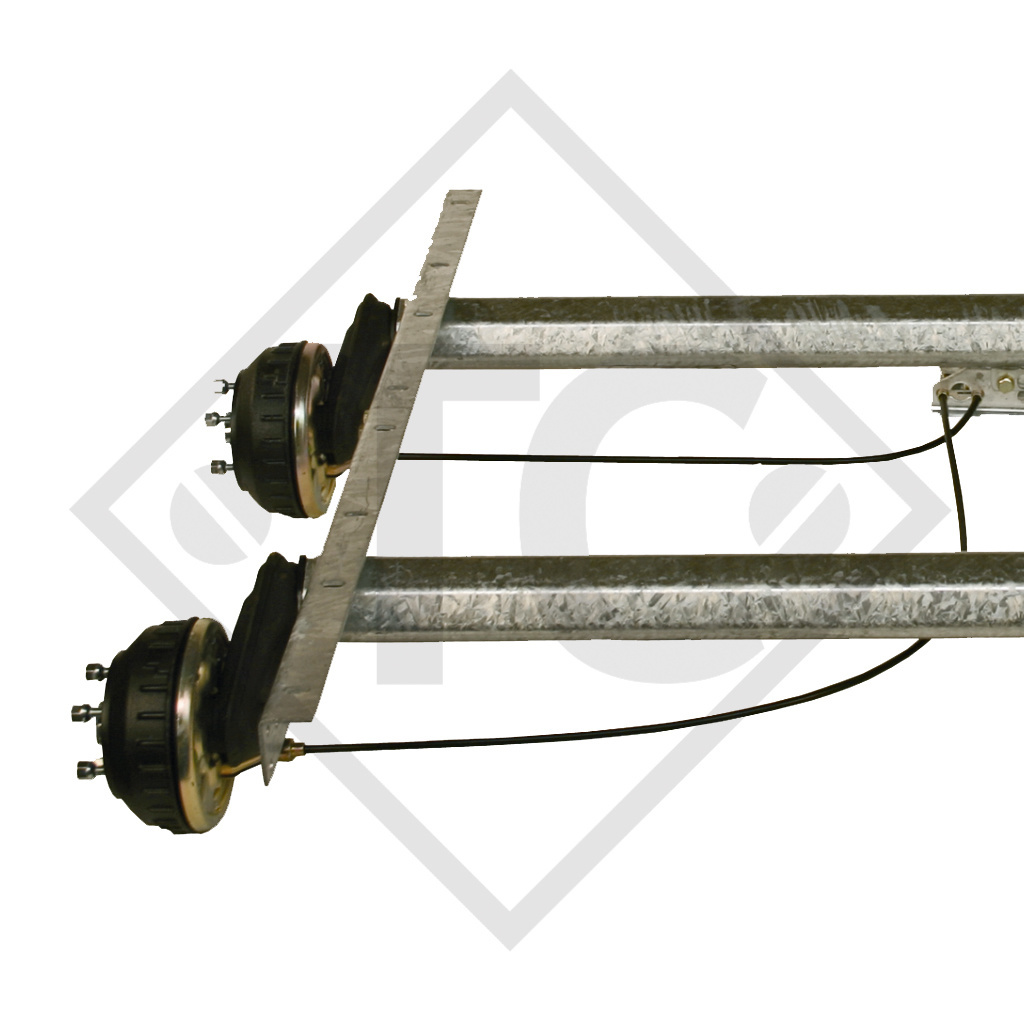

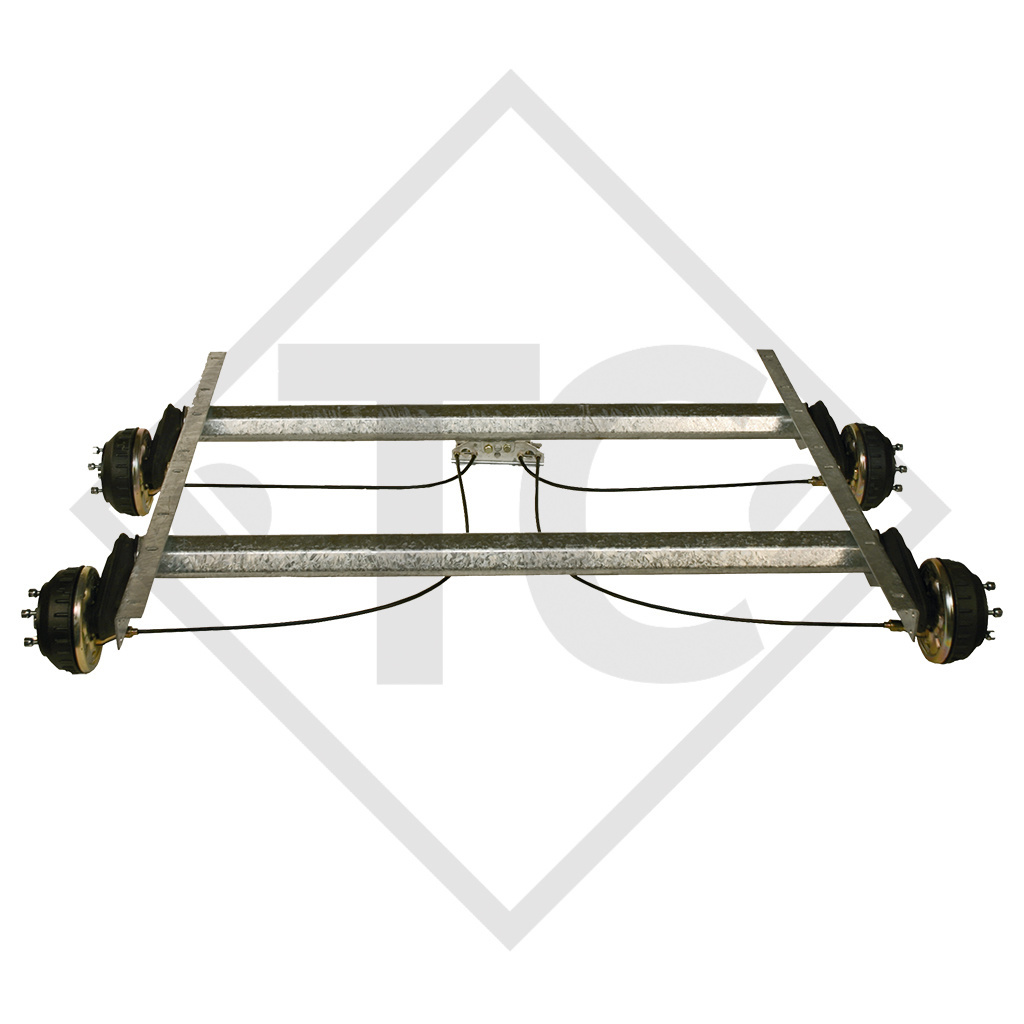

Tandem axle unit braked with AAA (automatic adjustment of the brake pads)
Single axle trailer adapter bracket welded on
Tandem plug-on adapter bracket loose
Tandem compensation loose
Bowden cables loose
Without wheel bolts
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
Other designs available on request.
