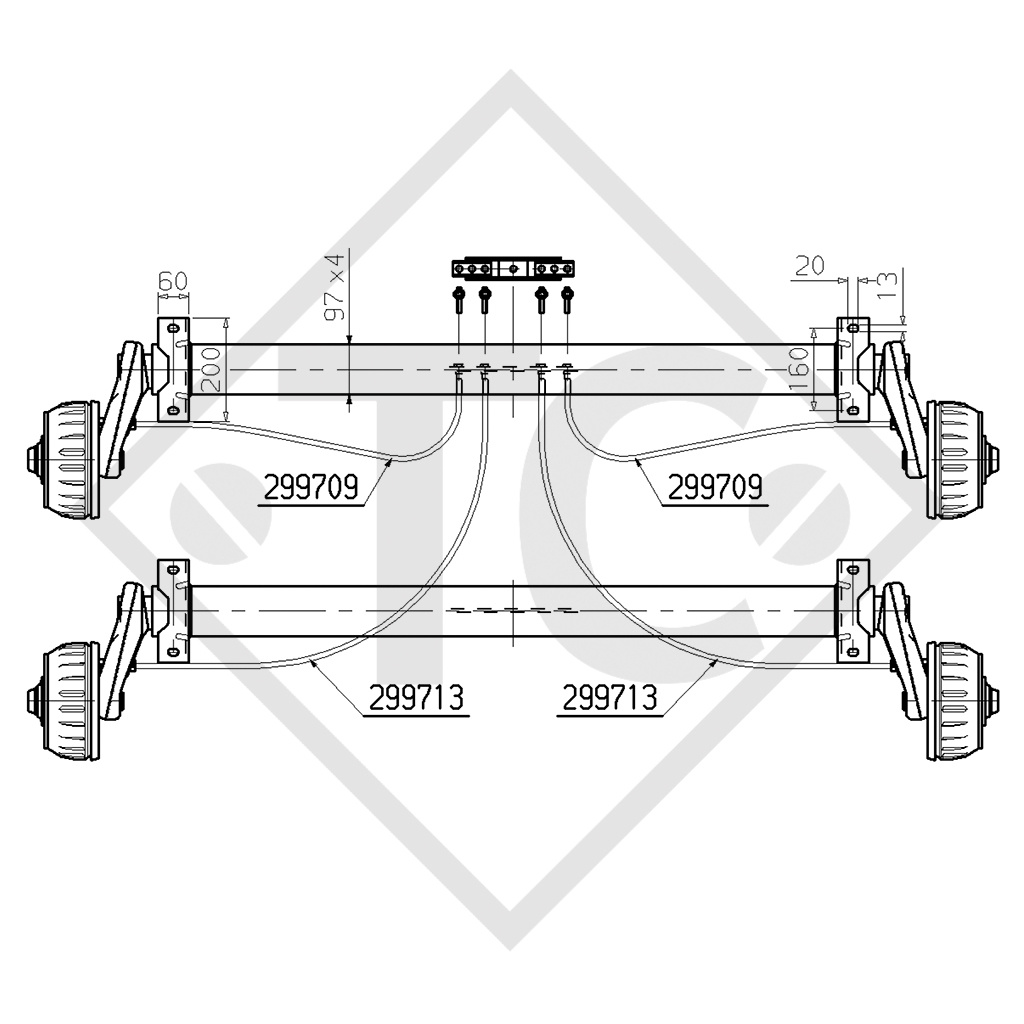

Home / Braked tandem axle unit 2600kg EURO COMPACT axle type 2x B 1200-5 - Agados Donna
BC: dimension A 1400mm, OHF: dimension C 1850mm, wheel connection 112x5, wheel brake type 2051 vers. Aa, offset (ET), swing arm position 5°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1220613 (1344699)

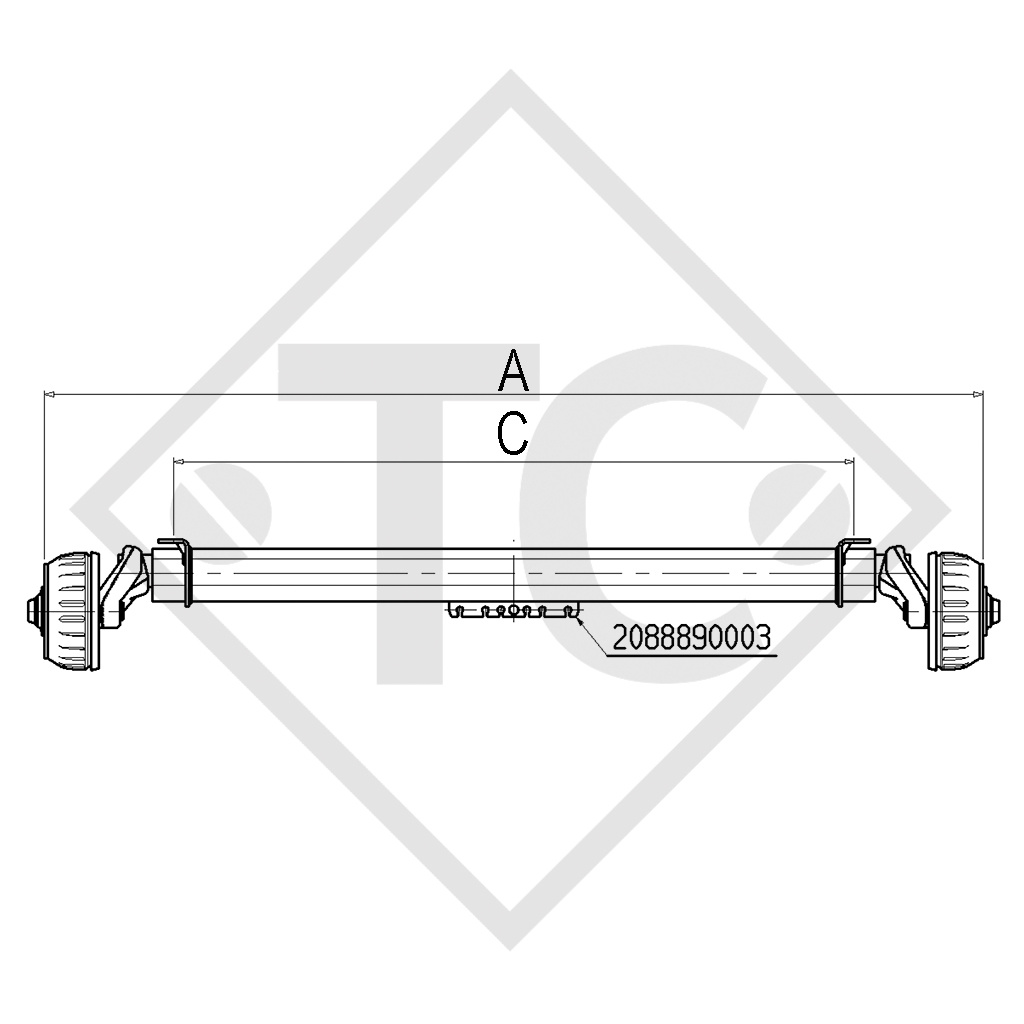

BC: dimension A 1400mm
OHF: dimension C 1850mm
Wheel connection 112x5
Offset (ET)

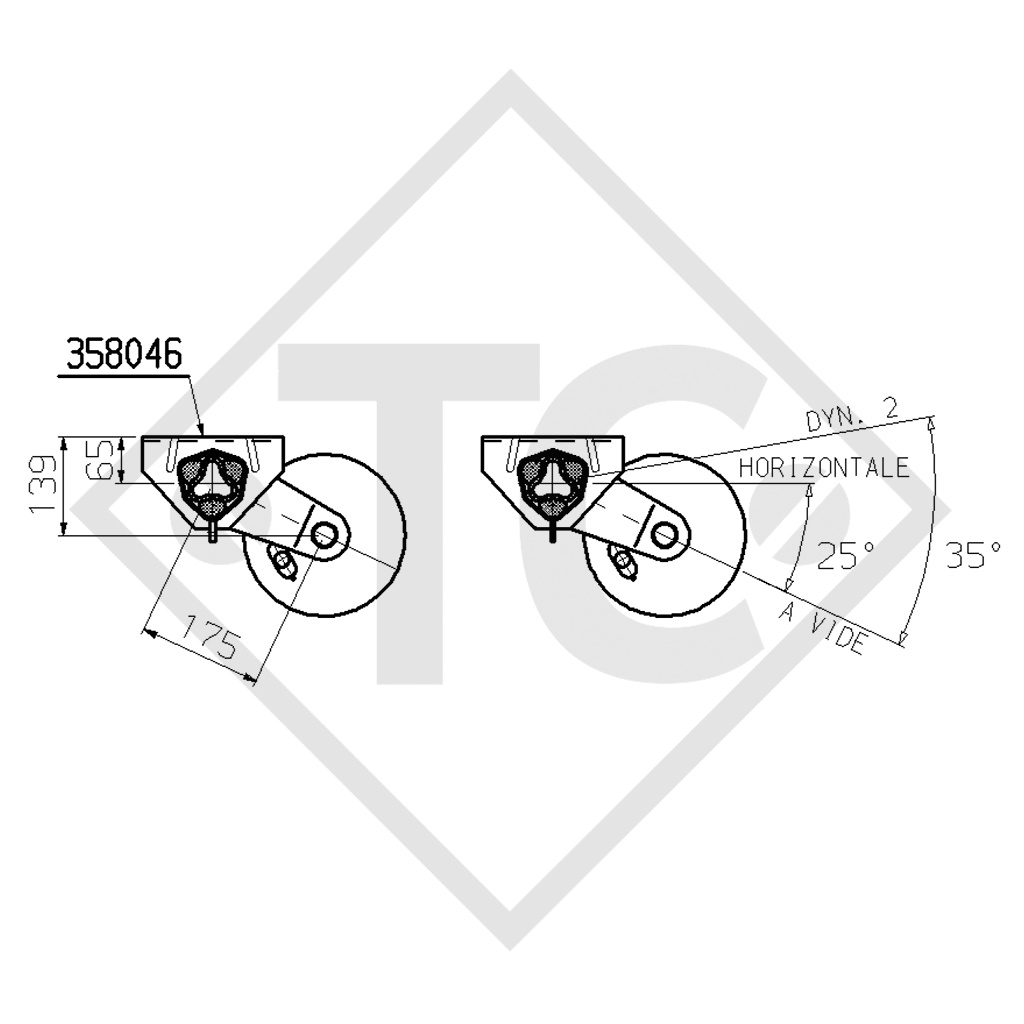

Swing arm position 5°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) 811268
TECHNOLOGY
Model: EURO COMPACT
Axle type: B 1200-5
Axle load: Single axle 1300kg
Axle load: Tandem axle 2600kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension
Swing arm length: 161,5mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with brake
Ball-head wheel bolts M12x1.5 loose
Tandem adapter bracket welded on
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
