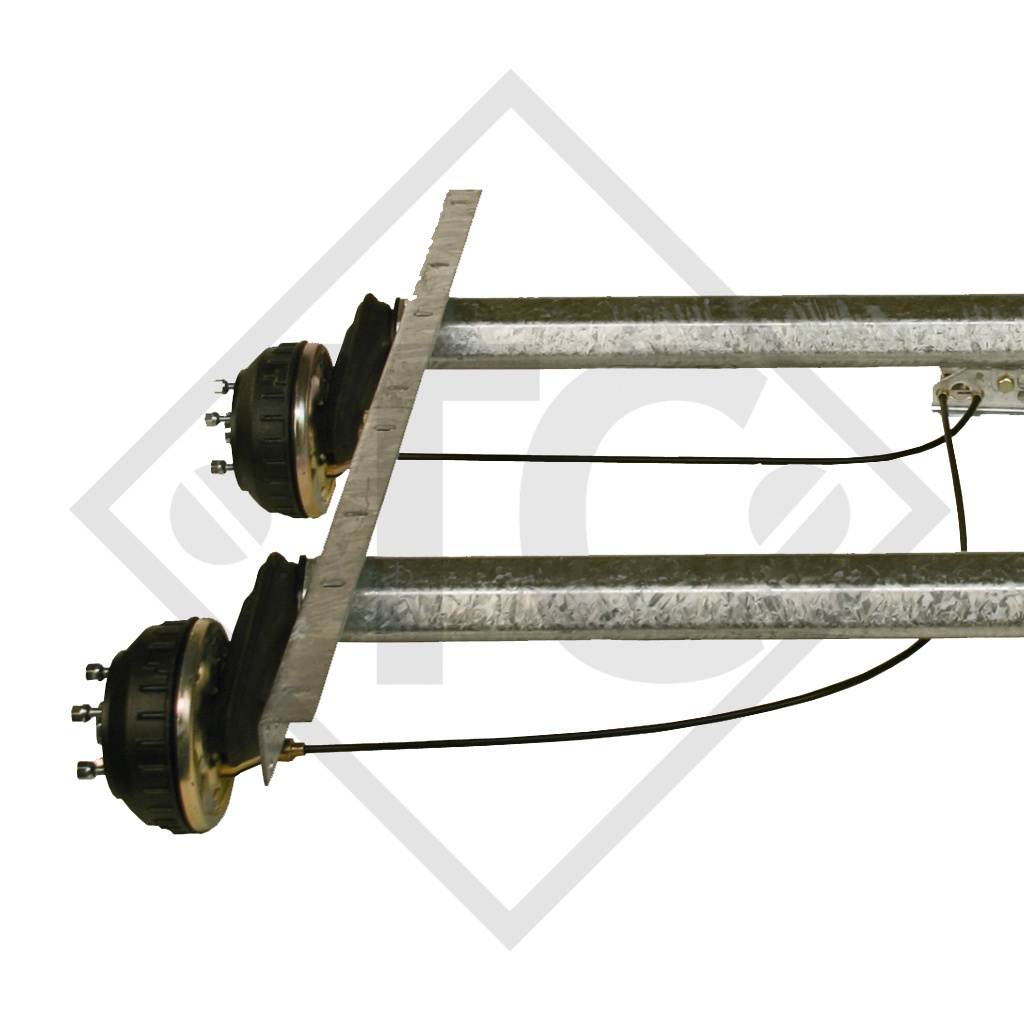

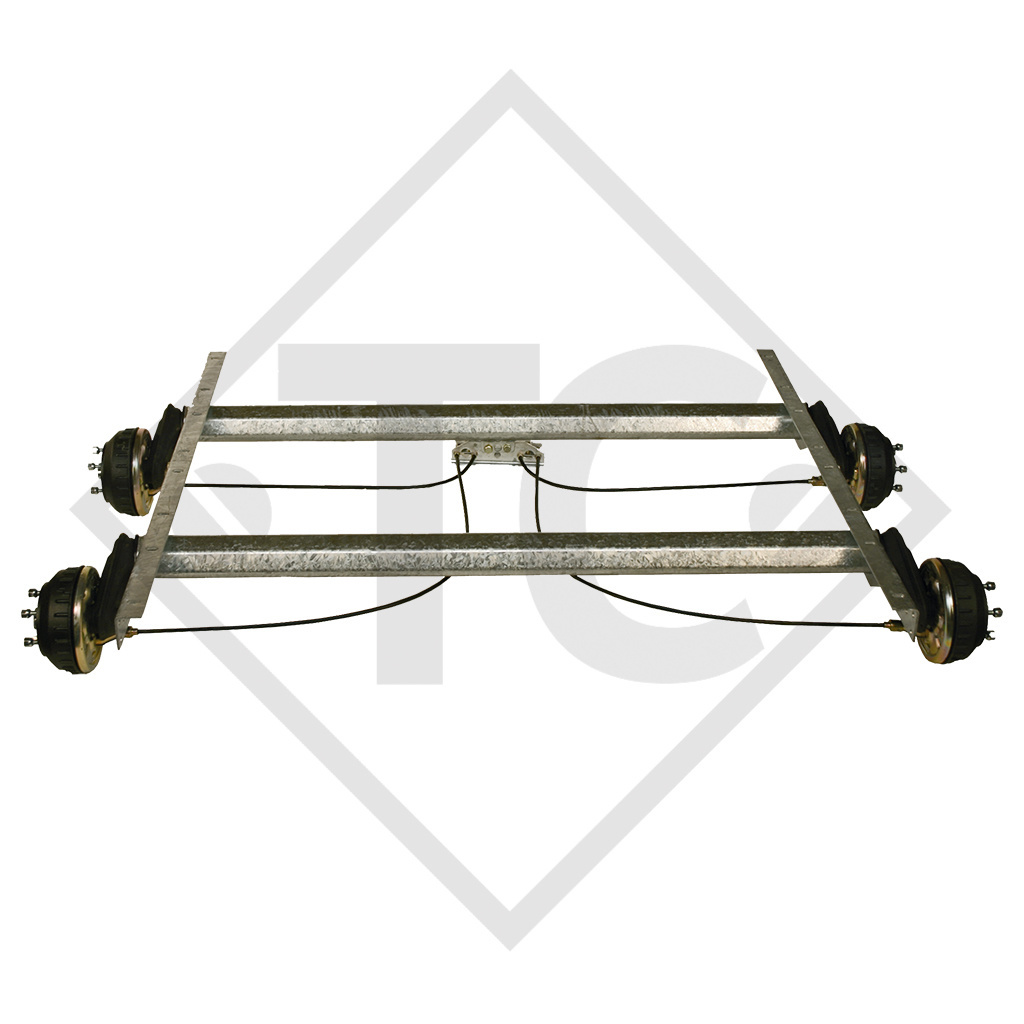

Home / Braked tandem axle unit 2500kg axle type 2x DELTA SIN 12 with AAA (automatic adjustment of the brake pads) - FENDT
BC: dimension A 1790mm, OHF: dimension C 2270mm, wheel connection 112x5, wheel brake type 2051 vers. A + AAA, offset (ET) 26-40mm, swing arm position 16°. Read more...
Part no. 1426191
Axle type: 2x DELTA SIN 12
Axle load tandem: 2500kg
Axle dimensions
BC dimension A: 1790mm

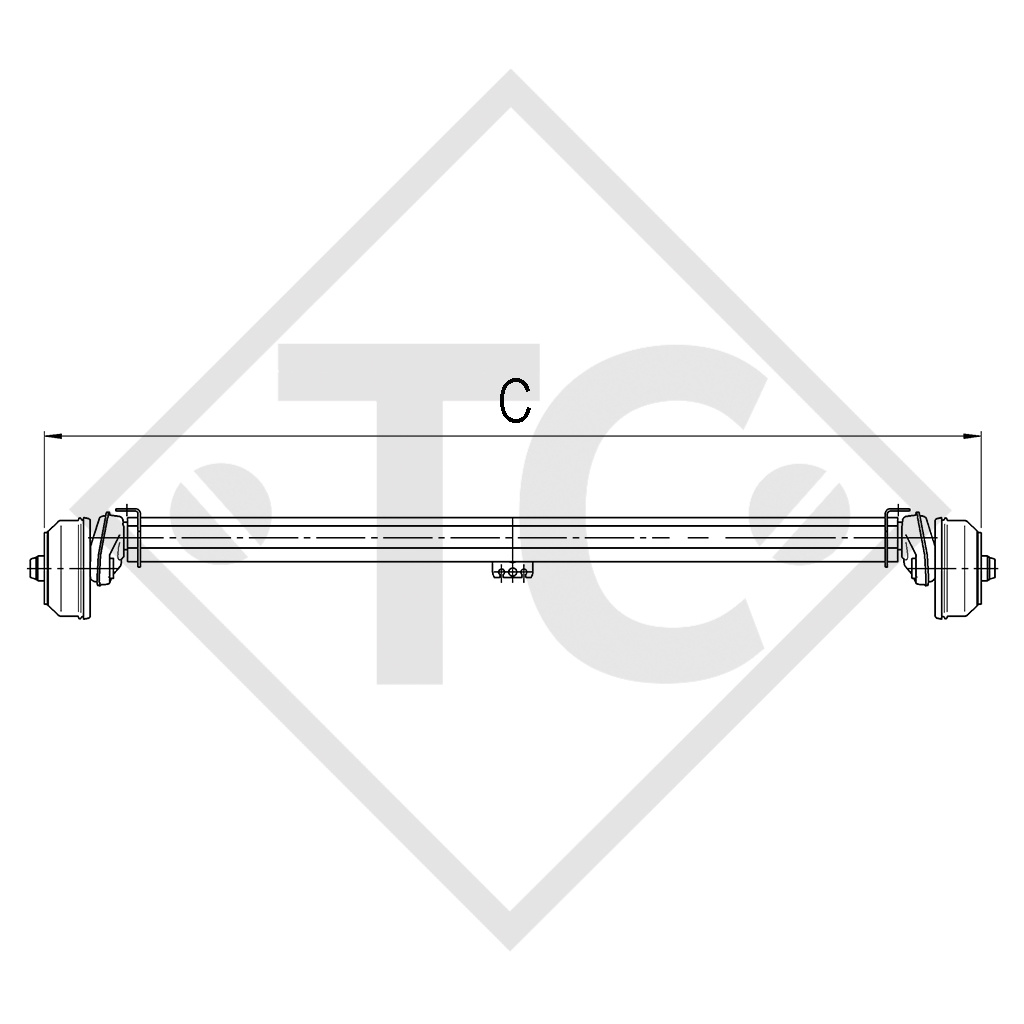

OHF dimension C: 2270mm
Axle beam Ø: 97mm
Original operating instructions
SCOPE OF DELIVERY
Tandem axle unit braked with AAA (automatic adjustment of the brake pads)
Single axle trailer adapter bracket welded on
Tandem plug-on adapter bracket loose
Tandem compensation loose
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
Other designs available on request.
