Home / CHASSIS PARTS / CHASSIS PARTS BPW / OVERRUN DEVICES / HEIGHT-ADJUSTABLE OVERRUN DEVICES / OVERRUN DEVICES HEIGHT-ADJUSTABLE PRODUCT LINE ZKV WITH COUPLING HEAD / HEIGHT-ADJUSTABLE OVERRUN DEVICES TYPE ZKV 13.1 B AK 1308 WITH DRAWBAR SECTION 650 TO 1300KG / Braked tandem axle unit 2000kg EURO COMPACT axle type 2xB 1000-3

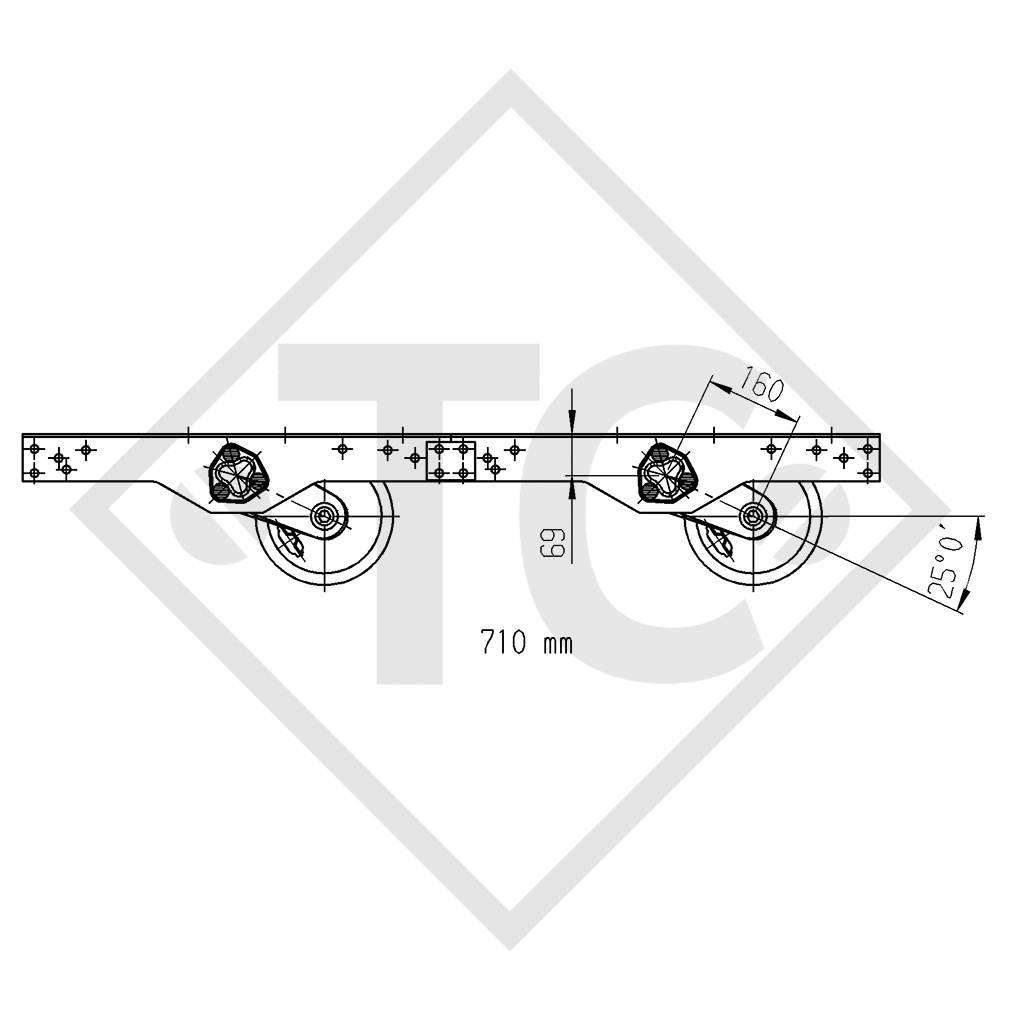

BC: dimension A 1650mm, OHF: dimension C 2100mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 26-40mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 249517 (619199)
Axle type: 2xB 1000
Axle load tandem: 2000kg

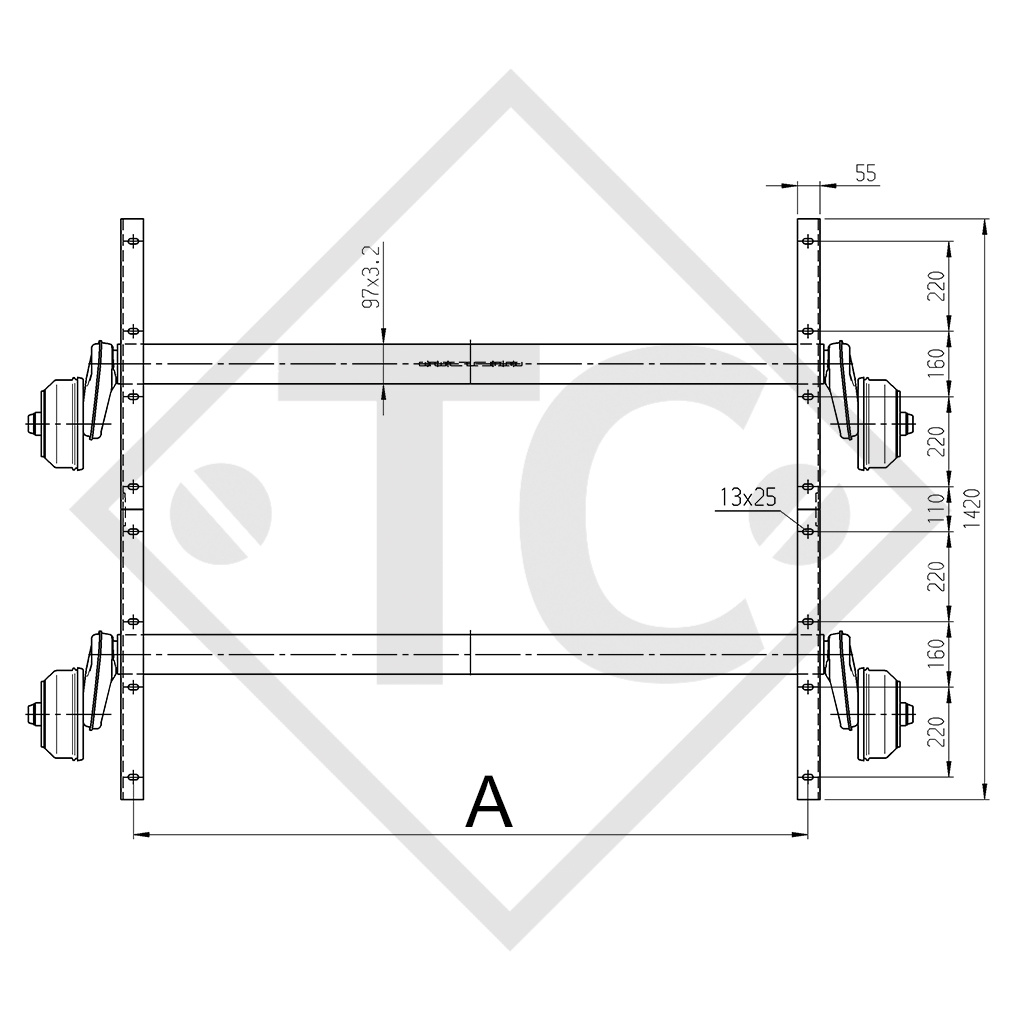

Axle dimensions
BC dimension A: 1650mm
OHF dimension C: 2100mm
Axle beam Ø: 97mm
Original operating instructions

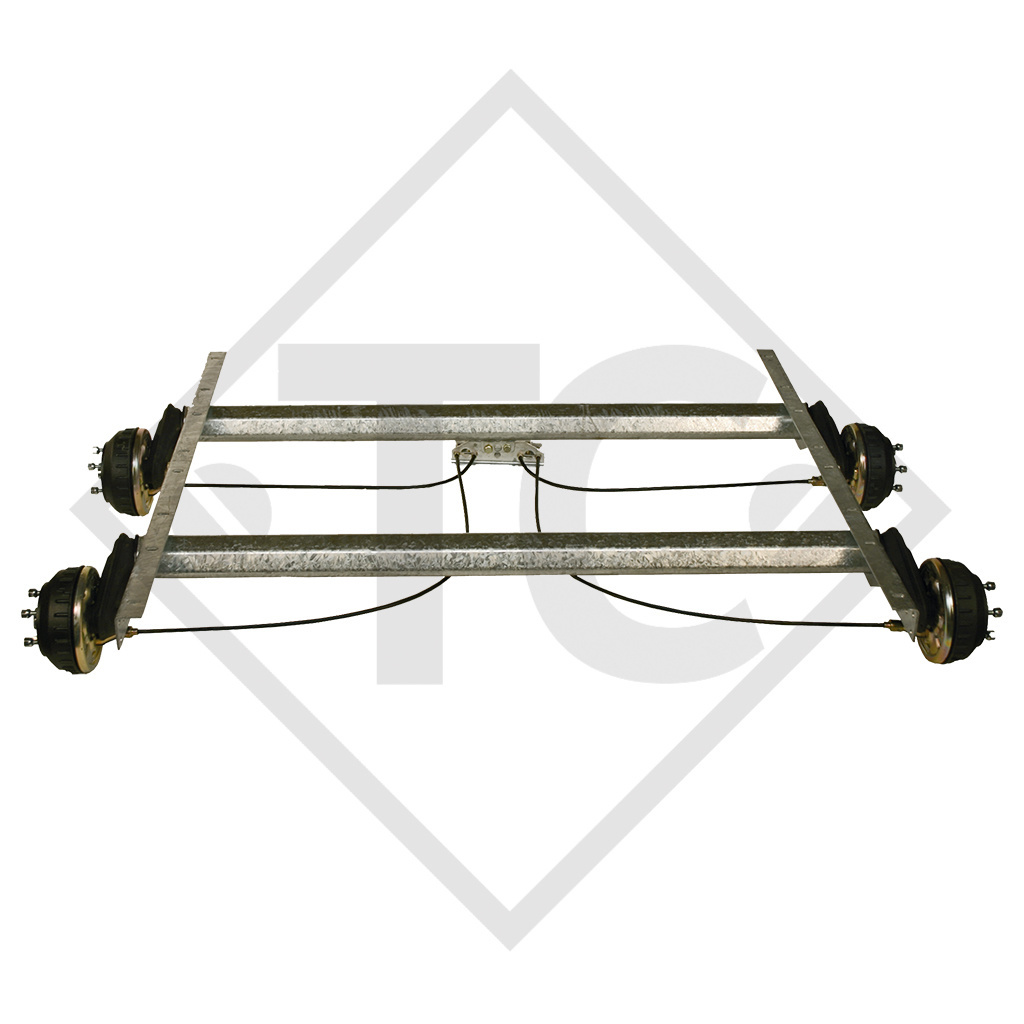

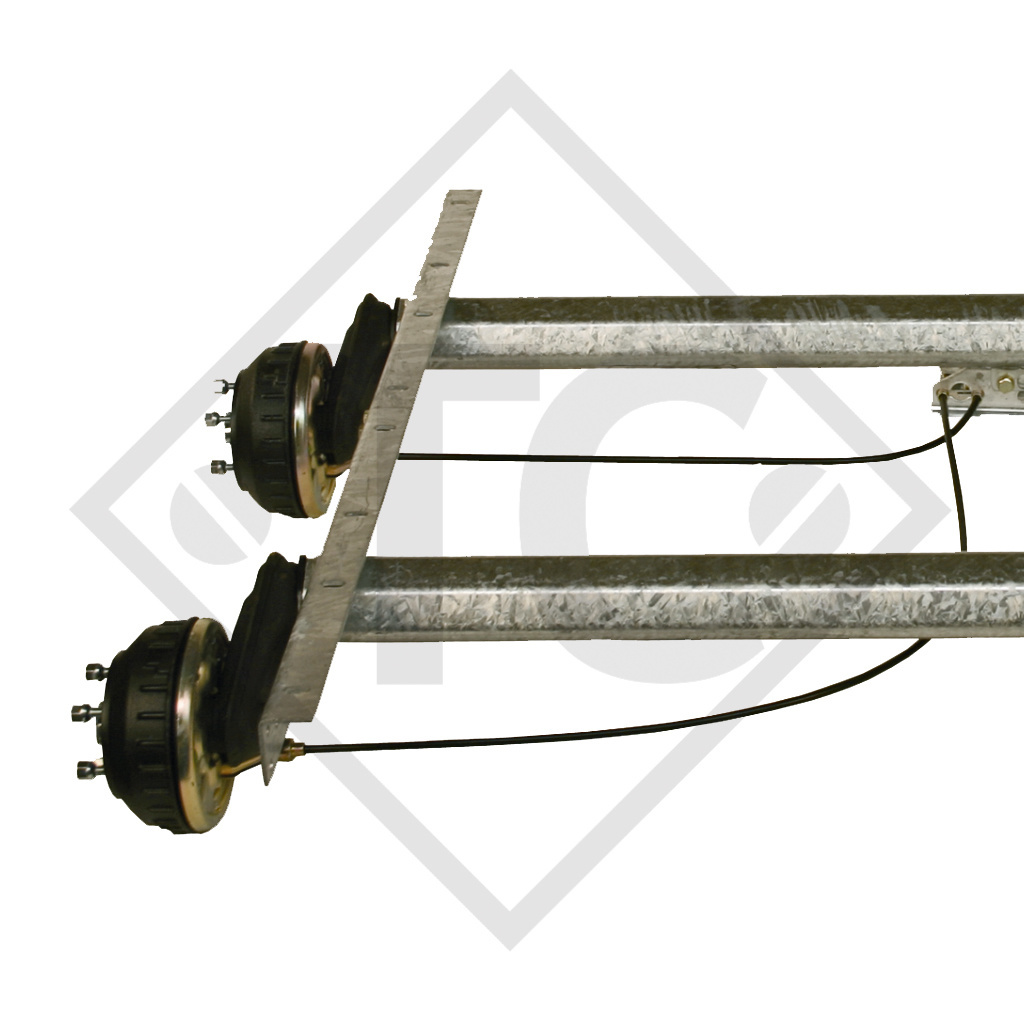

SCOPE OF DELIVERY
Tandem axle unit braked
Single axle trailer adapter bracket welded on
Tandem plug-on adapter bracket loose
Tandem compensation loose
Bowden cables loose
Wheel bolts loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
Other designs available on request.
