BC: dimension A 1550mm, OHF: dimension C 2000mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-45mm, swing arm position 25°, axle profile 80mm, taper-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:
Price 1.541,00 EUR Incl. tax Excl. Shipping costs

Part no. 244076
Axle type: 2xB 850
Axle load tandem: 1600kg

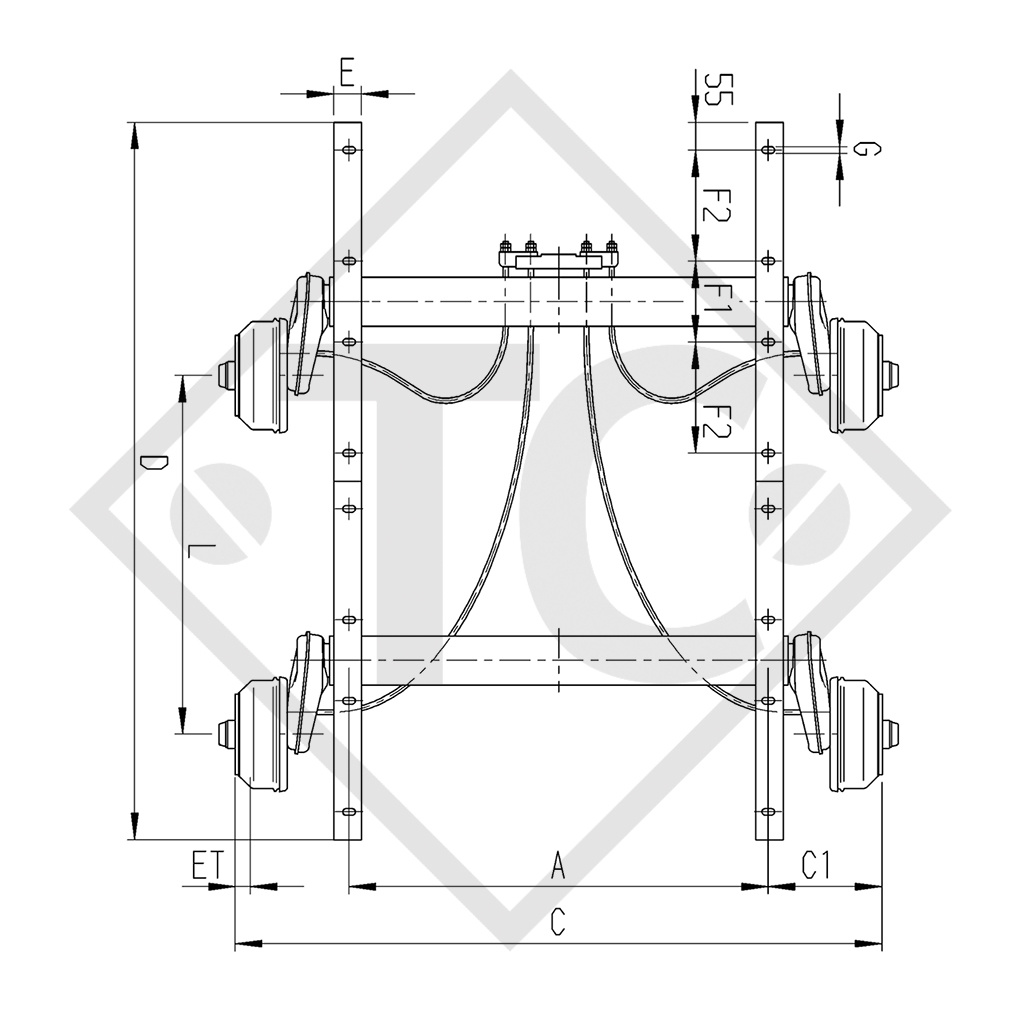

Axle dimensions
BC dimension A: 1550mm
OHF dimension C: 2000mm
Axle beam Ø: 80mm

Rims and tyres
Wheel brake: 1637
Wheel connection: 100x4
Wheel bolt: M12x1.5 taper-head
Offset (ET) from to: 27-45mm
Recommended rims: 4.5Jx13 (not included in scope of delivery)
Recommended tyres: 165R13 (not included in scope of delivery)

Clamping mount
Variant no.: 1
Dimension D: 1420mm
Dimension E: 55mm
Dimension F1: 160mm
Dimension F2: 220mm
Dimension G: 13mm

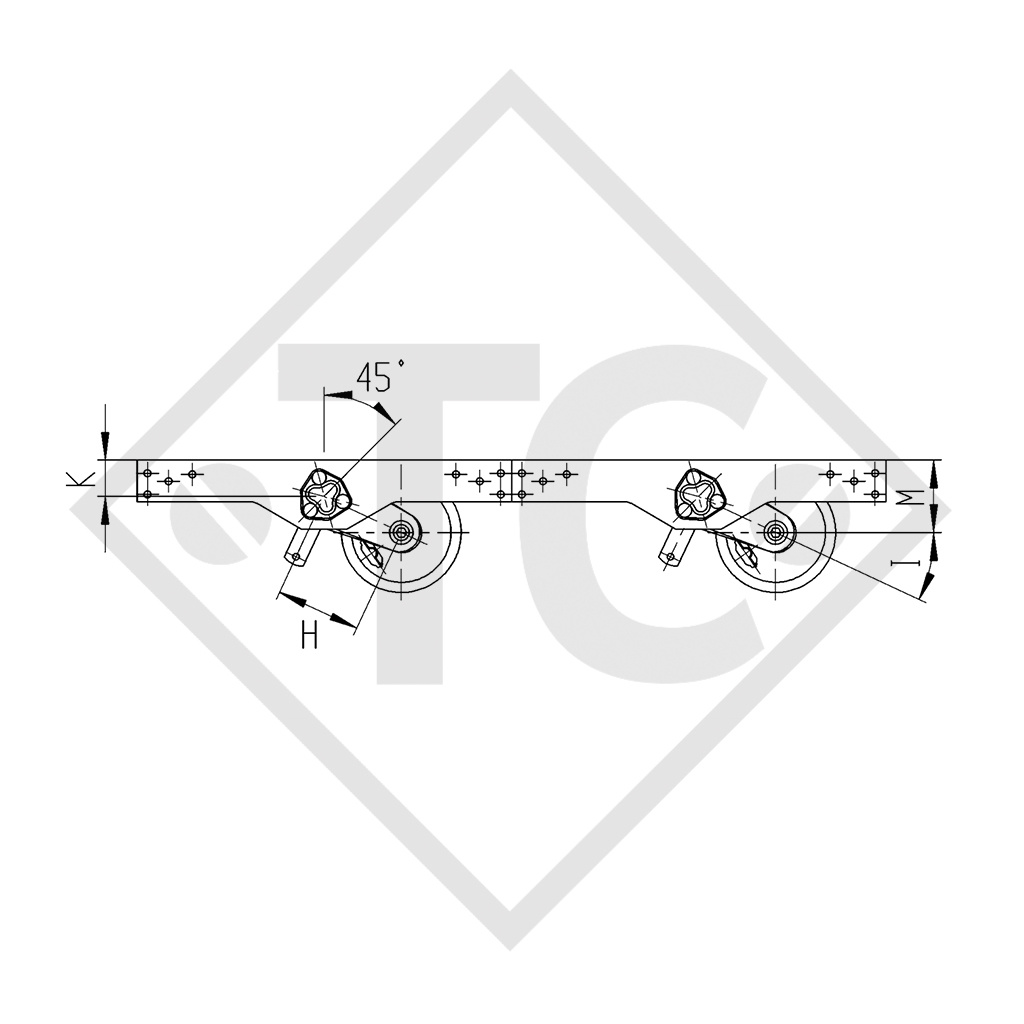

Swing arm
Dimension H: 158mm
Dimension I Standard (Swing arm position): 25°
Dimension K: 65mm
Dimension L (axle distance): 710mm
Dimension M at 25°: 133mm

Minimum axle dimensions
C1 min.: 1190mm
C1 min. with clamping mount variant no.: 200mm with clamping mount variant no. 1

Original operating instructions

SCOPE OF DELIVERY

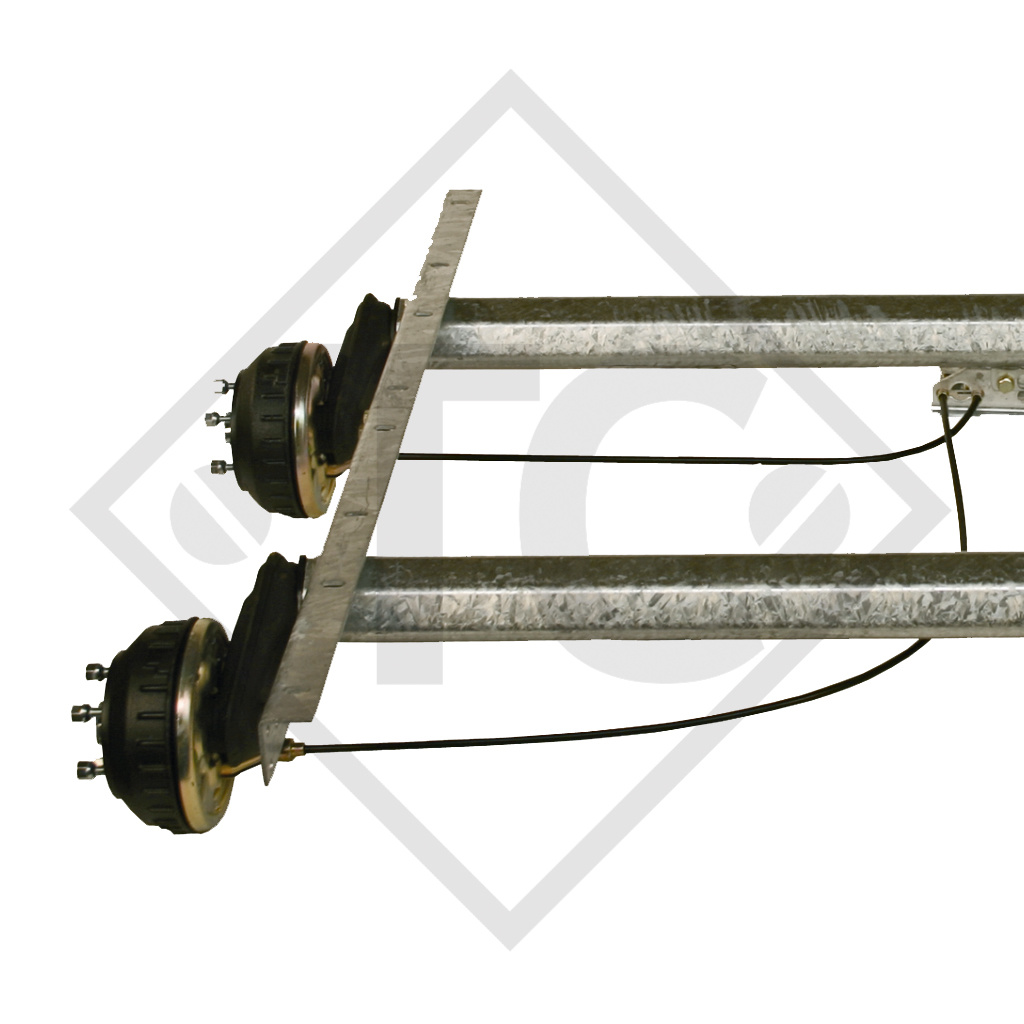

Tandem axle unit braked
Single axle trailer adapter bracket welded on
Tandem plug-on adapter bracket loose
Tandem compensation loose
Bowden cables loose
Wheel bolts loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

Other designs available on request.

... ...
