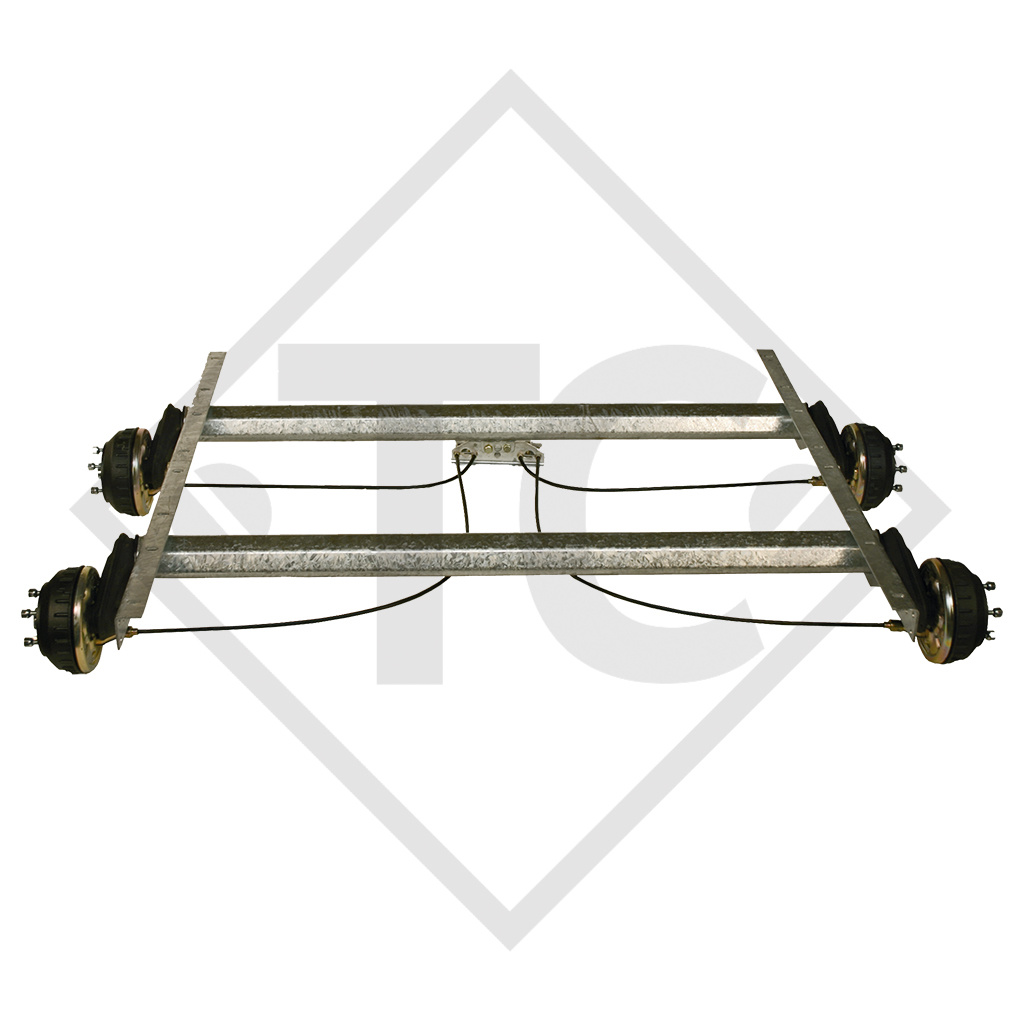

Braked tandem axle unit 1300kg EURO Compact axle type 2xB 850 1704243

Braked tandem axle unit 1300kg EURO Compact axle type 2xB 850-2 - WT-Metall

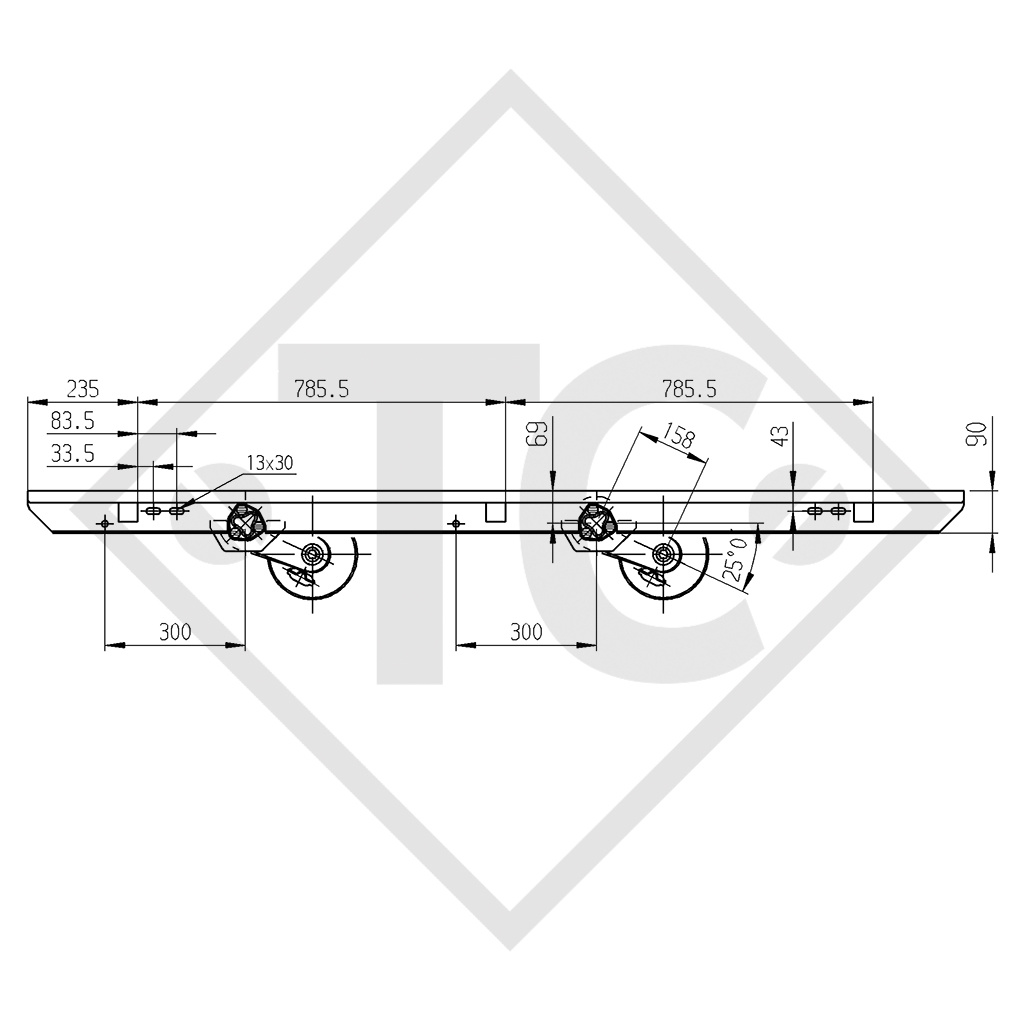

BC: dimension A 1180mm, OHF: dimension C 1570mm, wheel connection 100x4, wheel brake type 2051 A, offset (ET) 27-45mm, swing arm position 25°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 2.050,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20-25 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1704243
Axle type: 2xB 850-3
Axle load tandem: 1300kg

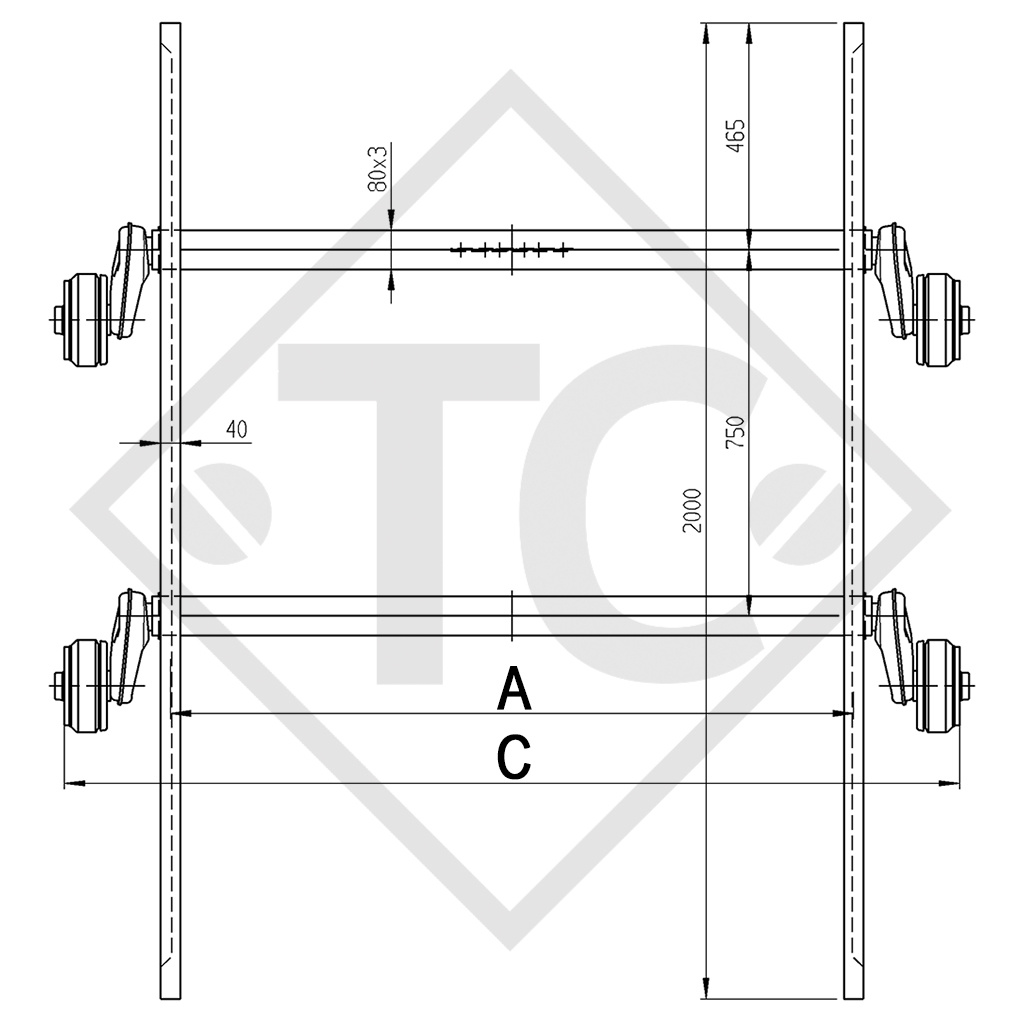

Axle dimensions
BC dimension A: 1180mm
OHF dimension C: 1570mm
Axle beam Ø: 80mm

Original operating instructions
Replacement part identification number (ETI) OLD 811156
Replacement part identification number (ETI) NEW 811973

SCOPE OF DELIVERY
Tandem axle unit braked
Single axle trailer adapter bracket welded on
Tandem plug-on adapter bracket loose
Tandem compensation loose
Bowden cables loose
Wheel bolts loose ball-head

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
