BC: dimension A 930mm, OHF: dimension C 1380mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-45mm, swing arm position 30°, axle profile 71mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 1763679
Axle type: 2xB 700-5
Axle load tandem: 1300kg

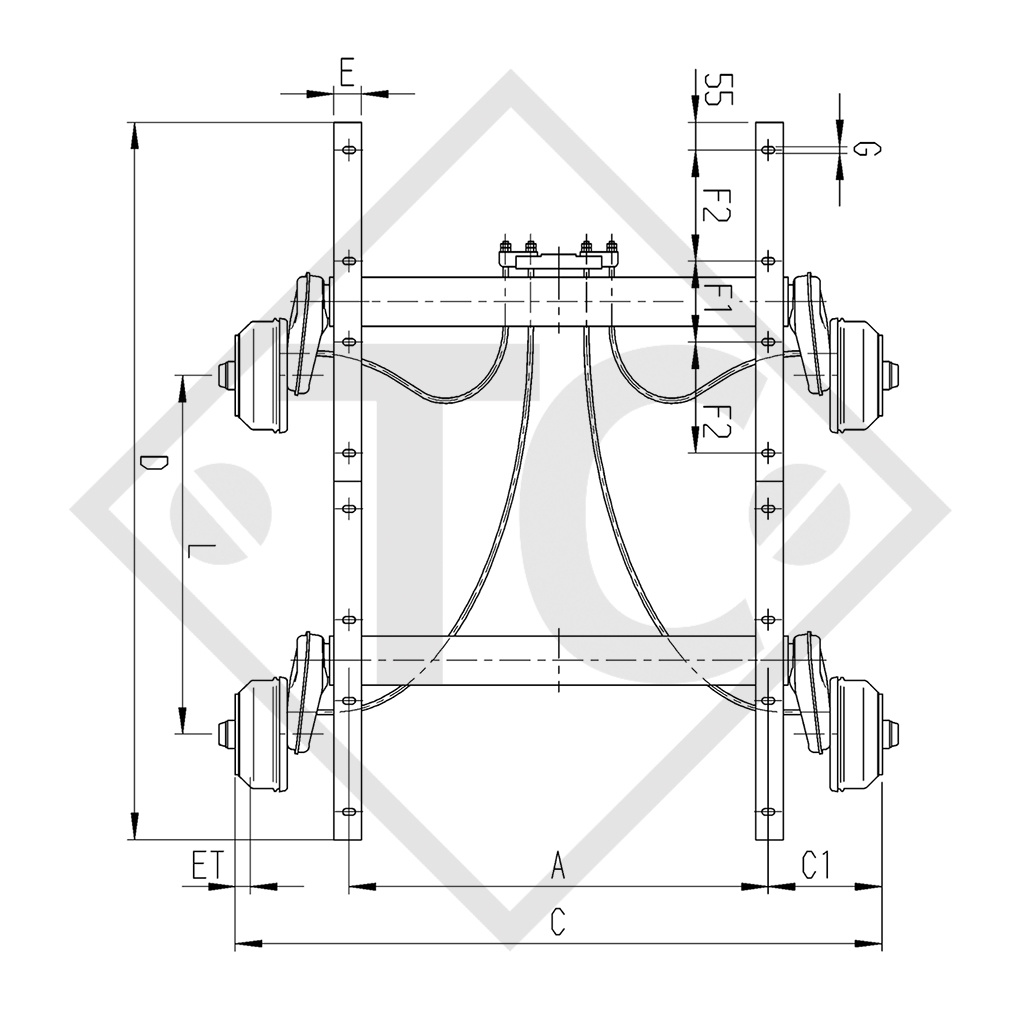

Axle dimensions
BC dimension A: 930mm
OHF dimension C: 1380mm
Axle beam Ø: 71mm
Rims and tyres
Wheel brake: 1637
Wheel connection: 100x4
Wheel bolt: M12x1.5 taper
Offset (ET) from to: 27-45mm
Recommended rims: 4.50Jx13 (not included in scope of delivery)
Recommended tyres: 165R13 (not included in scope of delivery)

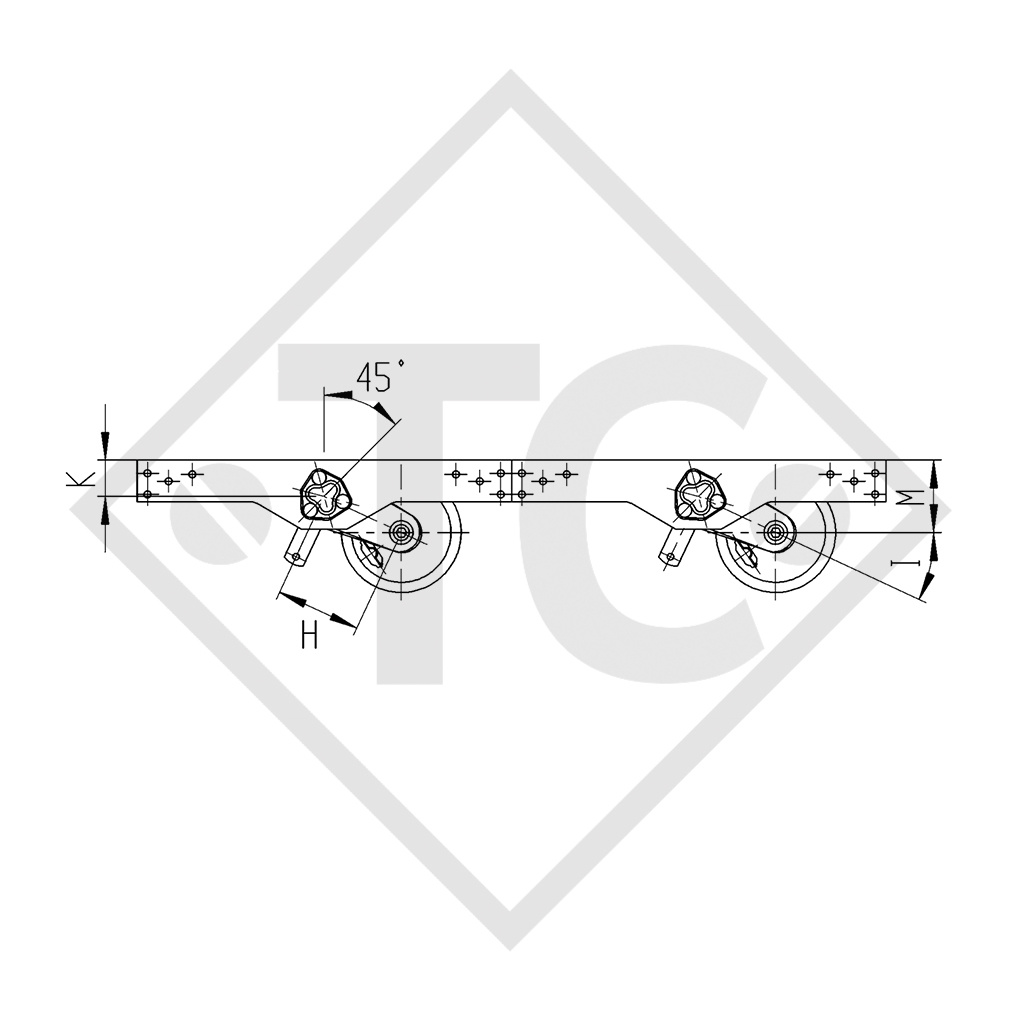

Swing arm
Dimension H: 145mm
Dimension I Standard (Swing arm position): 30°
Dimension L (axle distance): 650mm
Original operating instructions

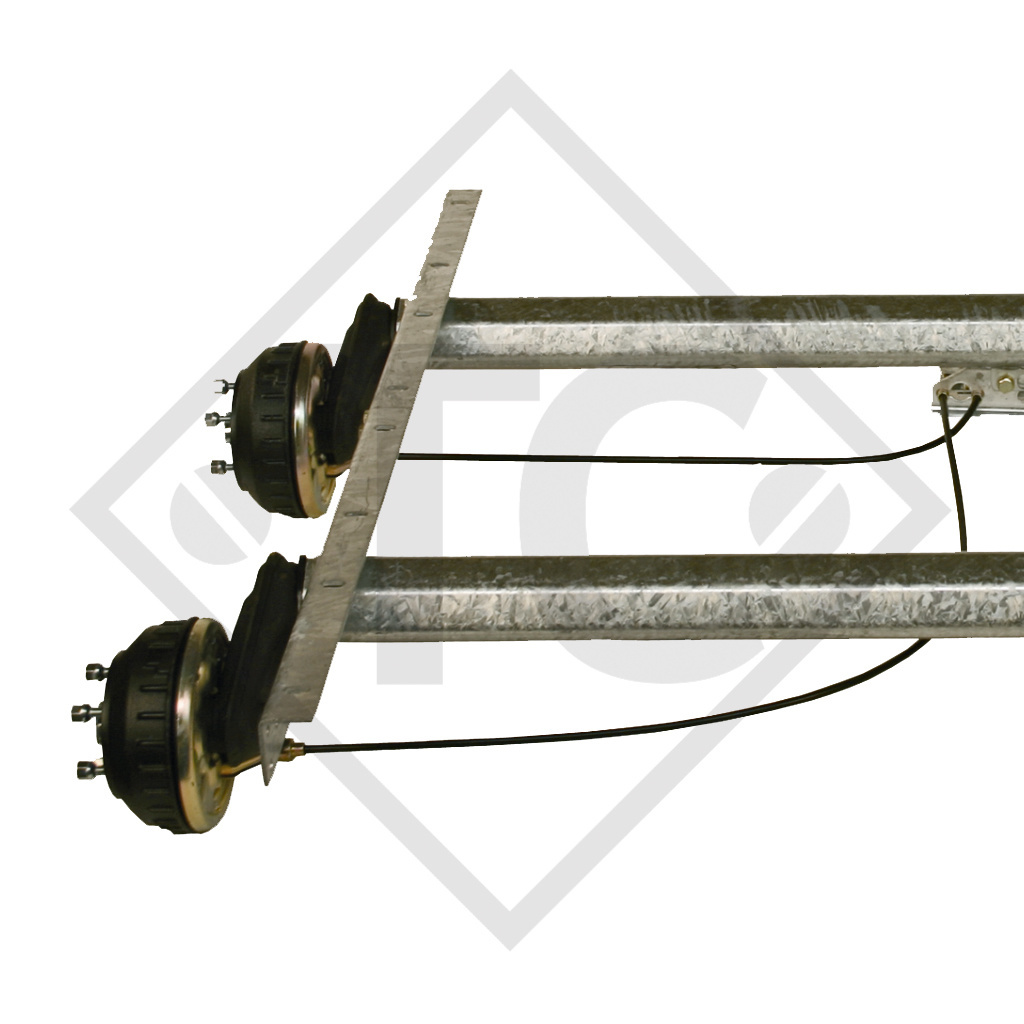

SCOPE OF DELIVERY
Tandem axle unit braked
Single axle trailer adapter bracket welded on
Tandem plug-on adapter bracket loose
Tandem compensation loose
Bowden cables loose
Wheel bolts loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
