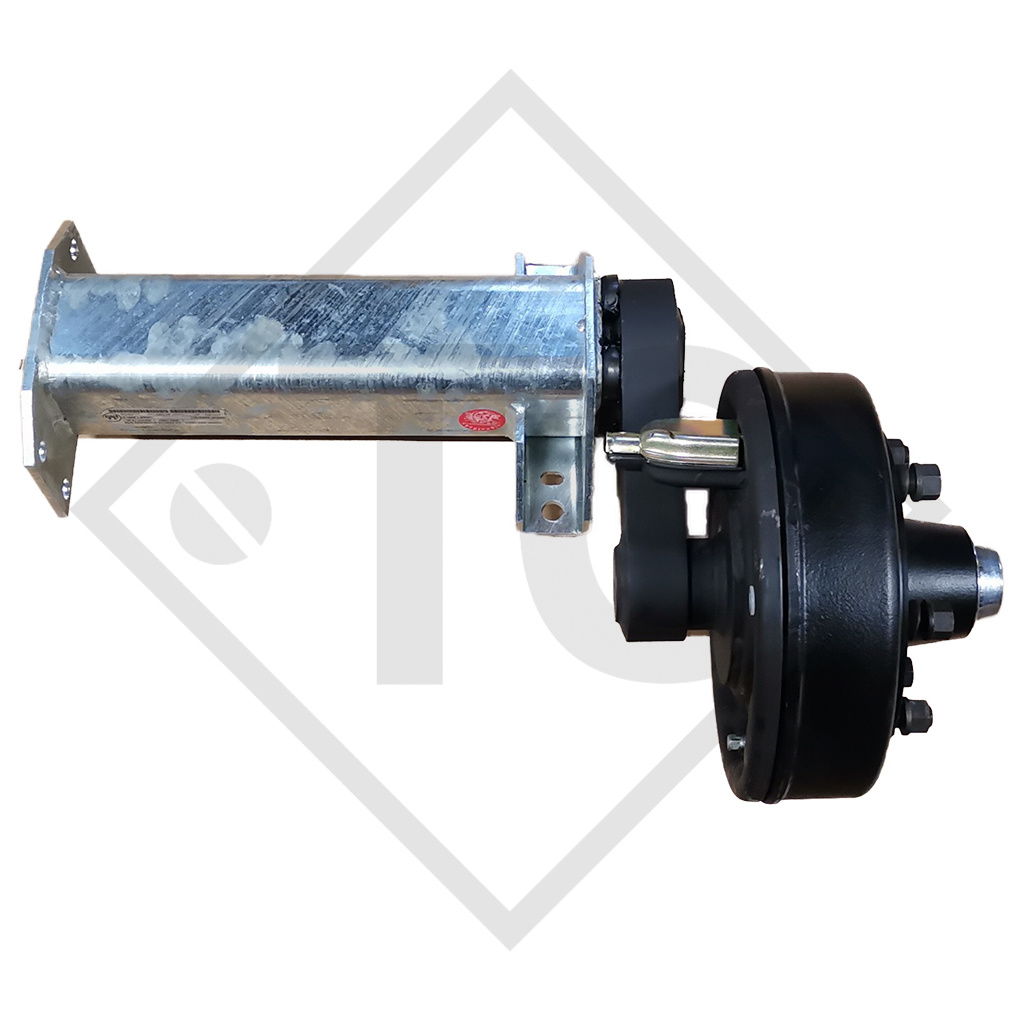

Home / Braked half axles 2500kg axle type CSST 2506, left, 46.41.373.027
BC: dimension A 410mm, OHF: dimension C 650mm, wheel connection 205x6, wheel brake type S 3006-7 RASK, offset (ET) 0mm, swing arm position 0°, axle profile 110mm, wheel nuts M18x1.5 ball. Read more...
Part no. 46.41.373.027
| Braked half axles |
| Axle load per pair |
2500kg |
| Type | CSST 2506 |
| Wheel brake |
S 3006-7 RASK |
| Wheel connection |
205x6 |
| BC: dimension A | 410mm |
| OHF: dimension C | 650mm |
| Offset: ET |
0mm |
Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.373.XXX
Replacement part identification number (ETI) NEW 827040
SCOPE OF DELIVERY
Half axle
Bowden cable loose
Wheel nuts M18x1.5 ball
SURFACE TREATMENT
Hot-dip galvanised axle profile
